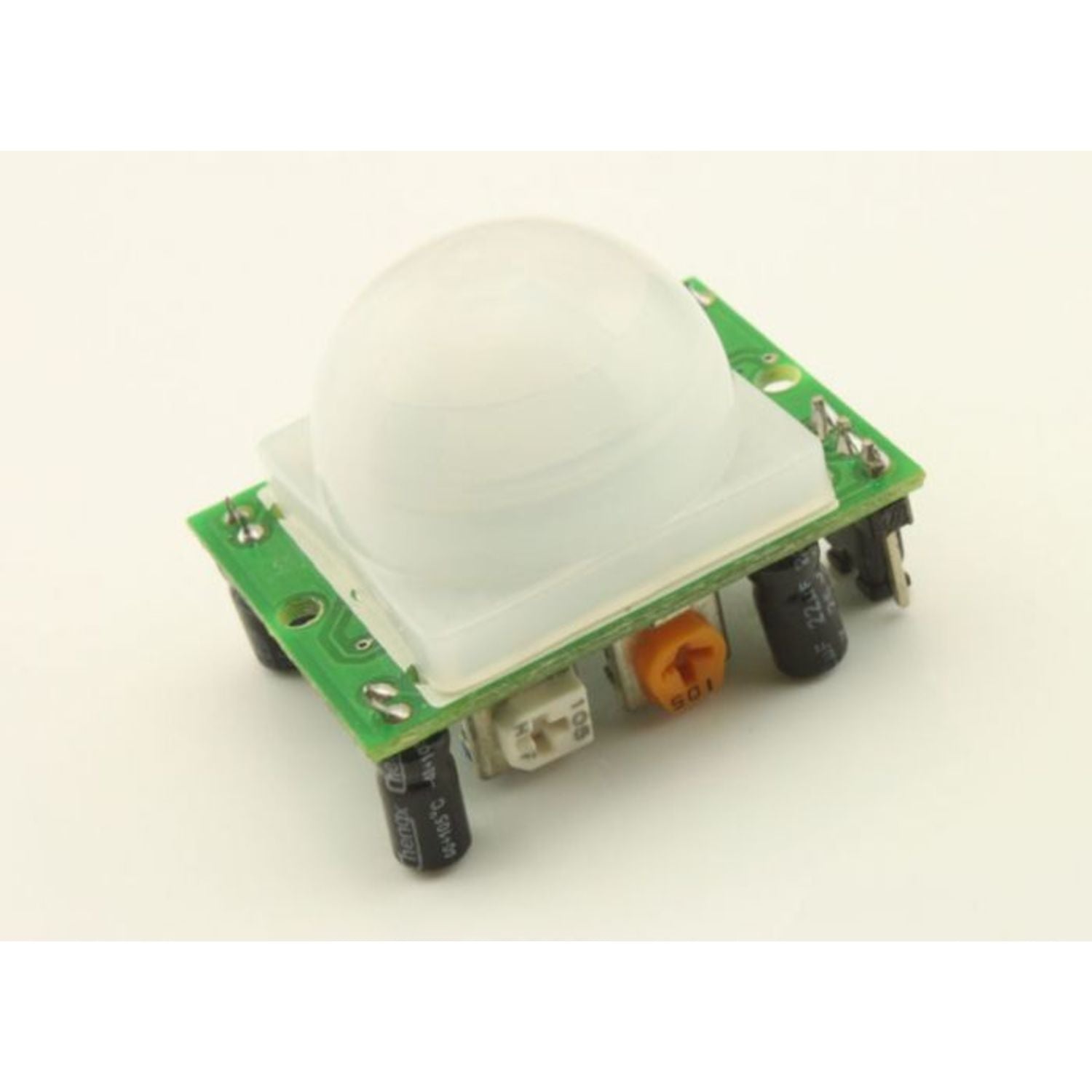

PIR Motion Sensor Module:DYP-ME003 SEN005

The DYP - ME003 PIR Motion Sensor Module, based on BISS0001, is a high - tech gem. It can quickly and automatically activate a wide range of devices such as incandescent and fluorescent lamps, buzzers, automatic doors, electric fans, and automatic washing and drying machines. Ideal for enterprises, hotels, shopping malls, warehouses, and family aisles and corridors. **Overview** Usage details: Input Voltage: DC 4.5 - 20V Static current: 50uA Trigger: H - Yes, L - No Block time: 2.5 S (default) Delay time: 5 S (default) Sentry Angle: < 110 degrees Sentry Distance: 3 m (default) - max 7 m Lens Size: Diameter 23mm (Default) Dimensions: 32mm x 24mm **Package Includes**: One DYP - ME003 PIR Motion Sensor Module. **Resources**: BISSOOO1 Datasheet, Schematic (jpg), Specification, and Related Articles. Visit the ElecFreaks wiki page for more product info. Your help in improving documents, adding demo code or tutorials is appreciated.

Using the DYP - ME003 PIR Motion Sensor Module is easy. First, make sure the input voltage is within the range of DC 4.5 - 20V. When the sensor detects motion, it will trigger the connected device according to the settings. The default block time is 2.5 seconds and the delay time is 5 seconds, but you can adjust them as needed. The sentry angle is less than 110 degrees and the sentry distance can be up to 7 meters. Some things to note: Don't expose the sensor to extreme temperatures or humidity. Avoid strong direct sunlight as it may affect the sensor's performance. For maintenance, keep the sensor clean. You can use a soft, dry cloth to wipe it. If there are any issues, refer to the BISSOOO1 Datasheet or visit the ElecFreaks wiki page for help.
