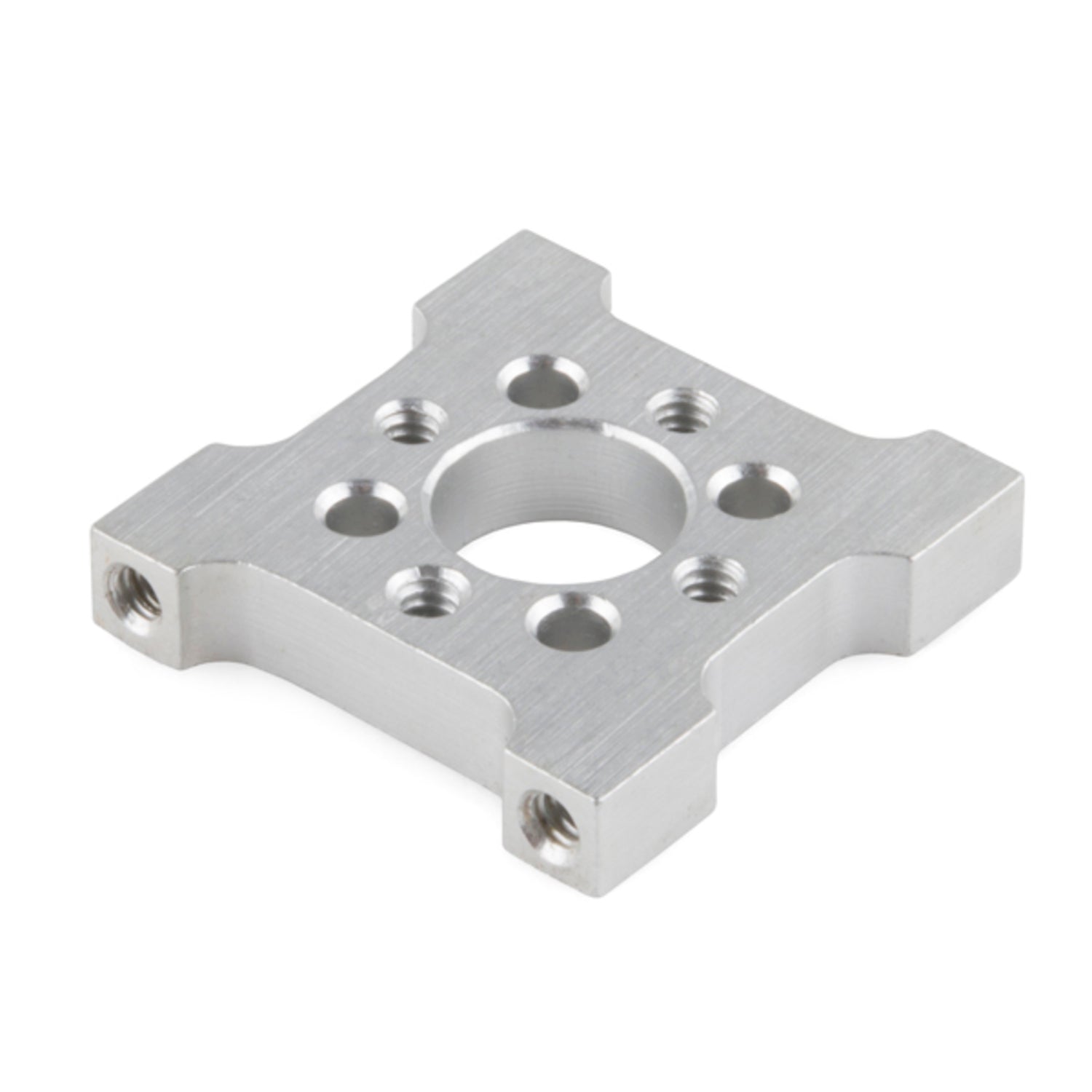

The Quad hub mounts are a great addition to your channel setup. They attach at a 90-degree angle to the inside of a channel, giving you extra attachment points for the open top. With a width of 1.32 inches, a thickness of 0.25 inches, a 0.50-inch bore bearing, and a 0.77-inch hub pattern, these mounts are well - defined in size. Actobotics is an amazing robotics building system. It's based on extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to two standardized hole patterns, most Actobotics components can be easily connected. This wide range of components makes it possible to build complex electromechanical prototypes or finished projects.
Dimensions:
- Width: 1.32 inches
- Thickness: 0.25 inches
- Bore Bearing: 0.50 inches

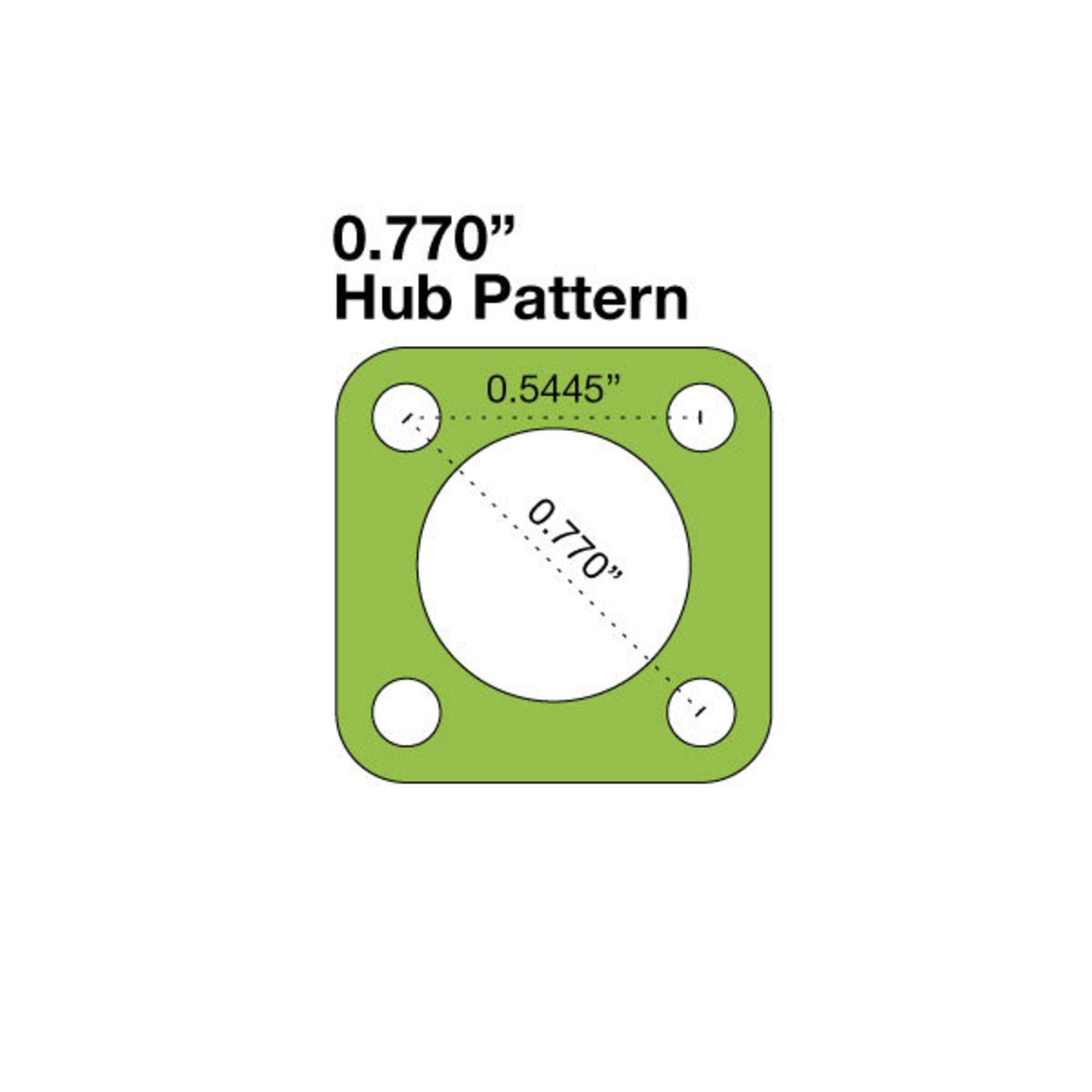

- Hub Pattern: 0.77 inches
Documents:
- SketchUp Part
- Product Page (545324)
Using these Quad hub mounts is easy. First, find the inside of your channel and align the mounts at a 90 - degree angle. Then, attach them to get those extra attachment points on the open top of the channel. When handling the mounts, be careful not to drop them as they can get damaged. Also, make sure the bore bearing is clean and free of debris. For maintenance, regularly check the components for any signs of wear and tear. If you notice any issues, replace the parts as needed. And always keep in mind that the Actobotics system's standardized hole patterns make it simple to connect different components together.
