Product Details

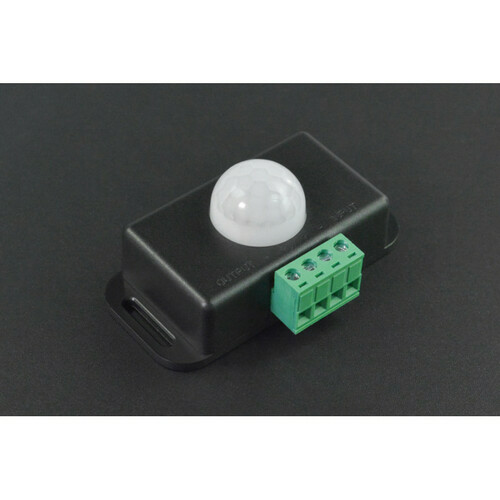

This amazing human body sensing switch uses infrared detection to control the load switch. It has a detection range of 5 - 8m, high sensitivity and reliability. The sensor comes with an adjustable delay function, and the input and output voltages are the same. It's a versatile product widely used in various automatic induction electrical devices like large bookcases, corridor lighting, light strip control, security products, and industrial automation control. There's a knob on the controller's back to set the delay time. When a person is detected, the load light turns on, and it automatically turns off after the set delay time when the person leaves. Note: First connect the load line, then the power wire, and ensure no short - circuit between the connecting lines before powering on. Features include a 5 - 8m detection range, high sensitivity, reliability, and an adjustable delay function. Applications cover automatic induction electrical equipment, large bookcases, corridor lighting, light strip control, security products, and industrial automation control. Specifications: Working Temperature: - 20°C - 60°C, Power Supply Voltage: 3 - 32V, Output Voltage: 3 - 32V, Sensing Distance: 5 - 8m, Sensing Angle: 60 degrees, Static Power Consumption: <1W, Output Current: <6A, Delay Time: 1 - 10min, Output Power: 12V: <72W, 24V: <144W, Dimensions: L76*W45*H35 mm / 2.99*1.77*1.38 inch, Packing Size: L104*W64*H41 mm / 4.09*2.52*1.61 inch, Weight: 50g. Shipping List: One DC 12V/24V Infrared Body Sensor Switch.
Using this infrared body sensor switch is easy. First, connect the load line and then the power wire. Make sure there's no short - circuit between the lines before you turn on the power. There's a knob on the back of the controller. You can use it to set how long the light stays on after you leave. When the switch detects a person, the load light will turn on right away. When you leave, it will stay on for the time you've set and then turn off automatically. Keep the switch in a place where the temperature is between - 20°C and 60°C. Don't expose it to extreme conditions. If you want to clean it, use a dry cloth. That's it! Enjoy using your sensor switch in your large bookcases, corridor lighting, or other electrical equipment.
