Miniware MHP30 Mini Hot Plate Preheater

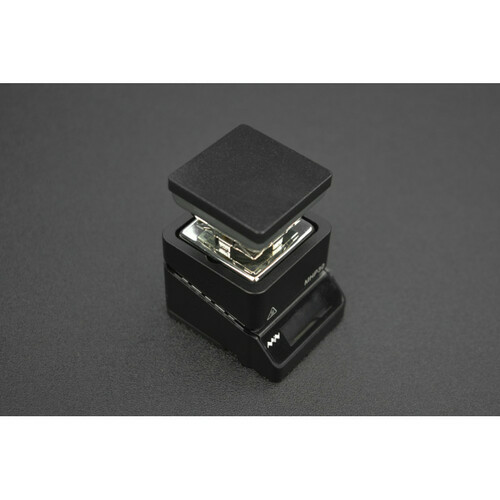

Introducing the ultra - compact and intelligent MHP30 constant temperature heating station. It streamlines the design, retaining a sufficient effective heating area to save energy and reduce heating time. This heating station shrinks the large desktop model into a pocket - sized device. With popular PD power input, it becomes a truly portable tool for your on - the - go needs. The MHP30 has a cute and dainty look, featuring a square tower shape with a total height of just 5.2cm (2 inches) and a 3cm * 3cm heating area. Its simple and compact design supercharges your work efficiency, making it an ideal assistant for preheating and desoldering. The high - efficiency heating area cuts down on unnecessary energy waste. The LED screen shows the real - time temperature of the heating element, helping you precisely control the heat. With PD power input, it offers a maximum power of 60W and can heat from room temperature (26°C) to 300°C in just 150 seconds. The MHP30 comes with a separable design, allowing you to flexibly separate and replace the controller and hot plate. The hot plate's heating body is made of brass with a nano - ceramic coating, ensuring a smooth surface and even heating. A modern stainless steel hollow bracket connects the heating part to the circuit board that can be directly inserted into the controller. The controller has a built - in true - color LED that changes color with temperature fluctuations, so you can easily tell the temperature at a glance. At the bottom, a pair of support feet can be spread out for anti - slip and stable support. In addition to its upgradeable firmware, the MHP30 offers smart modes like preset temperature, tilt protection, power wake - up, and automatic sleep. You can customize these functions according to your requirements. **Features**: Small and charming appearance, high - efficiency heating area, separable design, anti - slip and stable support. **Applications**: A perfect portable tool. **Specification**: Heating Element Model: BS30, Heating Area: 30mm * 30mm/1.18 * 1.18 inch, Temperature Range: 100°C - 350°C, Temperature Stability: 3%, Ground Resistance: <2Ω, Power: 60W (maximum), Power Input: PD protocol (20V maximum), Size: controller: 43mm * 35mm * 31mm(L * W * H)/1.69 * 1.38 * 1.22inch; heating element: 31mm * 31mm * 28mm /1.22 * 1.22 * 1.10 inch, Weight: 82g. **Shipping List**: MHP30 Controller x1, Mini Hot Plate (BS30) x1, Type - C Data Cable x1, PD Power Supply (American standard) x1, Conversion Plug (European standard) x1, Safety Instruction x1

Using the MHP30 is easy. First, connect the Type - C data cable to the controller and then to the PD power supply. Make sure to use the appropriate power supply according to your region and check the included conversion plug if needed. Once it's powered on, you can set your desired temperature on the controller. The LED screen will show you the real - time temperature of the heating element. When using it, place the MHP30 on a flat and stable surface. Spread out the support feet at the bottom for better stability and to prevent slipping. You can put the items you want to preheat or desolder on the hot plate. For safety, don't touch the hot plate directly when it's heated. The controller's LED color change can help you quickly tell the temperature status. If you want to use the smart modes like preset temperature, tilt protection, power wake - up, or automatic sleep, you can set them according to your needs. To maintain your MHP30, keep it clean. You can use a soft cloth to wipe the surface of the hot plate and controller. Avoid using abrasive materials that might scratch the nano - ceramic coating on the hot plate. If you're not going to use it for a long time, power it off and store it in a dry place. Also, make sure to keep the firmware updated to enjoy the best performance.
