Piezo Vibration Sensor - Small Horizontal

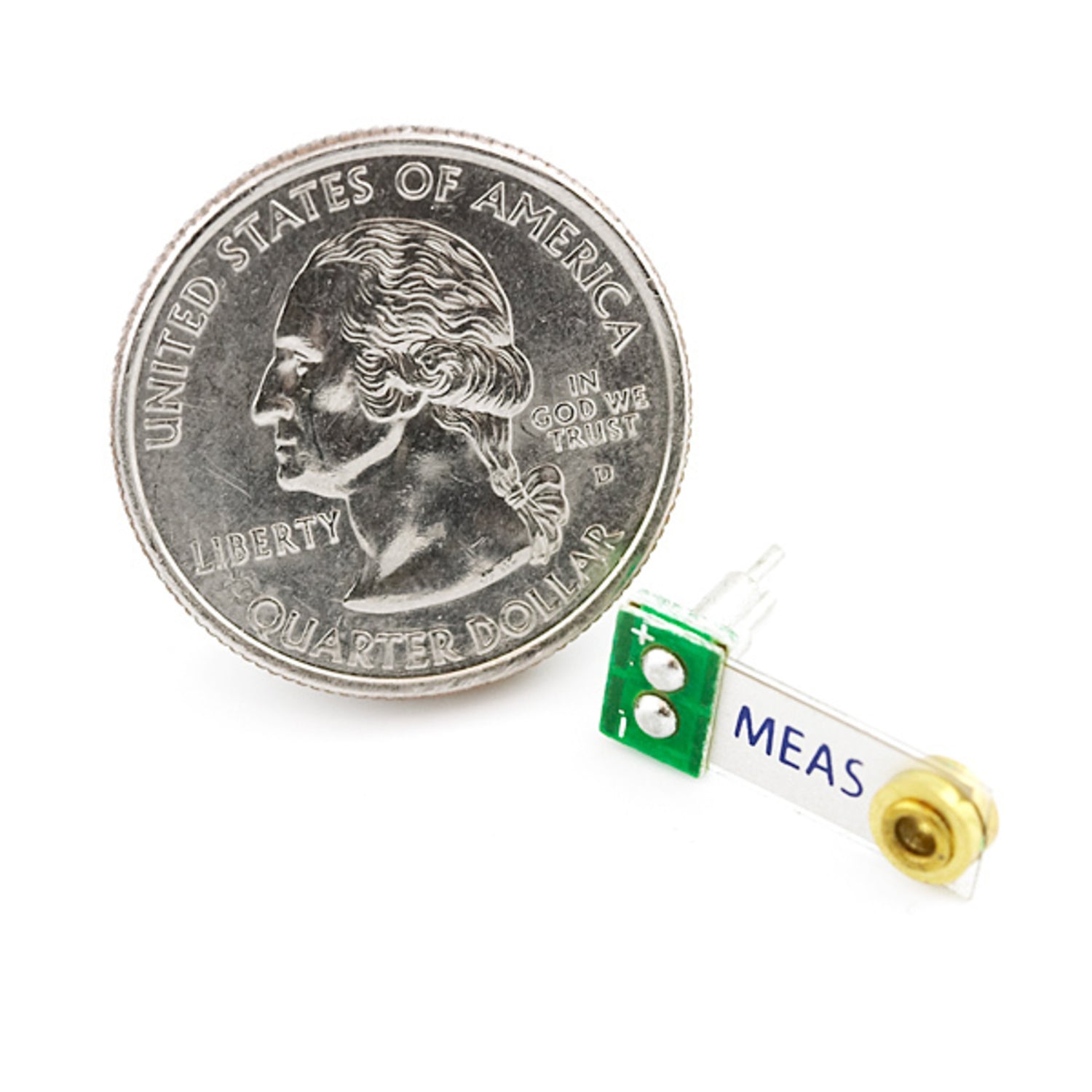

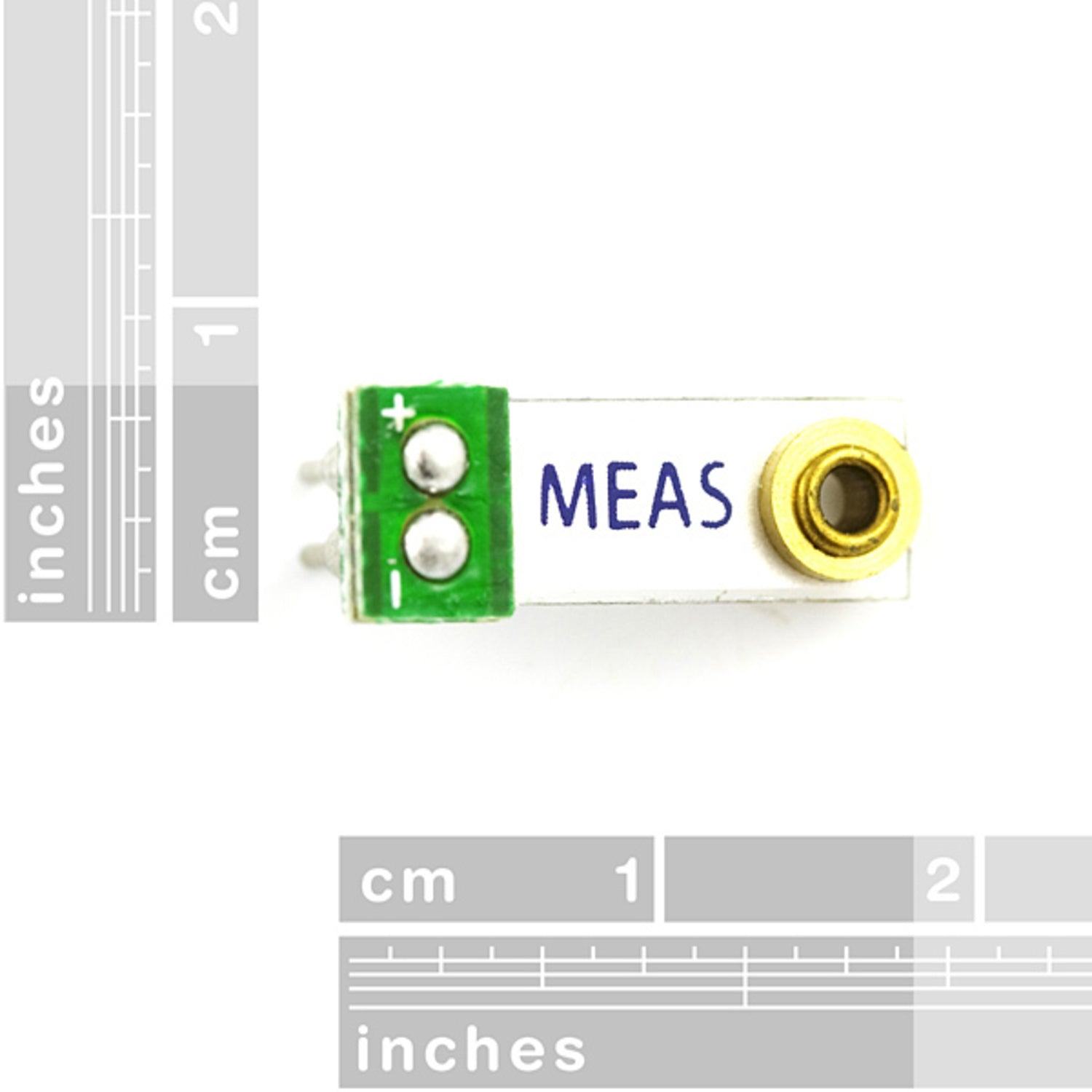

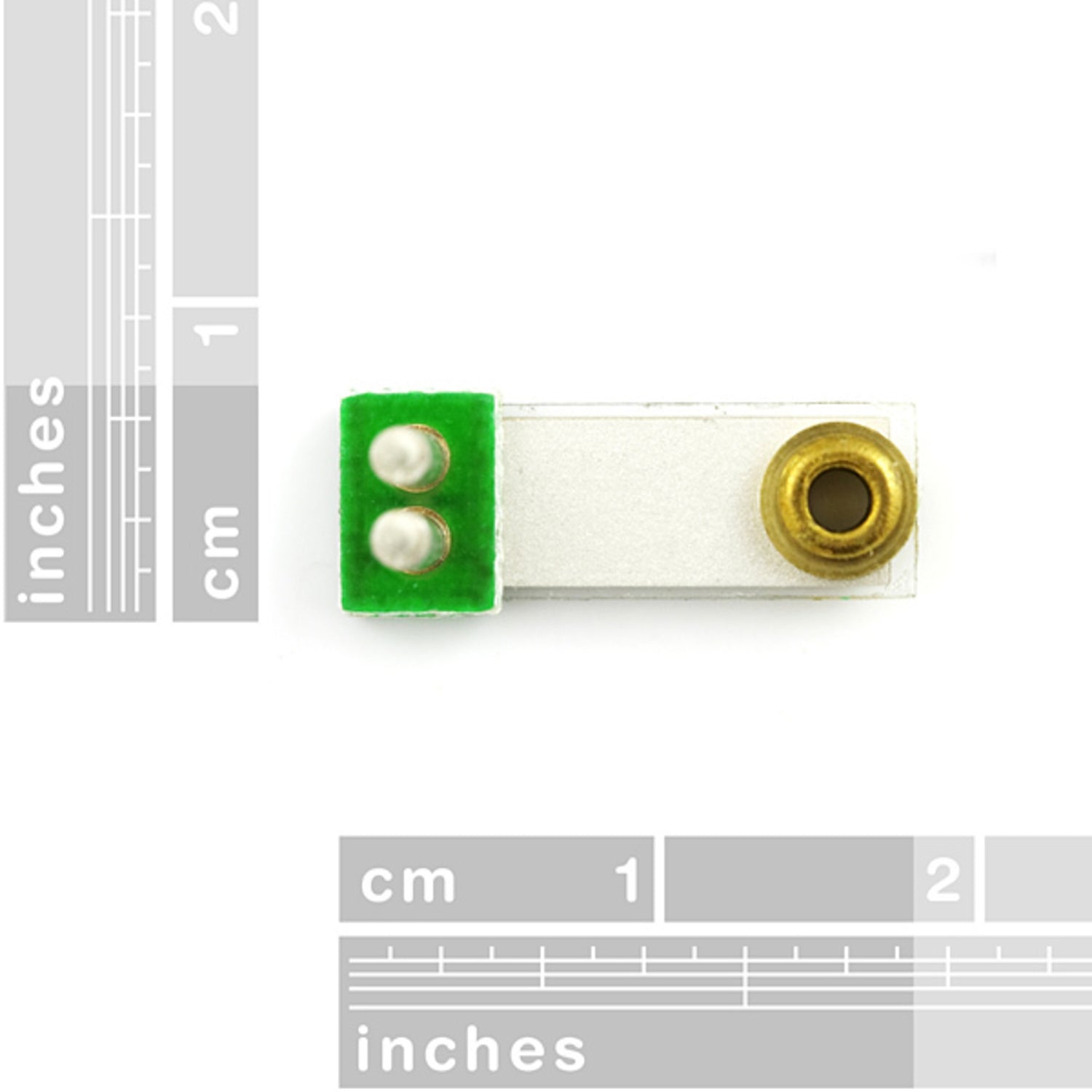

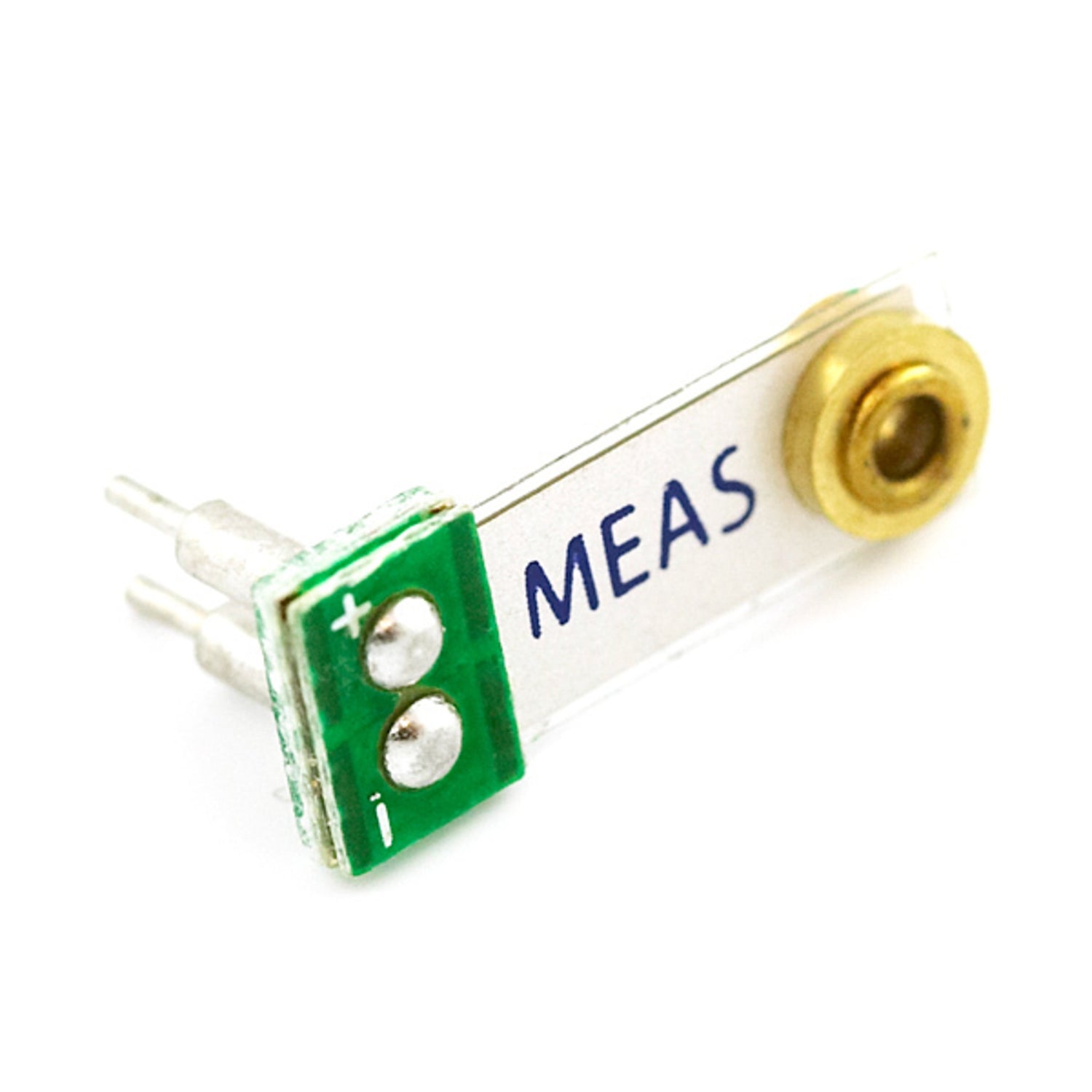

The Minisense 100 by Measurement Specialties is an affordable cantilever-style vibration sensor. With a mass loading, it offers high sensitivity at low frequencies, making it great for detecting vibrations and 'tap' inputs from users. When the film moves back and forth, it generates a small AC and a large voltage (up to +/-90V). You can use a simple resistor to bring the voltage down to ADC levels. It can also be used for impact sensing or as a flexible switch. It comes with machine pins for horizontal mounting. We've found it to be an excellent choice for musical inputs. Features include a flexible PVDF piezo polymer film, a wide dynamic range, lamination for higher voltage output, and breadboard-friendly leads. Available documents are the datasheet and the technical manual.

Using this small horizontal piezo vibration sensor is easy. First, use the machine pins to mount it horizontally. It can detect vibrations and 'tap' inputs from you. If you want to use the voltage it generates, use a simple resistor to get the voltage down to ADC levels. You can use it for impact sensing or as a flexible switch, and it also works great as a musical input. When handling the sensor, be gentle as the flexible PVDF piezo polymer film is delicate. Avoid exposing it to extreme temperatures or harsh chemicals. For maintenance, just keep it clean and dry. Check the leads regularly to make sure they are connected properly. Refer to the datasheet and technical manual for more detailed information.
