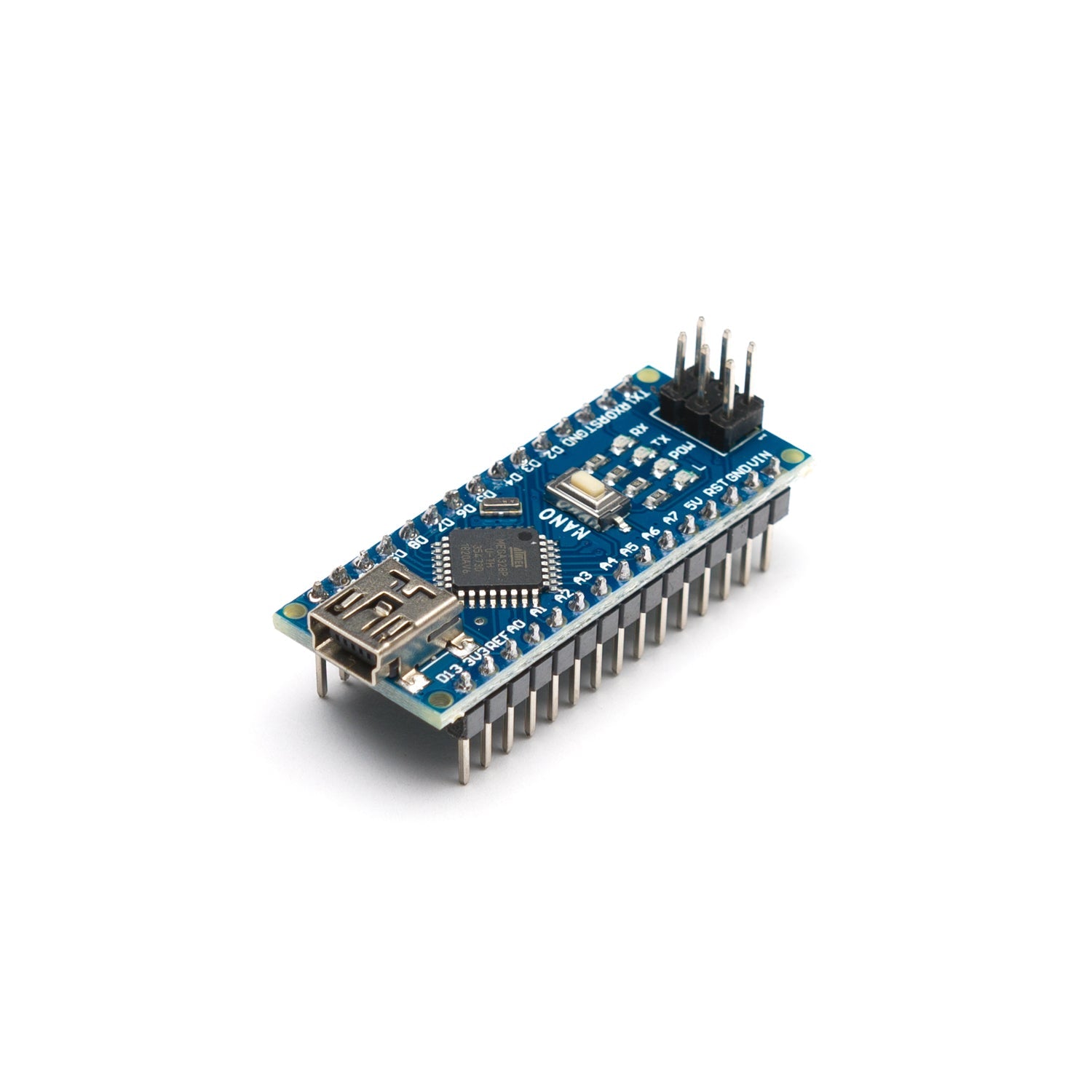

Nano v3.0 CH340 Chip with Mini USB Cable

The Nano V3.0 CH340 is built on the well - known Arduino platform. It packs all the features of an Uno into a much smaller size! Measuring just 43mm by 18mm, it's an ideal choice for Arduino projects that need a compact design and don't require a DC power jack. Remember, you'll need a Mini - B USB cable. Specifications: - The new CH340G chip replaces the FT232RL. - It operates at a 5V logic level. - There are 8 analog inputs from A0 to A7. - It offers 14 digital inputs/outputs including TX, RX, and D0 to D13. - You get 6 PWM pins: D3, D5, D6, D9, D10, and D11. - It has 1 pair of TTL level serial transceiver ports (RX/TX). - It uses the Atmel Atmega328P - AU MCU and comes with a pre - installed bootloader. - It supports USB connection. - It can be powered by an external 5V to 12V DC supply or a 9V battery. - Download the CH340G driver for Windows 7. - Get the Arduino IDE from http://arduino.cc/en/Main/Software.

Using the Nano V3.0 CH340 is quite simple. First, connect it to your computer using the Mini - B USB cable. Make sure you've downloaded and installed the CH340G driver for Windows 7 if you're using a Windows 7 system. Then, download the Arduino IDE from the provided link and open it. You can start writing and uploading your Arduino code to the board. When it comes to power supply, you can either use the USB connection for power or an external 5V to 12V DC power supply. You can also use a 9V battery if you need a portable power option. One important thing to note is that this board has a small form factor, so be gentle when handling it to avoid any physical damage. Also, remember that it doesn't have a DC power jack, so plan your power source accordingly. For maintenance, keep the board clean and dry. Avoid exposing it to extreme temperatures or humidity. If you're not using it for a long time, store it in a safe place away from dust and static electricity.
