Metal Pushbutton - Latching (16mm, Green)

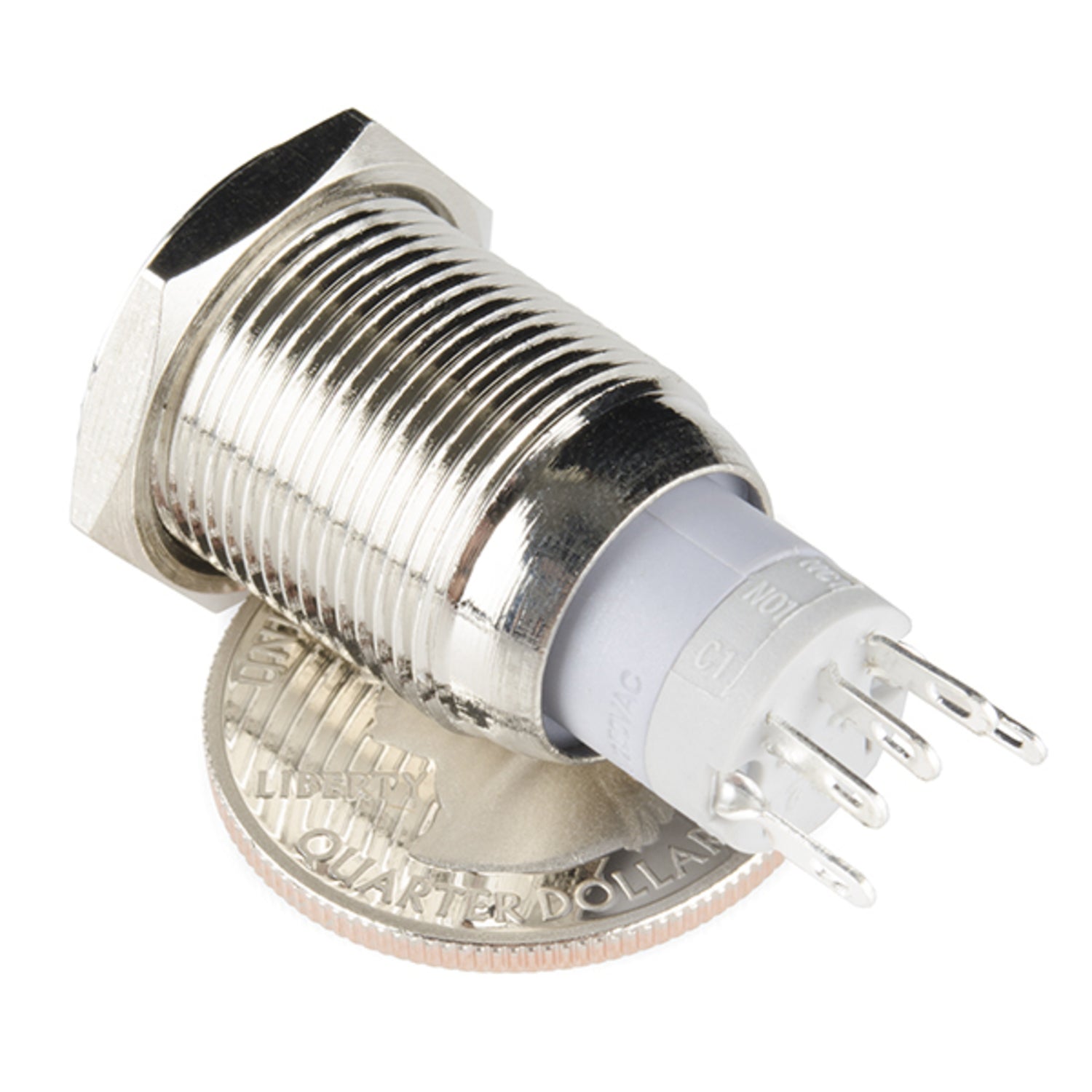

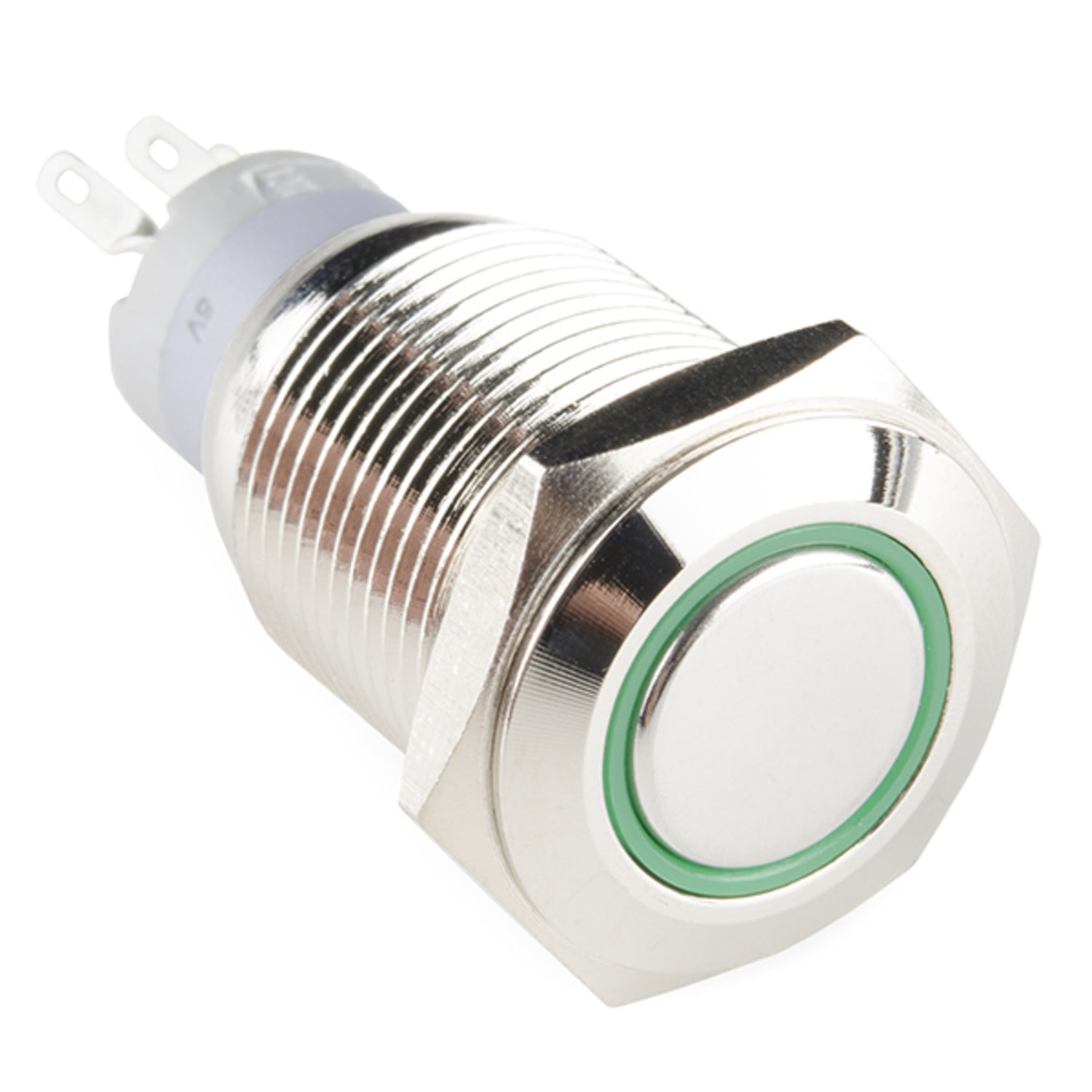

Looking for a heavy - duty push button? This metal push button is an excellent option. It's a small, panel - mount latching switch with a tough stainless - steel body and an eye - catching illuminated green LED ring. With a 16mm threading and 1mm pitch, it's a SPDT switch ideal for basic On/Off functions. The overall length (including leads) is 1.5', and it comes with small solder lugs for easy connection. These latched buttons can handle up to 3A and 250VAC, while the LED operates within a 5 - 12V range. It has an IP65 weatherproof rating, is tamper - resistant, and offers reliable latching operation. You'll also get access to a datasheet and a product video. Note: The button images show an LED voltage rating of 5V, but the actual range is 5 - 12V. We're in touch with the supplier for new documentation, so rely on the button branding to confirm your voltage needs.

Using this pushbutton is straightforward. Connect it to your device using the small solder lugs. You can use it for basic On/Off functions easily. Just press the button to engage the latching operation. When it comes to the LED, make sure the voltage you supply is within the 5 - 12V range. You can check the branding on the button to be sure. As for maintenance, since it has an IP65 weatherproof rating, it can withstand some environmental conditions. However, try to keep it away from extreme heat or moisture. If you notice any issues with the switch operation or the LED illumination, check the connections first. Also, refer to the datasheet for more detailed technical information if needed.
