MyoWare 2.0 Arduino Shield

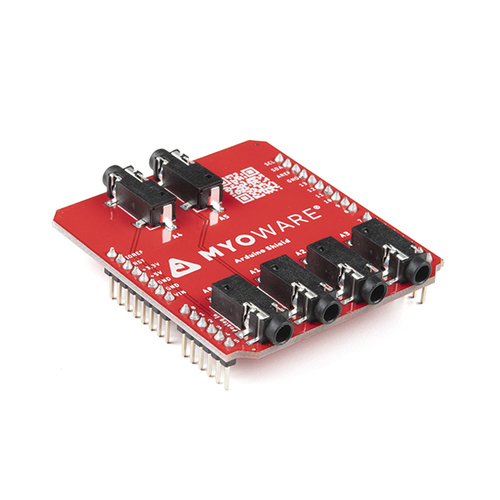

The MyoWare® 2.0 Arduino Shield is a great tool for anyone looking to measure muscle activity. It can easily connect up to six MyoWare 2.0 Muscle Sensors and Link Shields using 3.5mm TRS - to - TRS audio cables. With pre - soldered male headers, you just stack it on your Arduino and connect the sensors to monitor up to six muscle groups! It fits development boards with the Arduino Uno R3 standard footprint. All six analog input pins (A0 - A5) on the Arduino are used on this shield. There's a power jumper on the back to choose between 5V (default) or 3.3V for the muscle sensors. You'll need a MyoWare 2.0 Link Shield and a TRS - to - TRS cable for each MyoWare 2.0 Muscle Sensor. Note that it's not for diagnosing or treating diseases. The MyoWare® 2.0 ecosystem offers easy - to - use shields that interface with the low - cost, Arduino - compatible MyoWare® 2.0 Muscle Sensor. The innovative connector system allows you to snap shields together in a compact way and connect to a microcontroller's analog input. This avoids soldering connections between boards. A portion of each sale goes to Advancer Technologies for product support and development. Key features include 6x 3.5mm TRS connectors, soldered male headers, Arduino Uno R3 standard footprint, 3.3V/5V power jumper, and board dimensions of 53.34mm x 59.69mm (2.10” x 2.35”). There are also various documents like board dimensions, hookup guides, and quickstart/advanced guides available.

Using the MyoWare 2.0 Arduino Shield is easy. First, stack the shield on your Arduino board with the pre - soldered male headers. Then, connect up to six MyoWare 2.0 Muscle Sensors to the shield using 3.5mm TRS - to - TRS audio cables. You'll also need a MyoWare 2.0 Link Shield and a cable for each sensor. Before you start, decide on the power supply for the sensors. You can use the power jumper on the back of the shield to choose between 5V (default) or 3.3V. Remember, this product is not for diagnosing or treating diseases in humans or animals. When it comes to maintenance, keep the shield clean and dry. Avoid exposing it to extreme temperatures or humidity. If you have any issues, refer to the provided documents like the hookup guide or the quickstart/advanced guides. Have fun exploring muscle activity with this shield!
