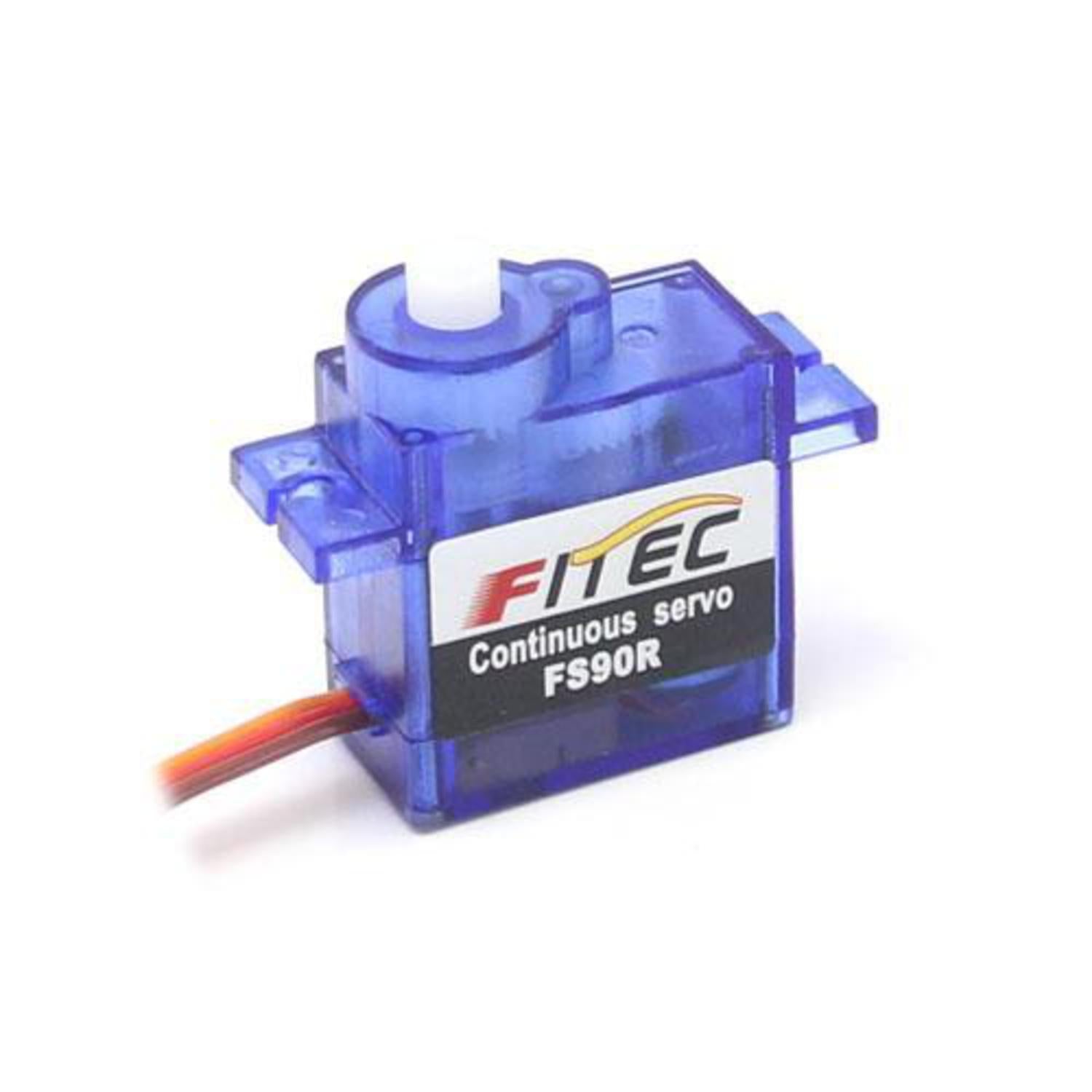

These continuous rotation servos are perfect for applications requiring highly precise rotation degrees, like building a dial display. They come with the following specifications: Dimensions are 23.2×12.5×22 mm, weight is 9g, operating speed is 110RPM at 4.8V or 130RPM at 6V, stall torque is 1.3kg.cm/18.09oz.in at 4.8V or 1.5kg.cm/20.86oz.in at 6V, operating voltage ranges from 4.8 - 6V, control system is analog, direction is CCW, operating angle is 360 degrees, required pulse is 900 - 2100us, there's no bearing, gear type is plastic, motor type is metal, and connecting wire length is 20cm.
Using this servo is quite simple. First, make sure to connect it to a power source within the 4.8 - 6V range. The servo will then be ready to rotate continuously up to 360 degrees. When installing, pay attention to the direction (CCW). The servo can be used in projects where precise rotation is needed, such as a dial display. For maintenance, keep it clean and dry. Avoid exposing it to excessive heat or moisture. Also, don't overload the servo beyond its stall torque. If you notice any abnormal noises or reduced performance, check the power supply and connections. That's all you need to know to get the most out of this great servo.
