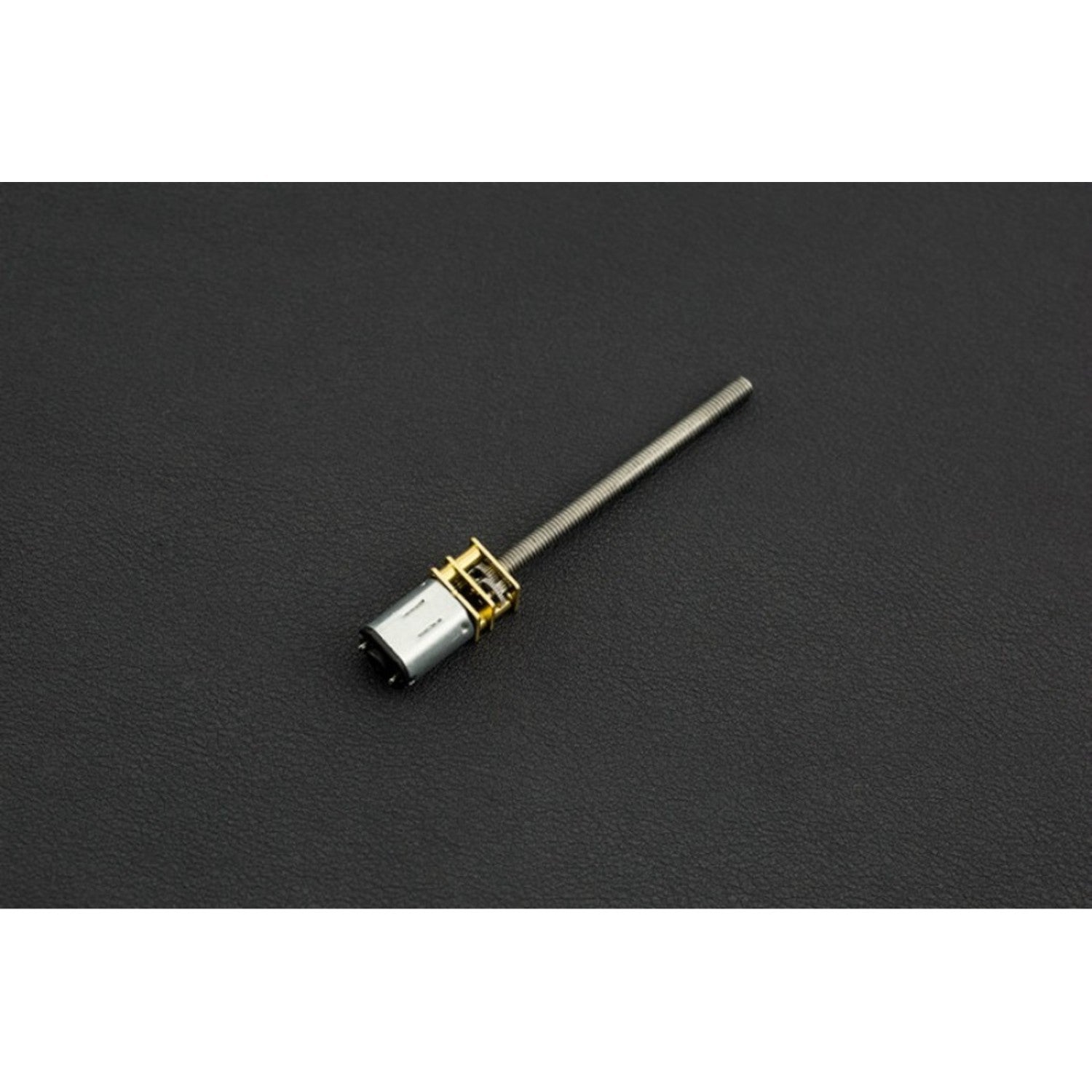

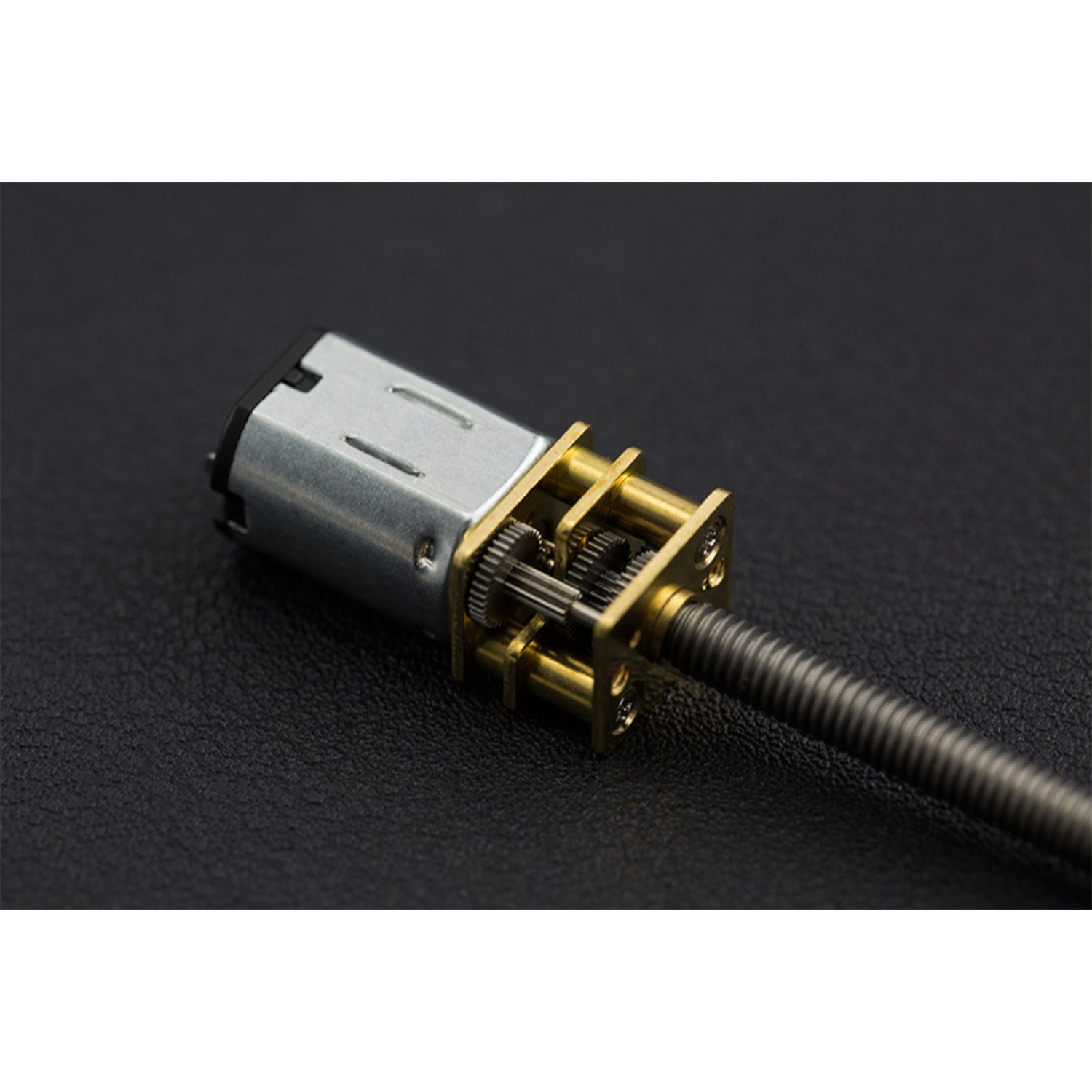

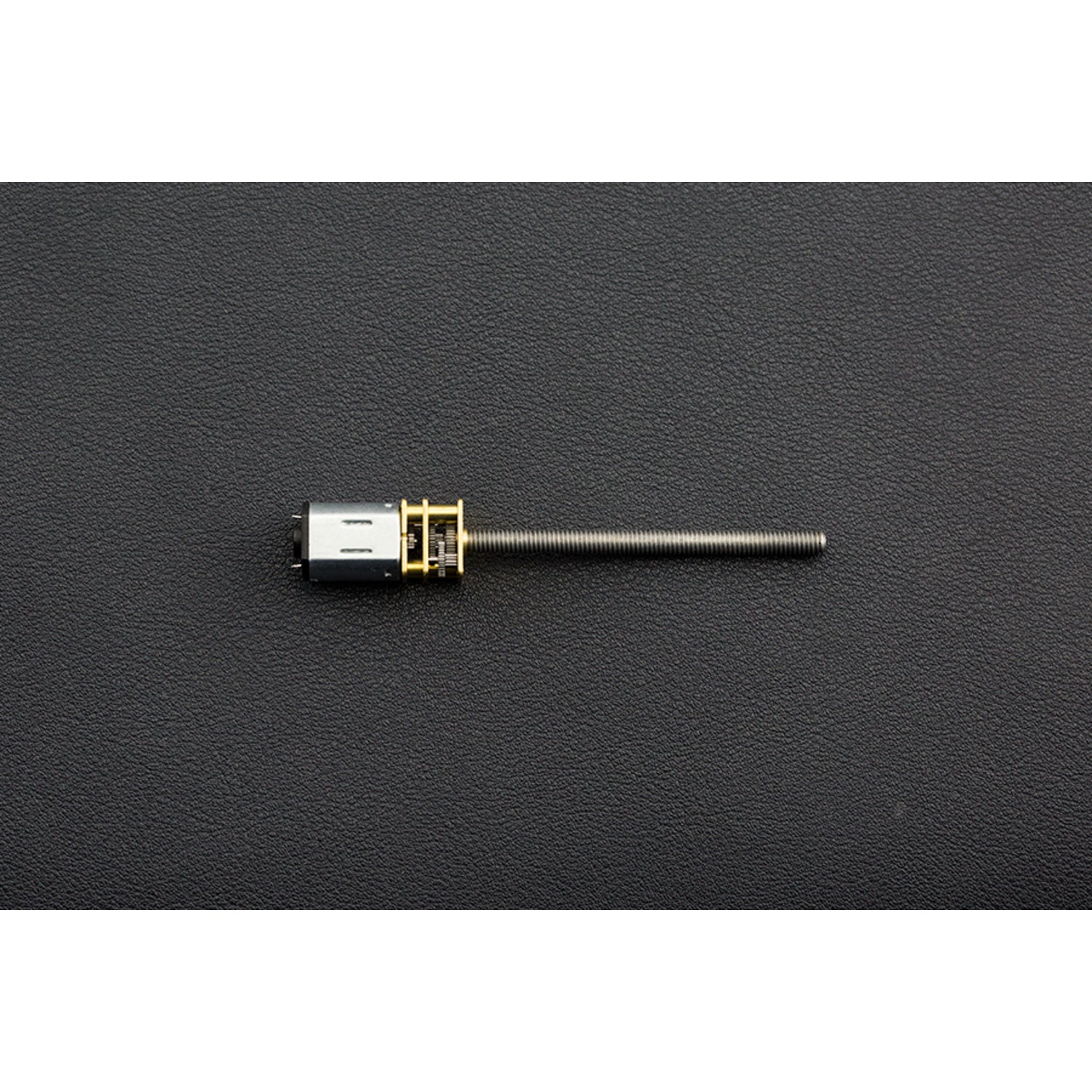

This amazing DC gearmotor comes with an integrated M4*55mm threaded rod as its output shaft, effectively transforming it into a linear actuator. With a rated voltage of 6V, it can reach a no - load speed of 150RPM, which is equivalent to 1.75mm/s. The brass faceplate features two mounting holes threaded for M1.6 screws (1.6mm diameter, 0.35mm thread pitch). You also have the option to use the specially - designed mounting bracket or extended mounting bracket to securely install the gear motor while enclosing the exposed gears. Here are its key specifications: a reduction ratio of 100:1, a rated load speed of 120 RPM, a rated torque of 0.3 kg.cm, a rated current of 160 mA, a stall torque of 2.4 kg.cm, a stall current of 200 mA, and it weighs only 16 g. The shipping list includes one Micro Metal DC Geared Motor with Lead Screw (6V 150RPM M4*55).
Using this Micro Metal DC Geared Motor with Lead Screw is easy. First, decide how you want to mount it. You can use the two mounting holes on the brass faceplate with M1.6 screws, or opt for the mounting bracket or extended mounting bracket. Make sure to connect it to a 6V power source. When using, be aware of the rated load and speed. Don't overload it, as this could damage the motor. For maintenance, keep it clean and dry. Check the screws periodically to ensure they are tight. If you notice any unusual noises or a drop in performance, stop using it immediately and check for any visible damage. With proper use and care, this motor will serve you well for a long time.
