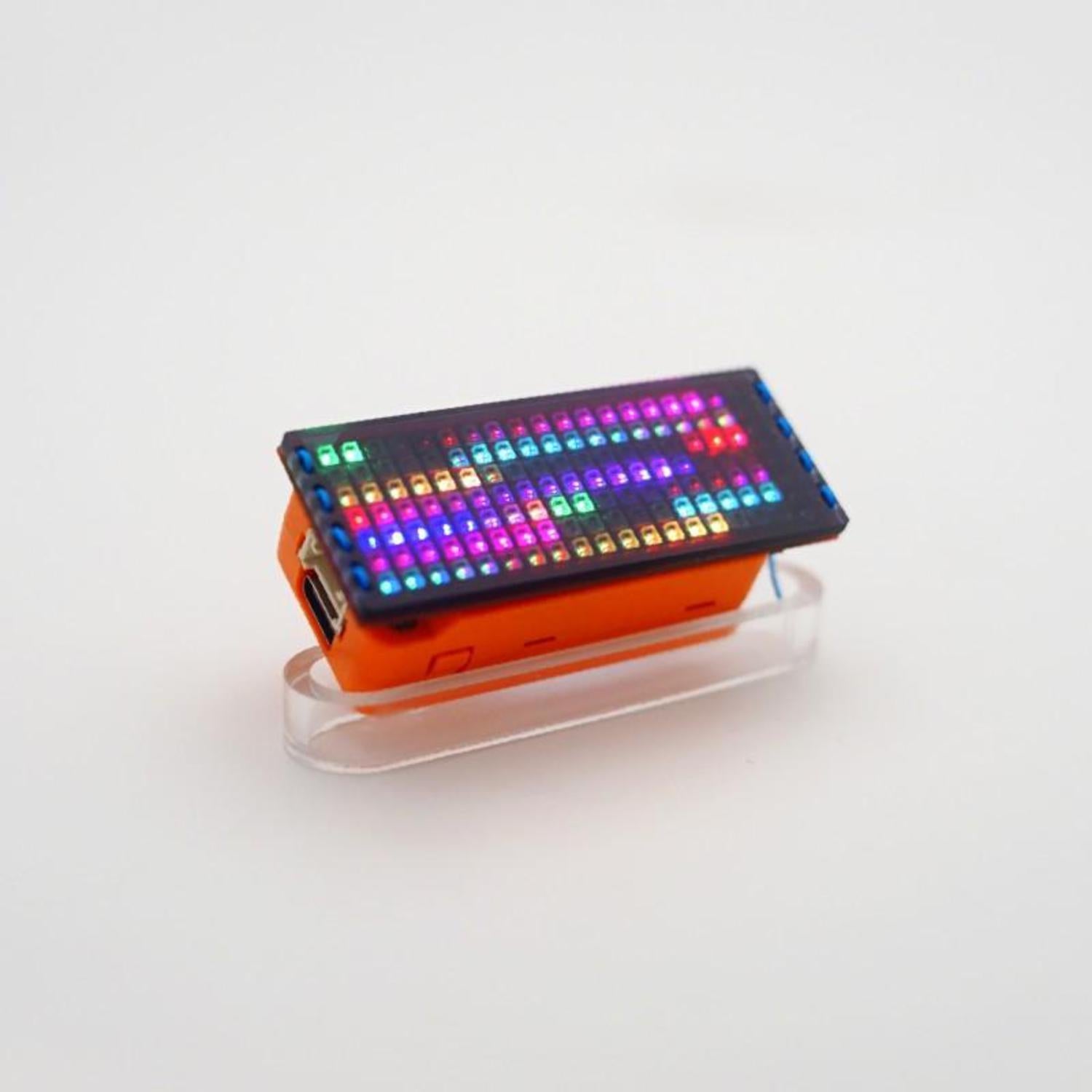

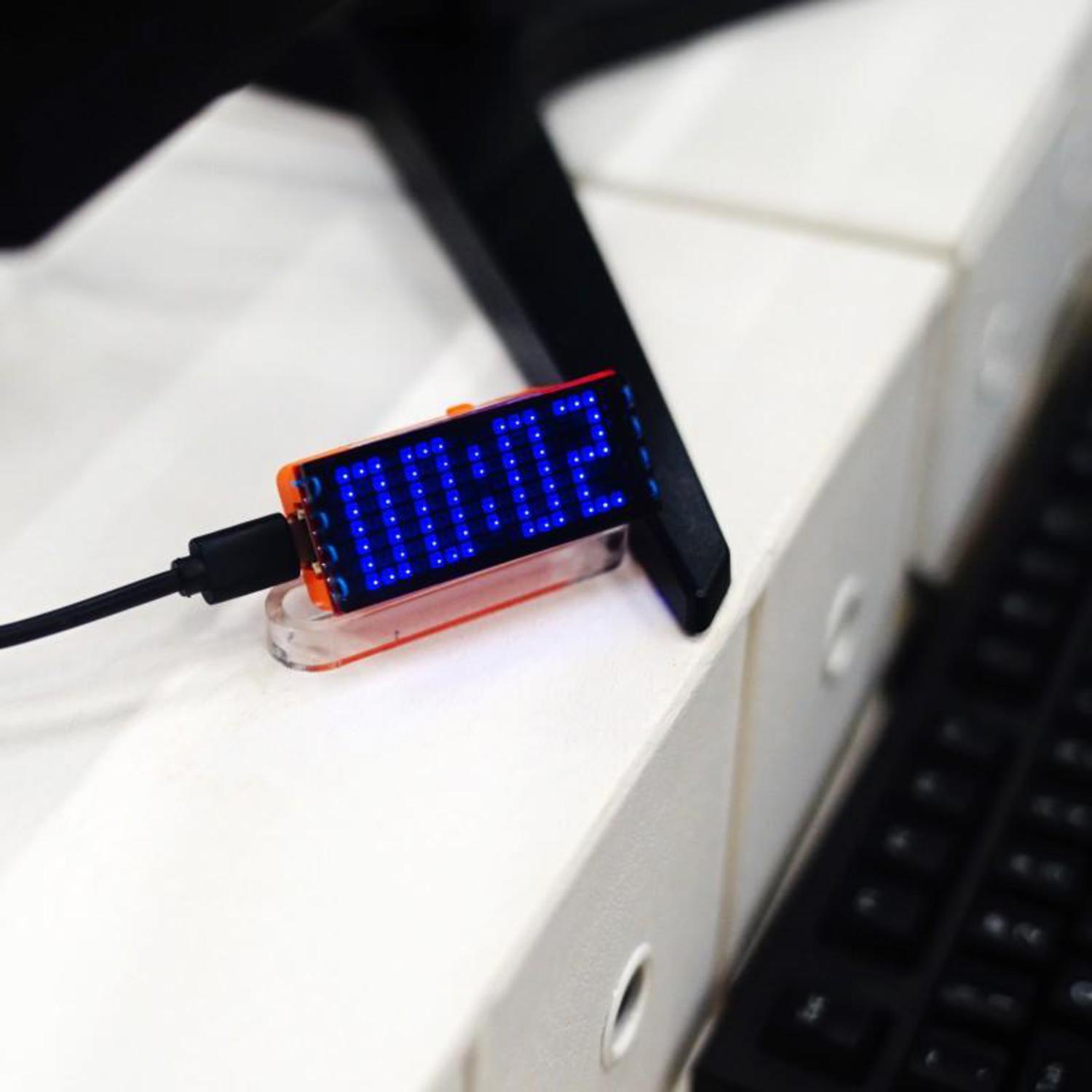

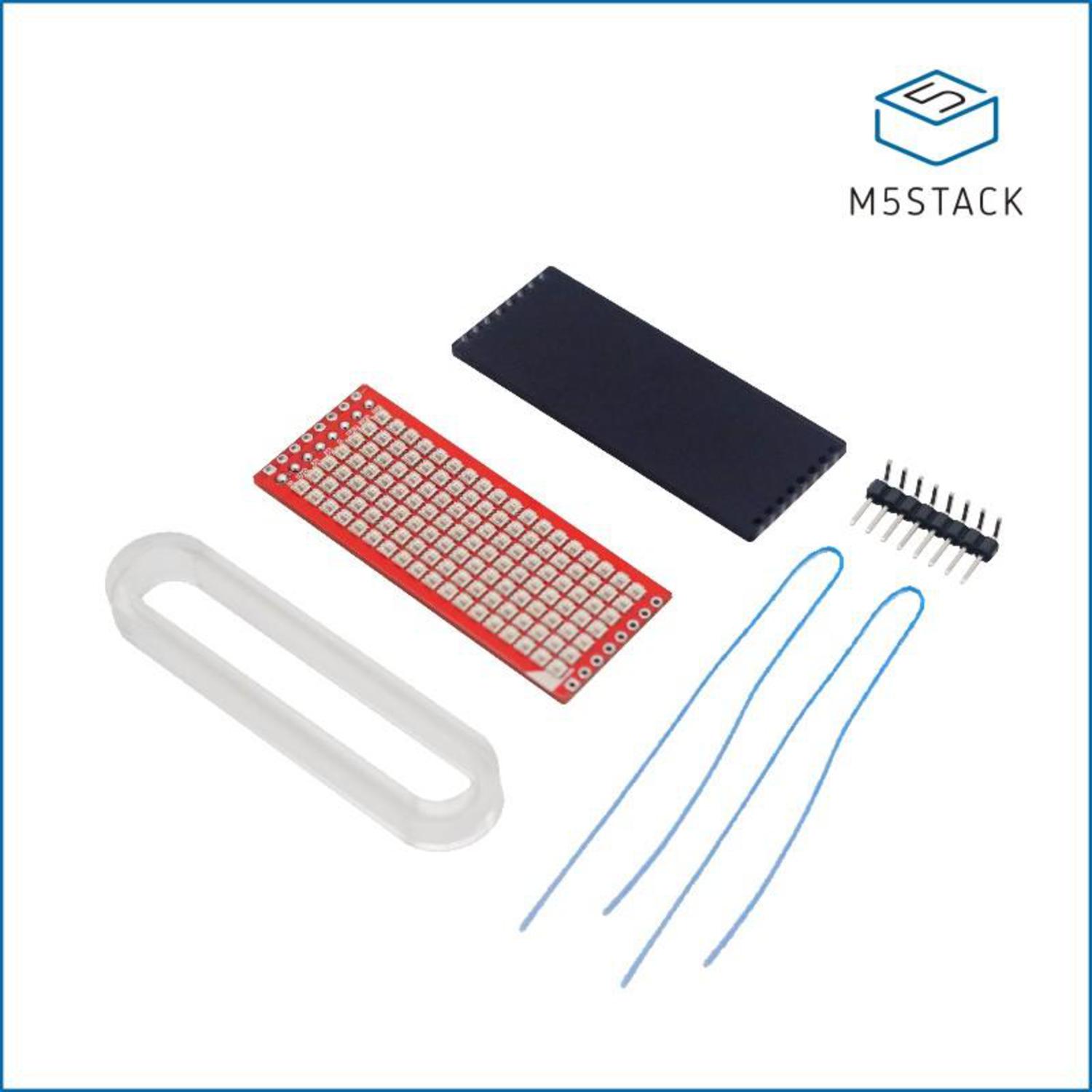

The NeoFlash HAT is a specially-designed RGB LED matrix for the M5StickC. With a PCB size of 58x23.5mm and 126 programmable RGB LEDs, you can easily set colors and brightness. It offers a 7*18 matrix layout for great digital number display or colorful light effects. We've included a dark brown acrylic board for better visual results. Two types of 90-degree bend pin sets are provided for flexible attachment to the M5StickC. Ideal for adding a display to your projects. Key features include primordial three basic colors per pixel, 0-255 brightness levels, 16777216 full-color display, 24-bit RGB data, 126 RGB LEDs, 0.1 in (2.54 mm) hole distance, 0.039 '1mm hole dimension, and two assembly approaches. It measures 58mm x 23.5mm x 1mm and weighs only 2g. The package includes 1 Neoflash HAT, 2 sets of 8-pin 2.54mm bend pins, 1 2mm dark brown acrylic board, and 2 15cm strings. Applications range from LED matrix displays to digital clocks and colorful LED shows.

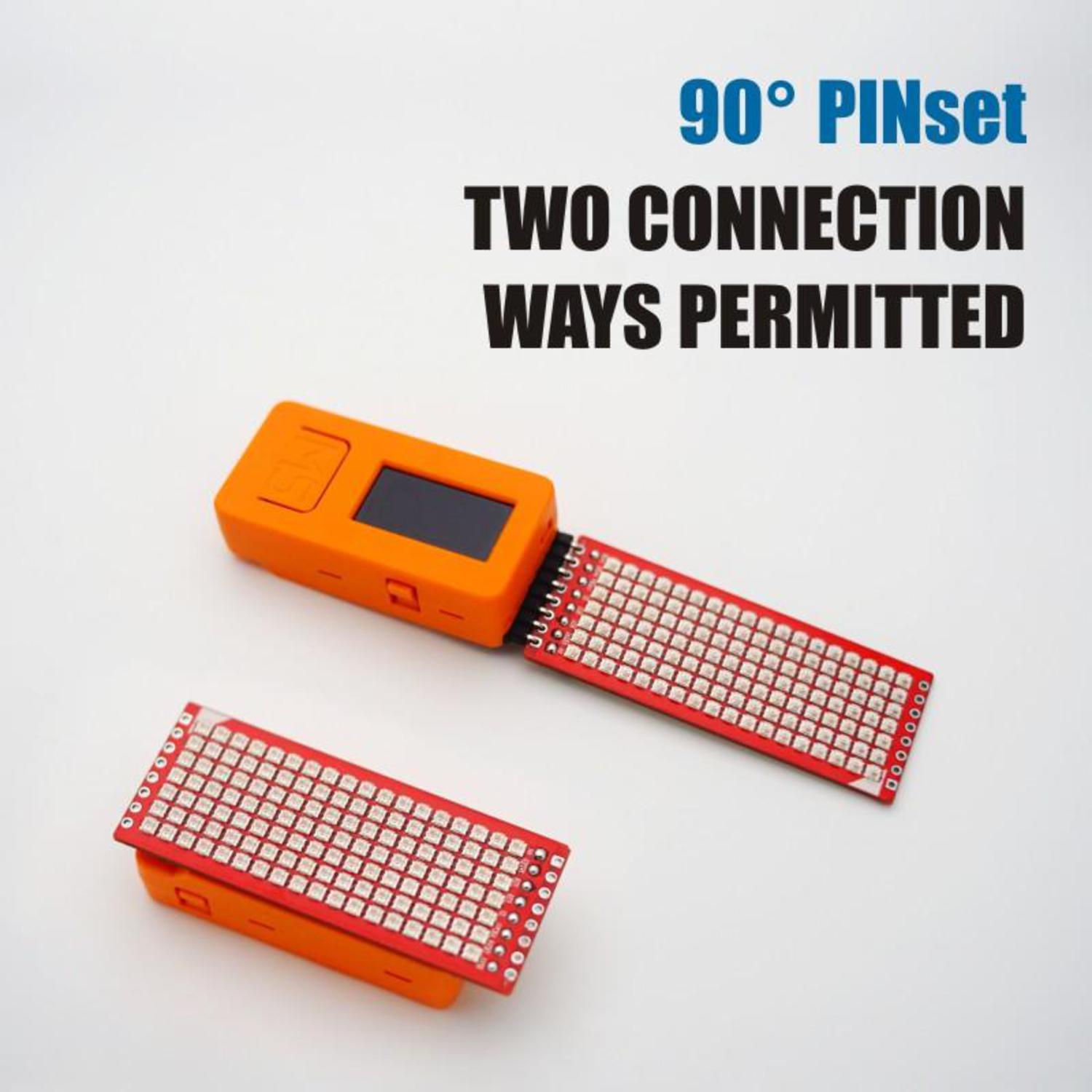

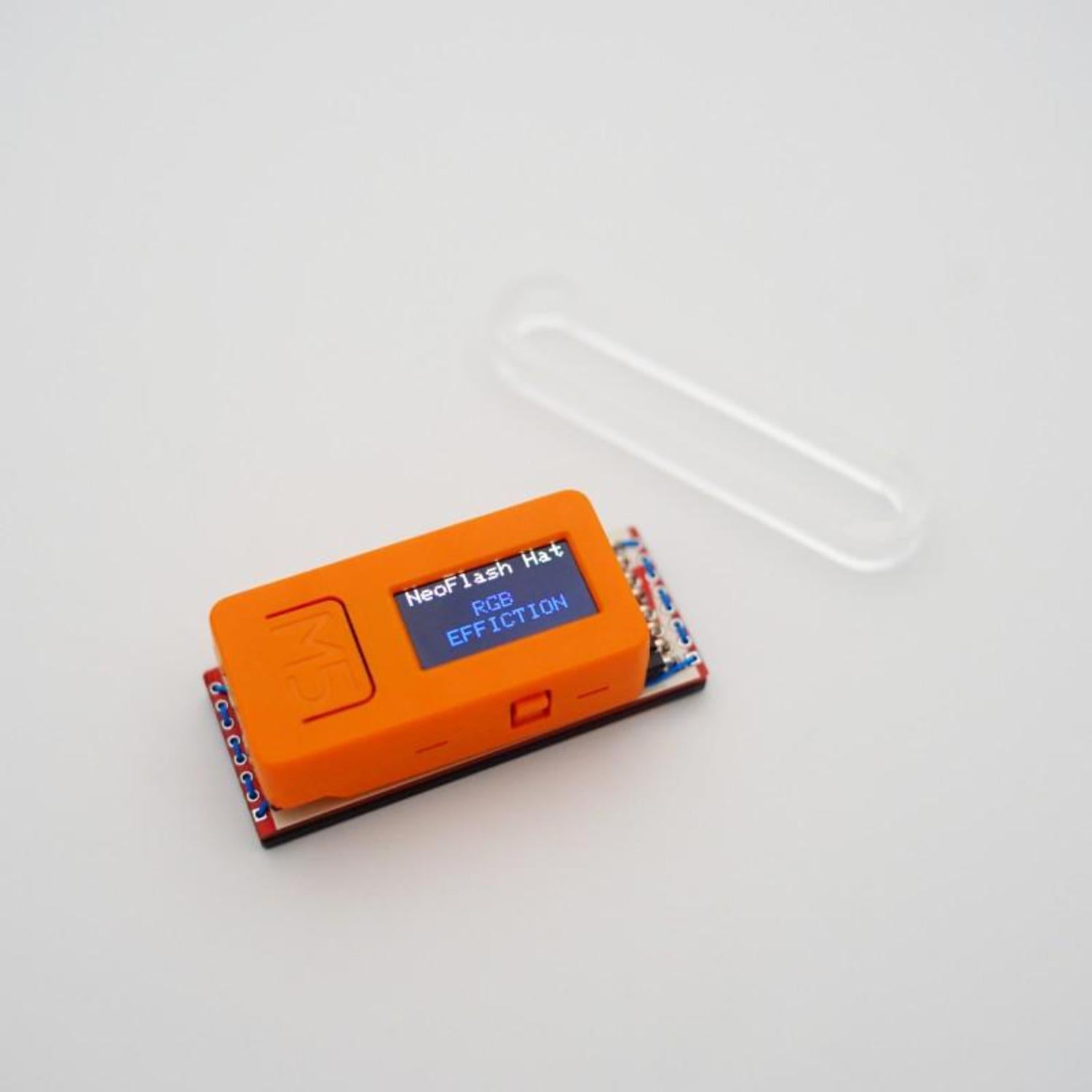

Using the NeoFlash HAT with your M5StickC is a breeze. First, attach the NeoFlash board to the M5StickC using one of the provided 90-degree bend pin sets. You can choose the back-to-back or horizontal contact assembly approach according to your needs. Next, connect the DATA, 5V, and GND pins as shown in the pin map. For programming, you can use Arduino code. To enhance the visual effect, place the dark brown acrylic board on top of the NeoFlash board. When it comes to maintenance, keep the board clean and dry. Avoid exposing it to extreme temperatures or humidity. If you encounter any issues with the LEDs not lighting up or showing incorrect colors, double-check your connections and code. That's all there is to it! Enjoy creating amazing LED displays with your NeoFlash HAT.
