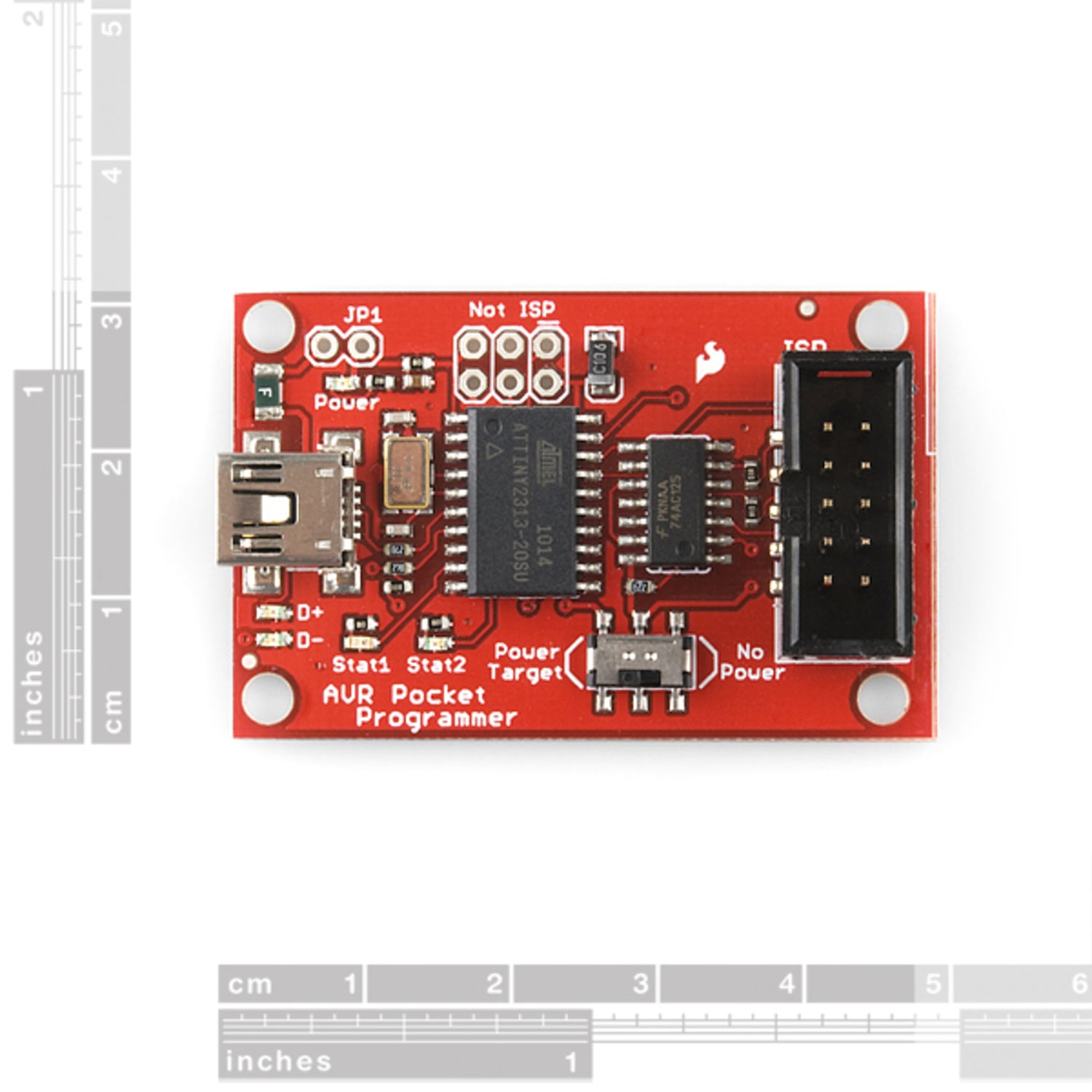

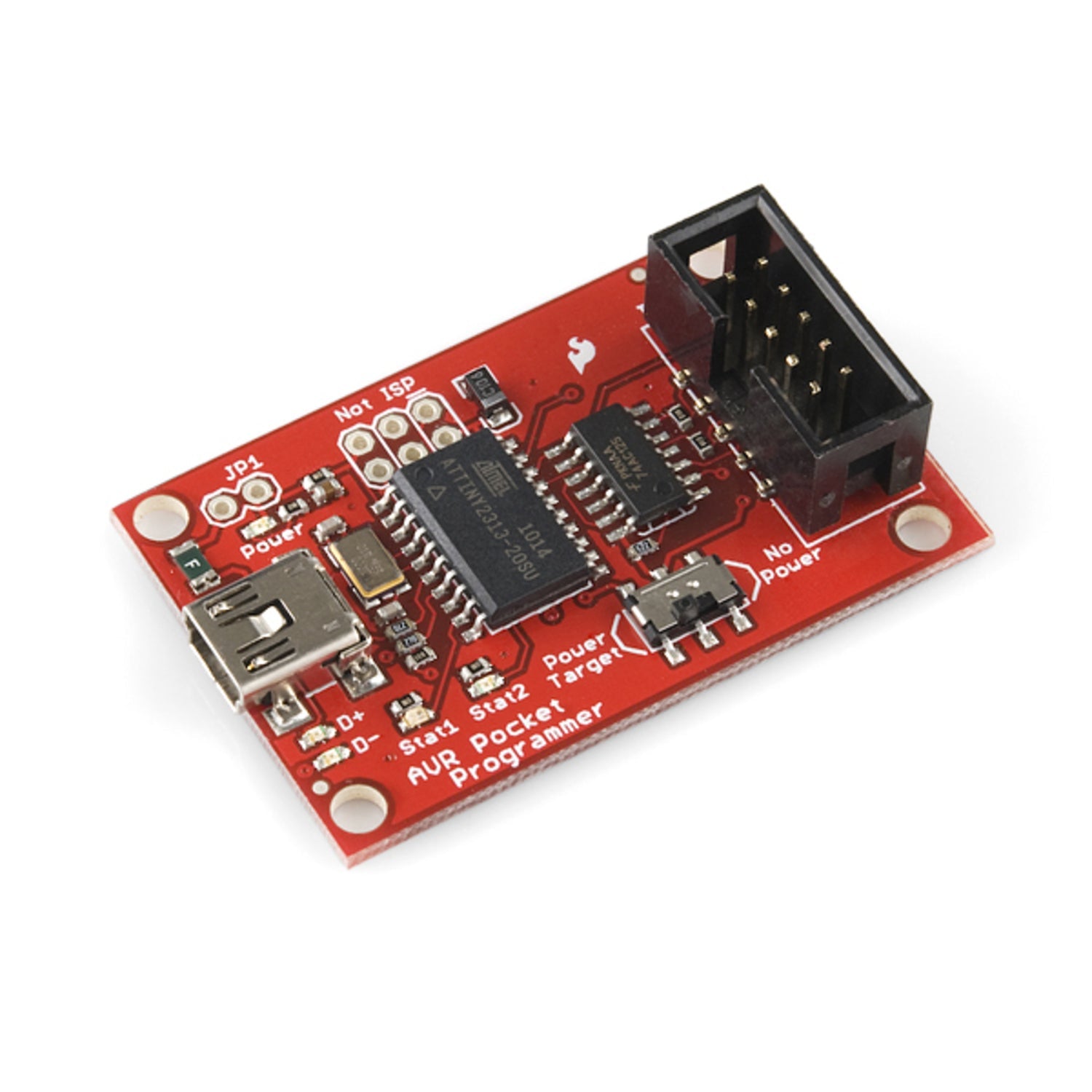

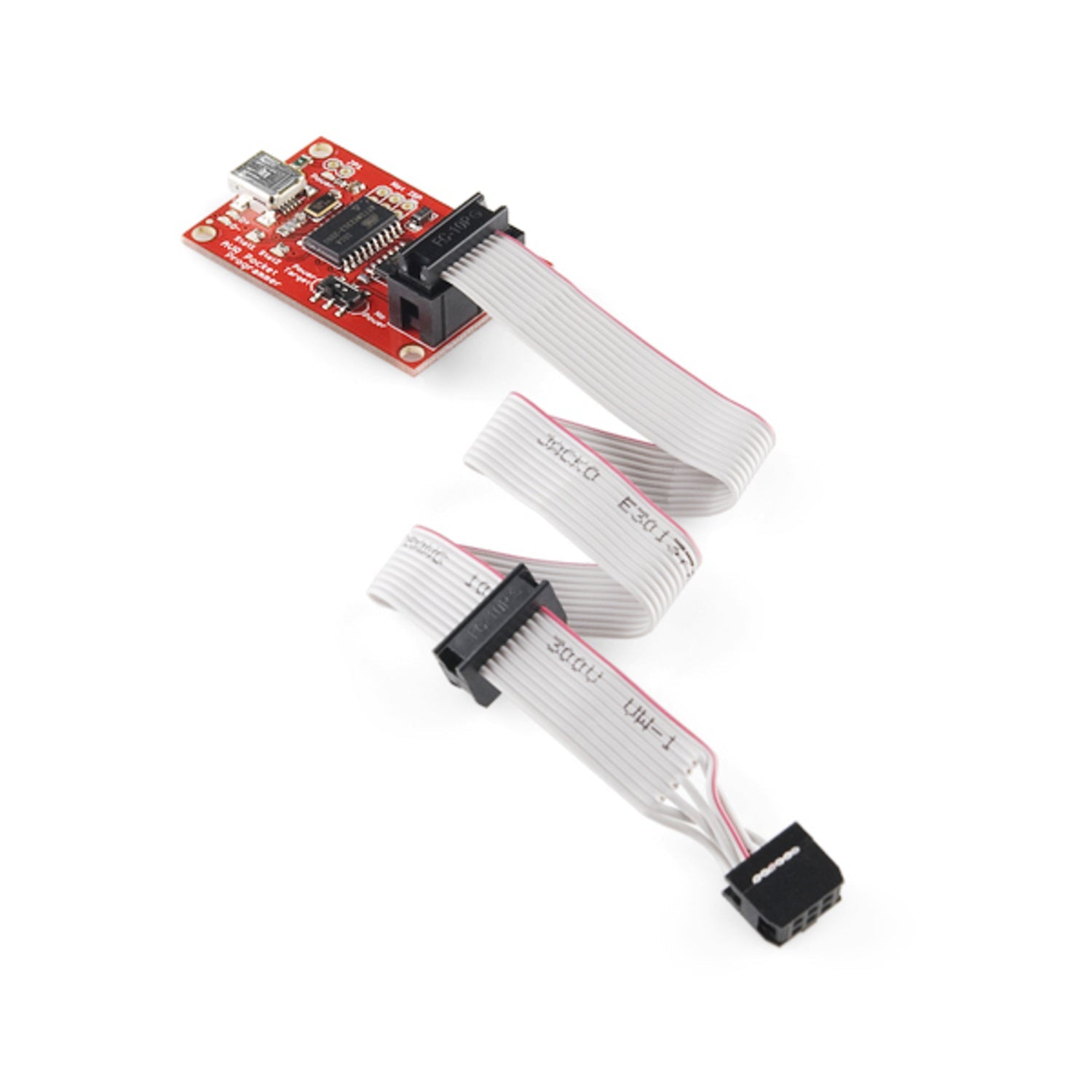

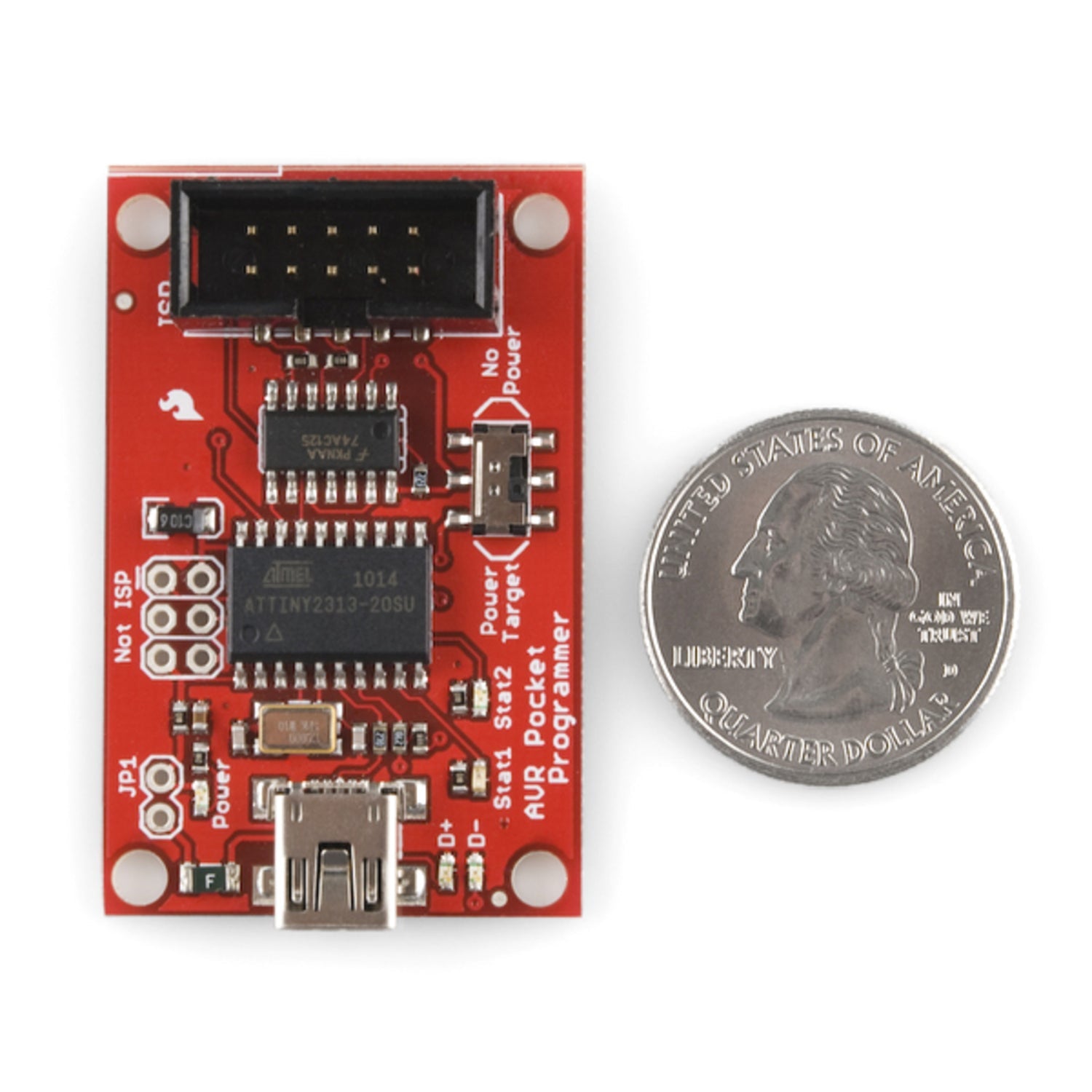

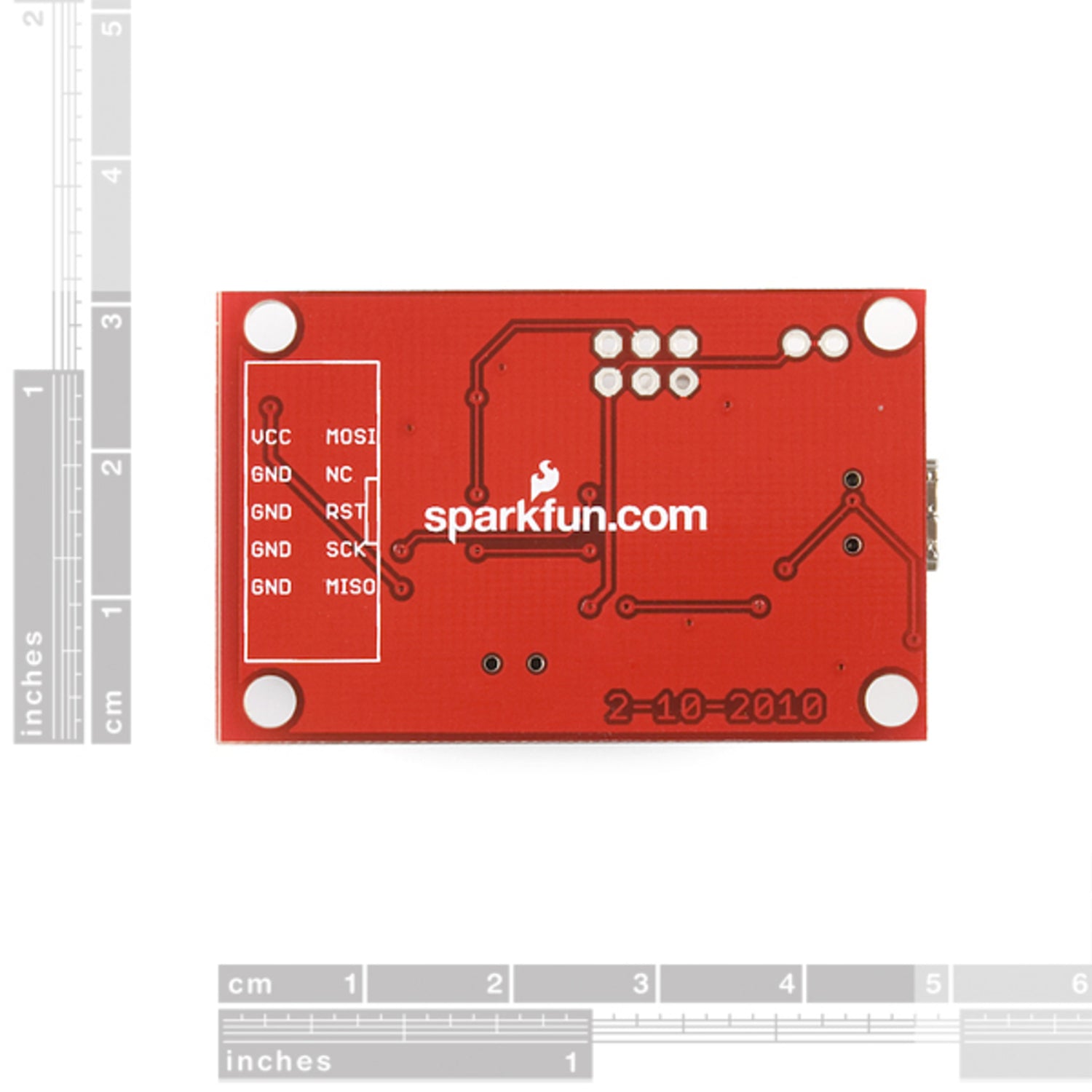

This new - version Pocket AVR Programmer uses an SMD 5x2 header. It's a super - easy - to - use, low - cost USB AVR programmer. It works great with AVRDude and has been thoroughly tested on Windows desktops. Based on Dick Streefland’s USBtiny and Limor Fried’s USBtinyISP, it's perfect for those on a tight budget. It functions well with ATmega168 and ATmega328 and supports all AVR micros that AVRDUDE can handle. The microcontroller to be programmed can be any AVR with 64K or less of flash. For example, the ATmega328 on an Arduino Uno or RedBoard works flawlessly, but the ATmega2560 of an Arduino Mega doesn't. This programmer is buffered and power - protected, so you can do some rough things to it without breaking it. It's fast and can power the target up to 500mA. A portion of each sale goes back to Limor Fried for product support and development. The drivers are now Windows 7 compatible. Key features include being a standard AVR ISP programmer, having an ATtiny2313 with pre - loaded USBtiny firmware, buffered output, PTC fuse - protected power, the ability to power the target, support for ATmega168/328 and many others, two status LEDs, and support for both 10 - pin and 6 - pin targets with a cable included. Documents like schematics, hookup guides, Windows drivers, firmware, Eagle Files, and GitHub design files are also available.
Using this Pocket AVR Programmer is easy. First, connect it to your computer via USB. Make sure you have the Windows 7 - compatible drivers installed. If you're programming an ATmega168 or ATmega328, like on an Arduino Uno or RedBoard, it should work right away. But don't try to use it with an Arduino Mega's ATmega2560 as it won't work. The programmer can power the target up to 500mA, so you don't need an extra power source in many cases. The two status LEDs will show you the programming status. When it comes to maintenance, since it's buffered and power - protected, it can handle some rough treatment. However, try not to expose it to extreme conditions. Keep it in a dry and clean place. If you need to update the firmware, follow the instructions in the provided documents. Remember, a portion of your purchase supports product development, so enjoy using this great, budget - friendly programmer!
