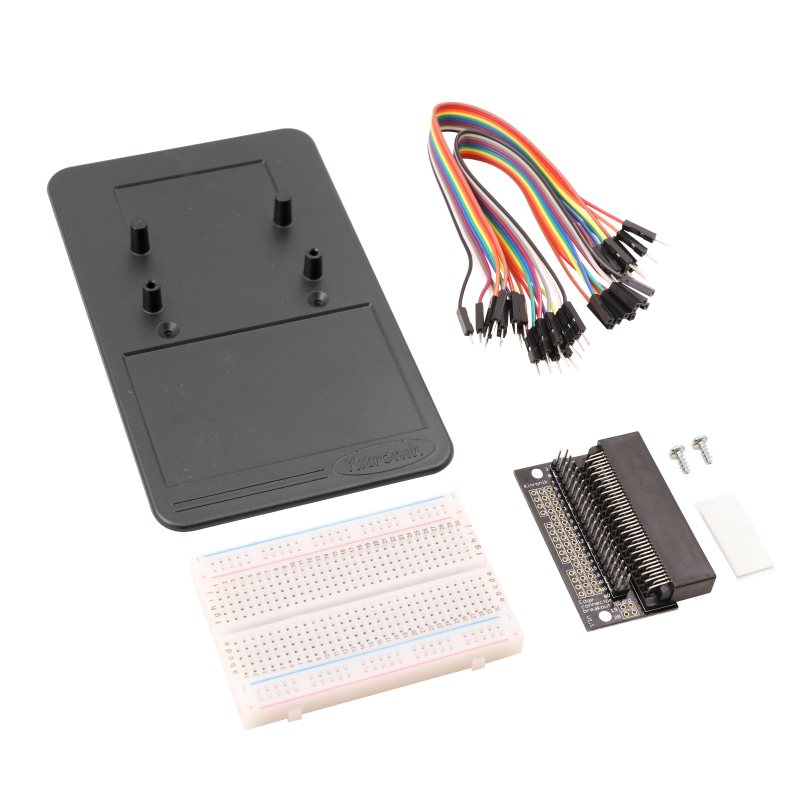

Please note: The BBC micro:bit, 2 x AAA Battery Cage, and 2 x AAA Batteries are not included. If you need a BBC micro:bit, you can order one here. This amazing prototyping system for the BBC micro:bit is a perfect starting point for creating circuits and conducting experiments without soldering. It uses our specially designed Edge Connector Breakout Board for the BBC micro:bit, which gives you full access to the pins at the bottom of the BBC micro:bit. The pins are broken out to a row of pin headers, and the SCL and SDA pins are separated at the board's edge for easy identification. The PCB has a prototyping area with 3V, 0V, and unconnected rows for soldering, making it easy to connect switches, sensors, and resistors as needed. This system works with a Small Prototype Breadboard, allowing you to connect additional components using the included jumper wires - no soldering required! Remember, the BBC micro:bit is not included, and this kit requires assembly. Features: No soldering needed; Breaks out 21 pins from the BBC micro:bit with the pre - built breakout board; Includes a Small Prototype Breadboard for additional components; You can run your custom code from the BBC micro:bit to interact with external components. Contents: 4 x Pan Head M3 Machine Screws, 1 x Small Prototype Breadboard, 10 x Male - to - Male Jumper Wires, 10 x Male - to - Female Jumper Wires, 1 x Mounting Plate, 1 x Pre - built Edge Connector Breakout Board for BBC micro:bit. Requires: 1 x BBC micro:bit, 1 x Phillips Screwdriver. Resources: Prototyping Plate Assembly Instructions, Edge Connector Breakout Board Datasheet.

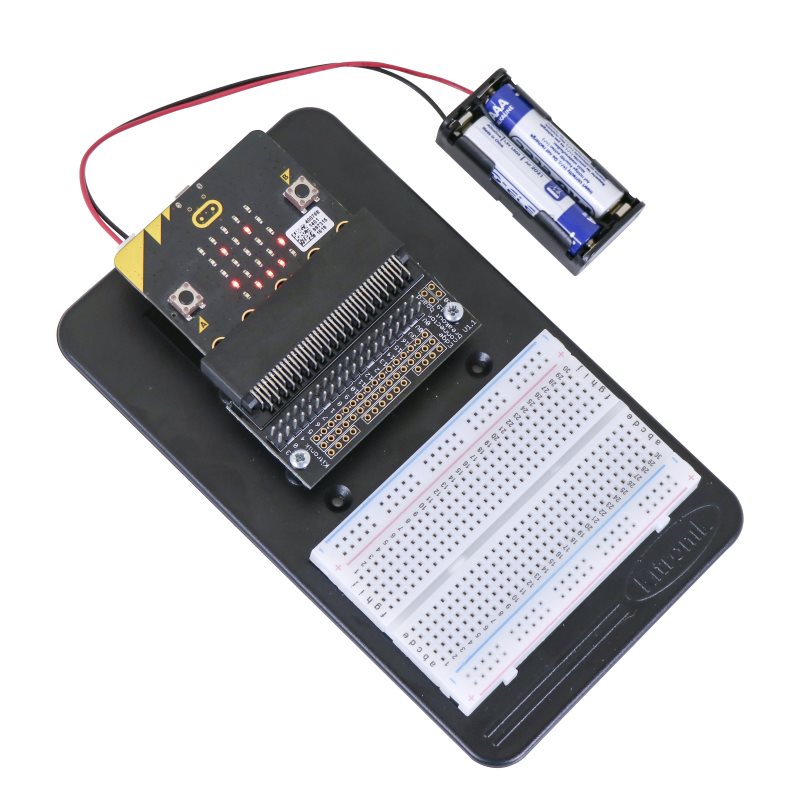

Using this prototyping system is easy. First, gather what you need - a BBC micro:bit and a Phillips screwdriver. Start by assembling the kit using the provided Pan Head M3 Machine Screws. Connect the BBC micro:bit to the pre - built Edge Connector Breakout Board. This board gives you access to all the pins of the micro:bit. The Small Prototype Breadboard allows you to add extra components easily with the included jumper wires. You can run your own custom code on the BBC micro:bit to make the external components work as you want. Remember, the BBC micro:bit, battery cage, and batteries are not included in the kit. The kit requires assembly, so take your time to put it together correctly. When it comes to maintenance, keep the components clean and dry. Avoid bending the pins on the Edge Connector Breakout Board and the micro:bit. If you have any questions, refer to the Prototyping Plate Assembly Instructions and the Edge Connector Breakout Board Datasheet.
