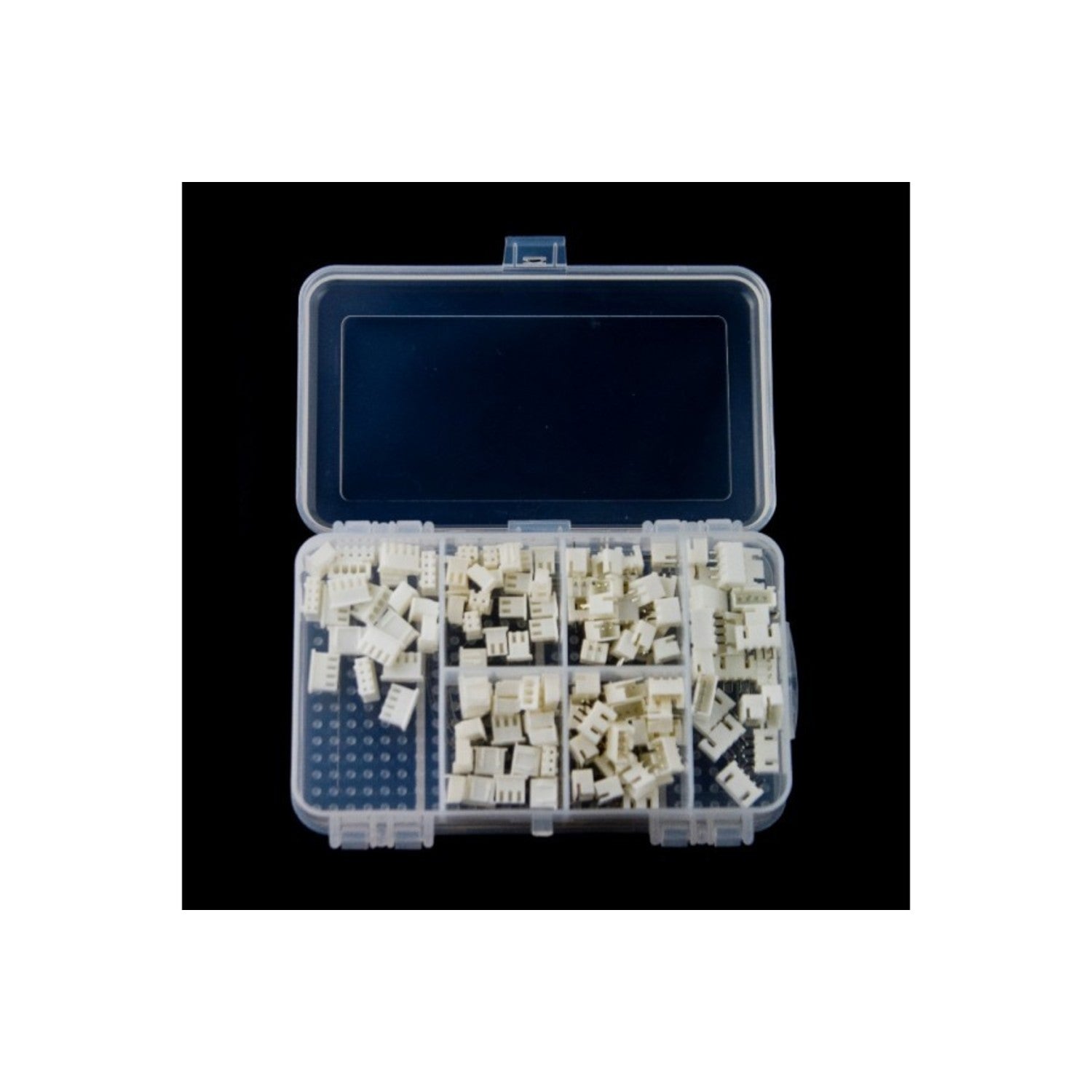

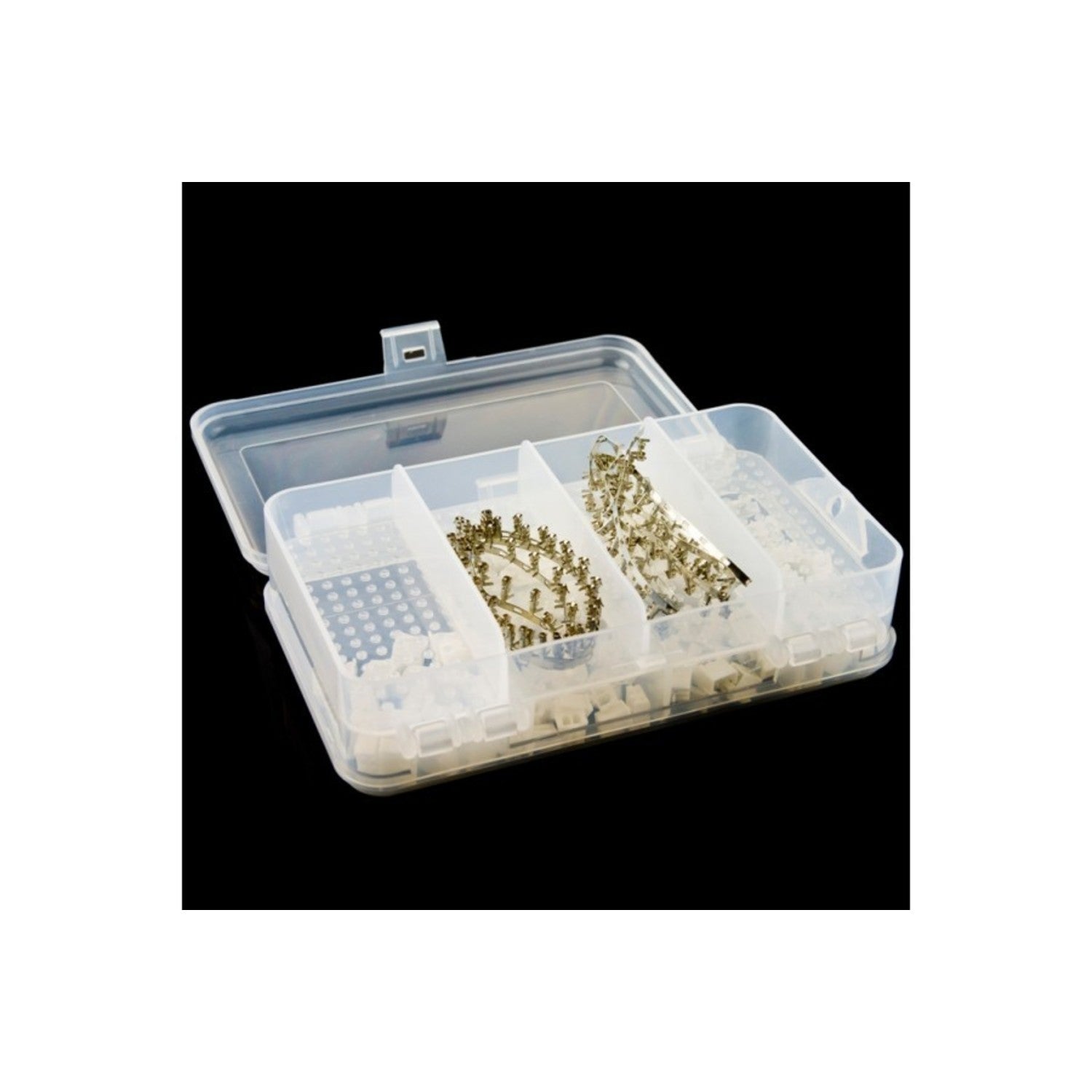

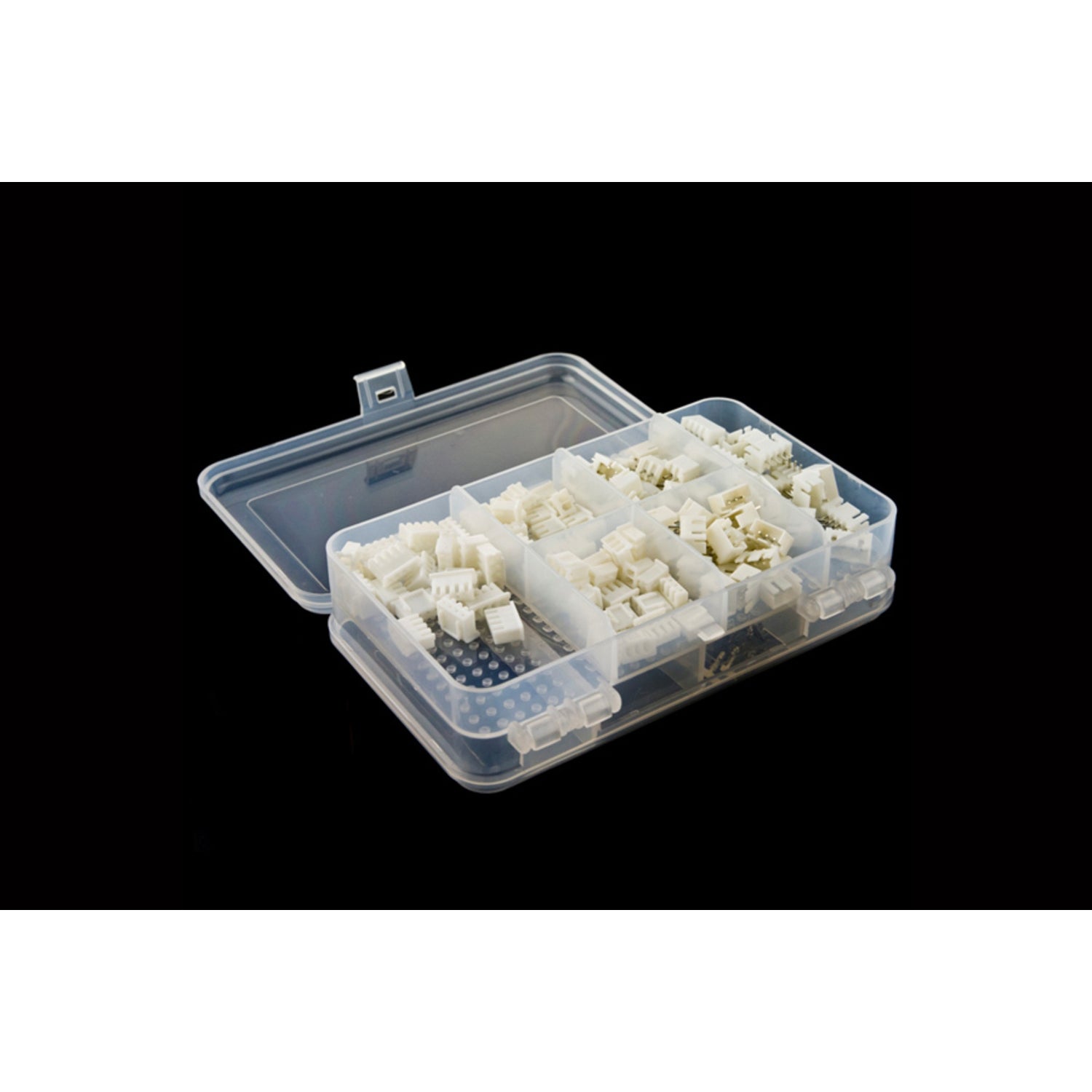

This amazing JST connector kit is a must - have for electrical projects. It comes with JST XHP - 2, XHP - 3, and XHP - 4 housings (20 units each), through - hole type shrouded headers (20 units each), and 100 crimp contacts. The kit has a current rating of 3A AC/DC (AWG #22) and a voltage rating of 250V AC/DC. It can operate in a temperature range from - 25°C to + 85°C. The contact resistance is initially 10m Ω max and 20m Ω max after environmental testing. The insulation resistance is 1000M Ω min, and it can withstand 1000V AC for a minute. It's suitable for wires from AWG#30 to #22 and PC boards with a thickness of 1.6mm (0.06'). The shipping list includes JST 2.54mm (0.1') XHP - 2, XHP - 3, and XHP - 4 housings (20 units each), B2B - XH - A, B3B - XH - A, and B4B - XH - A through - hole type shrouded headers (20 units each), 100 crimp contacts, and one two - sided compartment parts box.
Using this JST connector kit is easy. First, select the appropriate housing and through - hole type shrouded header for your project. Then, attach the crimp contacts to the wires according to the AWG size specified. Make sure to insert the wires properly to ensure good electrical connection. When working, avoid exposing the connectors to extreme temperatures outside the - 25°C to + 85°C range, as this may affect their performance. For maintenance, keep the connectors clean and dry. If you notice any signs of damage or increased resistance, replace the affected parts. Also, store the kit in a cool and dry place when not in use to prolong its lifespan.
