Hub Mount - Quad (Mount E)

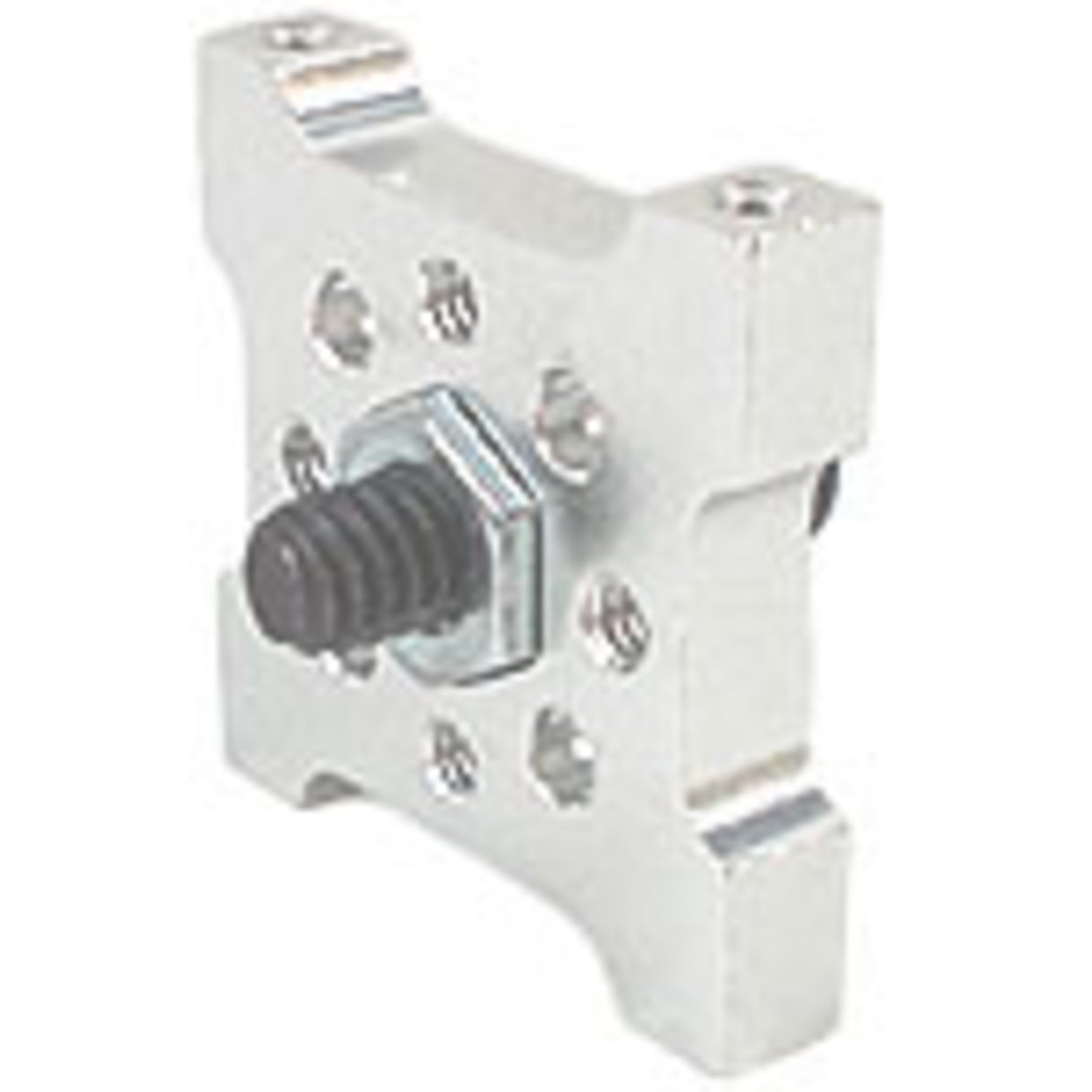

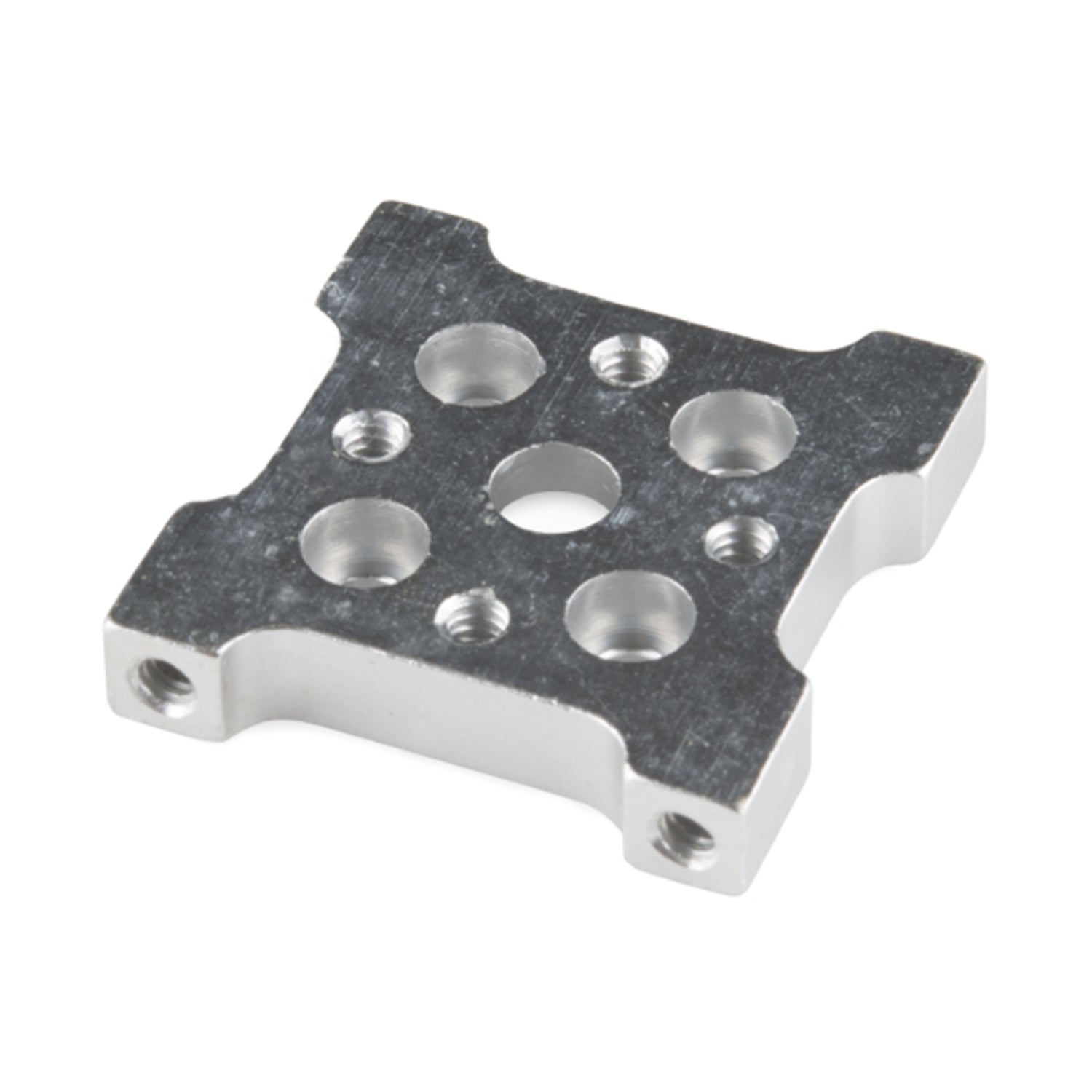

These quad hub mounts are a great addition to your electromechanical projects. They can be attached to the end or middle of Actobotics channels, giving you a 90 - degree angle and extra attachment points. With a beveled spot for a ¼ - 20 hex nut, they're ideal for mounting cameras. These mounts are 1.32” wide, 0.25” thick, have a 0.25” bore, and use a 0.77” hub pattern. Actobotics is a robotics building system featuring extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to two standardized hole patterns, most Actobotics components can be easily connected. This wide - ranging system makes it possible to build complex electromechanical prototypes or finished projects. Dimensions: Width - 1.32”, Thickness - 0.25”, Bore - 0.25” with ¼ - 20 Hex, Hub Pattern - 0.77”. Documents: SketchUp Part, Product Page (545452).

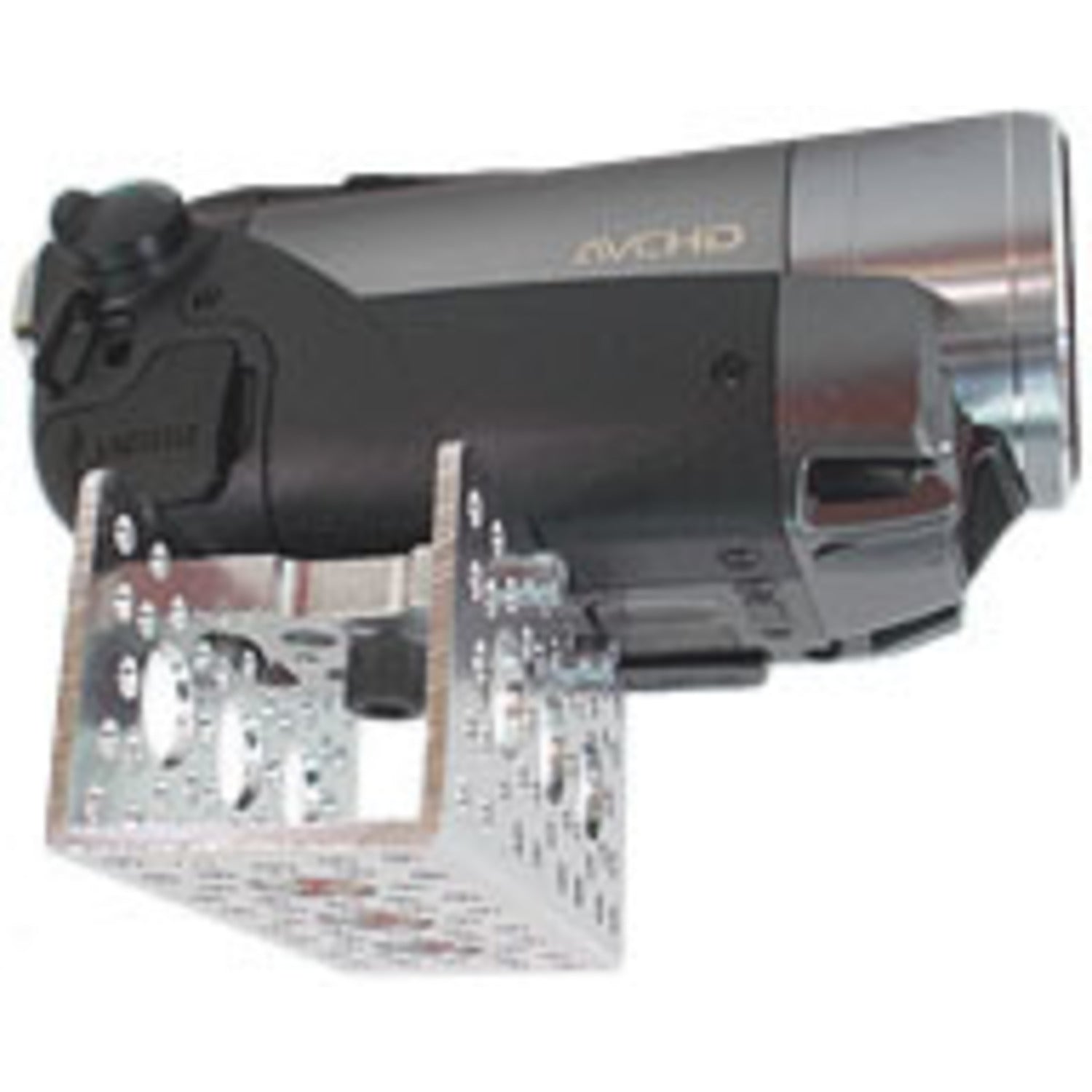

Using these quad hub mounts is easy. First, decide whether you want to attach them to the end or the middle of your Actobotics channels. This gives you a 90 - degree angle for your project. If you're mounting a camera, use the beveled spot for the ¼ - 20 hex nut. When handling the mounts, be careful not to damage the edges. For maintenance, just keep them clean and dry. If you notice any rust or damage, it might be time to replace them. These mounts are a great part of the Actobotics system, so enjoy building your electromechanical projects with them!
