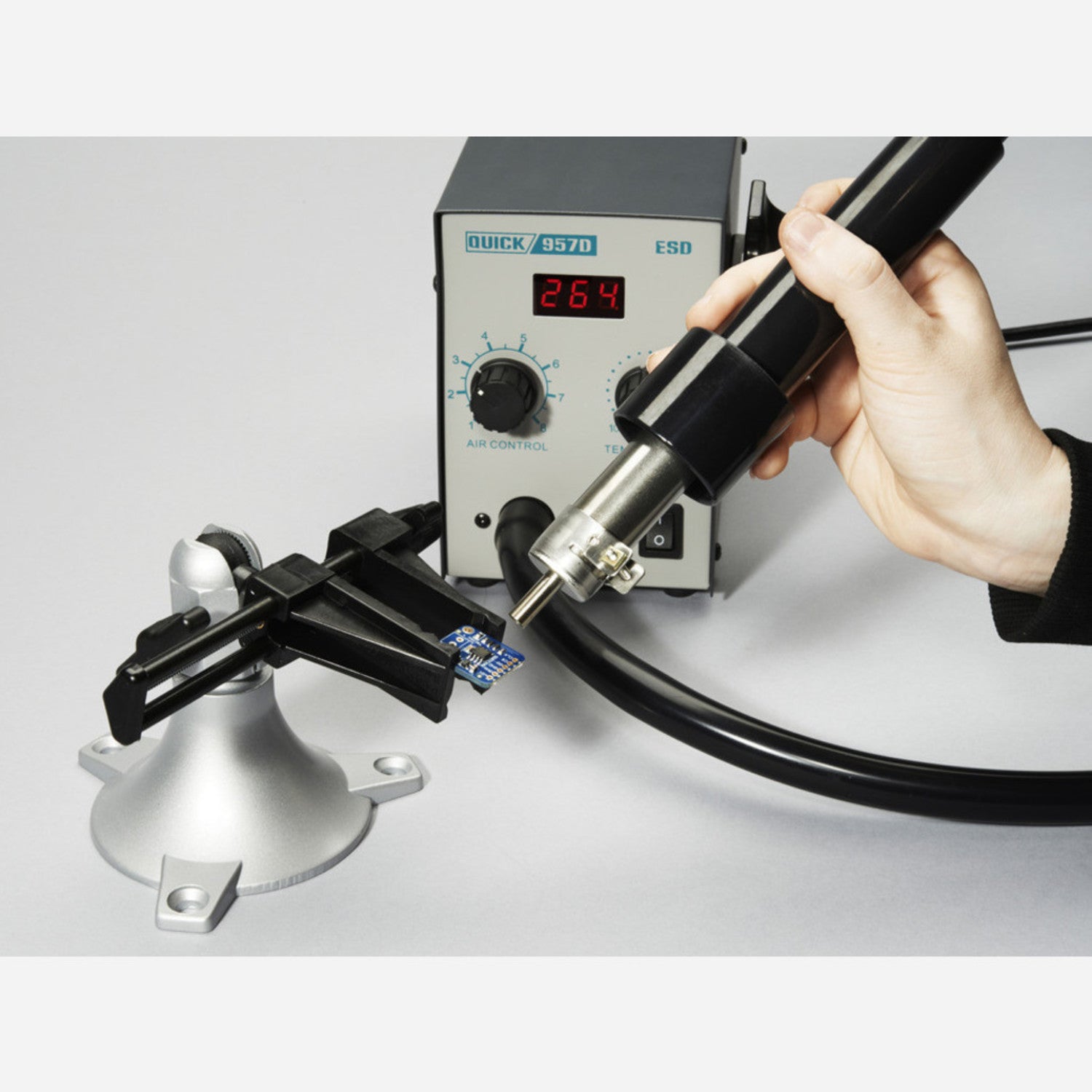

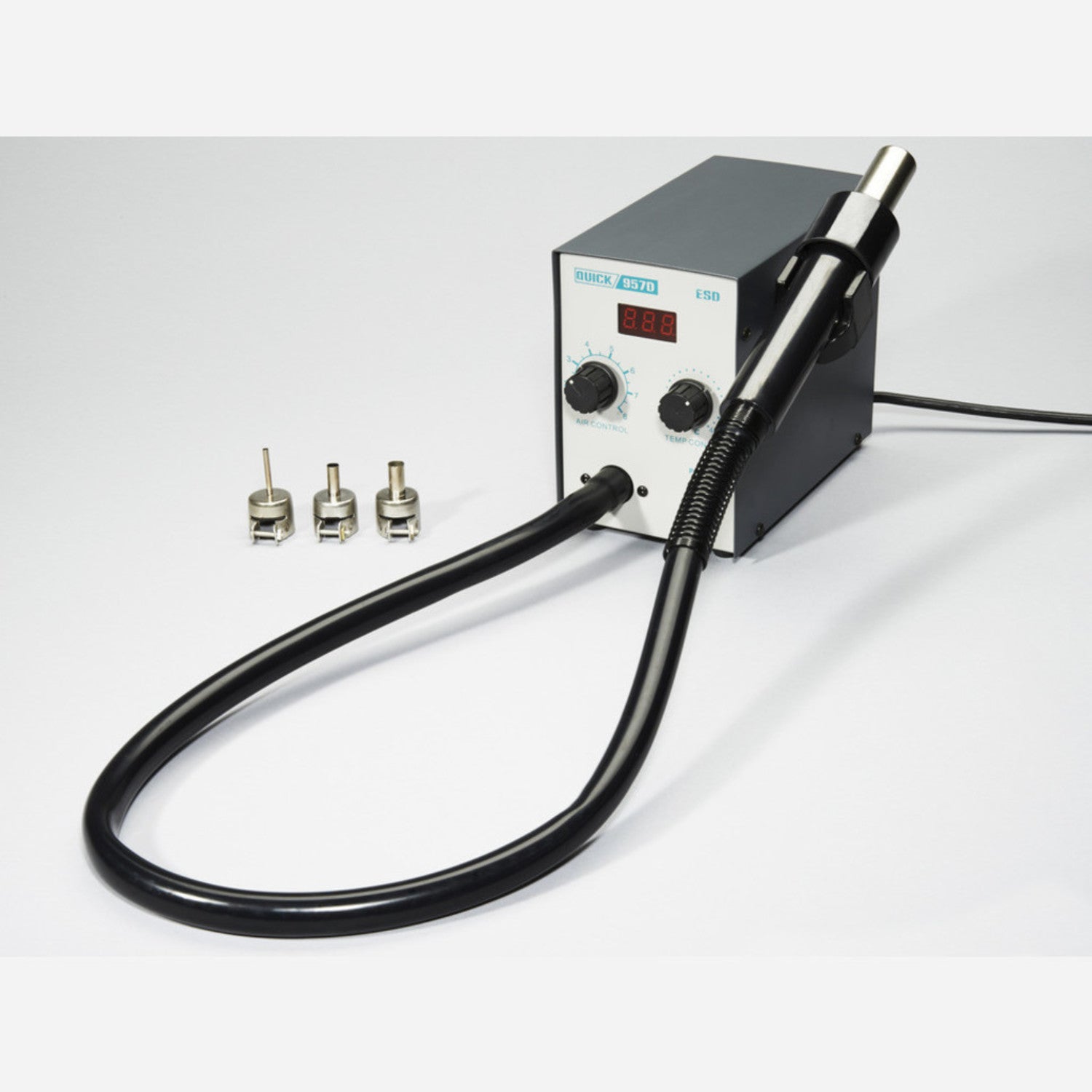

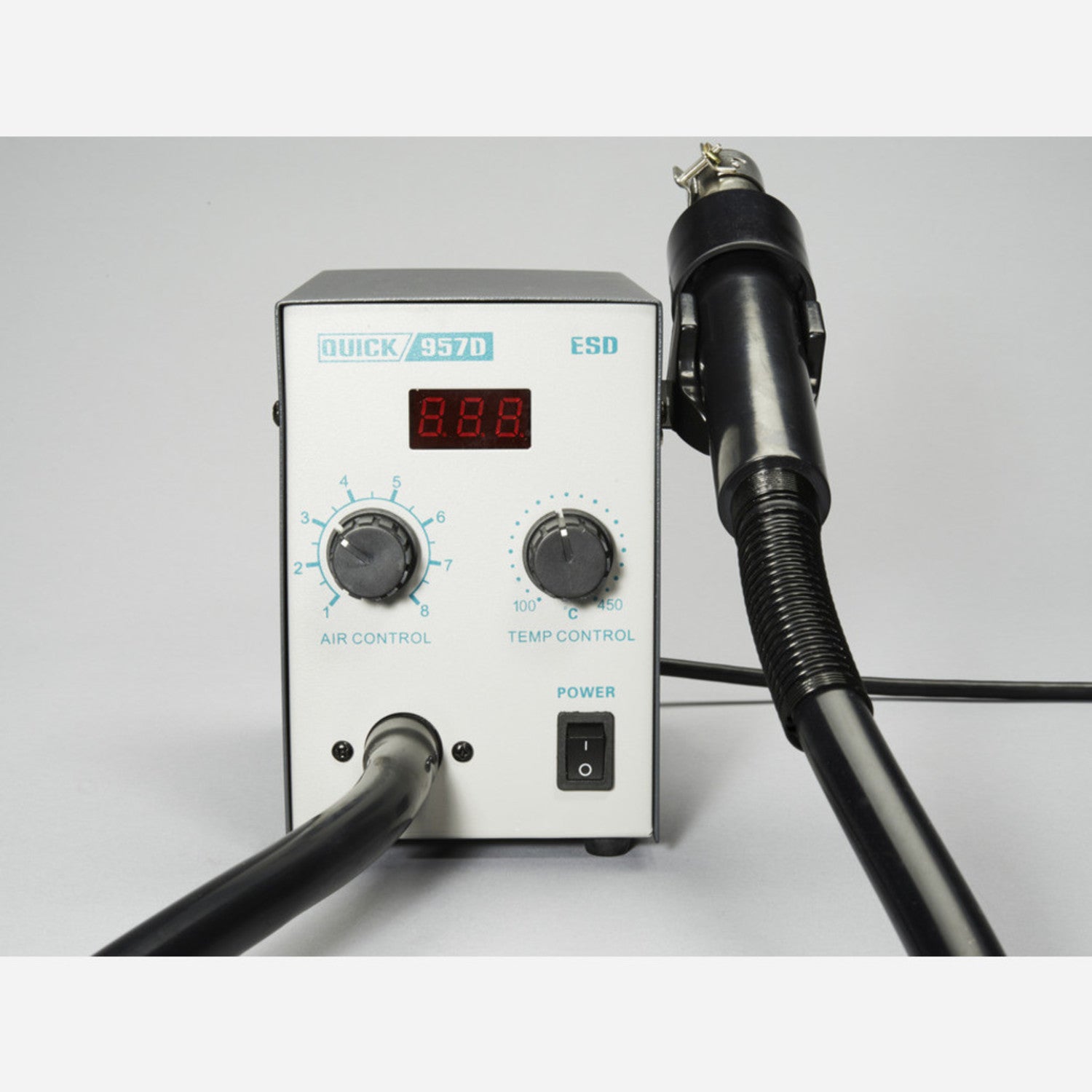

Have you ever messed up surface-mount soldering? Without the right tools, fixing it can be a real headache, adding precious time to your project and killing your soldering mojo when you encounter a bad component or a faulty reflow. But with the Quick 957D Soldering Station, reworking your boards becomes a breeze, getting your project back on track in no time. You can even use solder paste (like in a syringe), apply it, and then blow hot air to melt the solder and position components perfectly. This must-have tool features an internal pump and heater that blow a steady stream of temperature-controlled hot air. It makes removing components, fixing joints and jumpers, replacing missing parts, or correcting mistakes incredibly easy. Ideal for beginners, the Quick 957D is affordable and easy to use. It comes with different nozzles for various part sizes. It has a closed-loop temperature control range from 100 - 450°C (212 - 842°F) and a digital display so you can easily see the air temperature. With a power consumption of 580W and an intelligent cooling system, the airflow stays on until it drops below 100°C. The max air flow is 100L/minute, but for most jobs, you'll want to keep it much lower. Just remember to let the rework station heat up completely before use. And be careful, use tools instead of your hands because it blows out really hot air. It comes with three nozzles - use the smallest one you can for the job to avoid damaging other components, like when isolating a part of the board away from a connector.
Using the Quick 957D Hot Air Soldering Rework Station is easy. First, make sure to let it heat up all the way before you start. This will ensure it works effectively. You can use solder paste, put it on the area you want to work on with a syringe, and then use the hot air to melt the solder and place the components. When using the different nozzles, pick the smallest one that can do the job. This helps you avoid accidentally damaging other parts of the board. Keep an eye on the digital display to know the air temperature. You can control the temperature between 100 - 450°C (212 - 842°F). For most tasks, don't use the maximum air flow of 100L/minute. Usually, a lower setting will be enough. Always use tools, not your hands, when working with the rework station because the air it blows out is really hot. After you're done using it, let the intelligent cooling system do its job. The airflow will stay on until the temperature drops below 100°C. This helps protect the machine. To maintain it, keep it clean and store it in a dry place. If you notice any problems, stop using it and check for issues or consult the manufacturer.
