Gravity: GR10-30 Gesture Sensor (UART & I2C, 12 Gestures, 0~30cm)

The GR10-30 gesture sensor is a remarkable device that can accurately recognize 12 different hand gestures. These include moving up, down, left, right, forward, and backward, rotating clockwise and counterclockwise (both once and continuously), hovering, and waving. You can customize parameters such as the gesture trigger distance, hand rotation angle, recognizable hovering time, and recognition window size to achieve more precise results. With stable performance and high accuracy, this sensor works effectively within a sensing distance of up to 30 cm. It also offers two interrupt pins to indicate gesture triggers and when an object enters the recognition range. Ideal for non - contact operation applications like gesture remote controllers, robot interaction, human - machine interface control, lighting control, and gesture game machines. Features: maximum recognition distance of 30cm, ability to recognize 12 gestures, configurable recognition threshold and other parameters, and support for UART and I2C communication. Applications: gesture remote controller, robot interaction, human - machine interface control. Specification: supply voltage from 3.3V to 5V, operating current less than 10mA, I2C address 0x73, serial baud rate 9600, maximum recognition distance 30cm, operating temperature from 0°C to 70°C, operating humidity from 5%RH to 85%RH, dimension 22×30mm/0.87×1.18'. Documents: product wiki, Modbus RTU Protocols. Shipping List: one Gravity GR10 - 30 Gesture Sensor and one Gravity - 4P I2C/UART Sensor Cable.

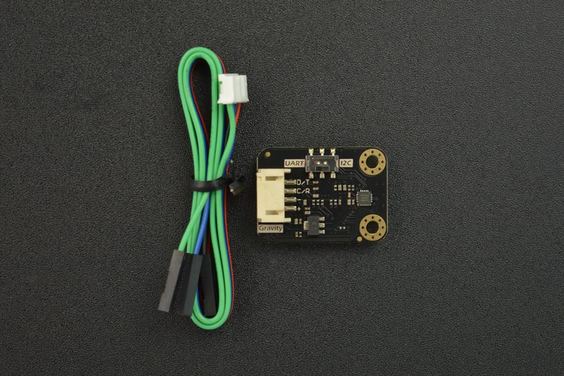

Using the GR10 - 30 gesture sensor is easy. First, connect it to your device using the included Gravity - 4P I2C/UART Sensor Cable. Make sure to set the correct supply voltage between 3.3V and 5V. Then, you can start customizing the parameters like the gesture trigger distance according to your needs. Wave your hand within 30 cm of the sensor to test its gesture recognition. When using it, keep the operating temperature between 0°C and 70°C and the humidity between 5%RH and 85%RH. Avoid exposing it to extreme conditions. For maintenance, simply keep it clean and free from dust. If you encounter any problems, refer to the product wiki or Modbus RTU Protocols for help.
