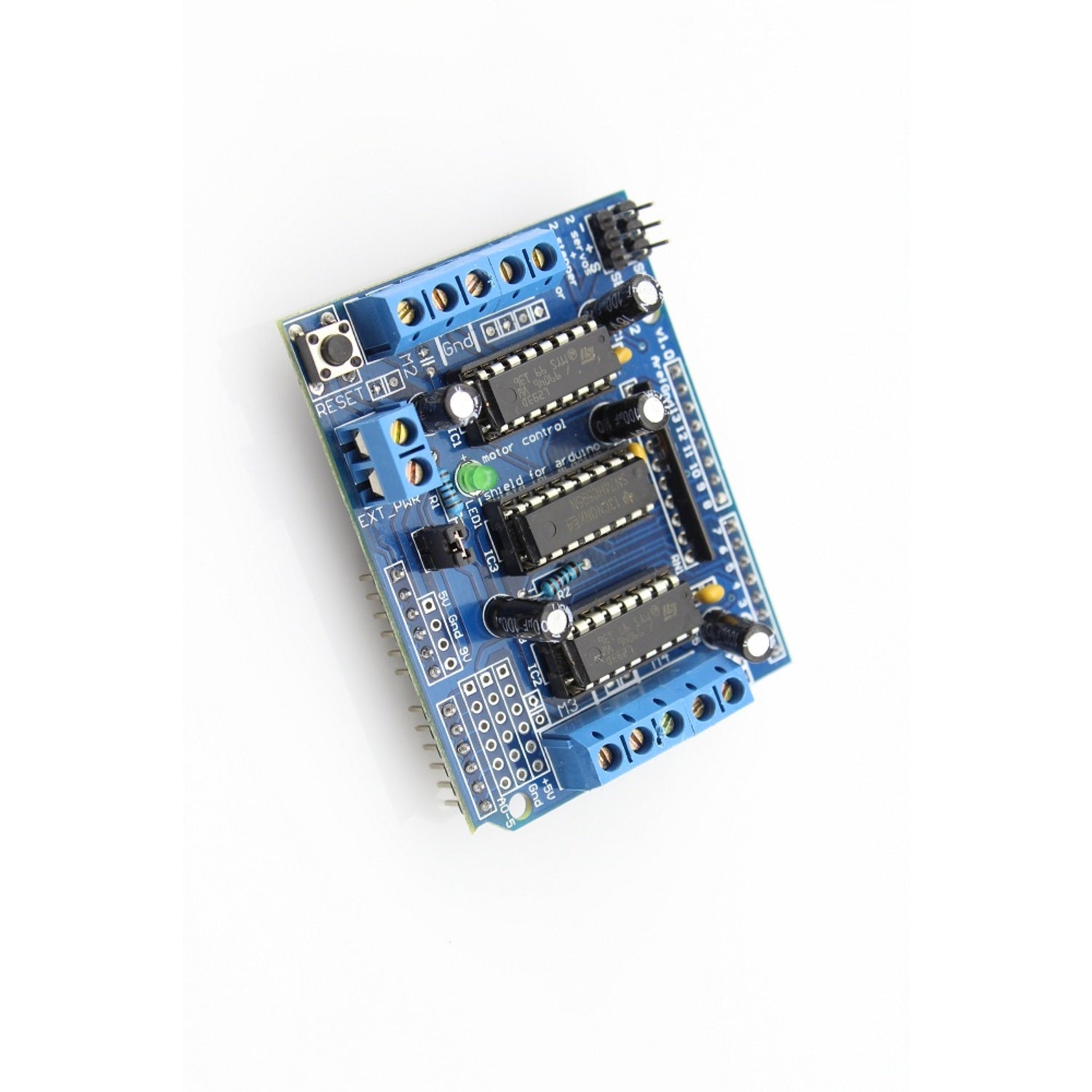

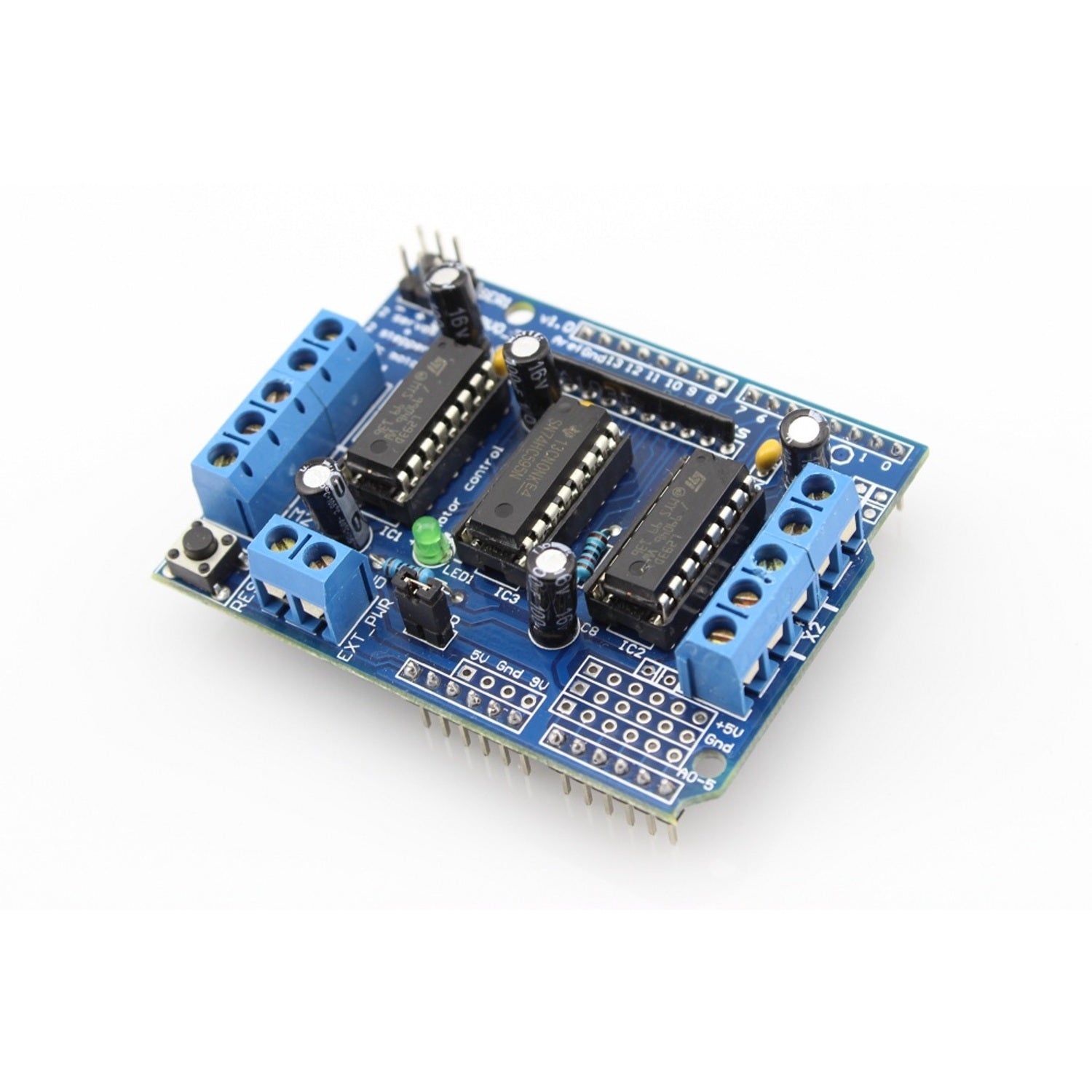

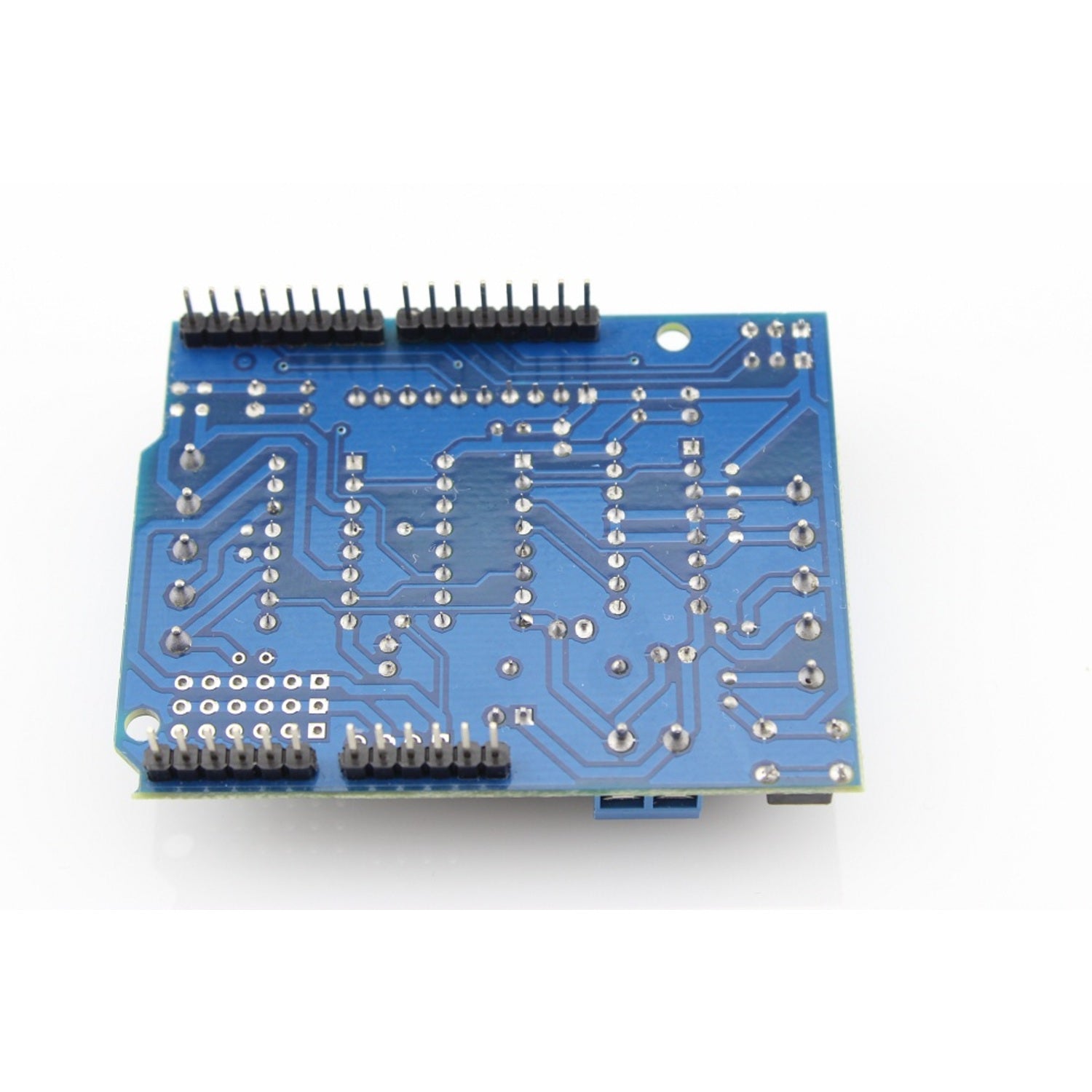

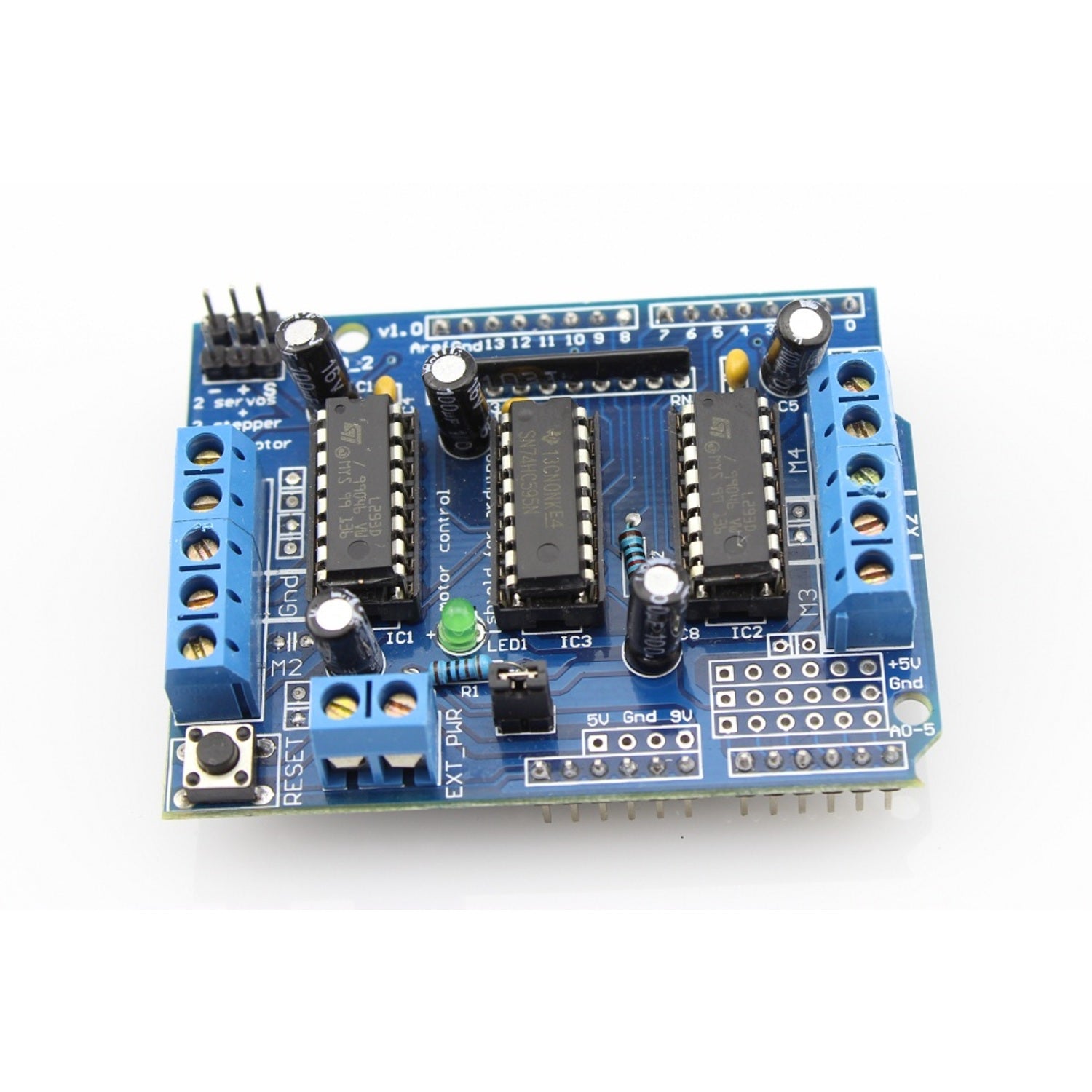

Four - Channels Motor Shield For Arduino

This Arduino - compatible motor driver shield is a top - notch product. It can drive 4 DC motors or two 4 - wire steppers and two 5V servos. It uses the L293D to drive DC motors and steppers, and utilizes Arduino pins 9 and 10 to drive servos. Key features include the ability to drive 4 DC motors and 2 servos, or 2 steppers and 2 servos. The logic control voltage Vss ranges from 4.5 to 5.5V, and the motor supply voltage is from 4.5 to 12V. It reduces the need for control pins through 8 - stage serial shift registers, and the drive part has an operating current Io of 1.2A. There are also useful manuals, libraries, schematics, and datasheets available.

Using this motor shield is quite straightforward. First, connect your DC motors, steppers, or servos according to the voltage requirements. Make sure the logic control voltage Vss is between 4.5 and 5.5V, and the motor supply voltage is within 4.5 to 12V. When connecting, pay attention to the correct pin connections as described in the schematics. As for servos, use Arduino pins 9 and 10. When it comes to maintenance, keep the shield in a dry and clean place. Avoid exposing it to extreme temperatures or humidity. If you run into any problems, refer to the manual or the provided libraries for help. Also, check the datasheets of the L293D and 74HC595 for more technical details if needed.
