Expansion Shield X200 for Raspberry Pi B+/2B/3B

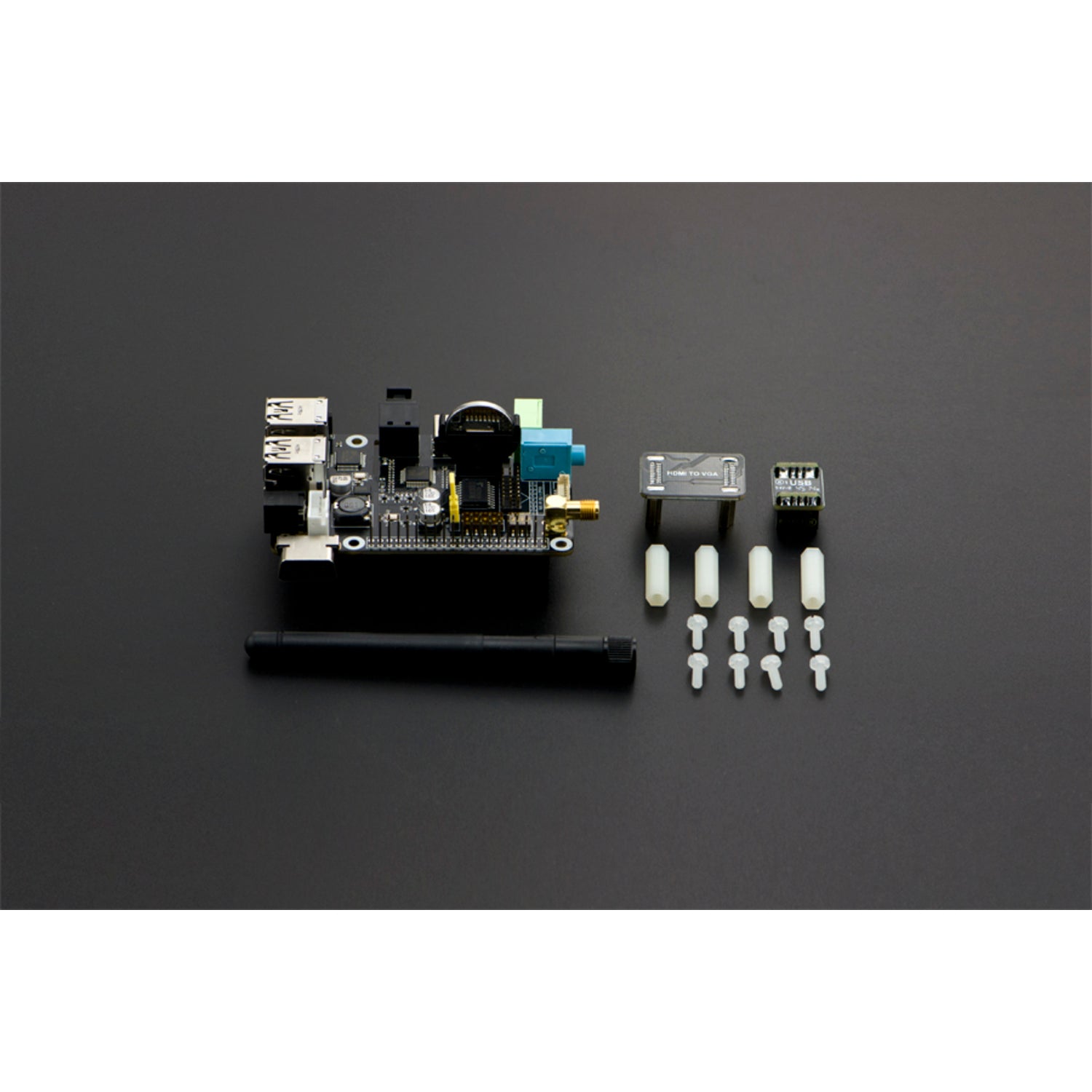

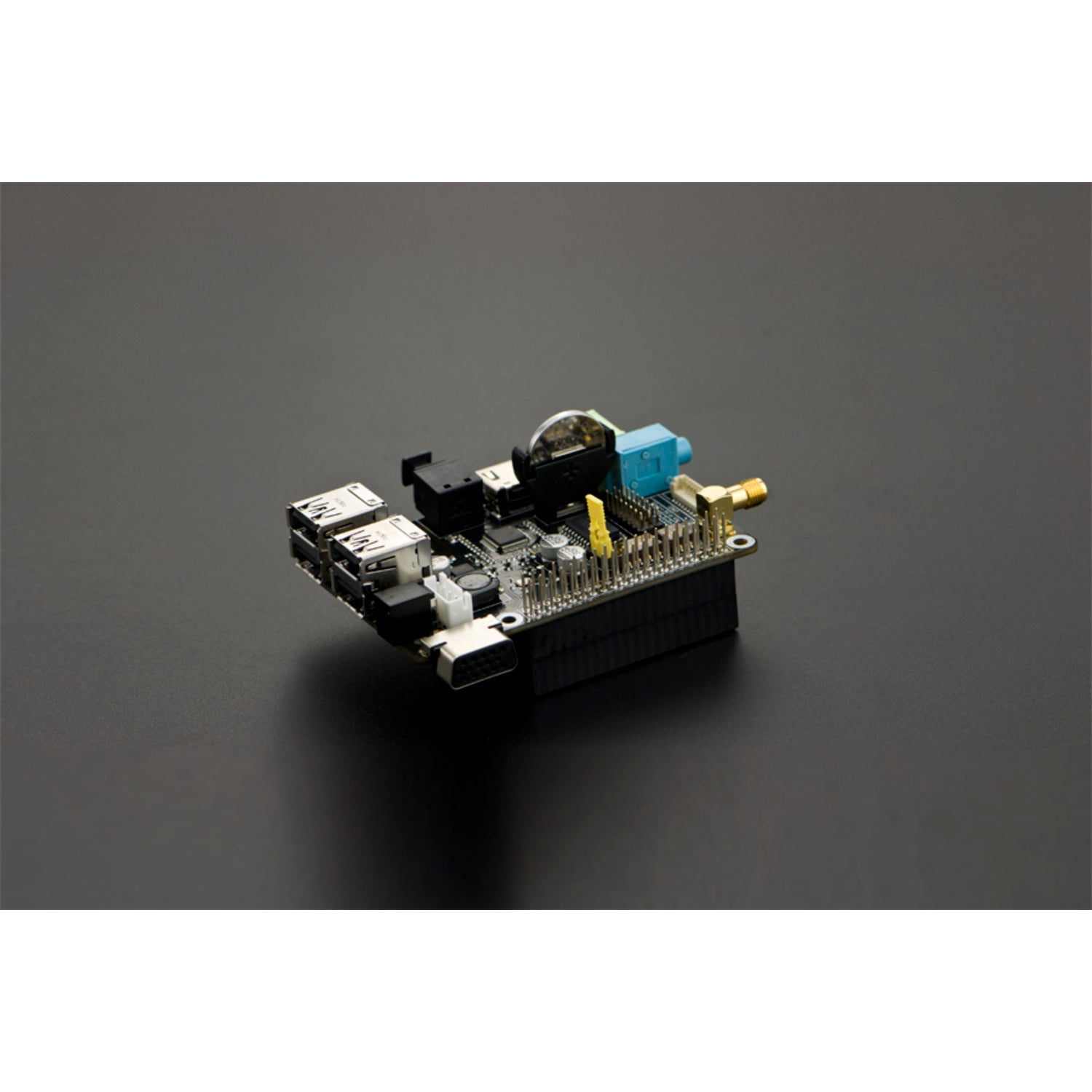

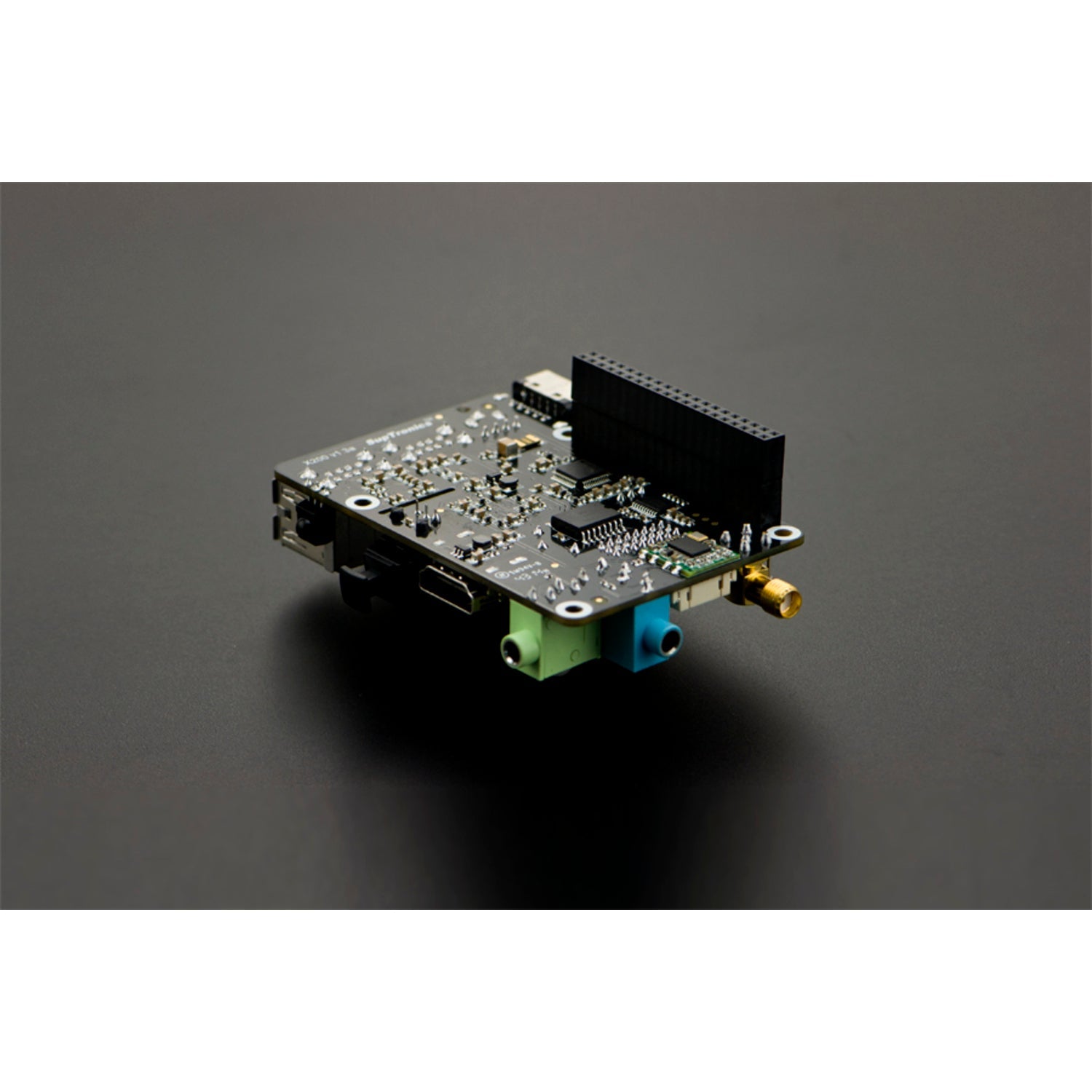

The Expansion Shield X200 is an incredibly cost - effective accessory designed for Raspberry Pi Model B+, Raspberry Pi 2 Model B, and the latest Raspberry Pi 3 Model B. It comes packed with a host of useful features like a real - time clock (RTC), audio input and output, VGA output, USB hub, WIFI, and 8 - way GPIO. With this shield, you can effortlessly build Raspberry Pi projects, saving both your time and money. **Specifications** - Input Voltage: Converts 6V to 21Vdc to 5V, 3A via a step - down DC/DC converter to power the Raspberry Pi. - VGA output: An HDMI to VGA converter that supports up to UXGA (1600x1200) and 1080p with a 10 - bit DAC. - Audio: It has a 3.5mm MIC in jack, a 3.5mm stereo audio jack, and SPDIF output. There's also an audio IO connector with a microphone input and a 3.3Wx2 stereo audio amplifier. - Wireless: Features WiFi (IEEE 802.11b/g/n) with an external antenna. - IR sensor: Operates at 38KHz. - USB Storage: A self - powered USB hub with 3 ports. - Real - time clock (RTC): Based on DS3231SN with an included CR2032 battery. - GPIO Control: An 8 - channel Darlington driver chip (ULN2803) for controlling high - current electronic circuits. - Misc: Comes with a power output socket, a camera flex slot for using the camera even with the expansion board attached, a DIP switch to remove RPi's pin header connection. It directly connects on top of the Raspberry Pi using board GPIO header pins, no wiring or soldering needed. It duplicates the 40 - pin header of the R - Pi to support existing expansion boards. - Dimensions: 85 x 56mm(3.35 x 2.20'), same size as the Raspberry Pi. Note: Don't power the Raspberry Pi via the Micro - USB port when using the shield's power source, as it can damage the board. **Documents** - Driver Download and User Manual **Shipping List** - X200 Raspberry Pi expansion board x1 - HDMI adapter x1 - USB adapter x1 - 2.4GHz WIFI antenna x1 - nylon spacers (M3 x 20mm) x4 - nylon screws (M3 x 6mm) x8

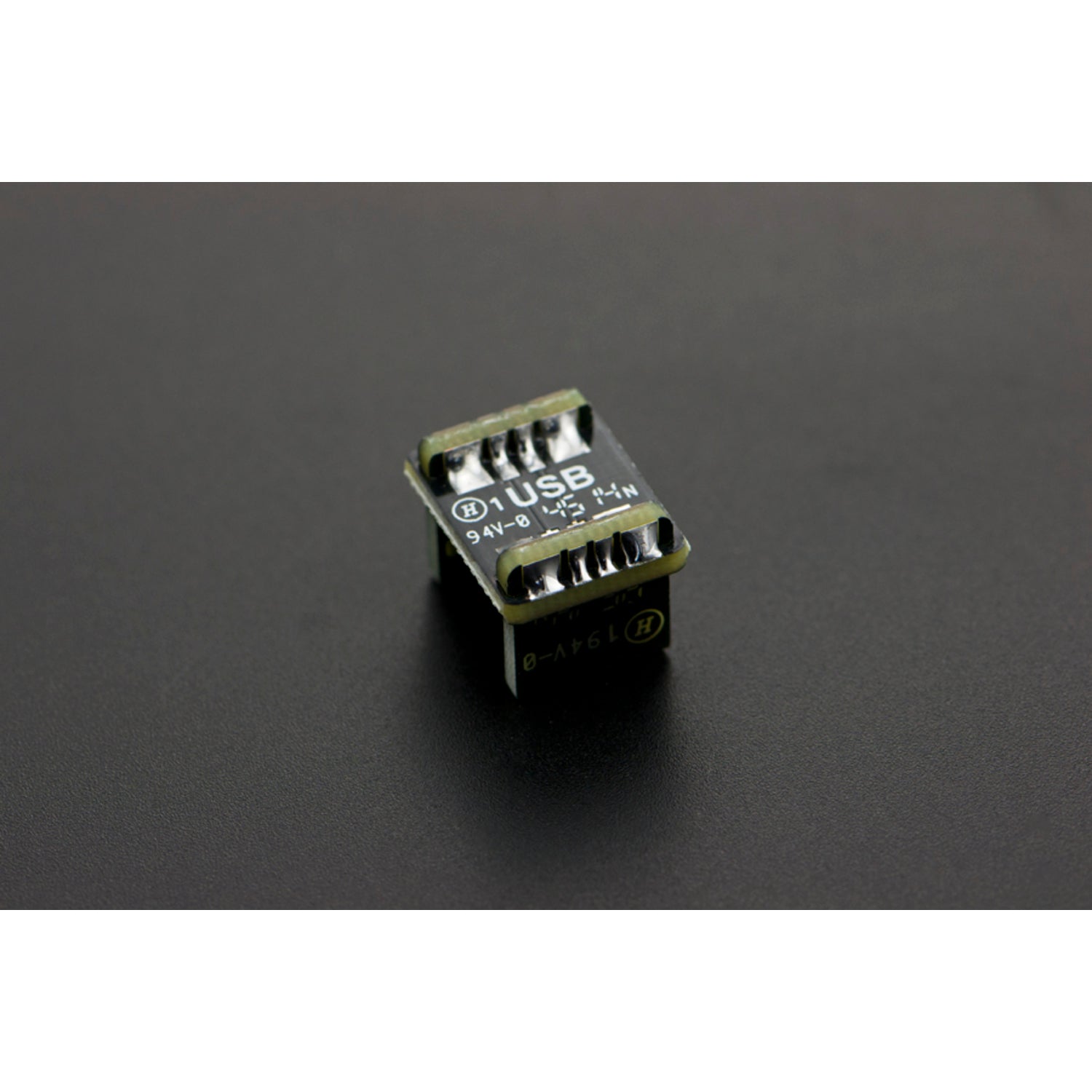

Using the Expansion Shield X200 with your Raspberry Pi is a breeze. First, make sure your Raspberry Pi is turned off. Then, simply place the shield on top of your Raspberry Pi using the board GPIO header pins - no need for any wiring or soldering. Connect all the necessary cables like the HDMI adapter for VGA output, the USB adapter for the USB hub, and attach the 2.4GHz WIFI antenna. When it comes to power, use the shield's power source. But remember, don't power the Raspberry Pi via the Micro - USB port at the same time, or it can damage the board. For audio, you can use the 3.5mm MIC in jack for input and the 3.5mm stereo audio jack or SPDIF output for sound. The audio IO connector is great if you want to use an external microphone and amplifier. To keep your shield in good condition, store it in a dry and cool place. Avoid exposing it to extreme temperatures or humidity. If there's dust on the shield, you can gently blow it off or use a soft, dry cloth to wipe it clean. That's it! With these tips, you're all set to enjoy your Expansion Shield X200.
