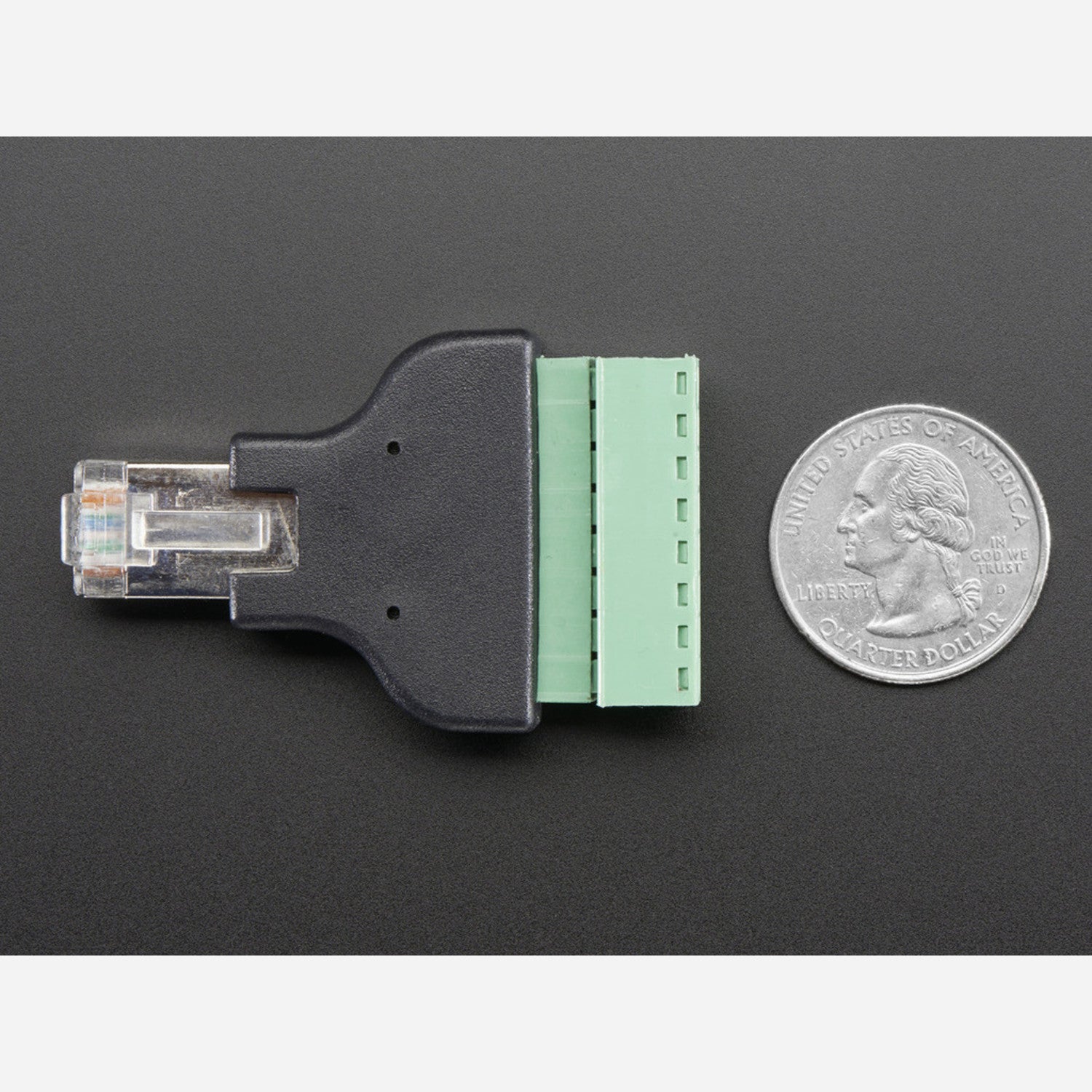

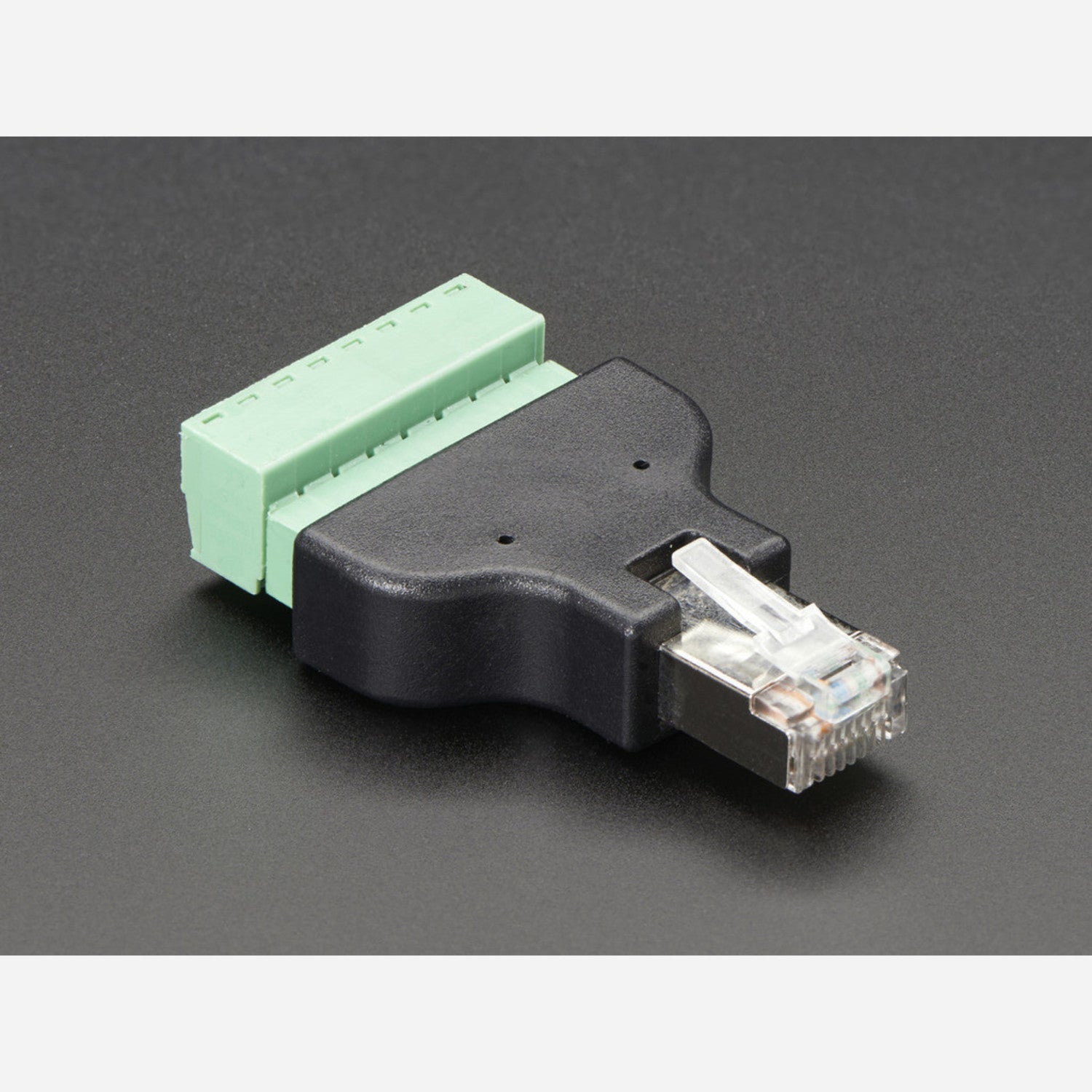

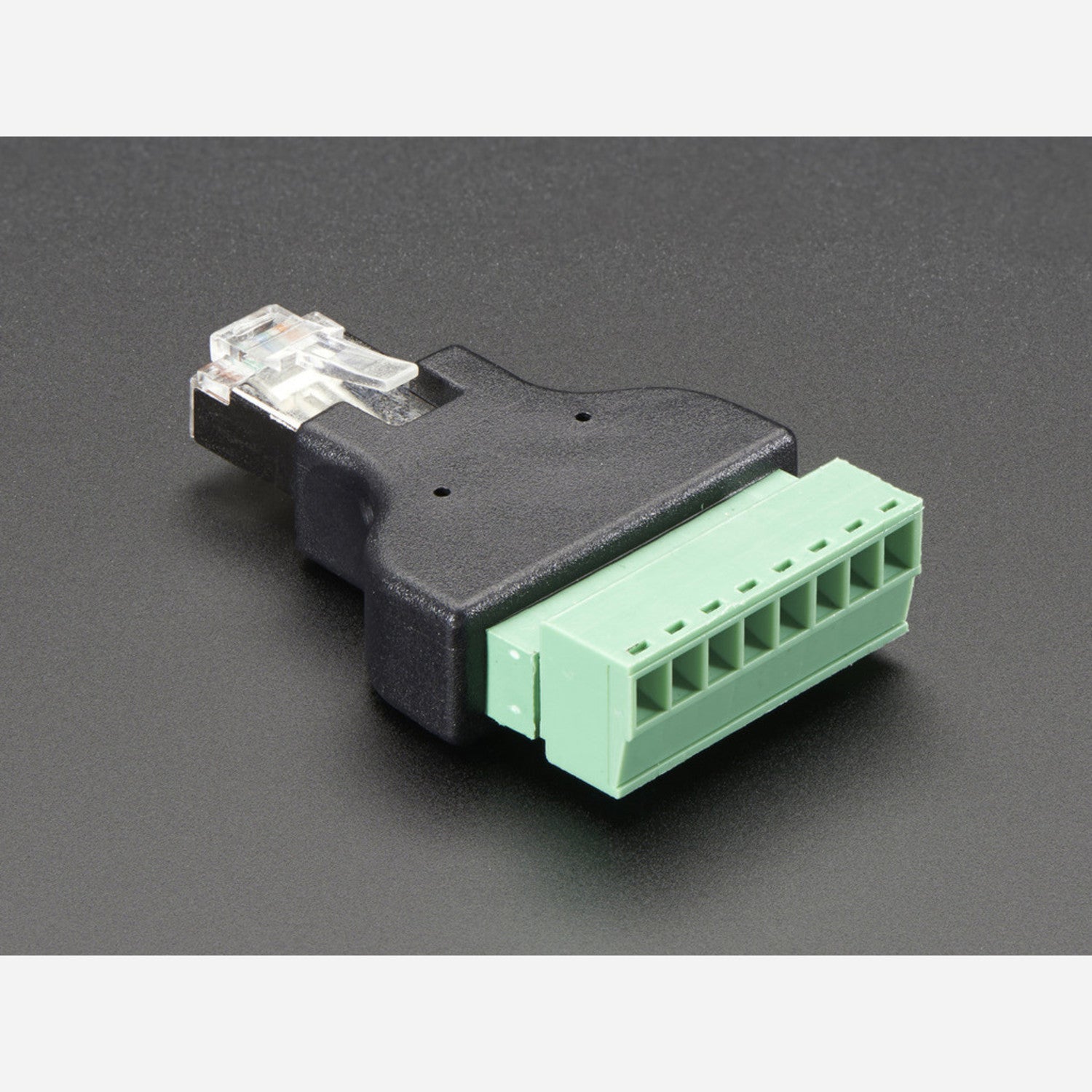

Ethernet RJ45 Male Plug Terminal Block

Need to connect an RJ45 (Ethernet) cable to a board with an Ethernet Jack? This adapter is super handy! No soldering needed. Just use a thin screwdriver to open the terminal blocks, insert your stranded or solid - core wire, and tighten again. Ideal for basic power and data distribution, though not recommended for long - term actual Ethernet traffic. It has a standard RJ45 Ethernet plug on one end and a screw terminal block on the other. Wired using the '468b' connection scheme: RJ45 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 connects to Screws 3 - 4 - 5 - 2 - 1 - 6 - 7 - 8. We also have a matching Ethernet Female Jack Terminal Block.

Using this Ethernet RJ45 Male Connector Terminal Block is a breeze. First, if you want to connect an RJ45 cable to a board with an Ethernet Jack, grab this adapter. You don't need to do any soldering. Just get a thin screwdriver, open up the terminal blocks, then slide your stranded or solid - core wire into the slots. After that, re - tighten the blocks. Remember, this product is great for basic power and data distribution, but it's not the best choice for long - term actual Ethernet traffic. As for maintenance, keep it in a dry place to prevent rusting of the screw terminal block. Also, make sure to check the connections from time to time to ensure they are tight and working properly.
