DF15MG Tilt/Pan Kit (15kg)

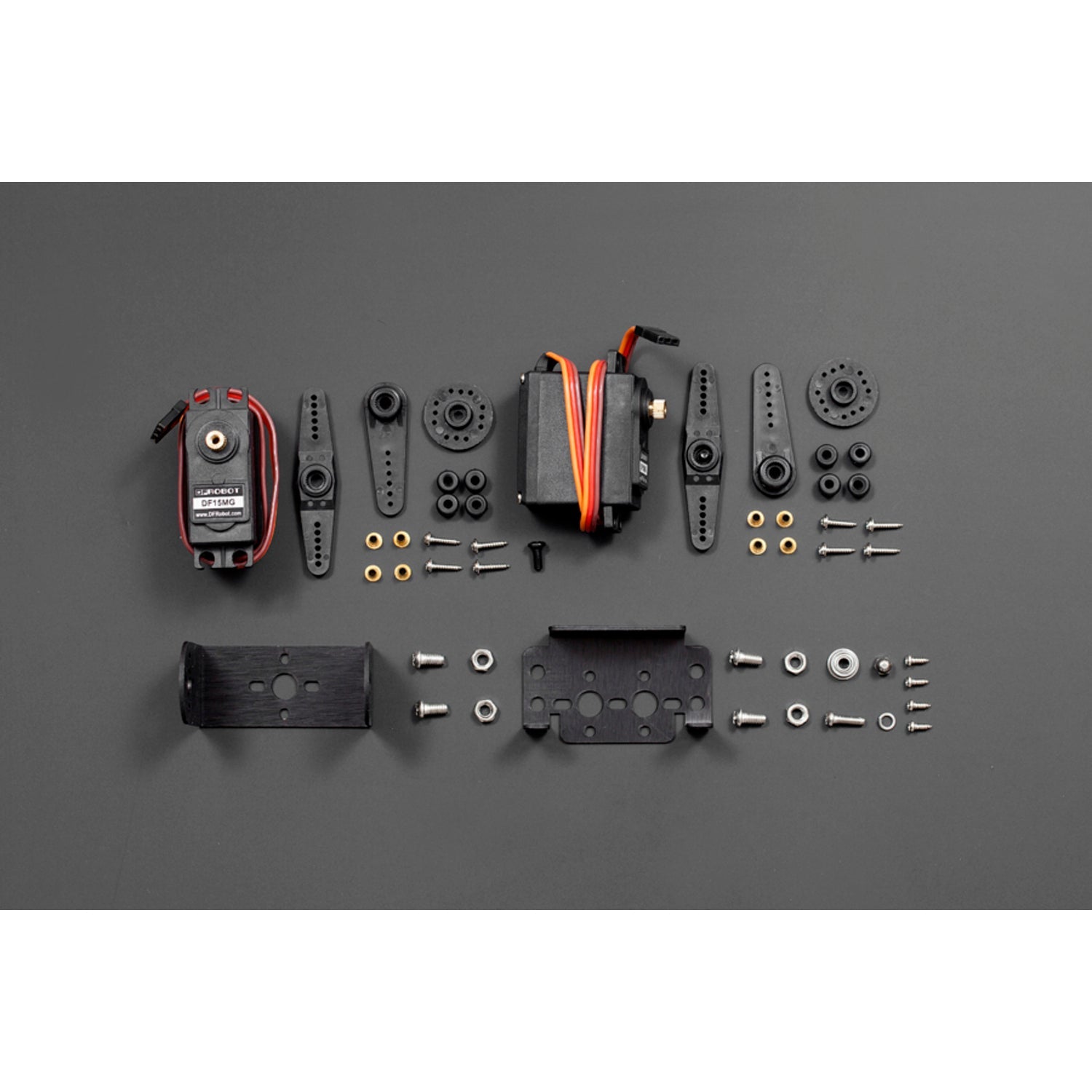

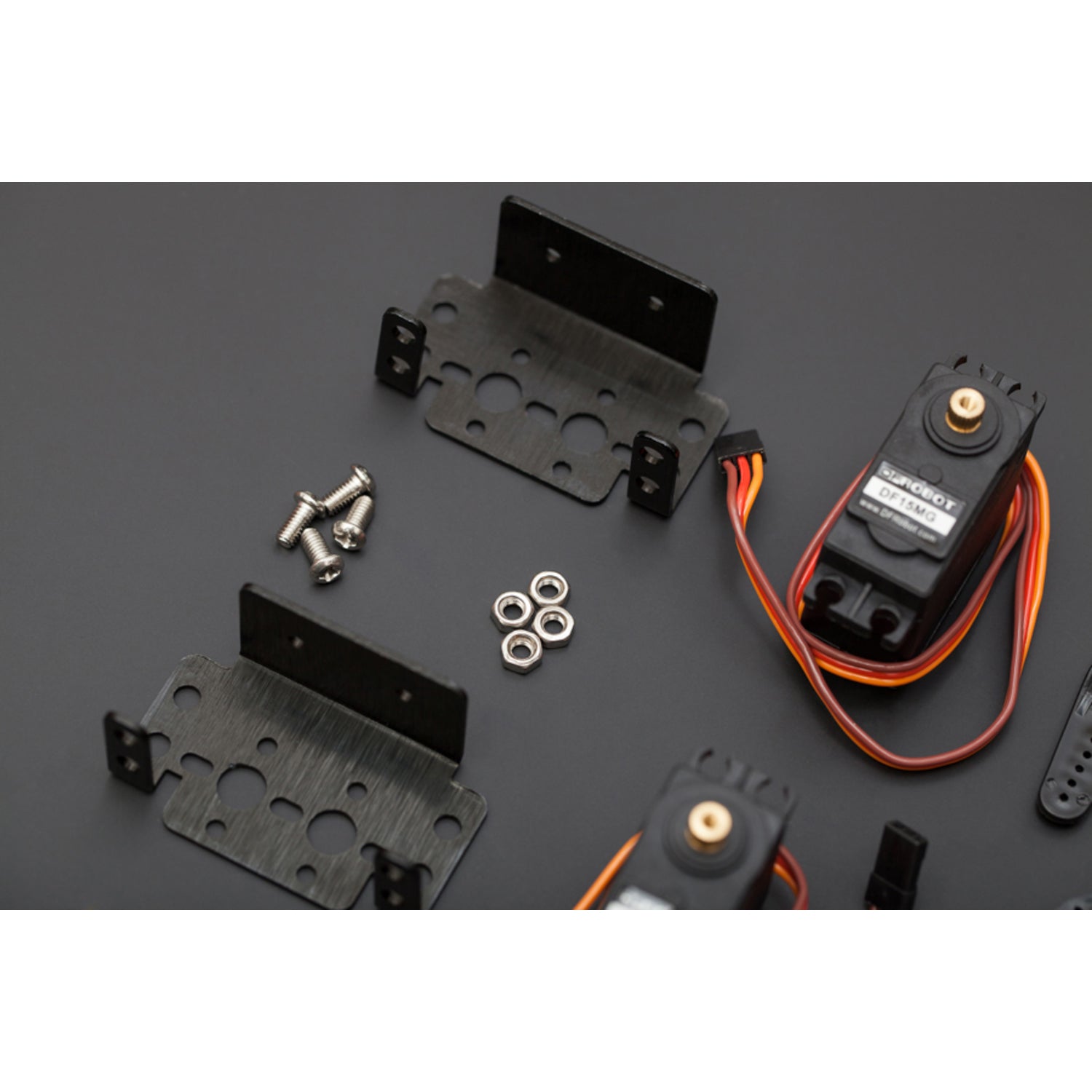

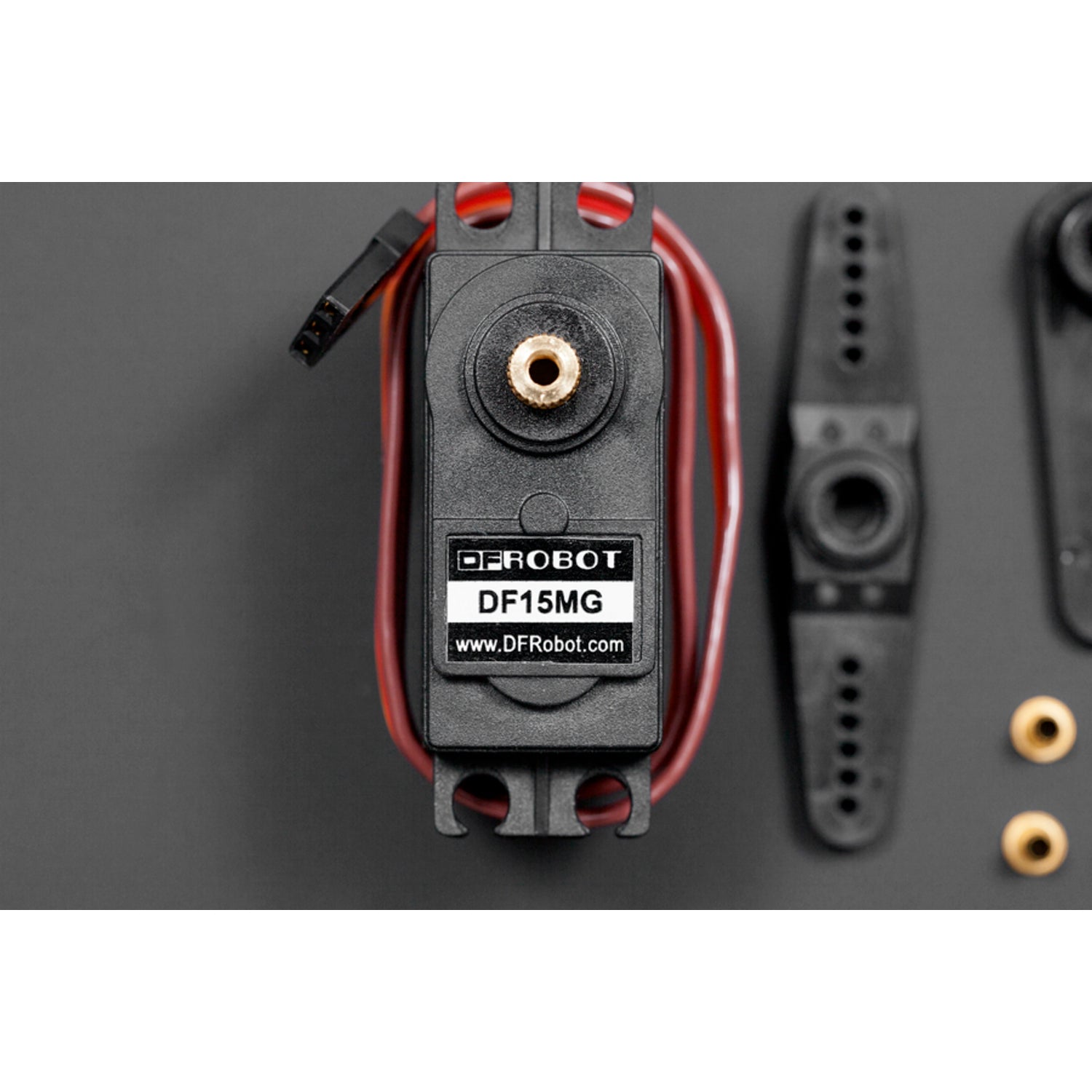

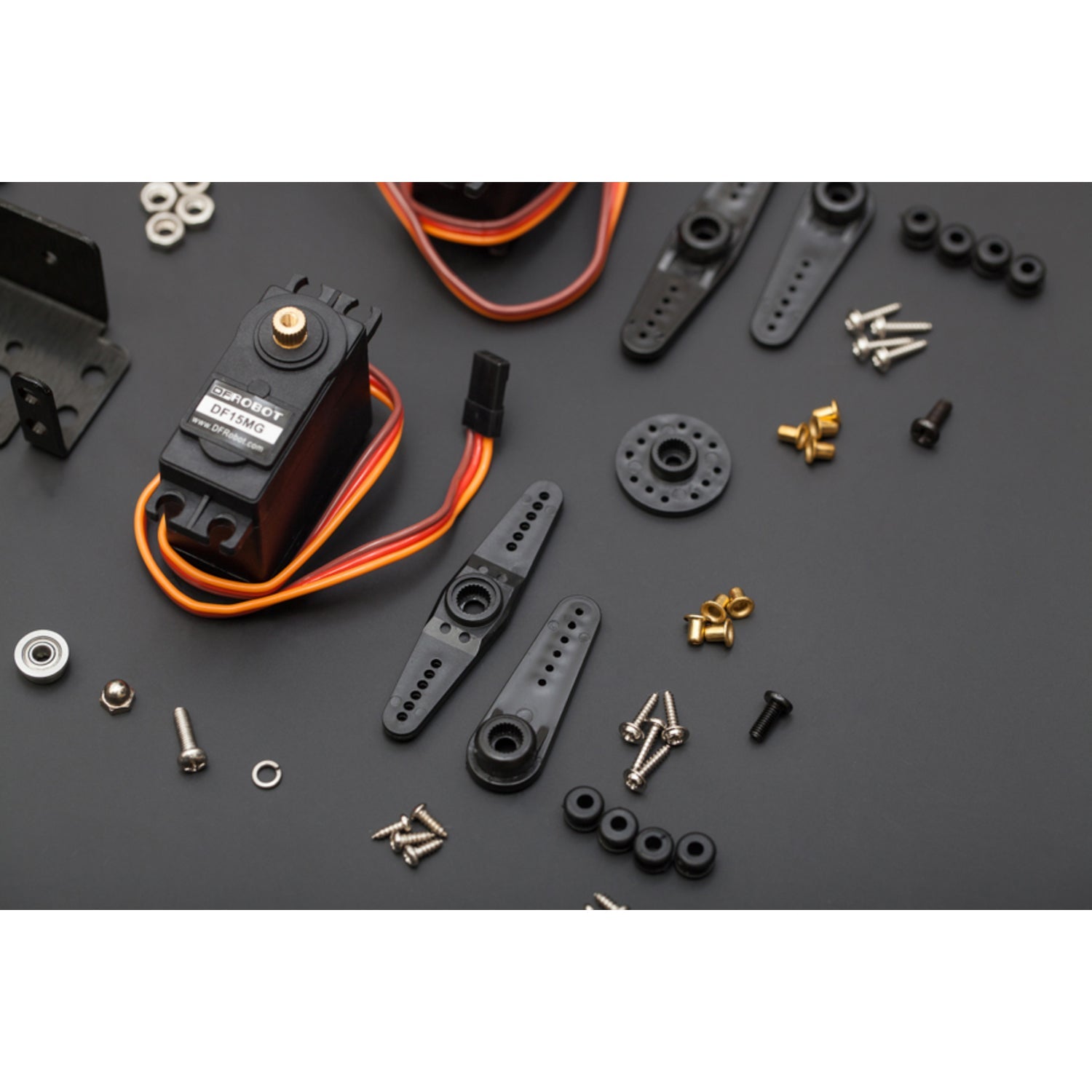

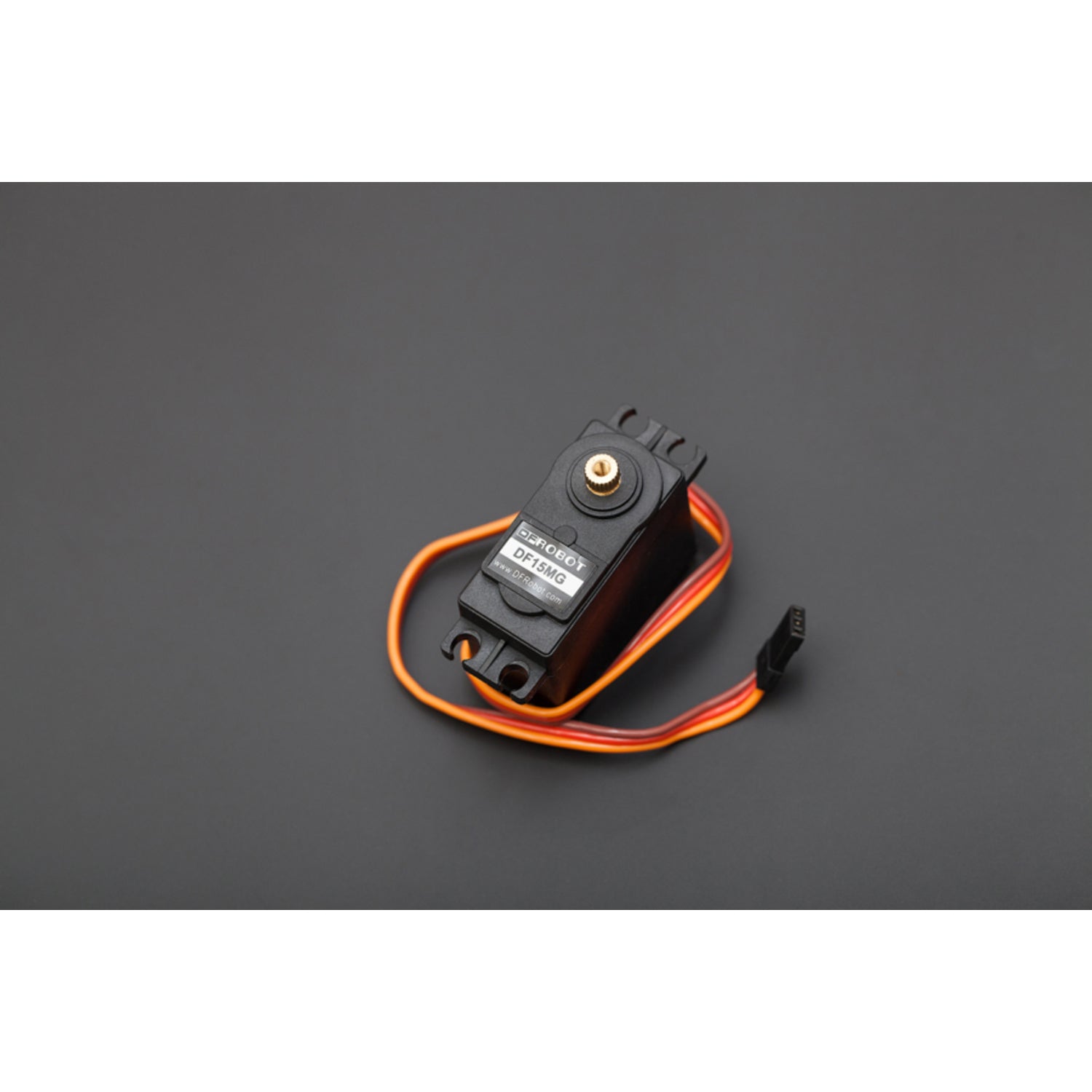

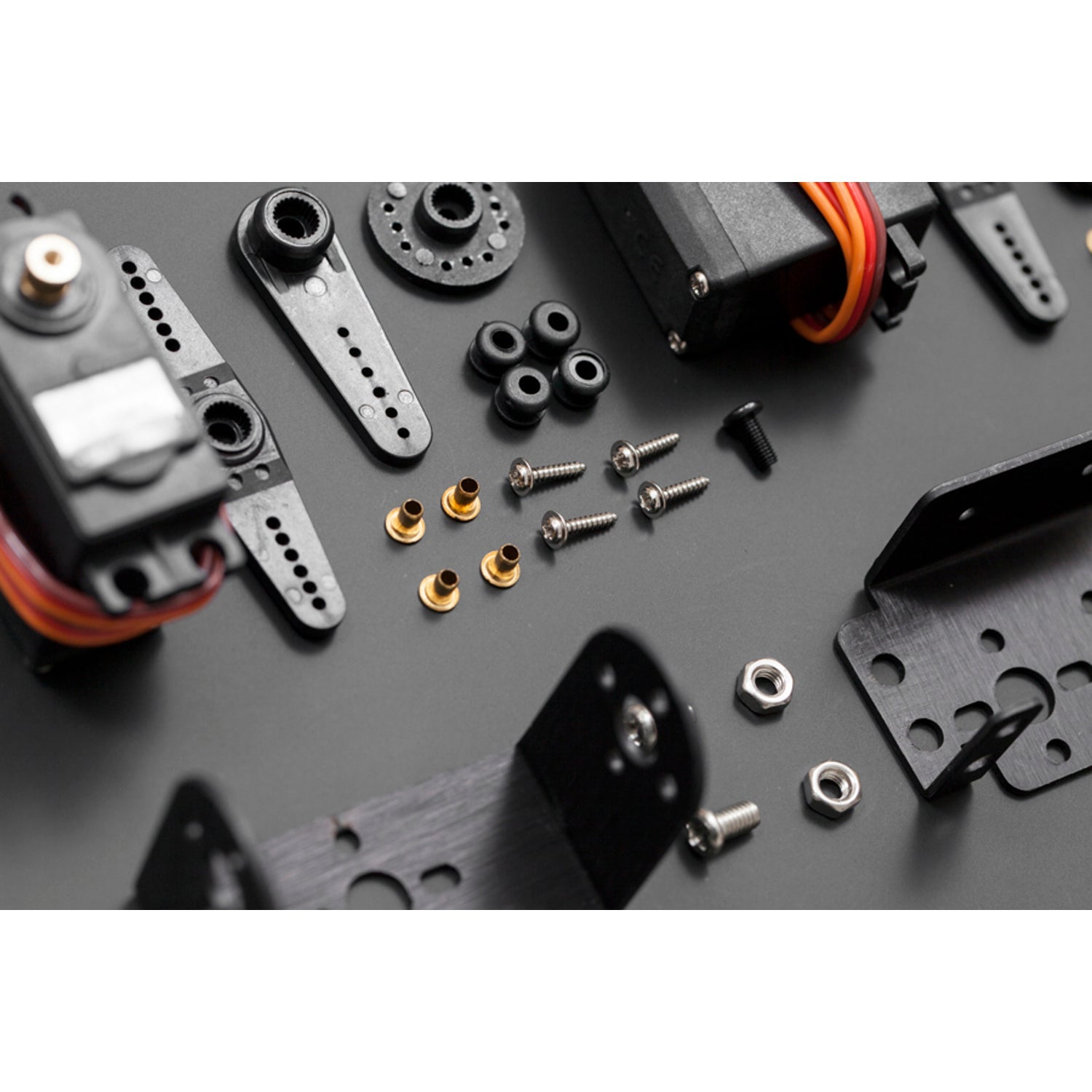

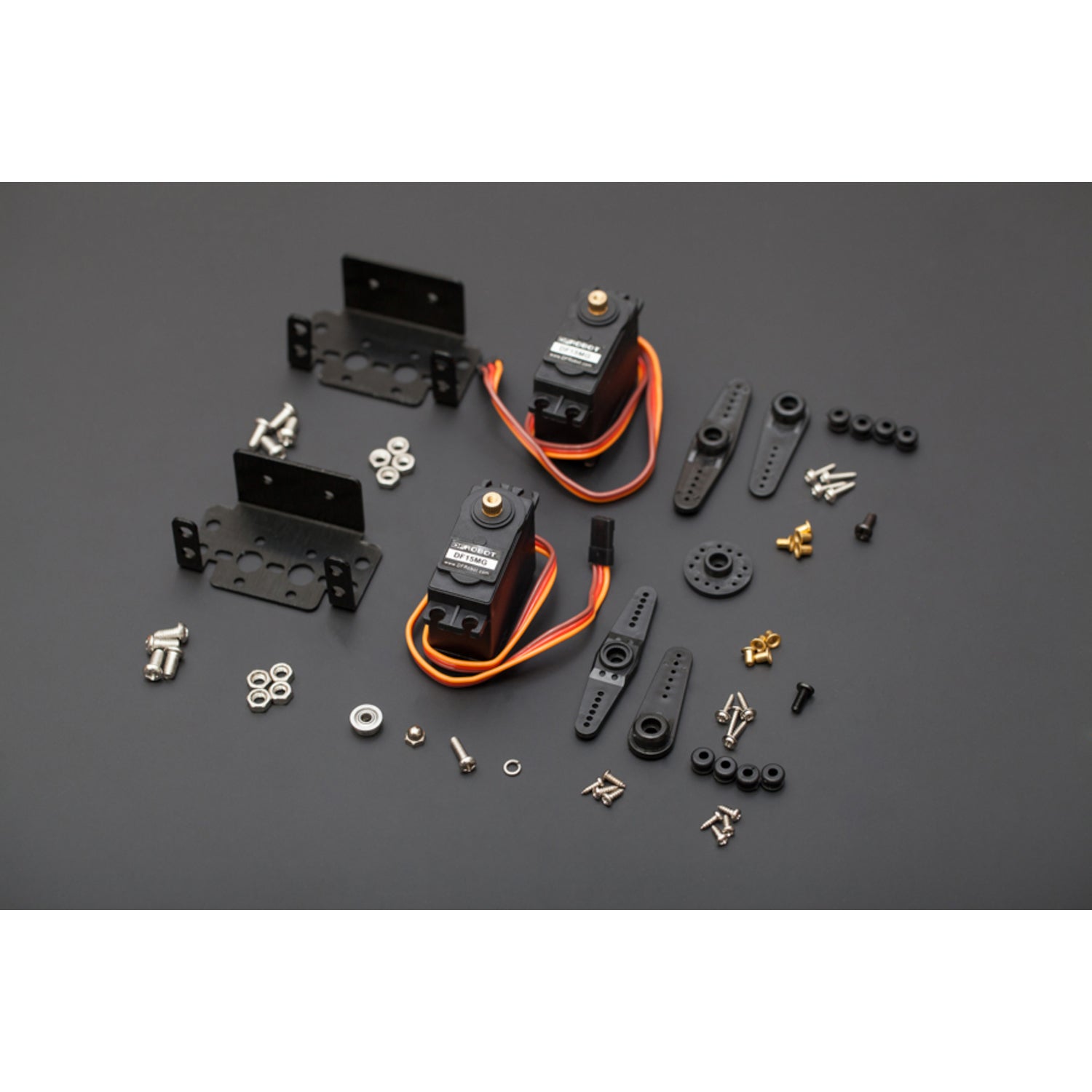

This 2DOF Pan and Tilt Kit is designed for horizontal surface mount. It comes with a DF15MG servo that provides a high torque of 15 kg, allowing it to carry much heavier cameras or tools compared to other Pan/Tilt kits. It's ideal for easy camera installation and video surveillance. You can also use it to install infrared sensors, ultrasonic distance measuring sensors, or a combination for combo detection devices. This enables the robot to sense surrounding obstacles and achieve obstacle avoidance capabilities. Additionally, a variety of sensors can be installed via the Arduino controller to create new interactive works. SPECIFICATIONS: Voltage: +4.8 - 7.2V; Current: 180mA (4.8V), 220mA (6V); Horizontal rotation: about 150 degrees; Vertical rotation angle: 150 degrees; Operating temperature: 0 °C - 60 °C; No load speed: 0.17 sec / 60 degrees (4.8V), 0.25 sec / 60 degrees (6.0V); Torque Size: 10Kg ⋅ cm (4.8V), 12KG ⋅ cm (6V), 15KG ⋅ cm (7.2V); Dead Set: 10us; Servo line order: Brown Line - power negative, red - power, yellow line - control signal; Size: 80X60X60mm (3.1x2.4x2.4 in); Weight: 180g. DOCUMENTS: Assembly guide. SHIPPING LIST: DF15MG Standard Servo x2, Aluminum multifunction x1, Aluminum U - shape bracket x1, Bearing cup x1, High - quality sets of screw nuts x1.

Using this Pan and Tilt Kit is quite simple. First, assemble the parts according to the assembly guide. Connect the DF15MG servos properly following the servo line order. When installing cameras or sensors, make sure they are firmly attached to the kit. For power supply, use a voltage between 4.8V and 7.2V as specified. Keep in mind the operating temperature range of 0 °C to 60 °C. Avoid using it in extreme temperatures. When it comes to maintenance, regularly check the screw nuts to ensure they are tight. If you notice any loose parts, tighten them immediately. Also, clean the kit occasionally to prevent dust accumulation. When not in use, store it in a dry and cool place.
