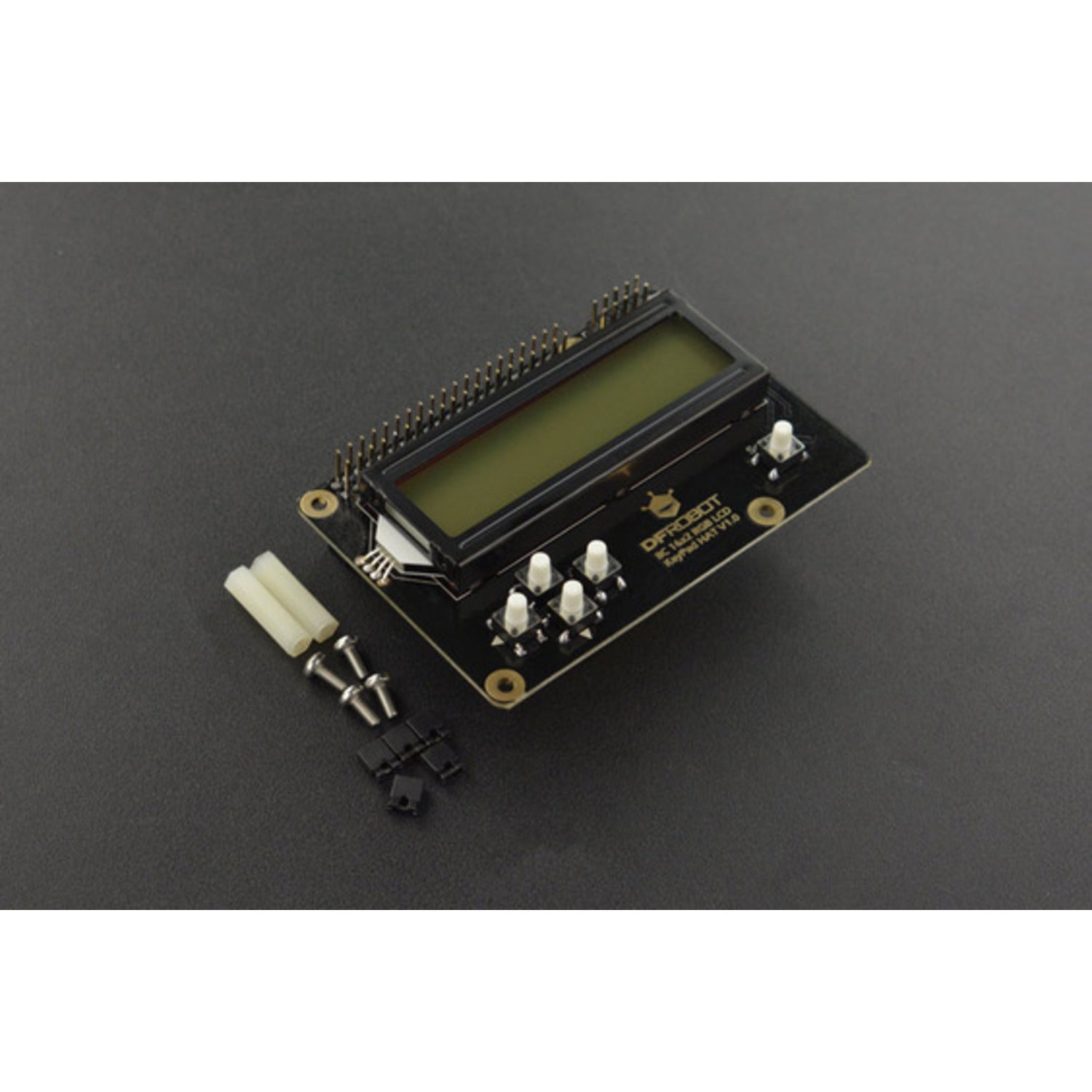

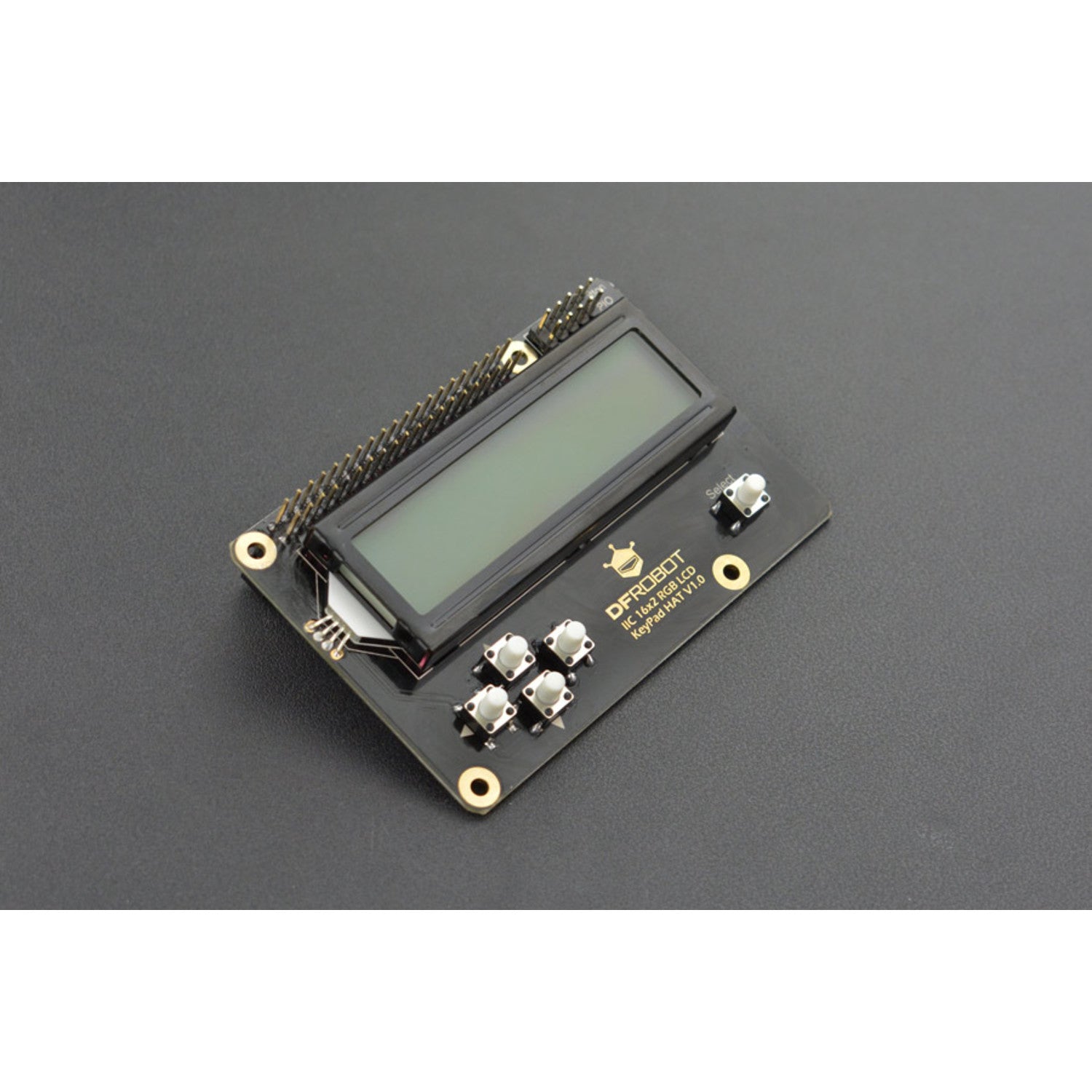

IIC 16x2 RGB LCD KeyPad HAT with RGB Backlight(Compatible with Raspberry Pi 3B+/4B)

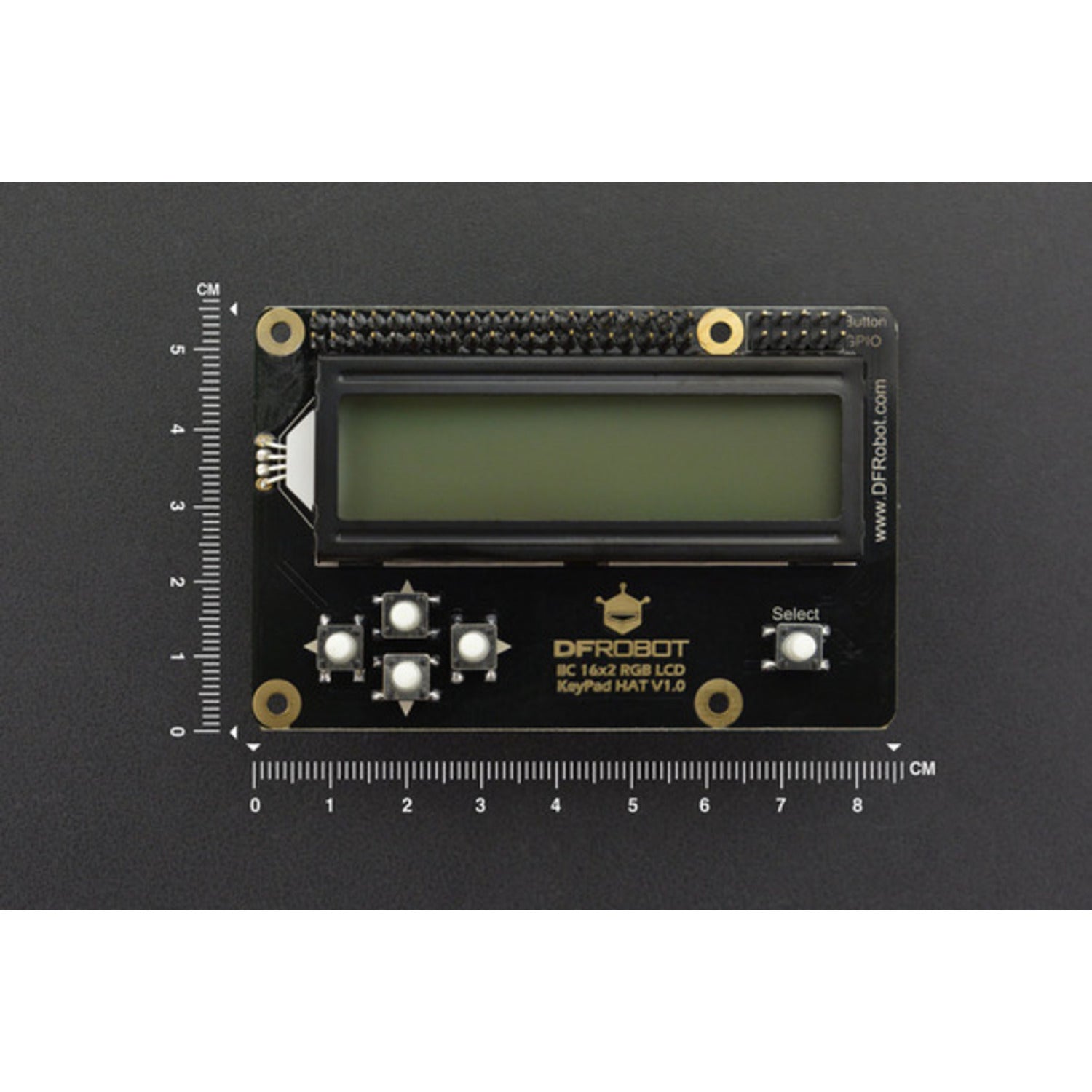

This is an amazing 2*16 character RGB LCD and keypad plate designed for Raspberry Pi. We've improved the wiring connection compared to the previous LCD display and removed the contrast adjustment function, making it incredibly easy to use. You can focus your time on your most important projects. The RGB LCD1602 display is integrated on the shield, which leads out Raspberry Pi’s GPIO ports for connecting more devices. The shield uses an IIC interface, allowing you to achieve 16 million color combinations for the LCD, adjust backlight brightness, and control the display. For your convenience on Raspberry Pi, there are 5 push - buttons on the board to help you switch displays and configure functions. You can easily build your data monitor and small operating platform. This IIC 16x2 RGB LCD Keypad HAT offers two display effects: colorful background or colorful font. Specification: Supply Voltage is 5V, Logic Voltage is 3.3V, Operating Current is less than 60mA. It has a 16*2 LCD Display with a 5*8 font and RGB adjustable backlight (16 million colors). The operating temperature ranges from -20 to +70℃, and the storage temperature is from -30 to +80℃. Its dimension is 85.0mm*56.0mm*26.8mm/3.35*2.20*1.06”. There is also a product wiki available.

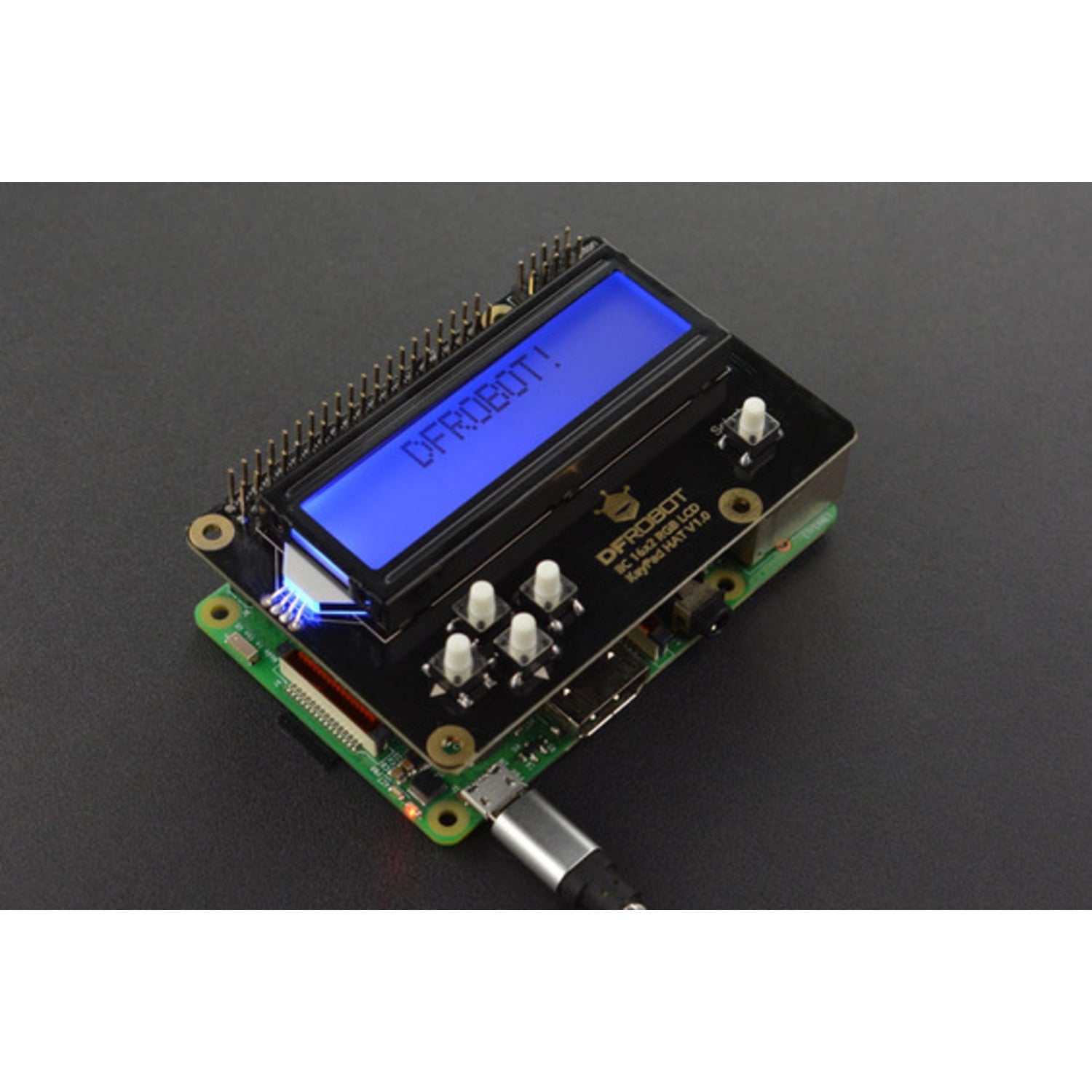

Using this 16x2 RGB LCD Keypad HAT is a breeze. First, connect it to your Raspberry Pi 3B+ or 4B. Since the contrast adjustment function is removed, you don't need to worry about that step. The wiring connection is already improved, so you can quickly get it set up. Once connected, you can use the 5 push - buttons on the board to switch displays and configure functions for your data monitor or small operating platform. To play with colors, use the IIC interface to achieve 16 million color combinations for the LCD and adjust the backlight brightness. As for temperature, make sure to use it within the -20 to +70℃ range and store it between -30 to +80℃. Keep it away from water and dust to ensure its long - term performance. If you need more detailed information, check out the product wiki.
