Product Details

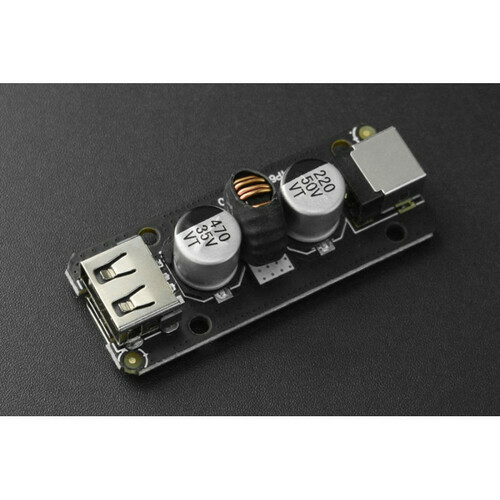

This amazing fast - charging module features both USB and Type - C ports. It supports a wide voltage input range from 10.5V to 32V and provides a stable 5V/3A output with multiple charging protocols. With a consistent output, it can operate for extended periods without voltage fluctuations. Ideal for various projects such as mobile phone fast charging, car charging upgrades, solar chargers, and DIY power sources. Note that the power pins of Type - C and USB output are in parallel, so don't use the two output ports at the same time to avoid damaging the module. It has dual output ports, supports multiple fast - charging protocols, and can serve as both a charging module and a power supply. The input voltage range is 10.5V - 32V, and the output voltage can auto - adjust from 3 - 20V based on the fast - charging protocol (default 5V with input 2V higher than output). Output current is 0 - 3A. It has an input port of DC5.5*2.1mm and output ports of common USB + Type - C, along with comprehensive chip protection including input overvoltage, undervoltage protection, and output overcurrent, overvoltage, undervoltage, short - circuit protection. Supported fast - charging protocols include BC1.2, Apple, Samsung, Qualcomm QC2.0 and 3.0, MTK PE+1.1 and MTK PF+2.0, Huawei FCP/SCP, Samsung AFC, and spreadtrum SFCP.
Using this fast charge module is easy. First, connect the input port (DC5.5*2.1mm) to a power source with a voltage between 10.5V and 32V. Then, you can choose either the USB or Type - C output port to connect your device. Remember, don't use both output ports at the same time, or the module might get damaged. This module can be used for many things, like charging your phone quickly or powering a DIY project. When it comes to maintenance, keep it in a dry and cool place. If you notice any unusual behavior, like overheating or unstable output, disconnect it from the power source right away. This module has built - in protection features, but it's always good to take care of it properly.
