10 Segment Light Bar Graph LED Display - Red

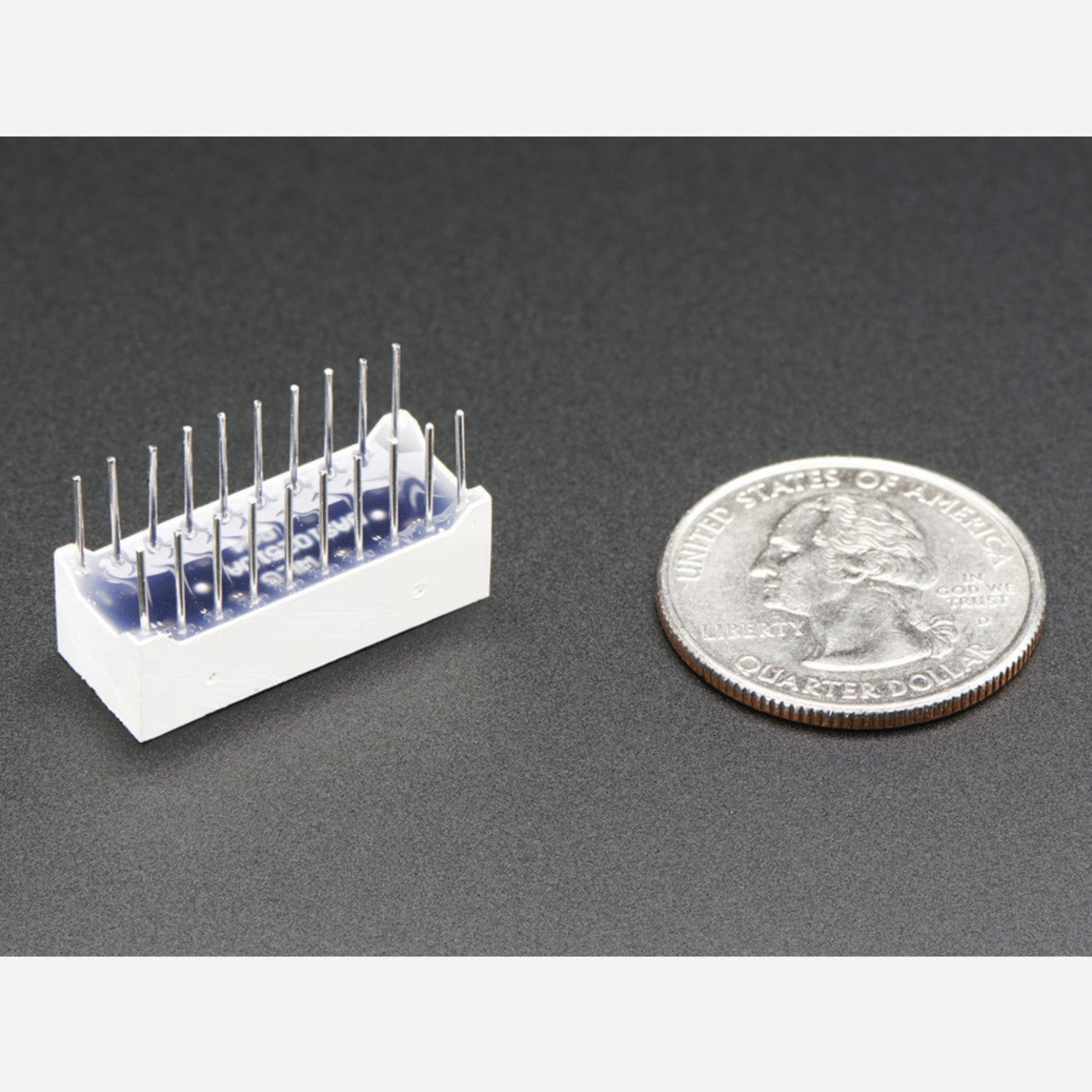

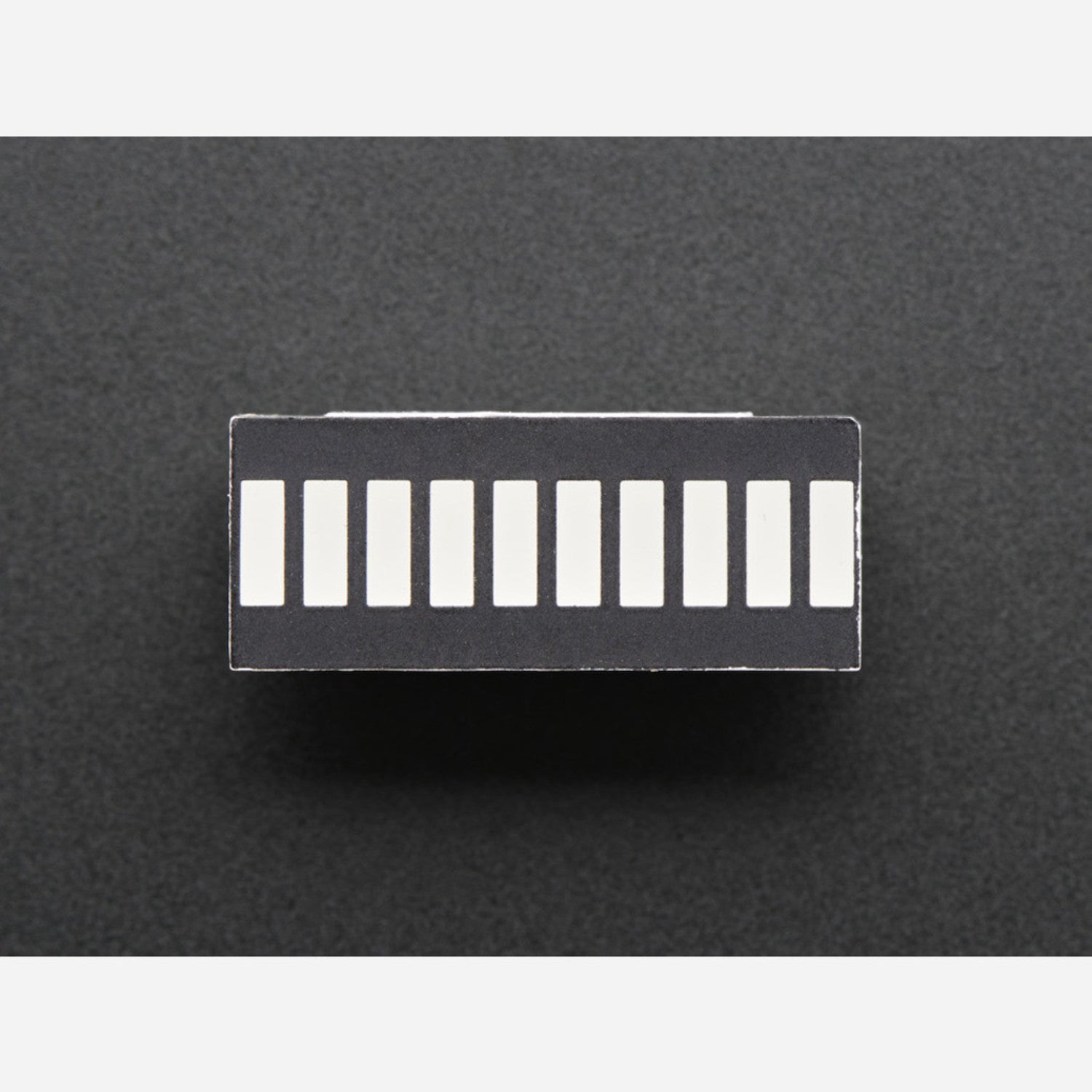

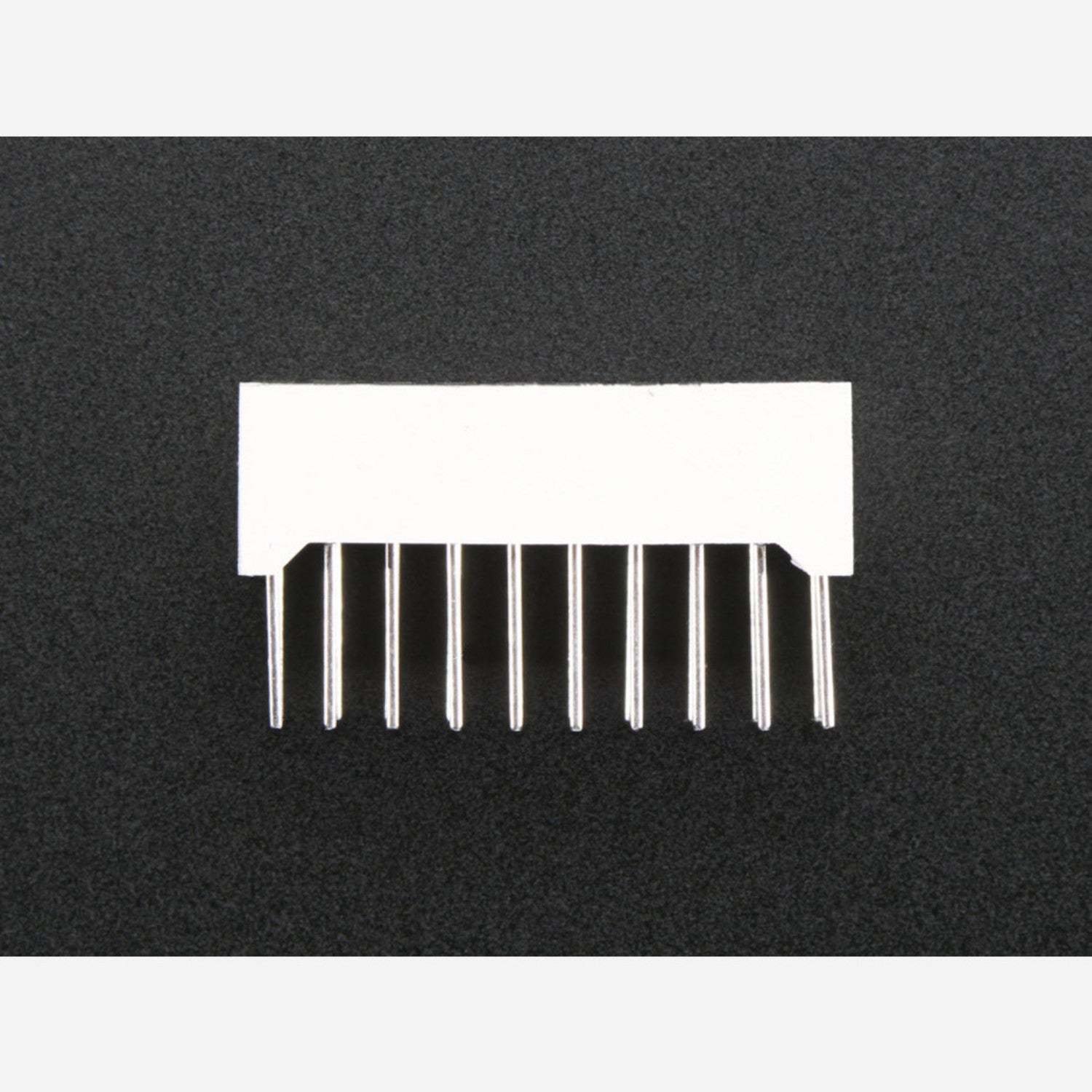

Create a small, eye - catching linear display in a glowing red color with this stylish LED bargraph. Measuring just 1' long, it's clearly visible and compact enough to plug into a breadboard. The plastic body houses 10 LEDs, and it features nice diffused rectangular lenses for a bright, beautiful, and funky look. With 20 pins (10 on each side) and a 0.1' spacing, you can easily insert it into a breadboard, leaving ample space for wiring. There's a playground article on bargraph displays, though it's for non - multiplexed ones. Also, check out matrix tutorials for ideas on driving a multiplexed bargraph.

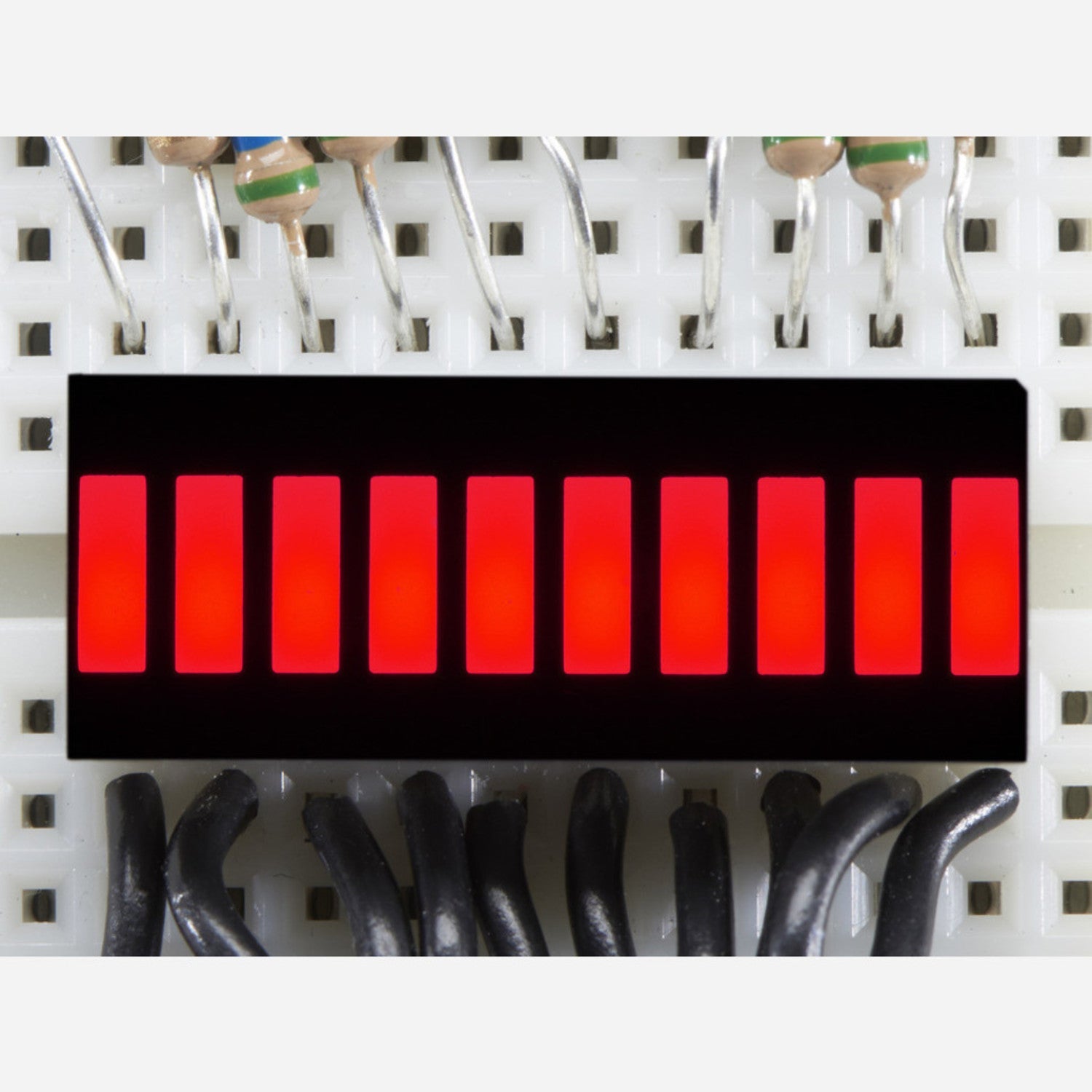

Using this LED light bar graph display is easy. First, find a breadboard and gently plug the display into it. The 0.1' pin spacing gives you enough room to connect the necessary wires. When connecting the wires, make sure to match the right pins to avoid any short - circuits. As for powering it, follow the general guidelines for LED power requirements. Since it's a multiplexed display, you can refer to matrix tutorials to learn how to drive it properly. When not in use, store it in a dry and cool place to prevent any damage to the plastic body and the LEDs. Avoid exposing it to direct sunlight or extreme temperatures for a long time. If you notice any dirt on the diffused rectangular lenses, you can use a soft, dry cloth to gently clean them.
