0.96 Inch OLED Display Module For Raspberry Pi

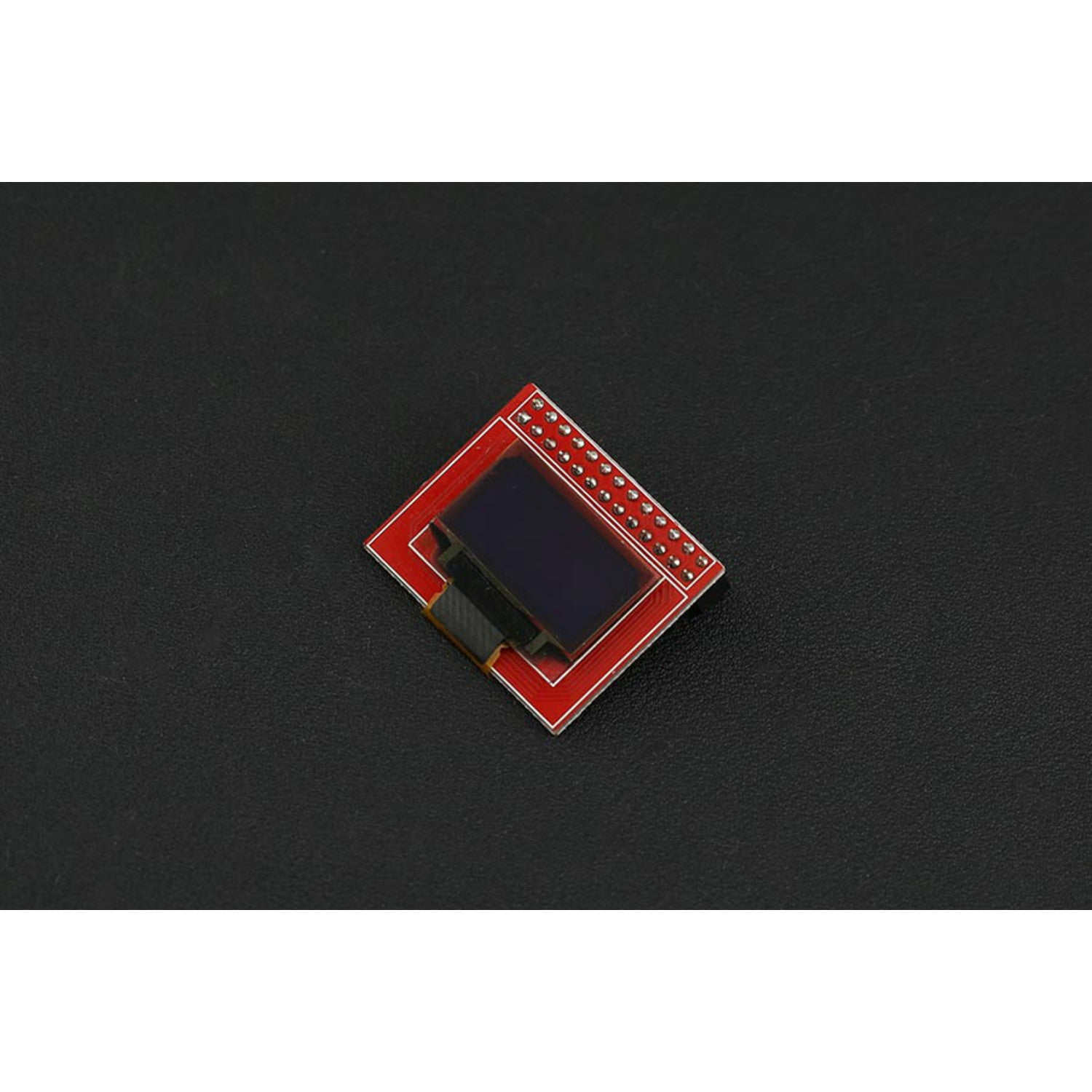

Sometimes, your Raspberry Pi projects need a display to show system information like system status, temperature, and IP address. If you want your project to be portable, using a full - sized display can be a hassle. That's where this small OLED display comes in handy! It lets you output the necessary information while keeping your product in a convenient, portable form. This display is a 0.96 - inch 128 x 64 px OLED with an SSD1306 controller. It communicates via 4 - wire SPI. It also has a built - in backlight, high contrast, and an extremely wide viewing angle. The operating voltage is 3.3V (1.6 - 3.6V), with a continuous current of 12.25uA and a maximum current of 100uA. It features an ultra - low power supply and an internal DC/DC voltage converter. It supports SPI driver at 64MHz (TYP) 125MHz (OB), and has an FP frequency of 64fps (TYP) 368fps (OB). The dimension is 370*300mm/14.6*11.8 inches. You can find more information in the WIKI about this 0.96 - Inch OLED Display Module for Raspberry Pi. The shipping list includes one 0.96 - Inch OLED Display Module for Raspberry Pi.

Using this 0.96 - inch OLED display module for your Raspberry Pi project is quite easy. First, connect it to your Raspberry Pi according to the wiring diagram in the WIKI. Make sure the power supply is within the 1.6 - 3.6V range to avoid damaging the module. When your project is running, the display will automatically show the system information you've set up. For example, if you want to display the system temperature, just write a simple script in your Raspberry Pi. As for maintenance, keep the display away from dust and moisture. If it gets dirty, you can use a soft, dry cloth to gently wipe the screen. Don't use any liquid cleaners as they might damage the display. Also, don't expose it to direct sunlight for a long time as it could affect the display quality. With proper use and care, this display module will serve you well for a long time.
