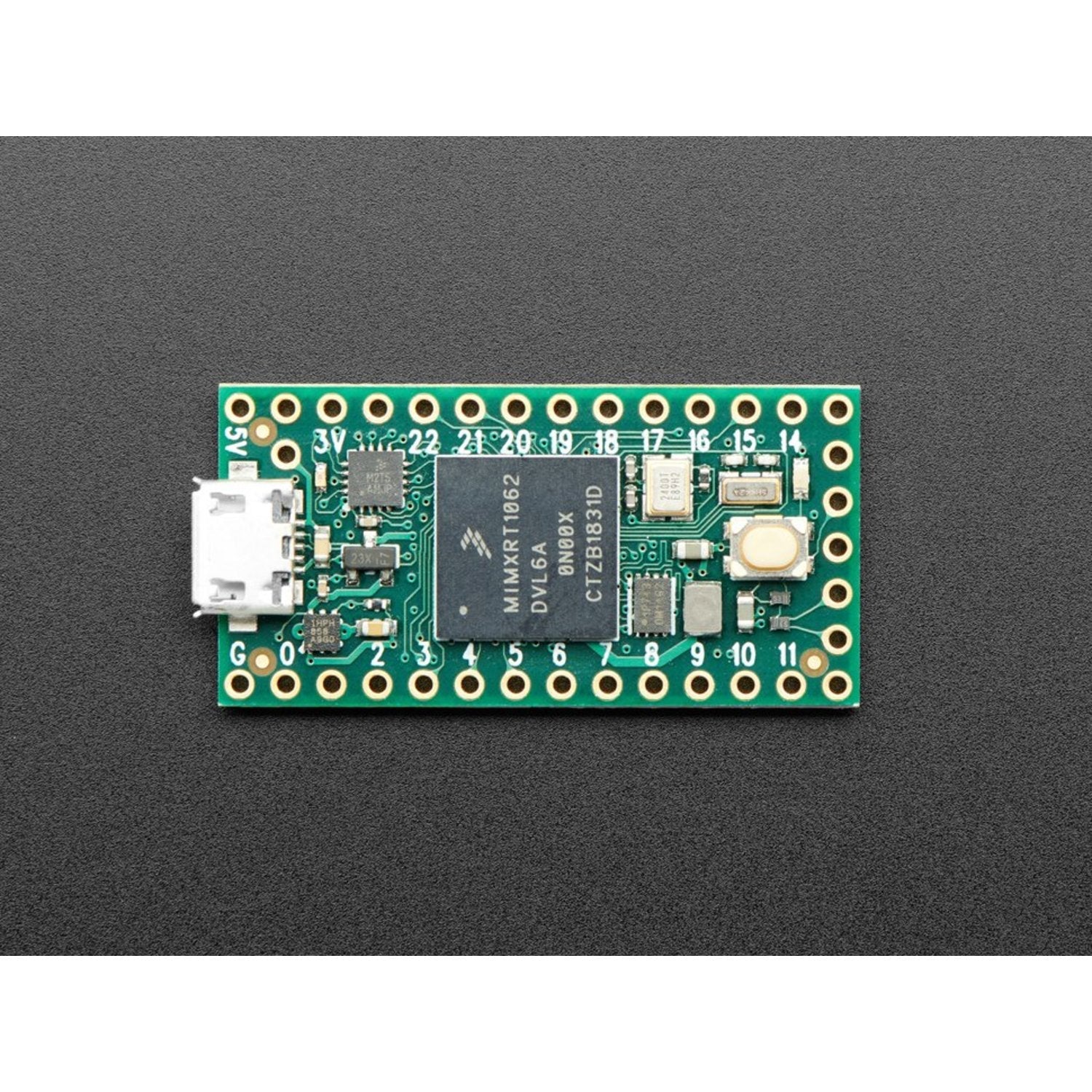

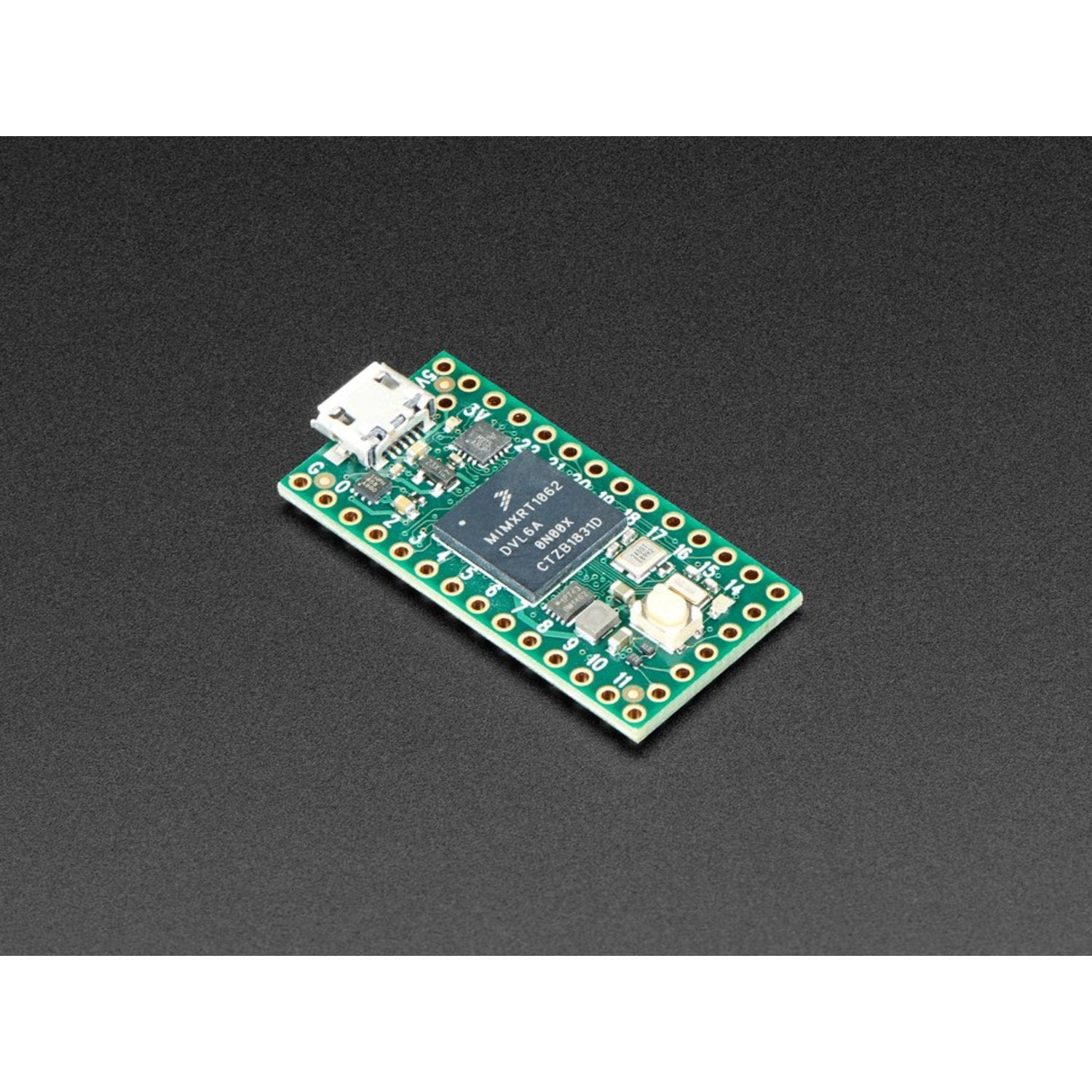

Who would have thought you could fit a 600 MHz microcontroller on such a tiny board? The PJRC Teensy 4.0 is a marvel. It's powered by an ARM Cortex - M7 processor running at 600 MHz with an NXP iMXRT1062 chip, the fastest microcontroller today - a whopping ten times faster than the Teensy 3.2! This 'cross - over' processor combines microcontroller functionality with microcomputer speeds. It's ideal for projects needing lots of flash, RAM, and data crunching, or when you require two full - speed USB ports. And it even has a graphics processor, all at an affordable price. You can program the Teensy 4.0 using the Arduino IDE with the Teensyduino add - on. In terms of power, at 600 MHz, it consumes around 100 mA, more than most microcontrollers. But it supports dynamic clock scaling. The hardware and Teensyduino software are designed so that changing the clock speed won't mess up things like baud rates. It also has a power shut - off feature. Connect a pushbutton to the On/Off pin, hold it for 5 seconds to turn off the 3.3V power supply, and a quick press to turn it back on. With a coin cell connected to VBAT, the RTC keeps track of time even when powered off. Oh, and it can be overclocked beyond 600 MHz! Technical specs include an ARM Cortex - M7 at 600 MHz, 1024K RAM, 2048K Flash, 2 USB ports, 3 CAN Bus, and much more.
Using the PJRC Teensy 4.0 is easy. First, install the Teensyduino add - on to the Arduino IDE, then you're ready to start programming. When using it, be aware that at 600 MHz, it consumes more power. You can use the dynamic clock scaling to save power, and the hardware and software are set up to handle speed changes smoothly. To turn off the power, connect a pushbutton to the On/Off pin and hold it for 5 seconds. A short press will turn it back on. If you want the RTC to keep time when the board is off, connect a coin cell to VBAT. For maintenance, keep it in a clean and dry environment. Avoid exposing it to extreme temperatures. Don't over - stress the pins. And remember, you can overclock it, but do it carefully to avoid damaging the board.
