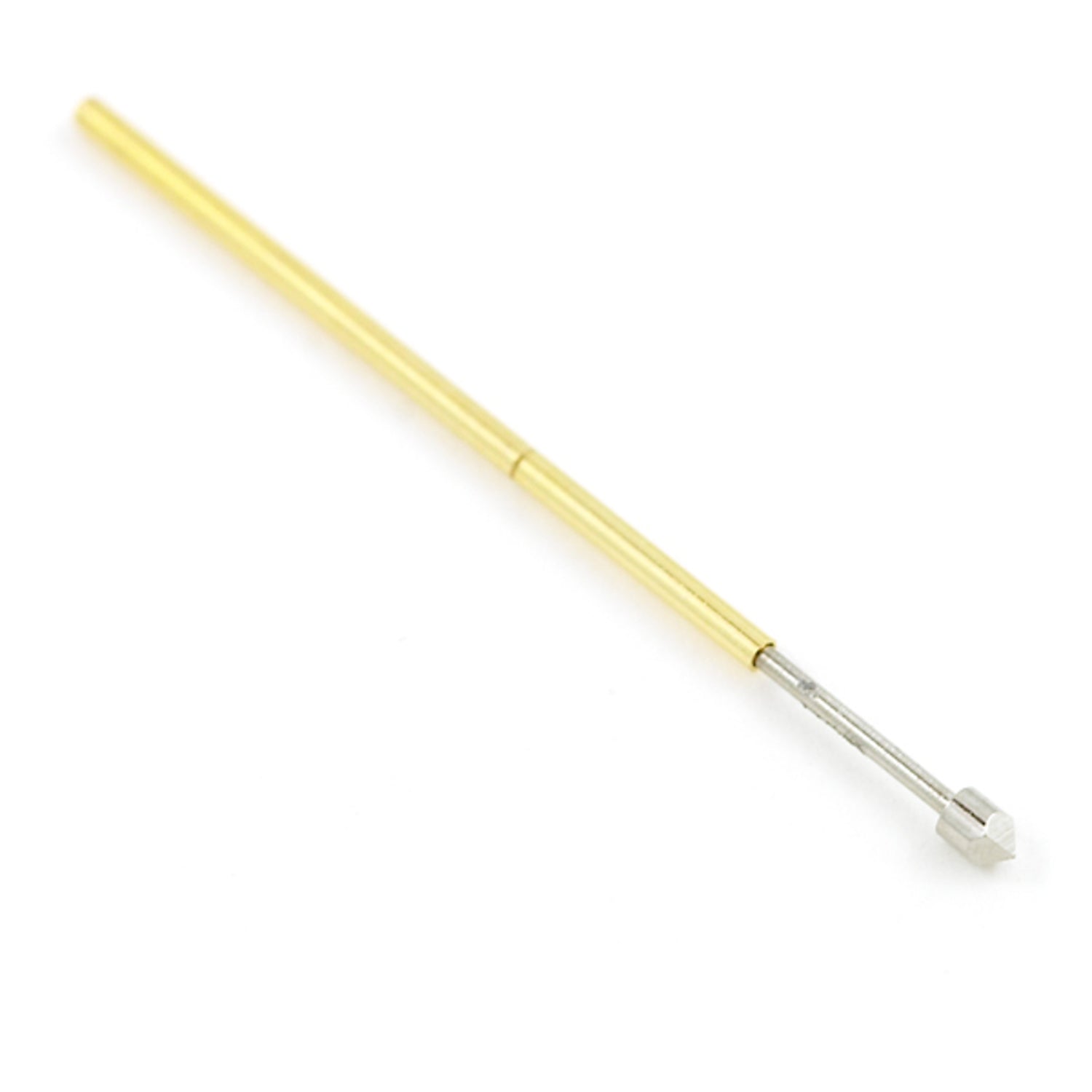

Pogo Pin w/ Chiseled Tip

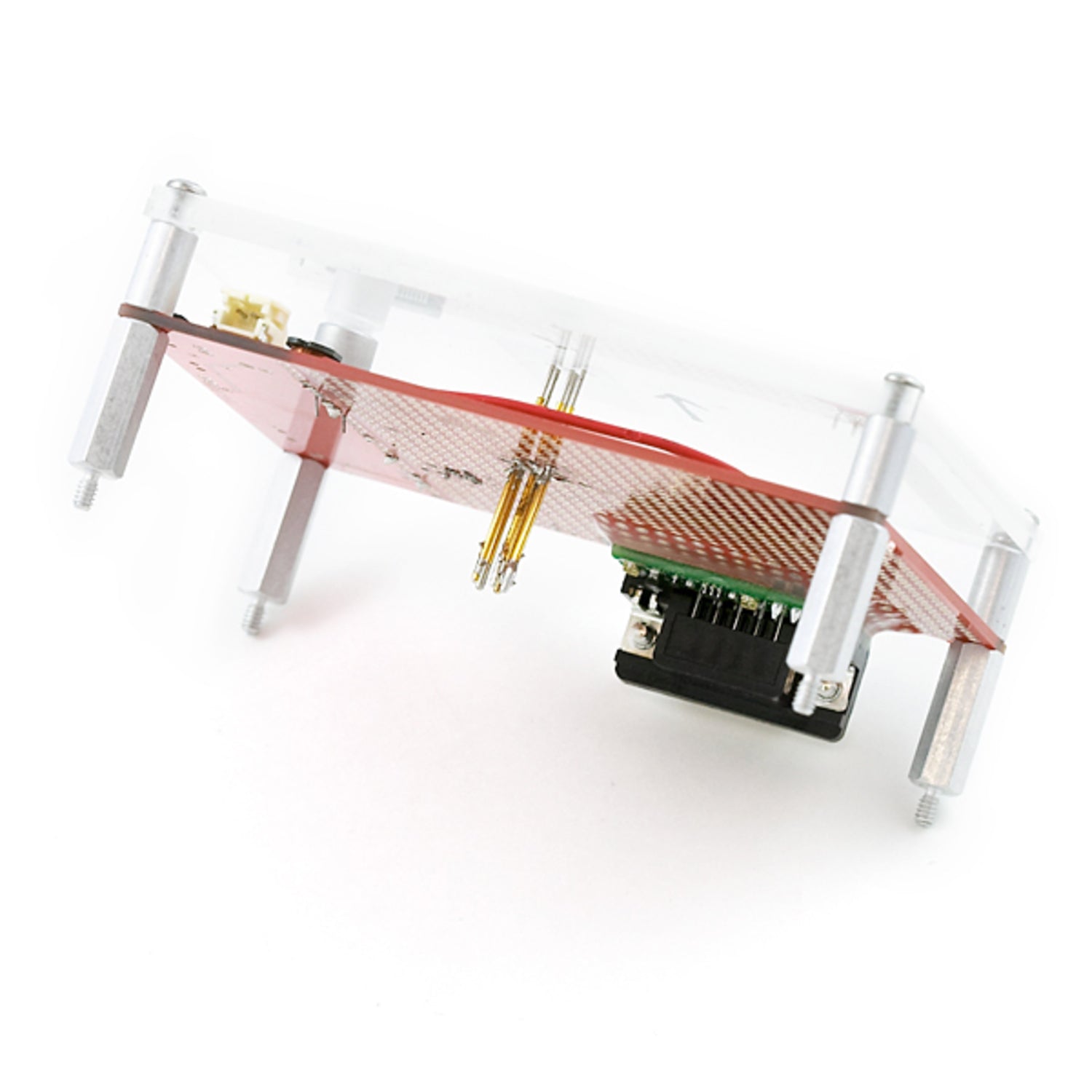

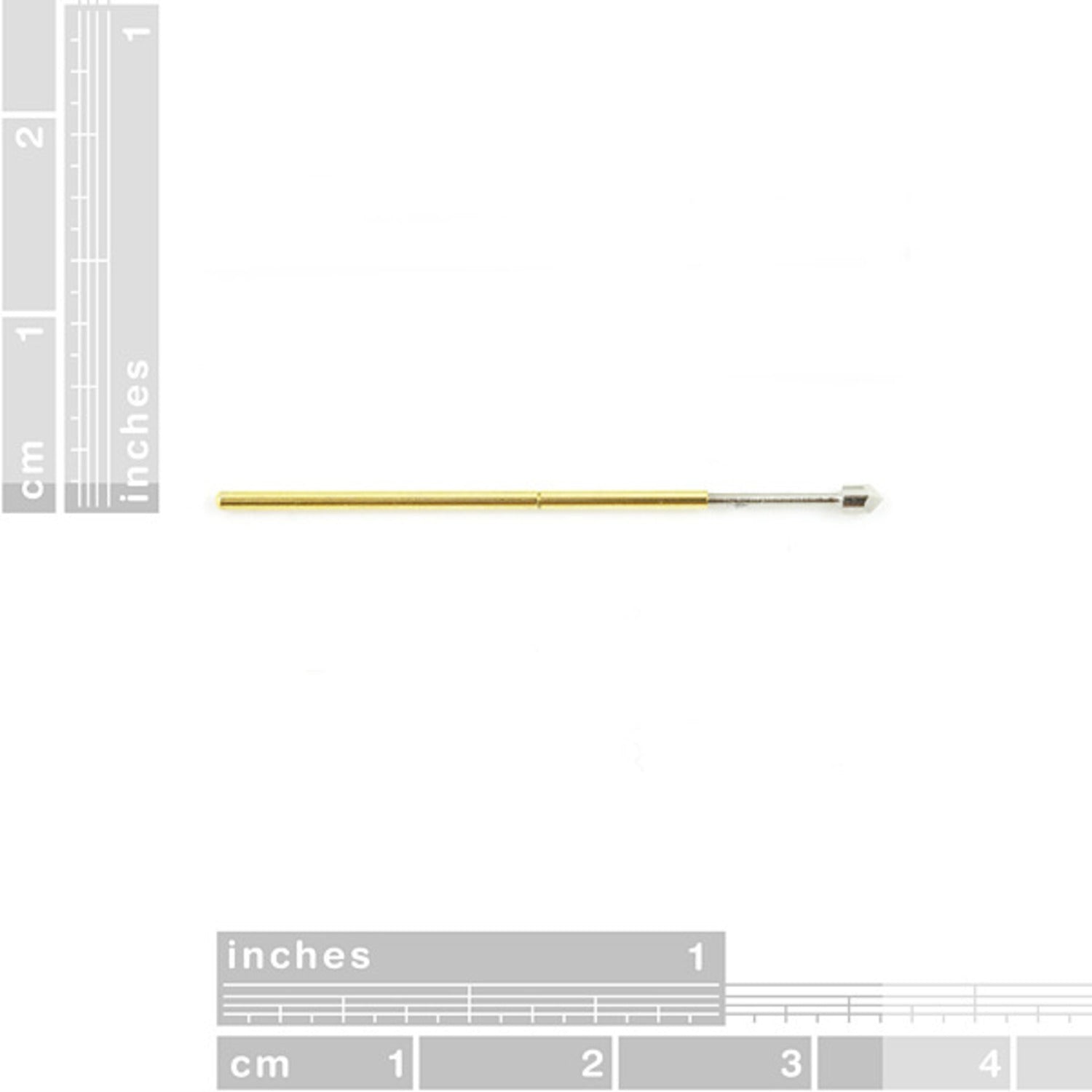

These 33mm (1.3') spring loaded pogo pins are ideal for programming. They're perfect when you don't want to solder headers onto your boards all the time. We use them in our production programming jigs. The pins fit well into most standard perf board holes and can be soldered like normal wire. Dimensions: Length is 1.3' (33mm), travel is ¼' (6.5mm), and head size is 0.06' (1.5mm). Documents include a Dimensional Drawing.

Using these pogo pins is easy. First, find a standard perf board hole that fits the pins snugly. Then, just solder them onto the board like you would with normal wire. These pins are great for programming, so you can use them in your programming jigs. Remember, don't force the pins into holes that are too small as it might damage the pins. When not in use, keep them in a dry place to prevent rust. And if you need to check the size details, you can refer to the dimensional drawing.
