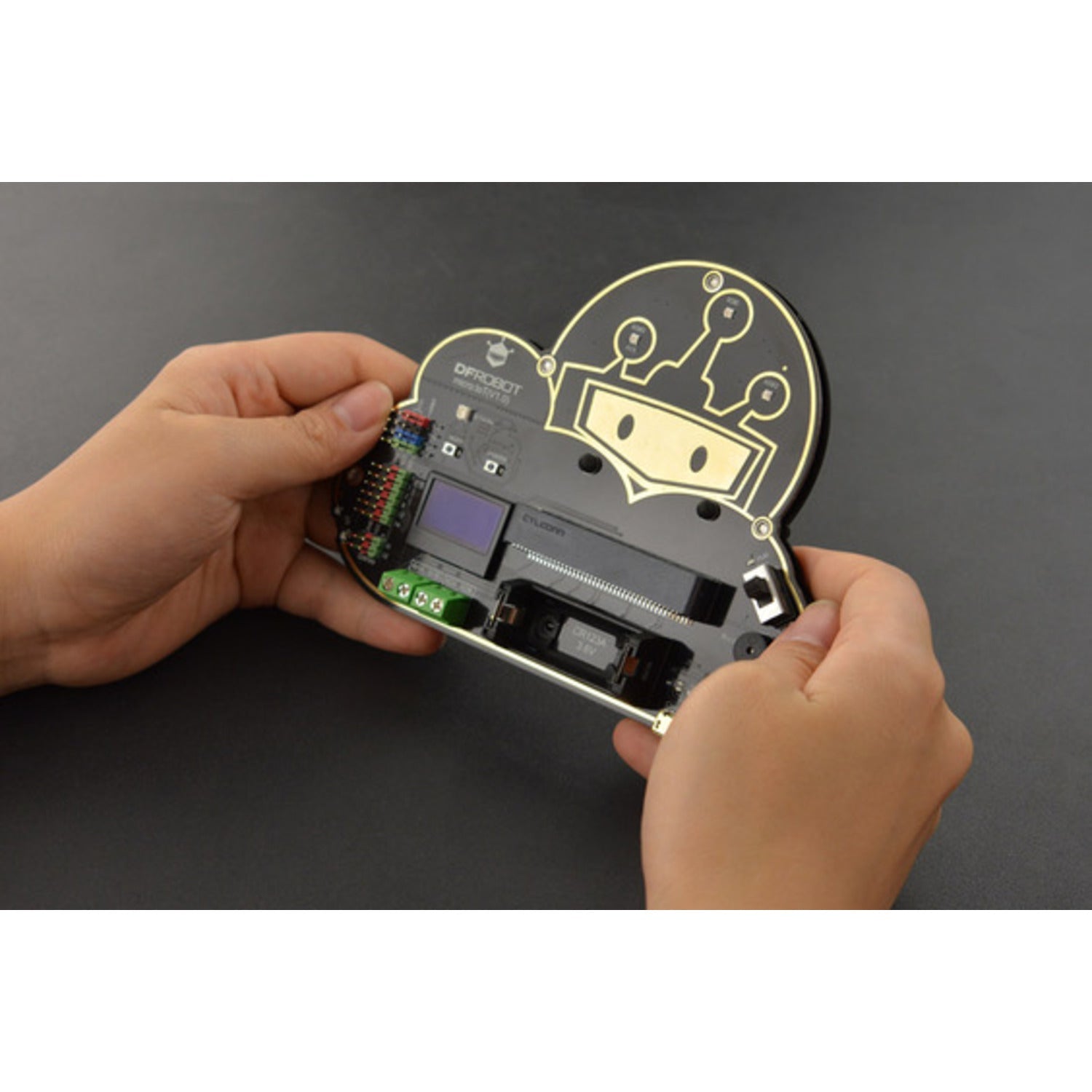

With the booming of IoT, numerous mature IoT platforms have emerged both at home and abroad. However, most of them are tailored for professionals, making it a challenge for non-experts to start. That's why we developed the Micro: IoT, an IoT expansion board based on the micro:bit. When used with the DFRobot Easy IoT platform, it significantly lowers the threshold of IoT usage.

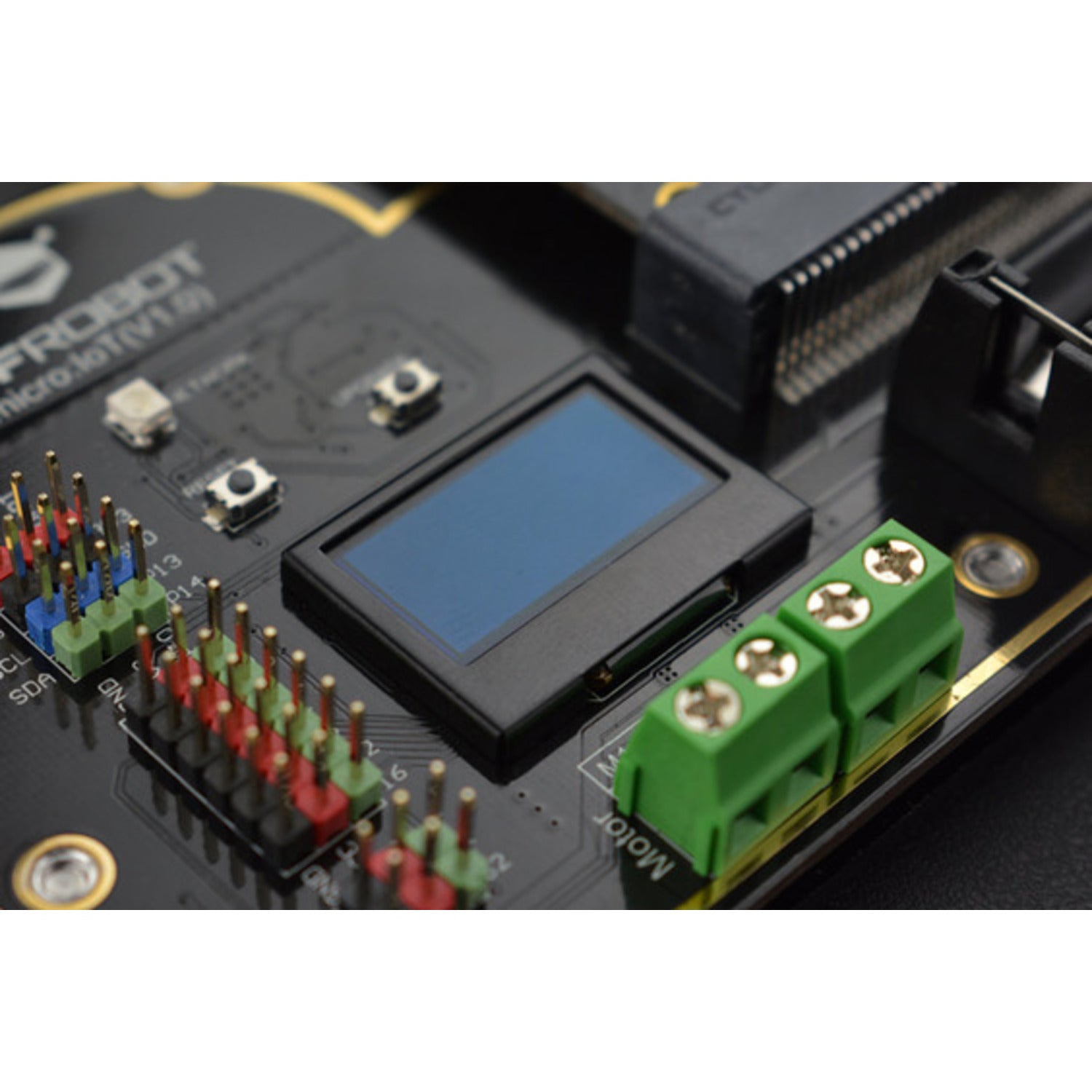

This Micro: IoT board is super cute and dainty. It integrates Wi-Fi, an OLED screen, a 2-way motor drive, 6-way IO ports, 2-way IIC, 1-way serial port, 1-way buzzer, 3-way RGB LEDs, 2-way servo, a Li-ion battery holder, a charging circuit, and an emergency power interface. There are so many resources for you to code! Even without complex background knowledge, you can create your IoT applications in just a few steps.

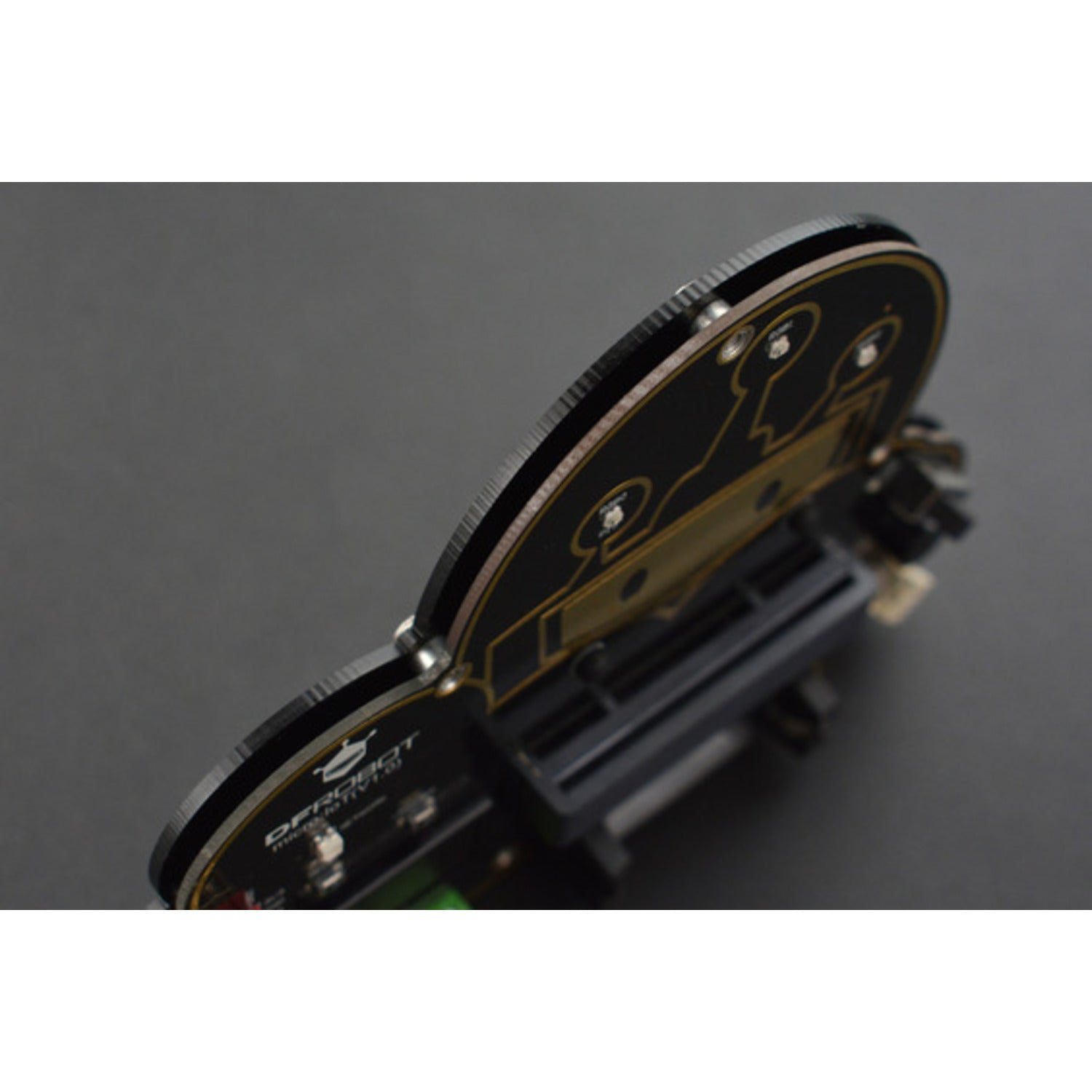

Designed in a cloud shape, it perfectly fits the IoT theme. For power supply, we've chosen the CR123A 3.6V lithium rechargeable battery. It's small, high-capacity, and safe. Moreover, we've added short circuit and reverse connection protection to enhance the safety of using the Li-ion battery.
**Features**
- Adorable and delicate design.
- Integrated Wi-Fi IoT module and OLED screen for easy data updates.
- 2-way motor drive, 2-way servo, 6-way IO ports, and 3-way RGB LEDs offer more programming options.

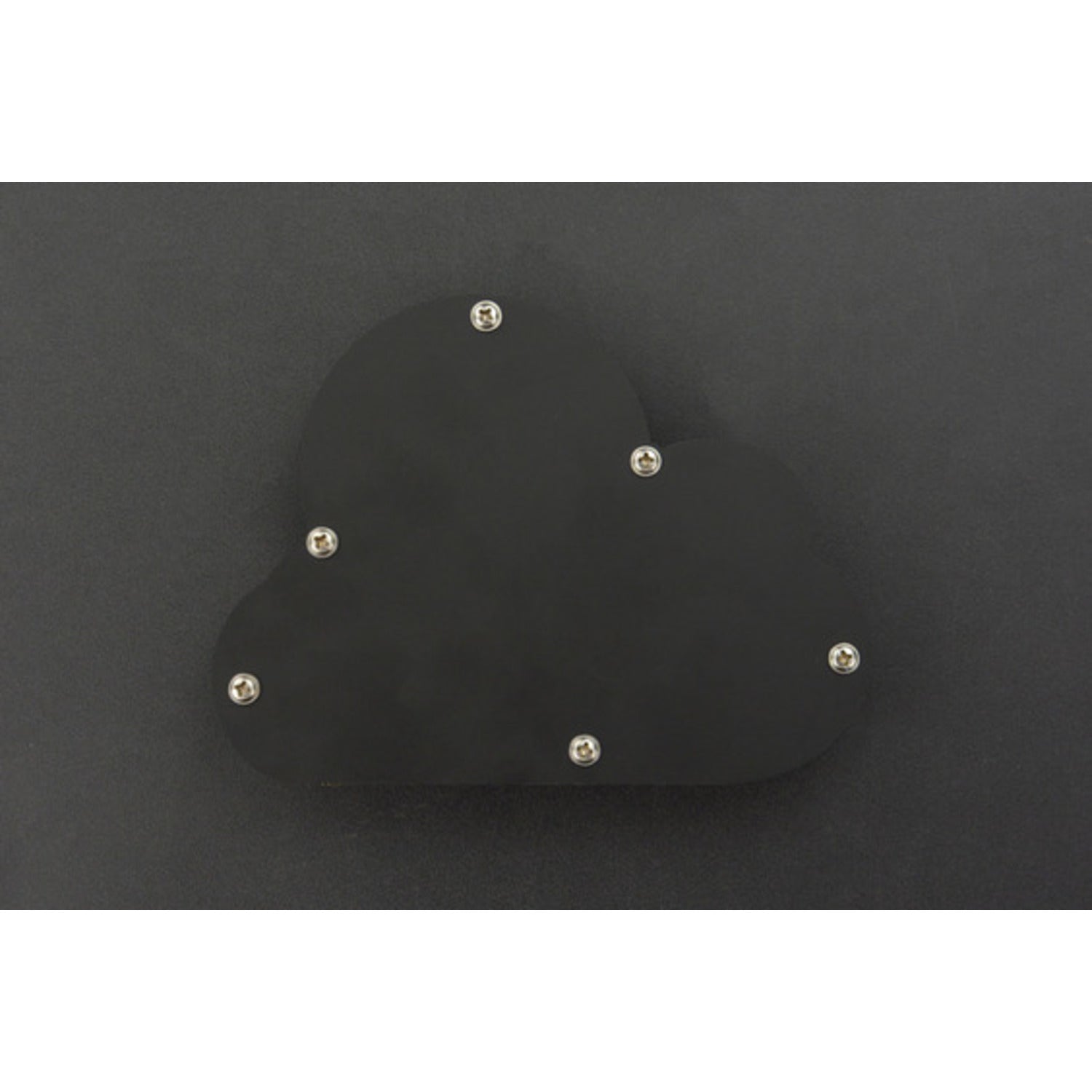

- PMMA packaging protects internal components.
- Supports MakeCode, Mind+, Python, etc.
**Specification**
- Power Supply: Li-ion battery or External power
- STM8S IIC Address: 0×01
- Battery Type: CR123A 3.6V Rechargeable Li-ion Battery (Note: Do not use 3V CR123A battery or non-rechargeable ones. Recharging non-rechargeable batteries is dangerous.)
- Digital Output Voltage: 0V/3.3V
- Analog Input Voltage: 0~3.3V DC
- Standard Gravity Pins
- Micro:bit Pins: P0 P1 P2 P8 P12 P16
- 2-way Motor Drive
- 2-way Servo Pins

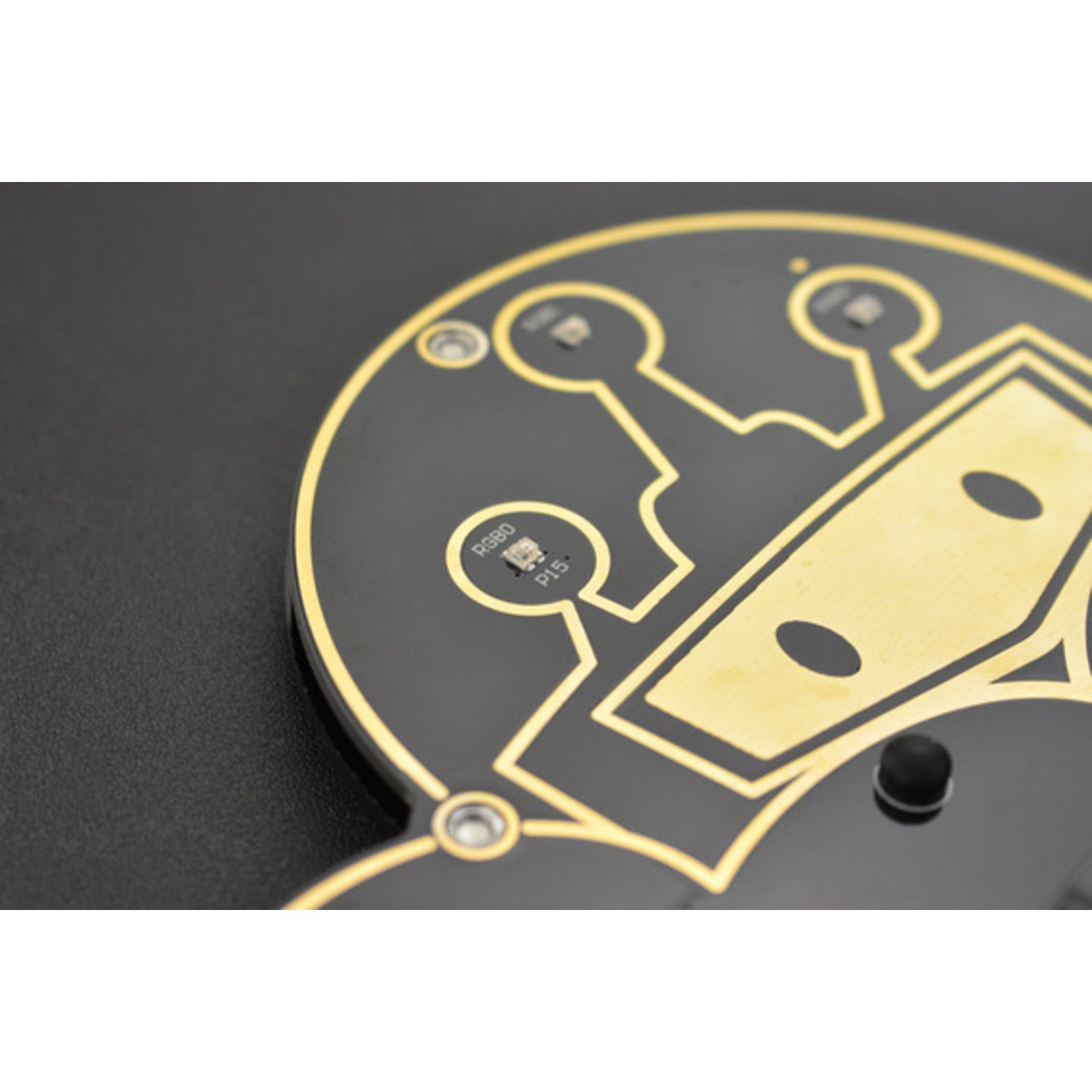

- On-board 3-way RGB LED
- On-board buzzer and Switch

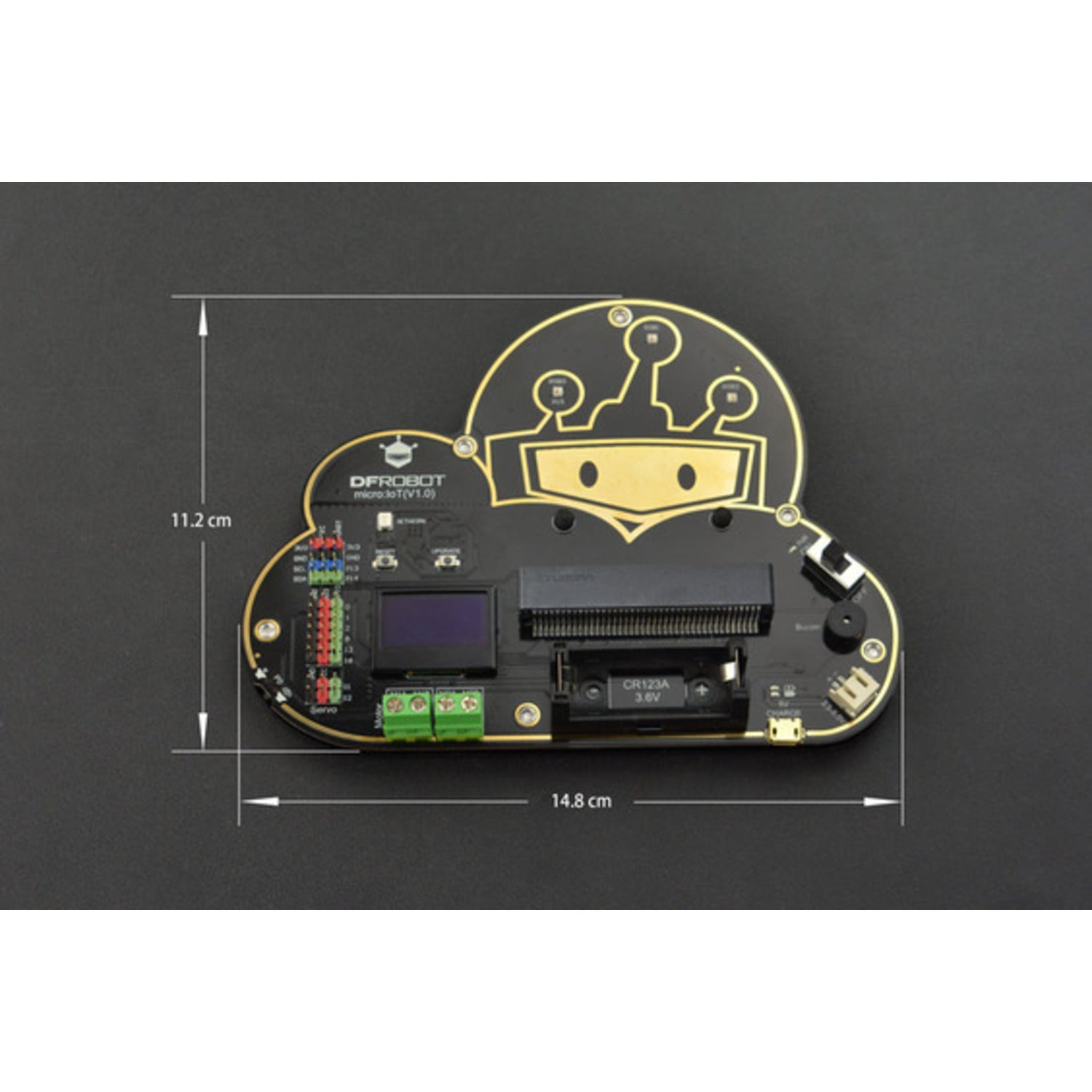

- Dimension: 148×112mm/5.83×4.41”
- Mount Hole: M3 Screw hole
**Documents**
- Product wiki
Using the Micro: IoT board is easy. First, connect it to your micro:bit. Then, you can start programming with the integrated resources like the Wi - Fi module, OLED screen, motor drive, and more. You can use popular programming languages such as MakeCode, Mind +, or Python. Pair it with the DFRobot Easy IoT platform to quickly build your IoT applications.
When it comes to power supply, use a CR123A 3.6V rechargeable Li - ion battery. Never use a 3V CR123A battery or a non - rechargeable one as recharging non - rechargeable batteries is very dangerous. The board has short - circuit and reverse - connection protection, but still handle the battery with care.
For maintenance, keep the board in a dry and clean place. The PMMA packaging protects the internal components, but avoid dropping or hitting the board. If you have any questions, refer to the product wiki for more detailed information.
