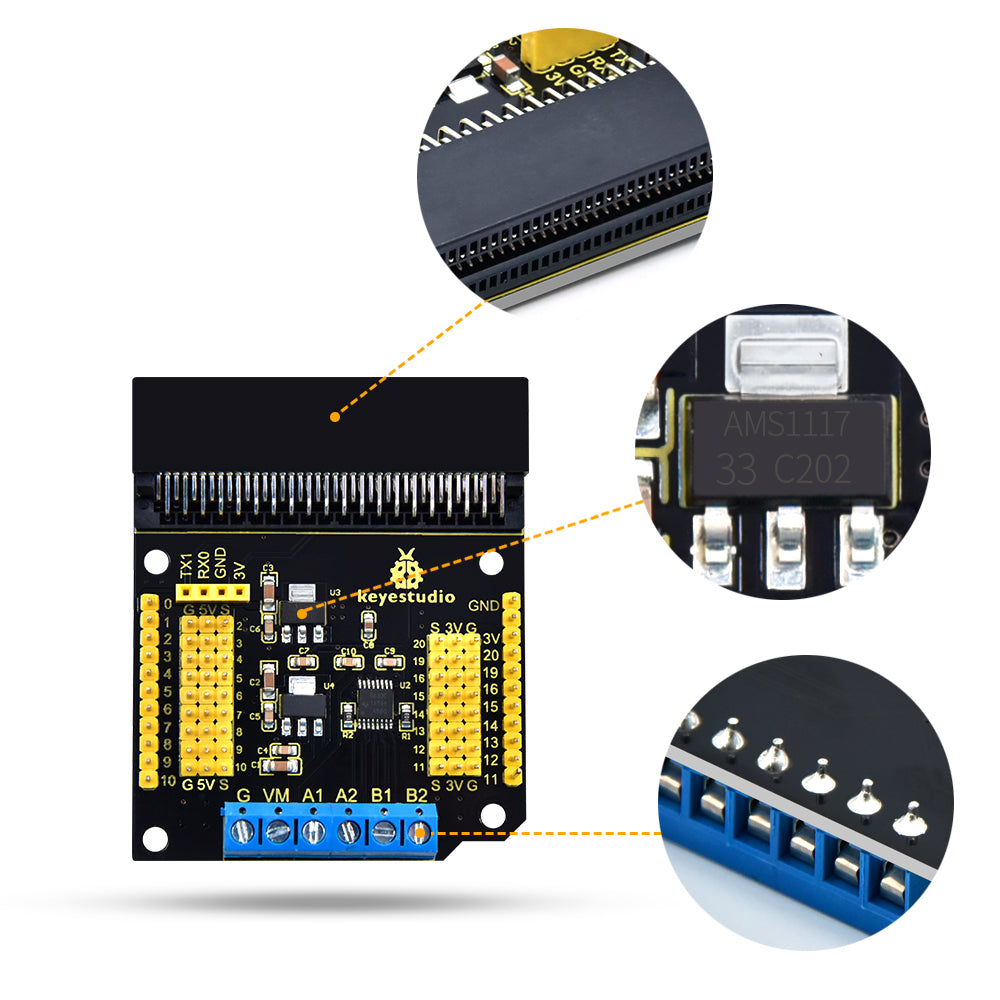

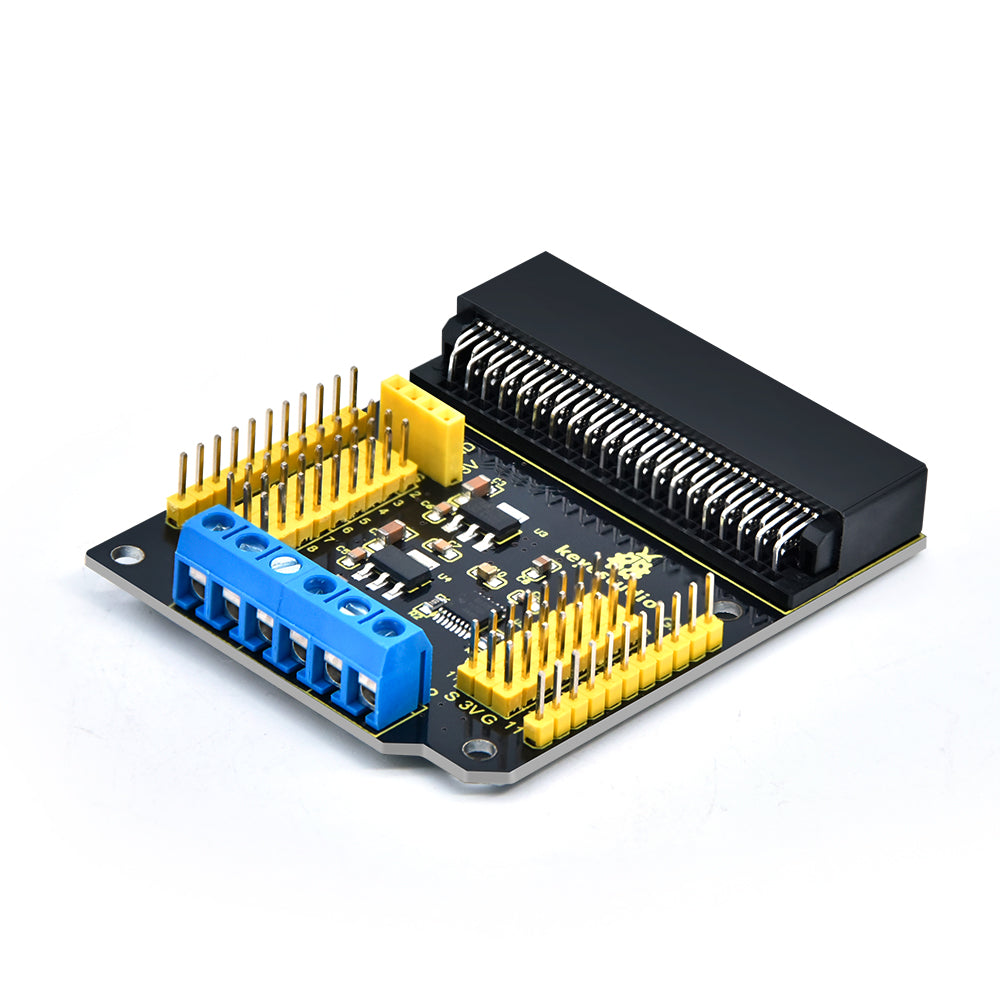

Discover the amazing Micro:bit DRV8833 Motor Driver Expansion Board, an essential add - on for your Micro:bit microcontroller! Whether you're new to programming or a seasoned pro, this expansion board is a must - have. The BBC - designed Micro:bit, with its ARM structure, supports Microsoft's PXT graphical programming. You can use it on Windows, macOS, IOS, and Android without downloading extra compilers. This expansion board makes the most of the Micro:bit's DC motor driver abilities. It has a built - in 3.3V and 5V voltage regulator, a serial communication interface for BT modules, and a DRV8833CPWP chip that can output up to 700mA. With four motor control modes (clockwise, anticlockwise, boot, and stop) and PWM frequencies up to 100 kHz, you get smooth and precise motor control. It also has 3 - pin interfaces for easy connection to other sensors. Just connect the motor pins A1, A2, B2, and B1 to P13, P12, P15, and P16 of the micro:bit board. Don't miss out on the endless possibilities. Order now to boost your programming skills! Note: Micro:bit board is not included.

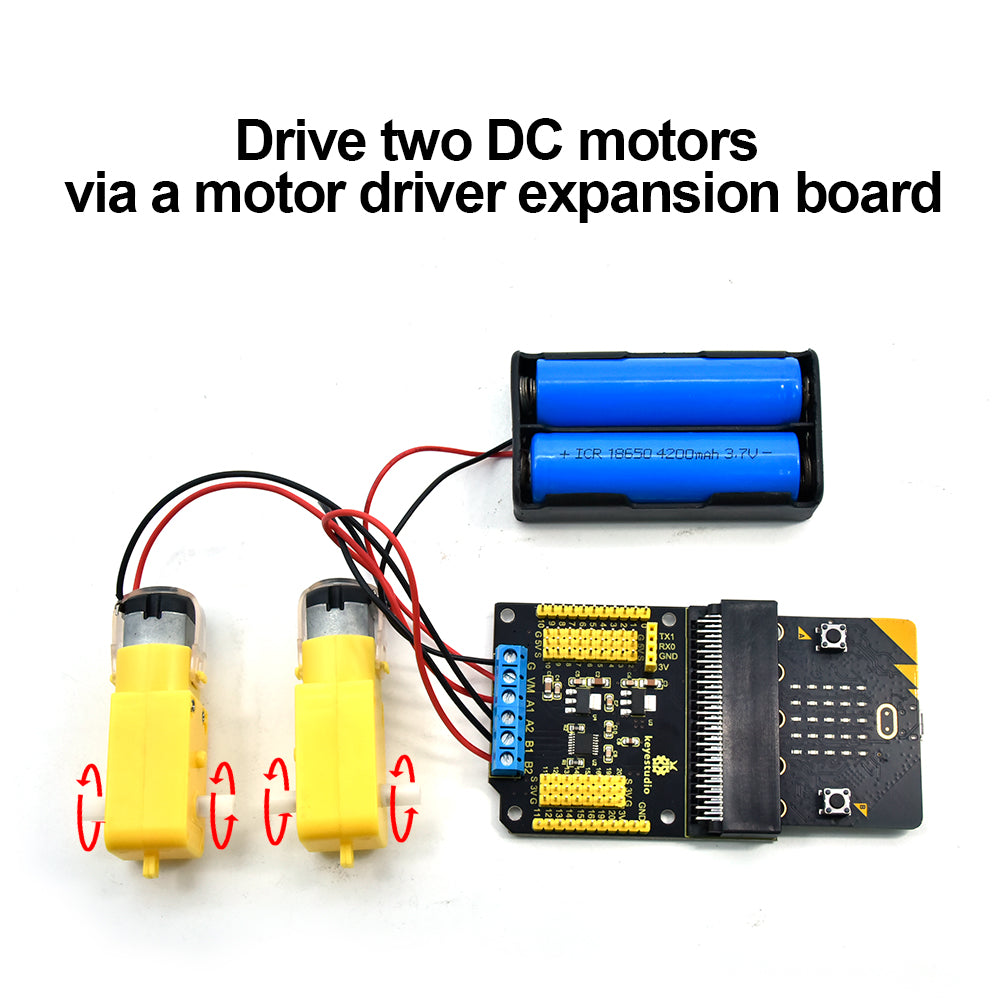

Using the Micro:bit DRV8833 Motor Driver Expansion Board is easy. First, connect the motor pins A1, A2, B2, and B1 to P13, P12, P15, and P16 of the micro:bit board. You can then control your motors in four different modes - clockwise rotation, anticlockwise rotation, boot, and stop. For smooth and precise control, the board's PWM supports frequencies up to 100 kHz. Also, you can connect other sensors easily through the 3 - pin interfaces. Remember, this expansion board doesn't come with the Micro:bit board, so you'll need to have one separately. When it comes to maintenance, keep it in a dry and clean place. Avoid exposing it to extreme temperatures or physical damage. If you're using it with BT modules, make sure the serial communication interface is properly connected.
