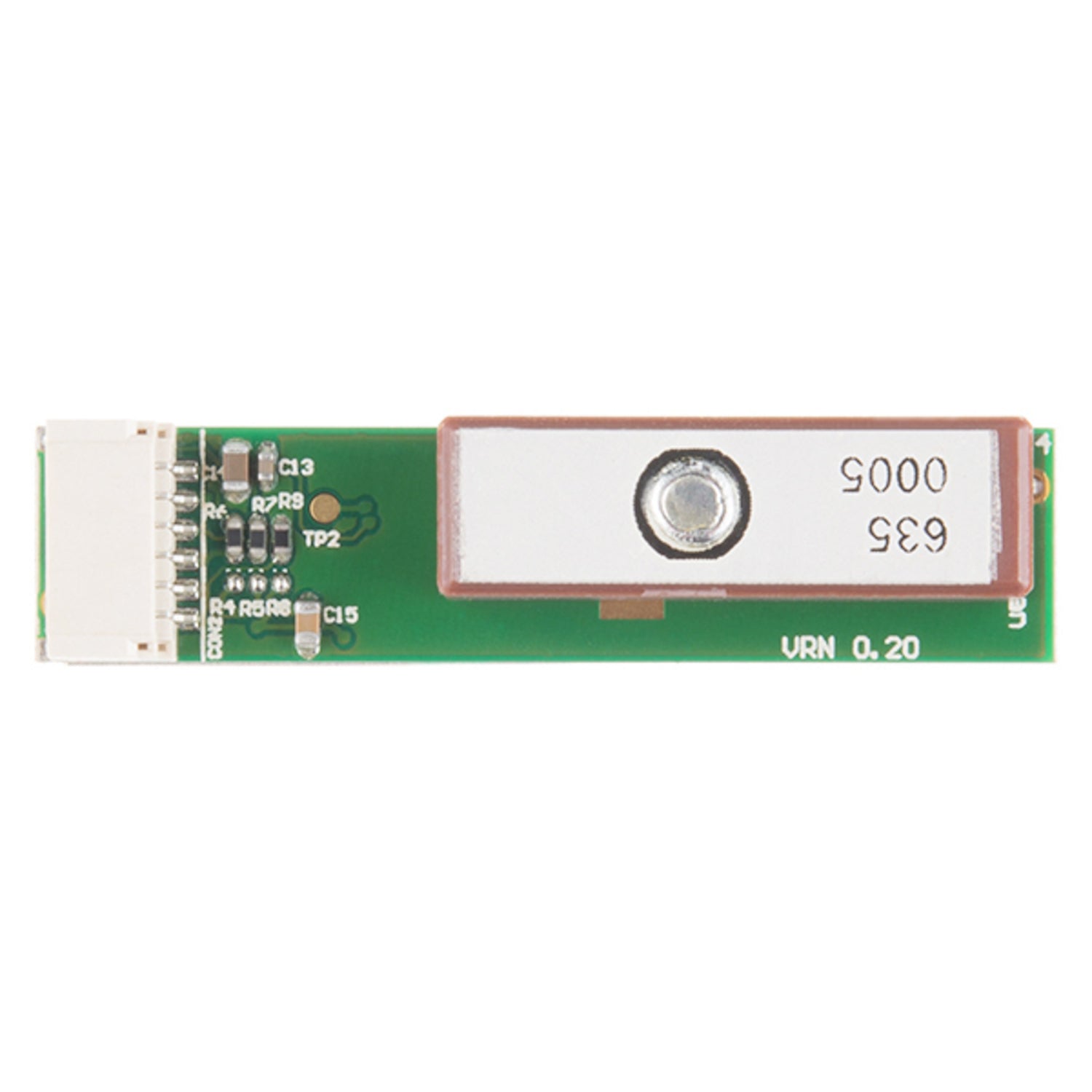

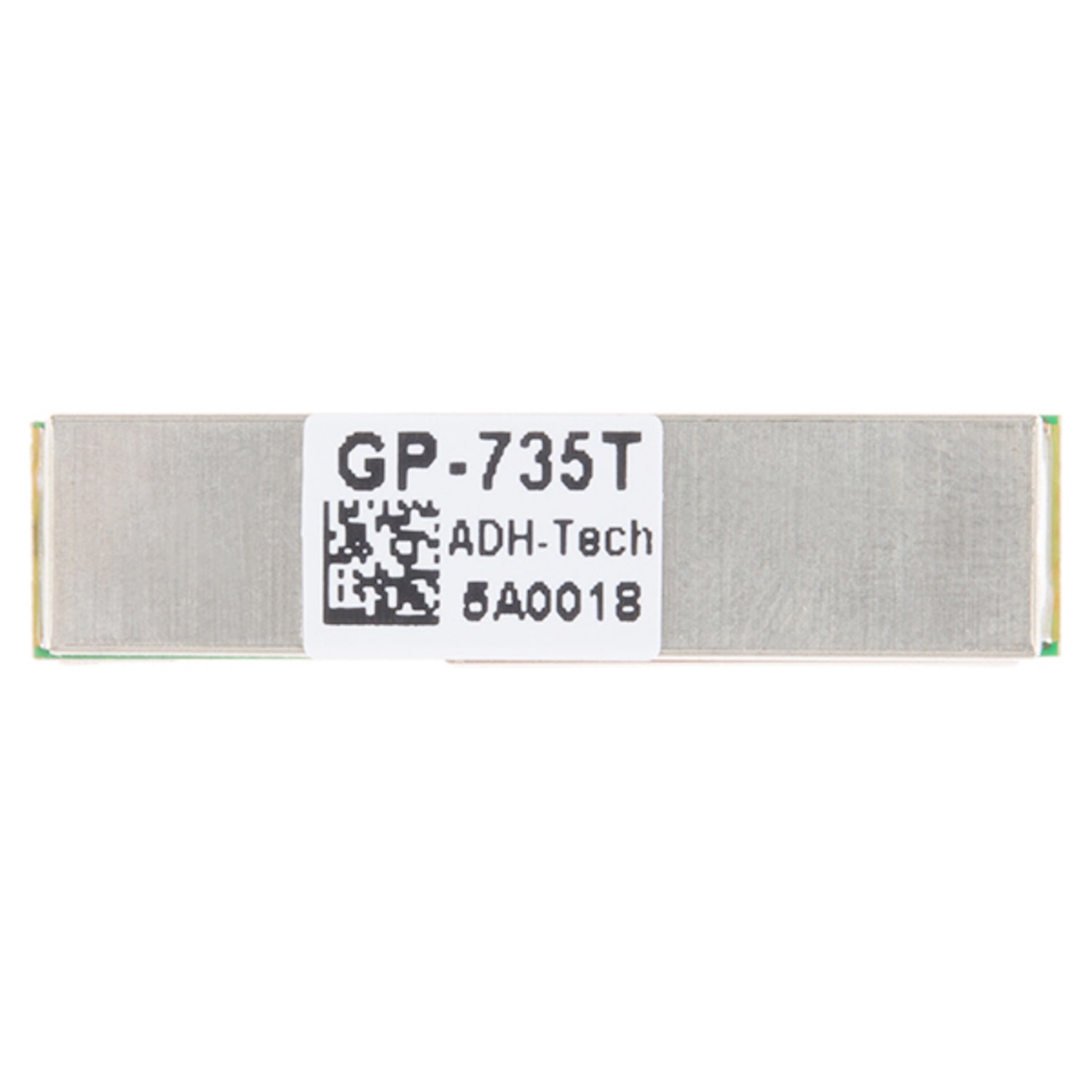

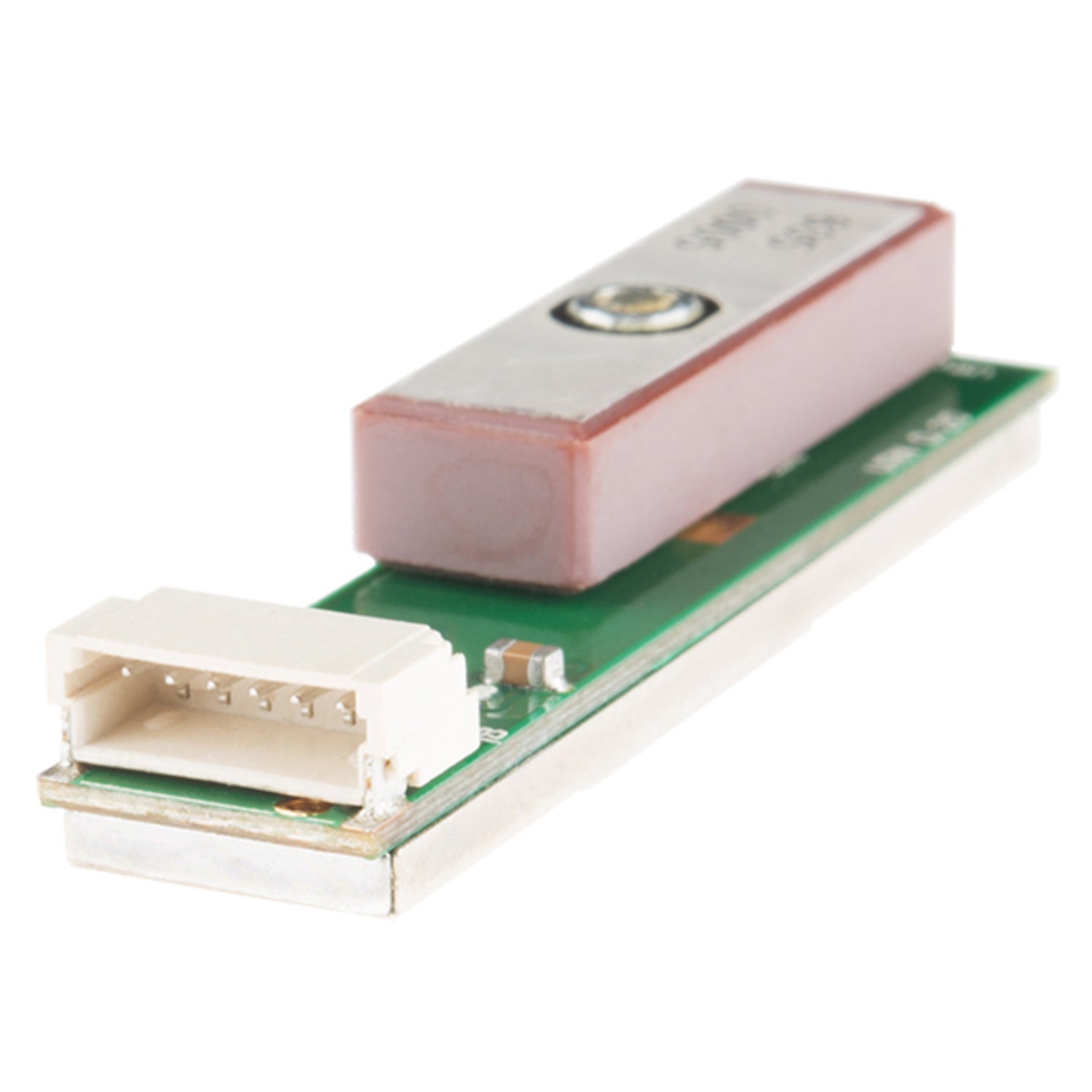

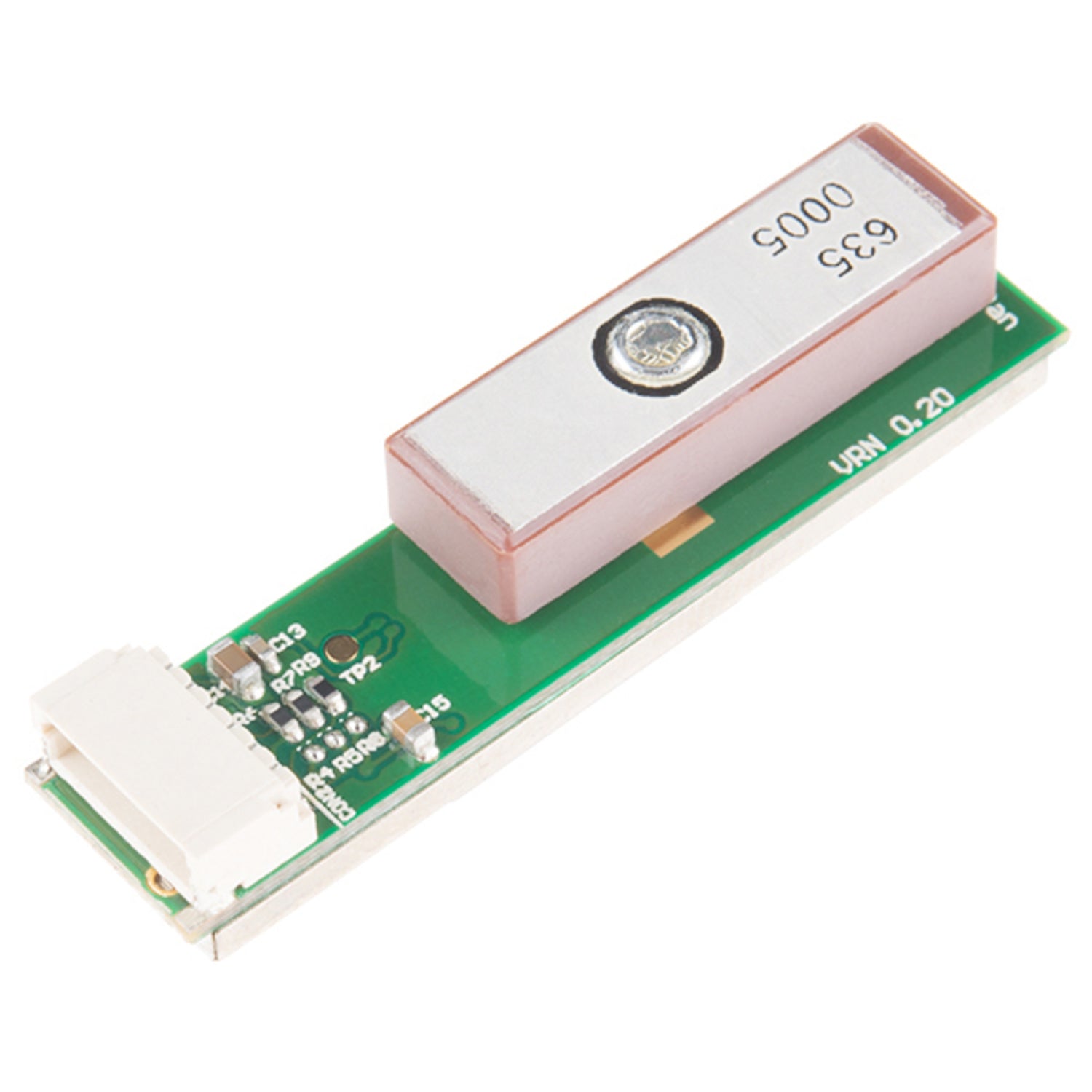

GPS Receiver - GP-735 (56 Channel)

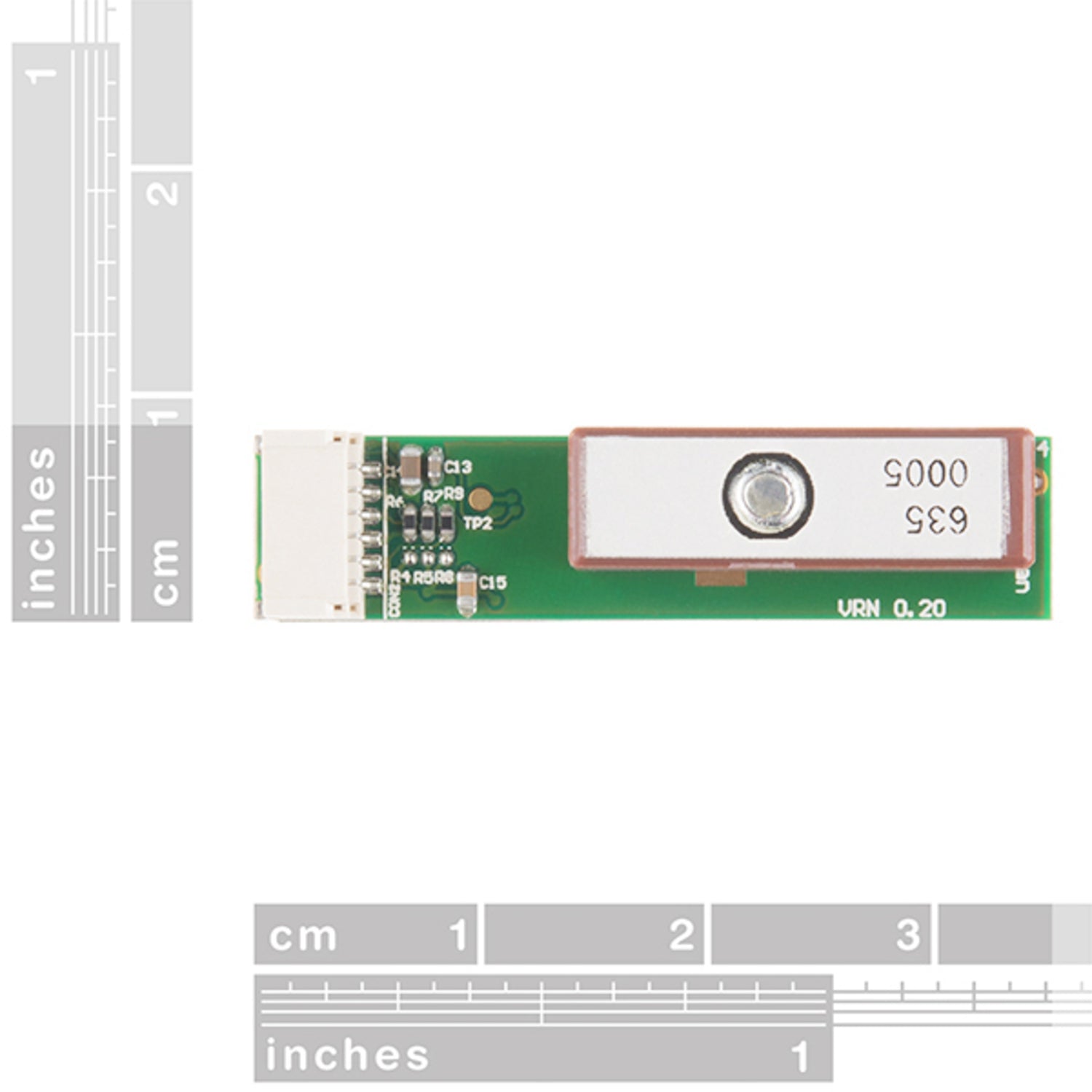

The GP-735 is an incredibly slim and high-performance GPS smart antenna receiver that's a breeze to use. With an outstanding -162dBm tracking sensitivity and a super - fast 29 - second cold start time, this tiny yet powerful device packs a big punch. Its sleek design is perfect for applications with limited space. This 56 - channel GPS module, built on the uBlox 7th generation chipset, operates at a voltage of 3.3 - 5.5V. It comes with an onboard antenna and connects to your system via TTL serial. The 1Hz update rate is suitable for most applications and can be upped to 10Hz if needed. Whether you're tracking your pet or building an autonomous vehicle, the GP - 735 is up to the task! Note that we're offering the “T” option, which is TTL - UART, not USB. It works with 6 - pin 1mm pitch JST type cables and connectors, available in the Recommended Products section. Dimensions are 35 x 8 x 6.5 mm. Included documents are the datasheet and GPS evaluation software.

Using the GP - 735 is easy. First, connect it to your system via the TTL serial connection. Make sure your system's operating voltage is within the 3.3 - 5.5V range. When you start it up, it'll reach a usable state in just 29 seconds. The 1Hz update rate is fine for most situations, but if you need faster updates, you can set it to 10Hz. When it comes to cables, use the 6 - pin 1mm pitch JST type ones, which you can find in the recommended products. Remember, this is the TTL - UART version, not USB. For maintenance, keep it in a dry and clean place. If there's dust, use a soft brush to clean it gently. Check the datasheet for more detailed information and use the GPS evaluation software to test its performance.
