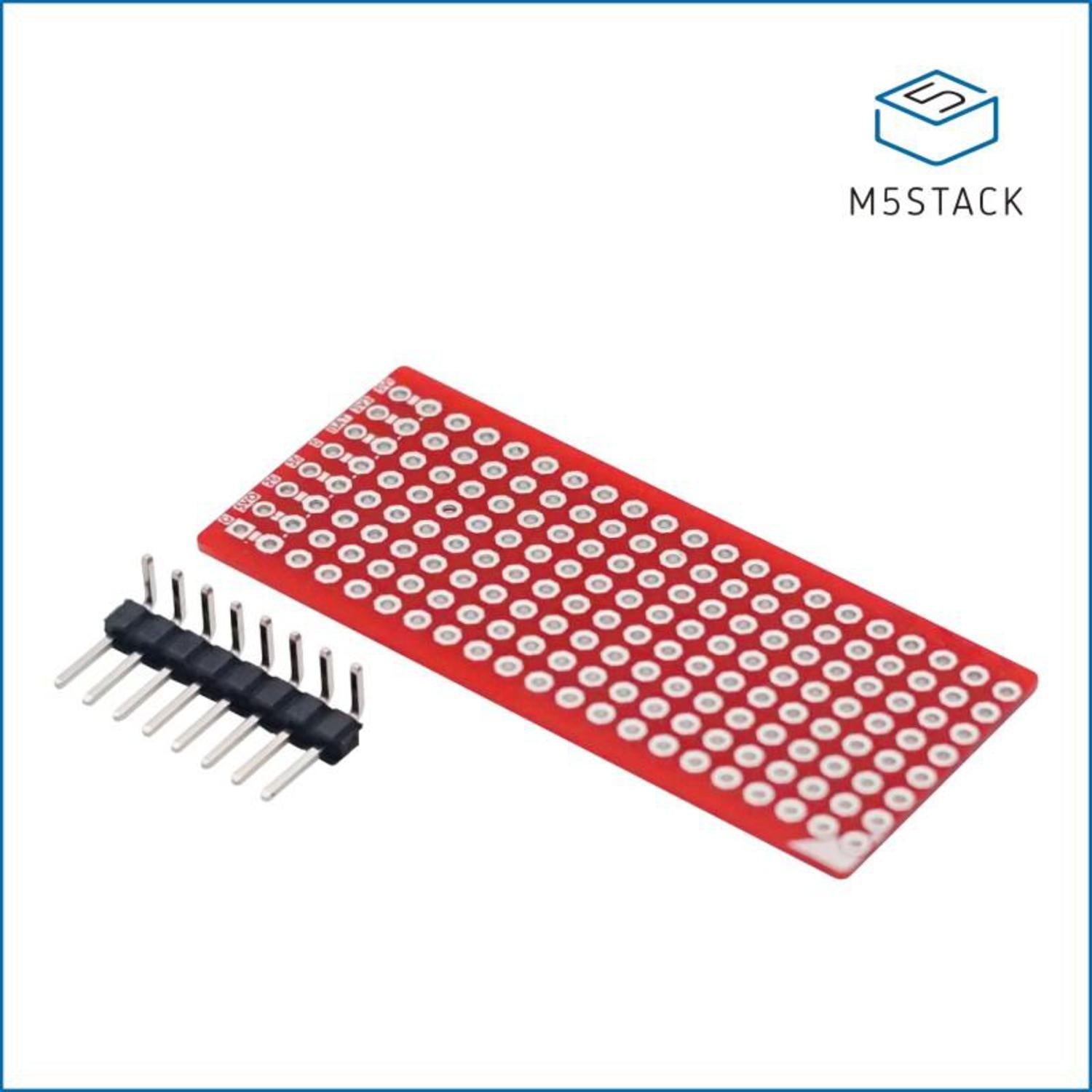

The PROTO PLUS HAT is a versatile universal proto board that works seamlessly with the M5StickC. Compared to the old PROTO HAT, it offers a larger board area. With an 8-pin header, you can attach more add-ons to your M5StickC. The expansion interface connects fully to the universal board, letting you freely design circuits. The 90° pin header allows the proto board to be spliced with the M5StickC at different angles. Ideal for projects that need circuit design and space-saving through smart board splicing. Product features include compatibility with M5StickC, a hole size of 0.039' (1mm) drilled by CNC, a hole pitch of 0.1 in (2.54 mm), and a total of 168 holes. It comes with 1x PROTO PLUS HAT and 1x 8-pin header (90°). Great for prototyping and related M5 user work. To get the complete code, click here.

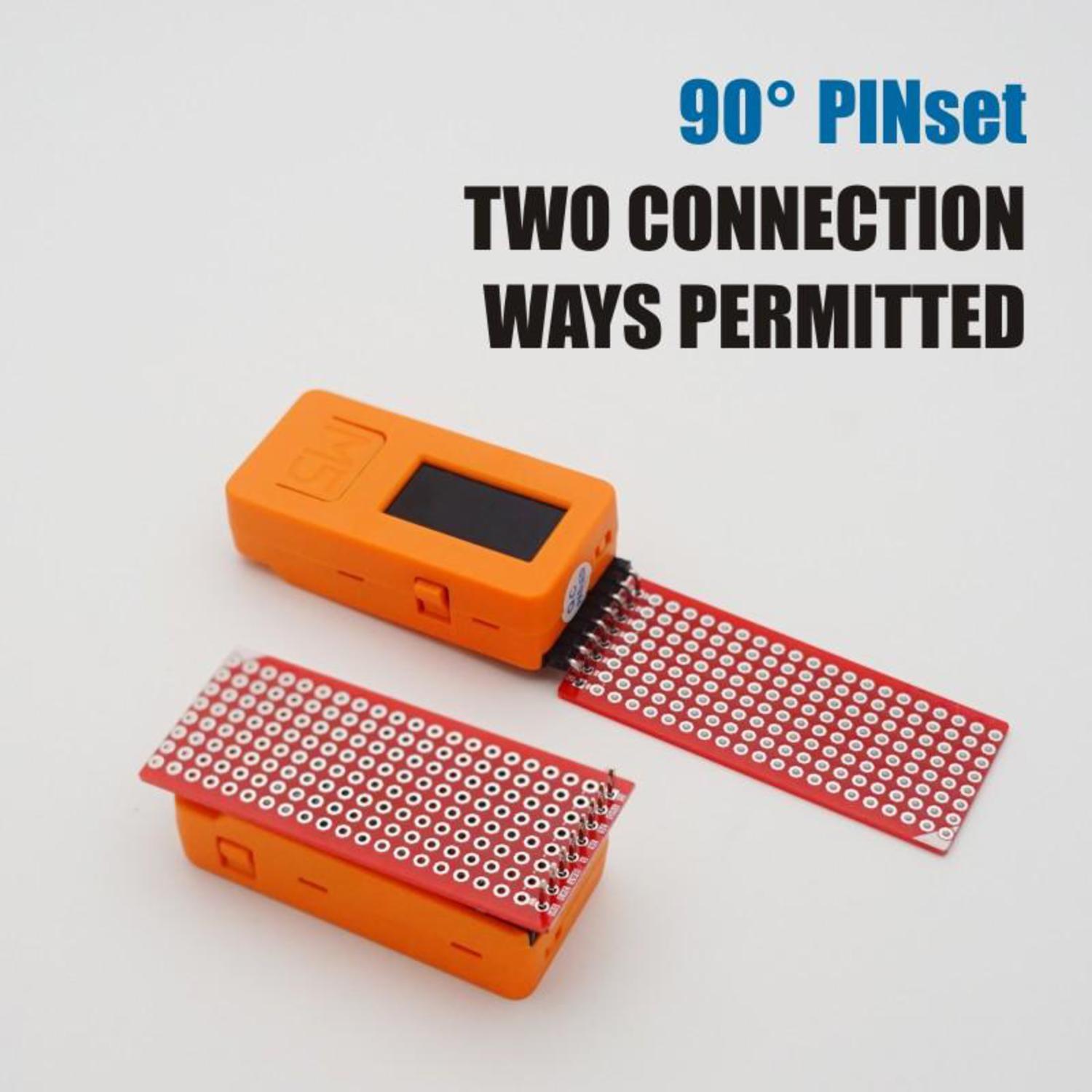

Using the PROTO PLUS HAT with your M5StickC is easy. First, connect the 90° 8-pin header to the board. Then, you can splice the proto board with the M5StickC at different angles as you need. When designing circuits, use the expansion interface to freely create your own circuit layout. Remember, the hole size is 0.039' (1mm) and the pitch is 0.1 in (2.54 mm), so make sure your components fit properly. For maintenance, keep the board clean and dry. Avoid exposing it to extreme temperatures or humidity. If you want to get the complete code for your project, just click the provided link.
