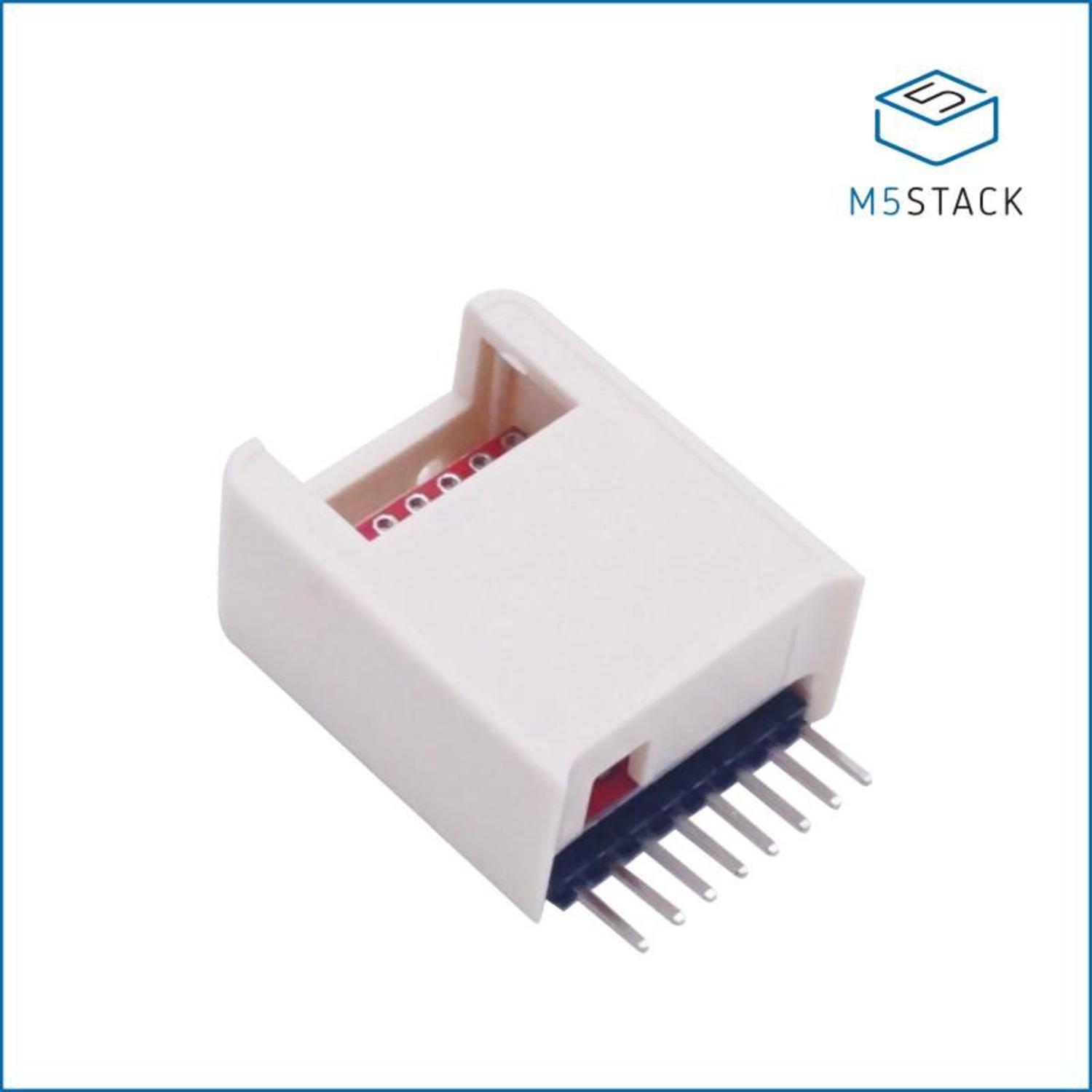

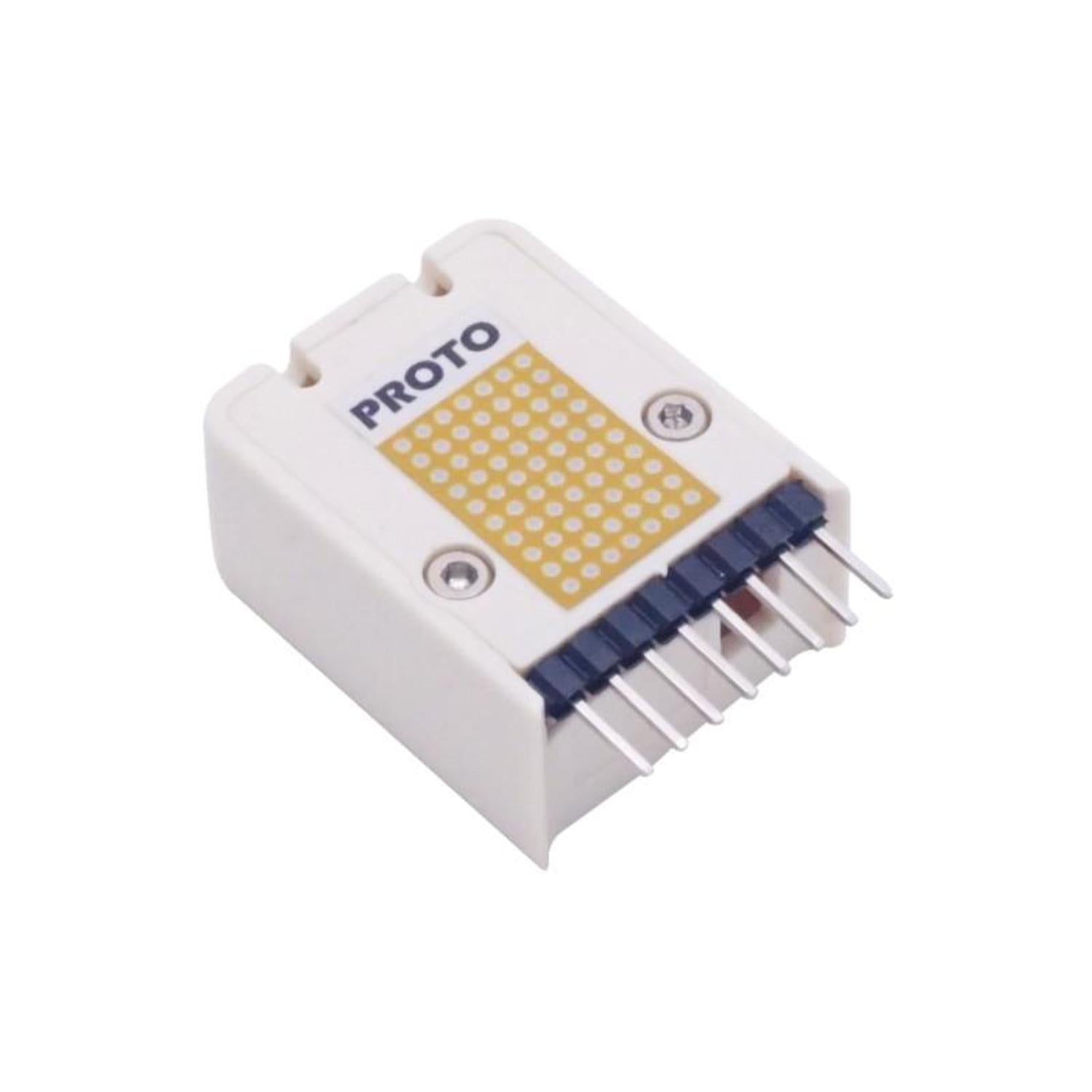

The PROTO_HAT is a universal prototyping board in HAT size. It gives you complete freedom to create your own projects. You can design customized circuits to interact with the M5 core GROVE Port. The device has its PINs on top ported out, allowing you to build more connections. For instance, as the m5stickc has fewer hardware resources than the m5stack, you can use this HAT module to add more features. If you want to add extra buttons, the PROTO_HAT is the solution. Product Features: It's compatible with M5StickC, has a hole size of 0.039” (1mm, CNC Drilled), a hole pitch of 0.1 in (2.54 mm), and a total of 40 holes. What's Included: 1x PROTO unit. Application: Ideal for prototyping. For more information, check the official channel and forum.

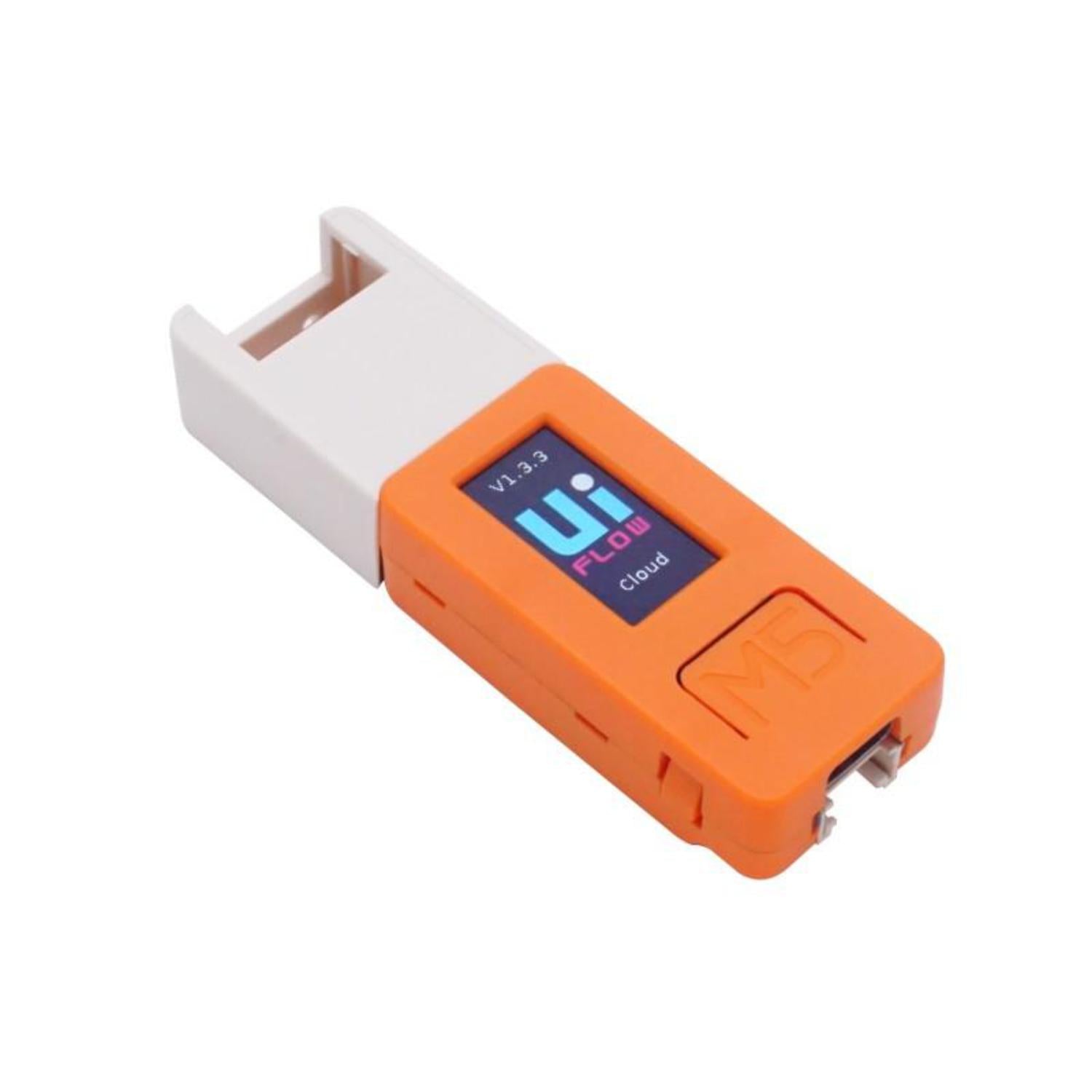

Using this M5StickC Proto Hat is easy. First, connect it to your M5StickC through the GROVE Port. Once connected, you can start creating your own customized circuits on the prototyping board. You can use it to add more buttons or other features to your M5StickC. When handling the hat, be gentle with the PINs on top to avoid damage. Keep it in a dry and clean place to prevent any short - circuits. If you notice any dust on the board, you can use a soft brush to clean it. And always refer to the official channel and forum if you have any questions or need more help.
