JST SH 4-pin Right Angle Connector (10-pack) - Qwiic Compatible

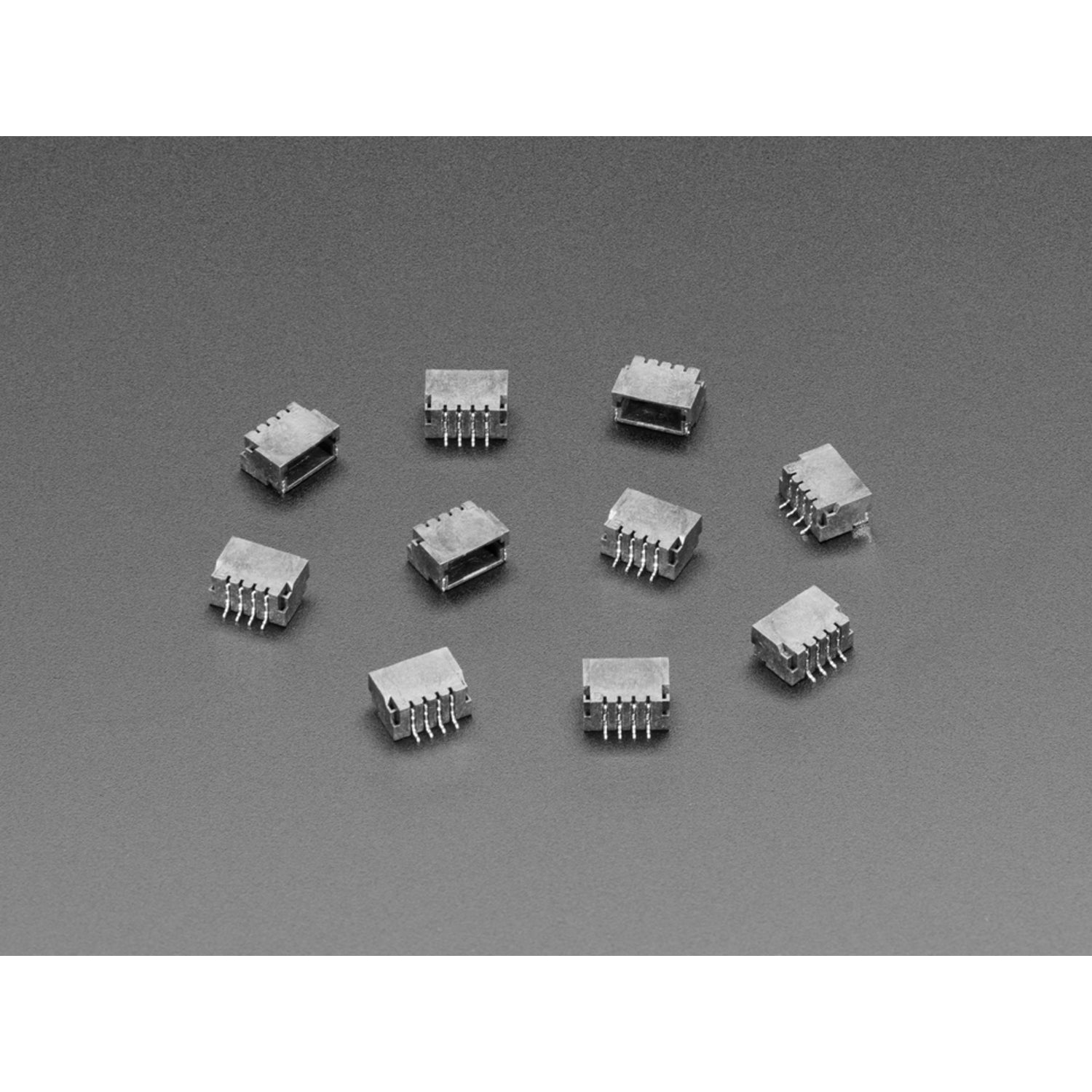

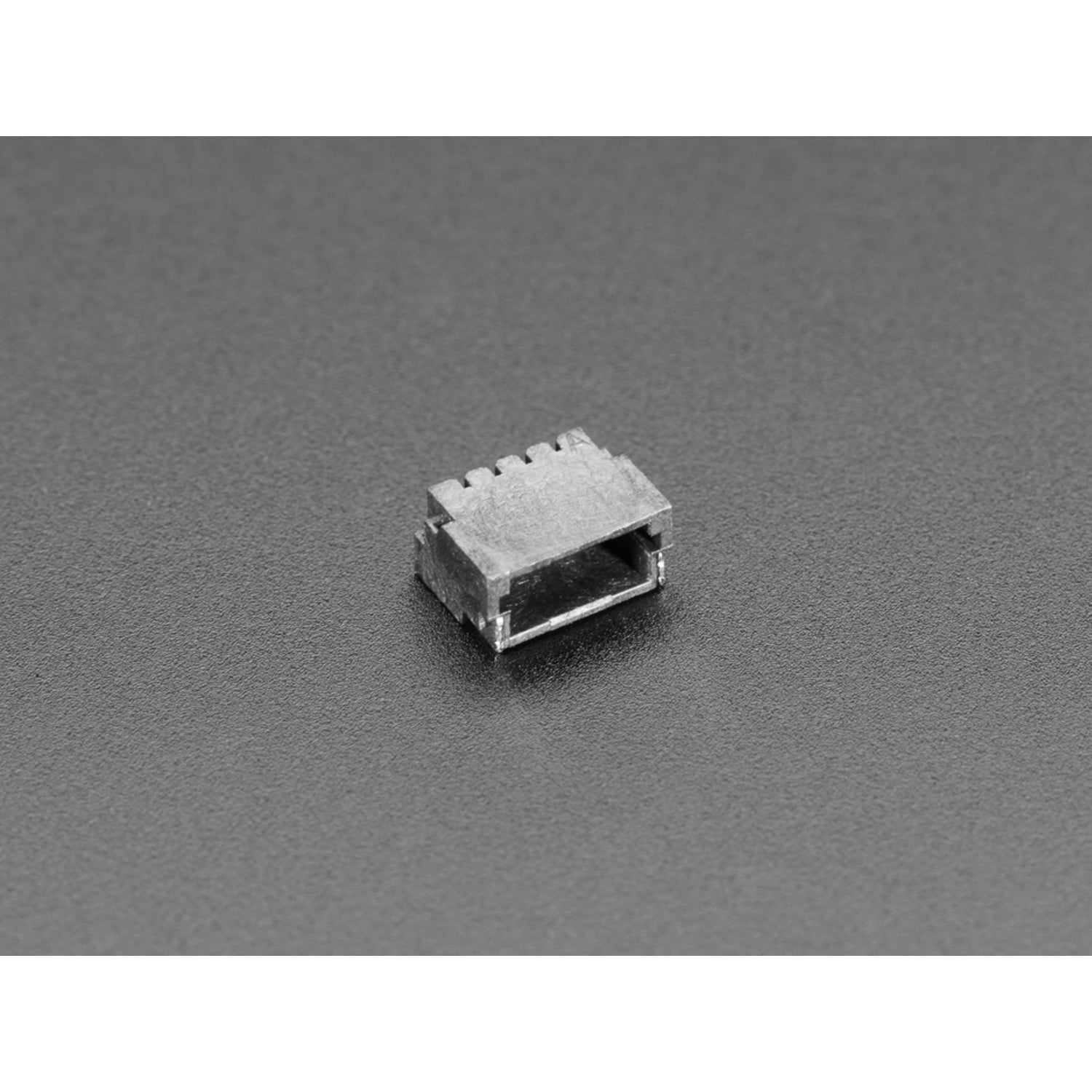

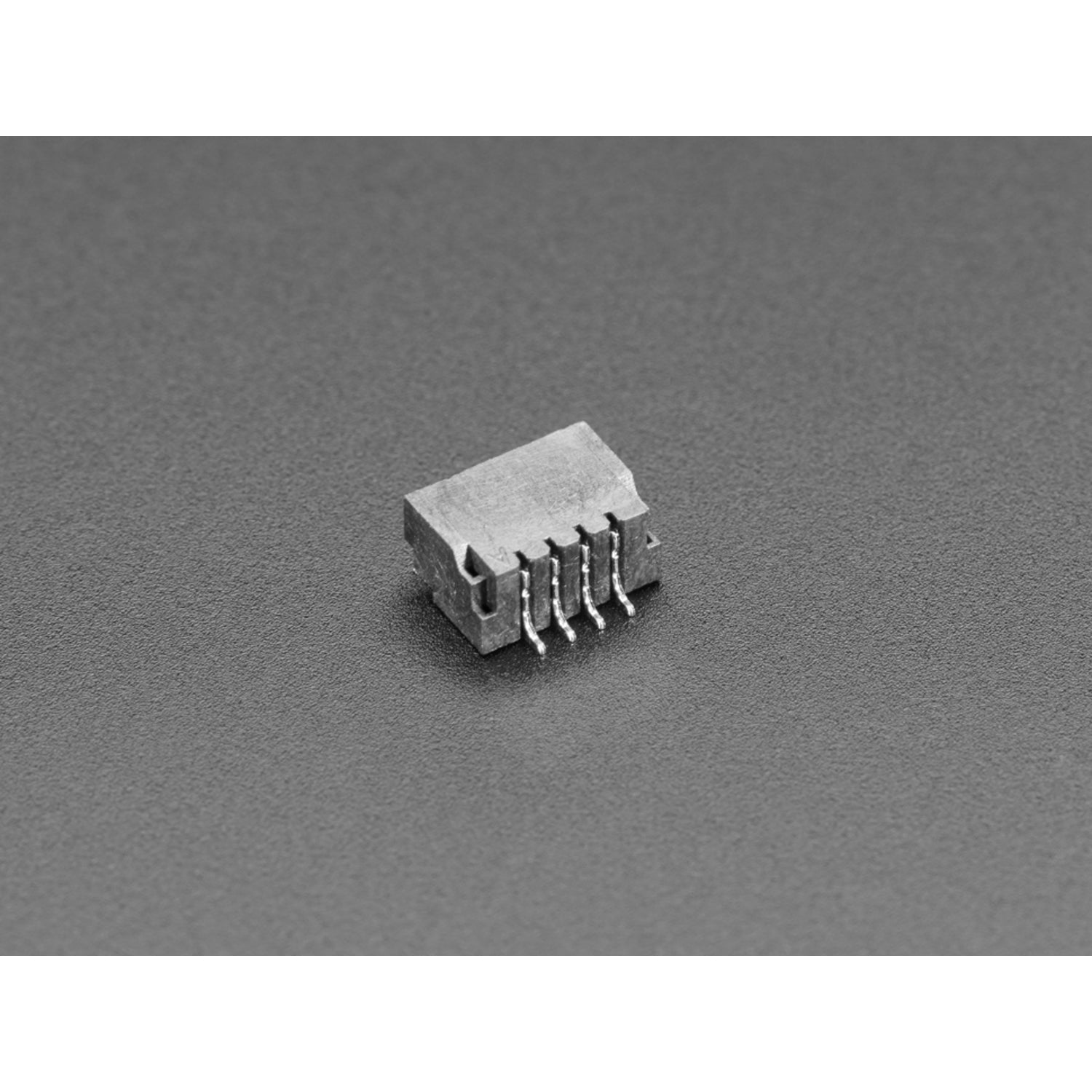

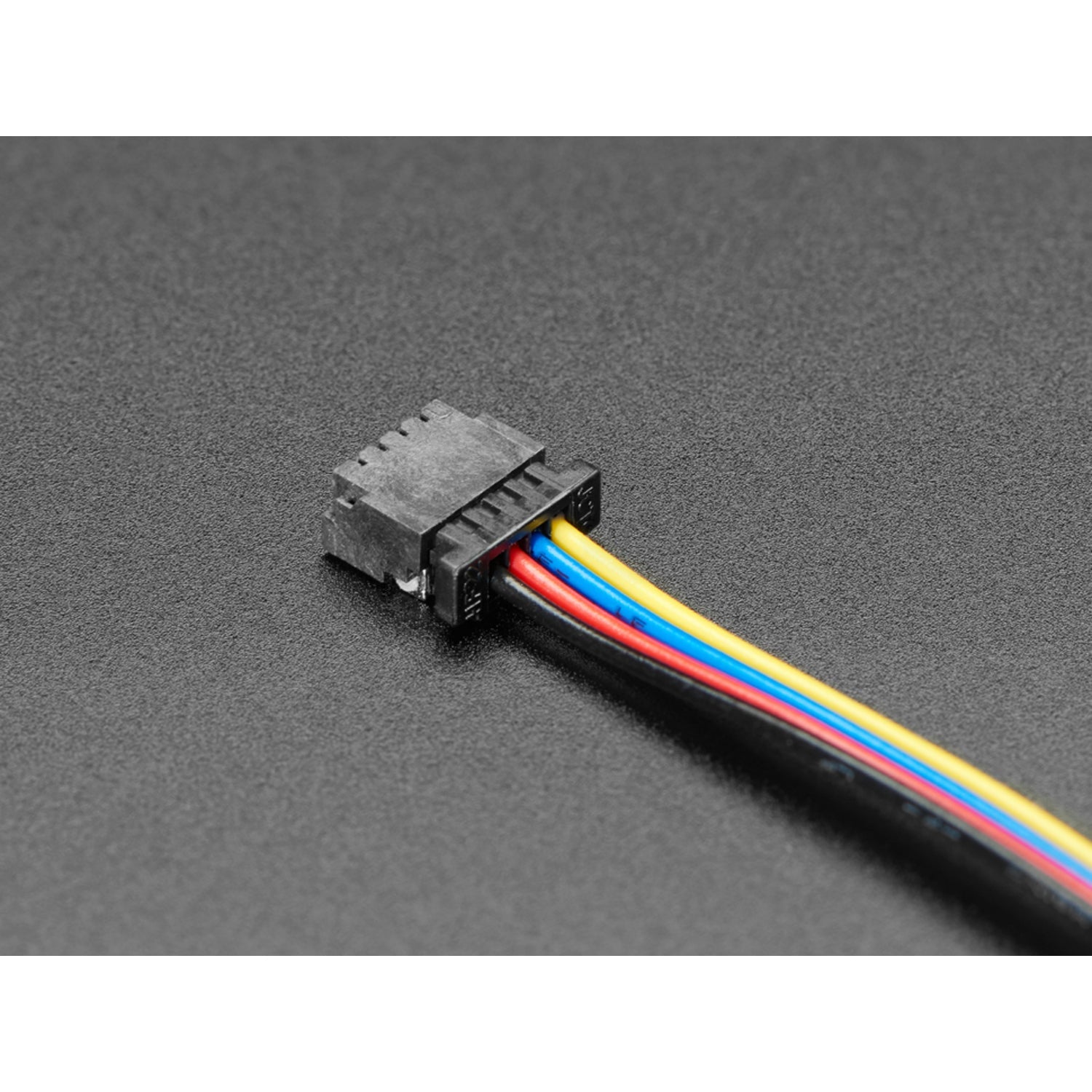

Hey DIY fans! Here's a 10-pack of awesome micro JST SH connectors. They're made of sturdy plastic and have 4 x 1mm pitch through-hole mounting tabs. In an SMT line, just paste over the through holes and the pads will solder right in place. These connectors work great with Qwiic boards and cables. You can easily connect sensors and drivers between boards. Pair them with the cables for compatibility (the cables are symmetric, so no need to worry about which side goes where). When using with Qwiic, the pins are: 3.3VDC Power (red wire), Ground (black wire), I2C SDA Data (blue wire), and I2C SCL Clock (yellow wire). For more JST SH info, visit the JST website.

Using these connectors is a breeze. First, if you're working in an SMT line, simply paste over the through holes and the pads will solder in place. When connecting to Qwiic boards and cables, just match the pins with the corresponding colored wires. The red wire is for 3.3VDC power, the black is for ground, the blue is for I2C SDA data, and the yellow is for I2C SCL clock. Since the cables are symmetric, you don't have to worry about which side goes where. As for maintenance, keep them in a dry place to avoid any corrosion. If you need more details about JST SH connectors, check out the JST website.
