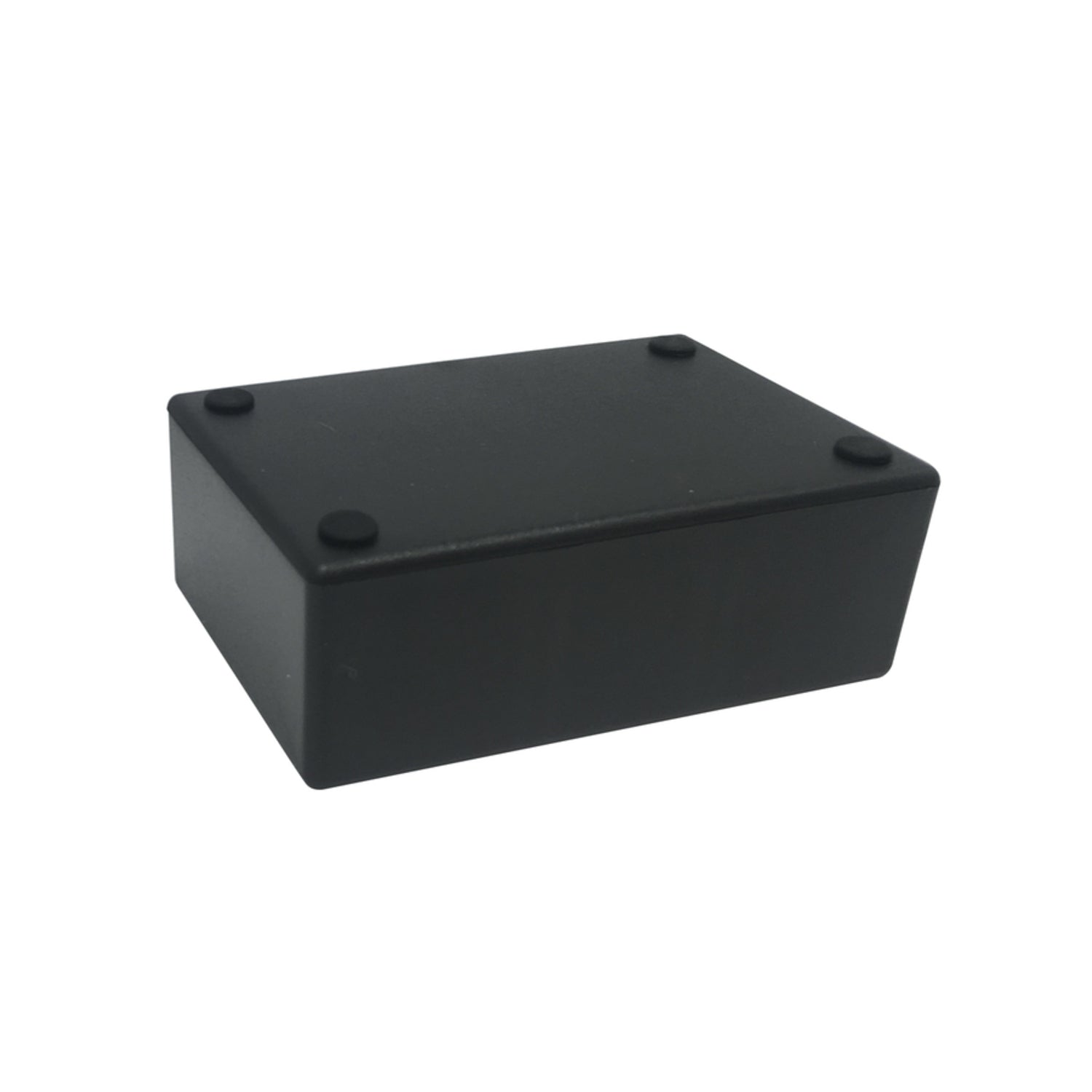

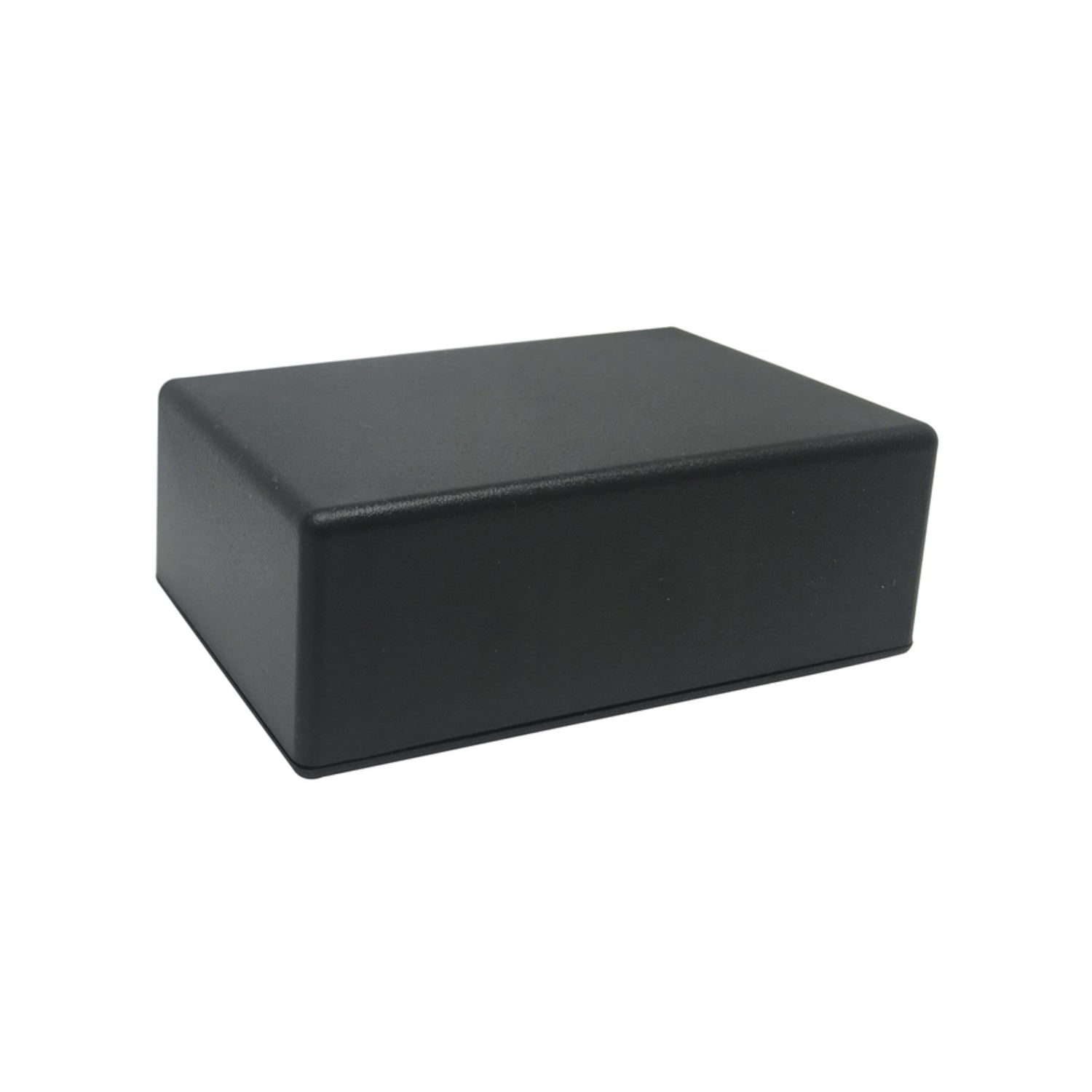

Jiffy Box - Black - 83 x 54 x 31mm

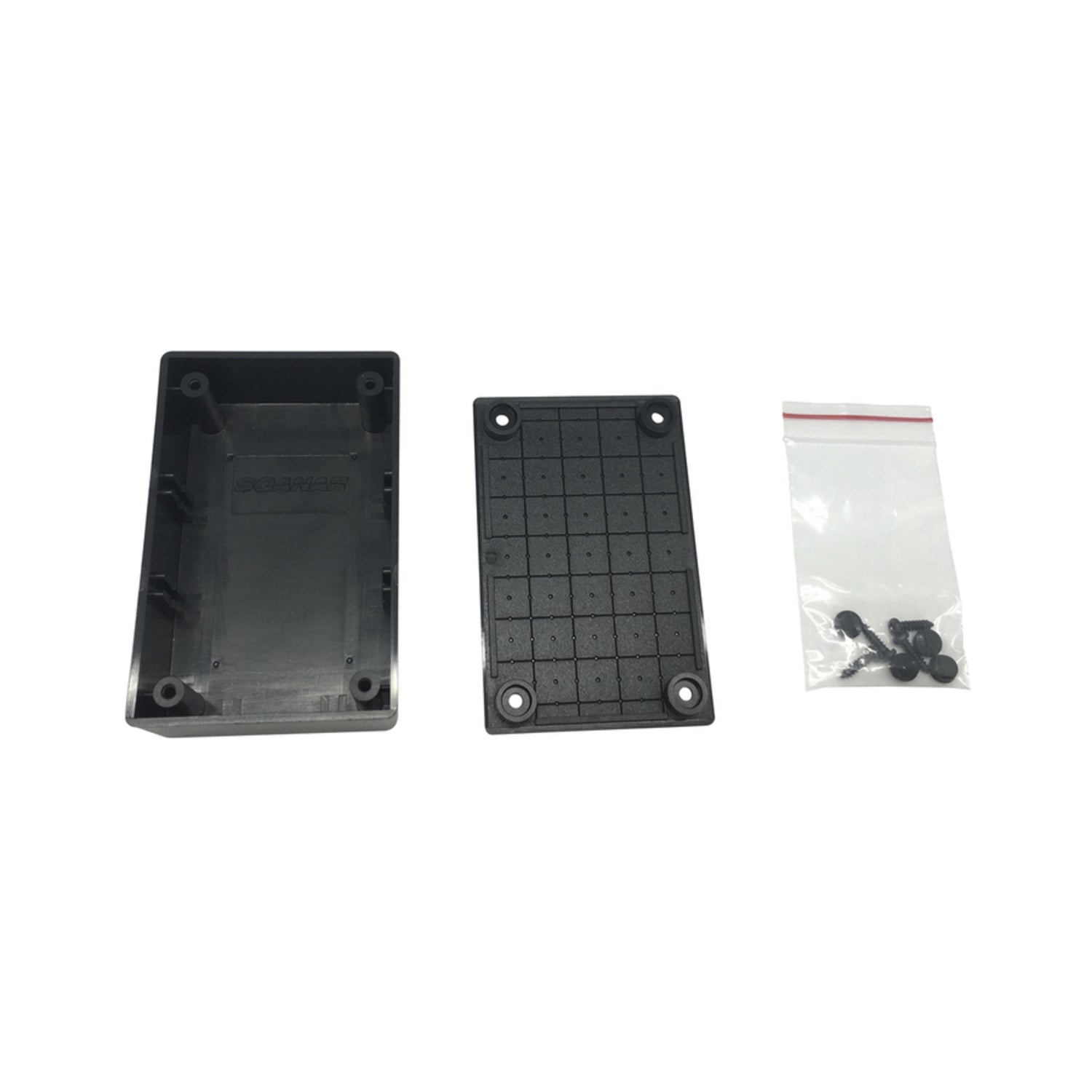

These black jiffy boxes, crafted from high - quality ABS plastic, not only look sleek but are also designed to meet all our customers' needs for a constructor's box. Externally, their sizes adhere to industry standards, and internally, they're perfect for PCB fitting. **Features:** - The smooth, impervious finish offers excellent adhesion for screen - printing. - The lids have a 5mm grid of 'centre punch' points on the underside for fast and accurate drilling. - There's also a 10mm grid of scribed lines on the lids for easy and precise cutting or filing of cut - outs. - The PCB guides in the box sides come with snap - in locators, eliminating the need for stand - off hardware when mounting boards horizontally. - The inside base of the box has a grid of 'centre punch' type points. - It comes with lid - fixing screws and safety concealment plugs. **Internal Dimensions:** - Vertical PCB fit: 50 x 27mm - Horizontal PCB fit: 62 x 49mm **Specifications** | Length | 83mm | | Width | 54mm | | Height | 31mm | | Material | ABS Plastic (Acrylonitrile Butadiene Styrene) | | Colour | Black | **Warranty:** 3 Months

Using this jiffy box is a breeze. First, decide if you're mounting the PCB vertically or horizontally. If you're mounting it vertically, you'll find the internal space of 50 x 27mm fits it perfectly. For horizontal mounting, the 62 x 49mm space is ideal. When you need to drill holes in the lid, use the 5mm grid of 'centre punch' points as a guide for accurate placement. If you have to cut or file cut - outs, the 10mm grid of scribed lines on the lid will help you do it precisely. And when you're ready to install the PCB, the snap - in locators in the box sides make it easy, without the need for extra stand - off hardware. Just use the supplied lid - fixing screws to attach the lid and the safety concealment plugs for a secure look. As for maintenance, keep the box in a dry place to prevent any damage to the ABS plastic. If it gets dirty, you can gently wipe it with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials as they might damage the smooth finish and affect the adhesion for screen - printing. Remember, this box comes with a 3 - month warranty, so if you encounter any issues during this period, reach out to us.
