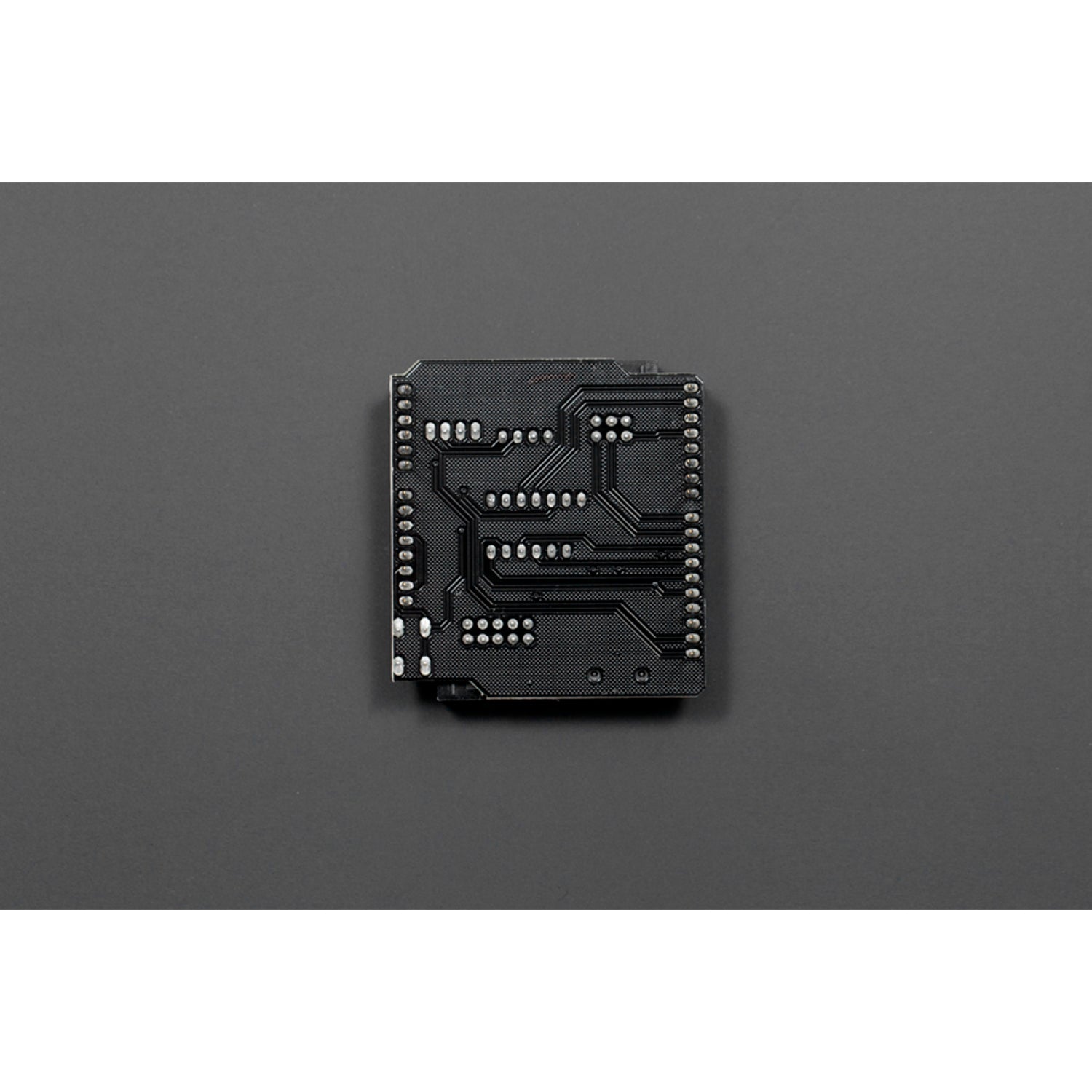

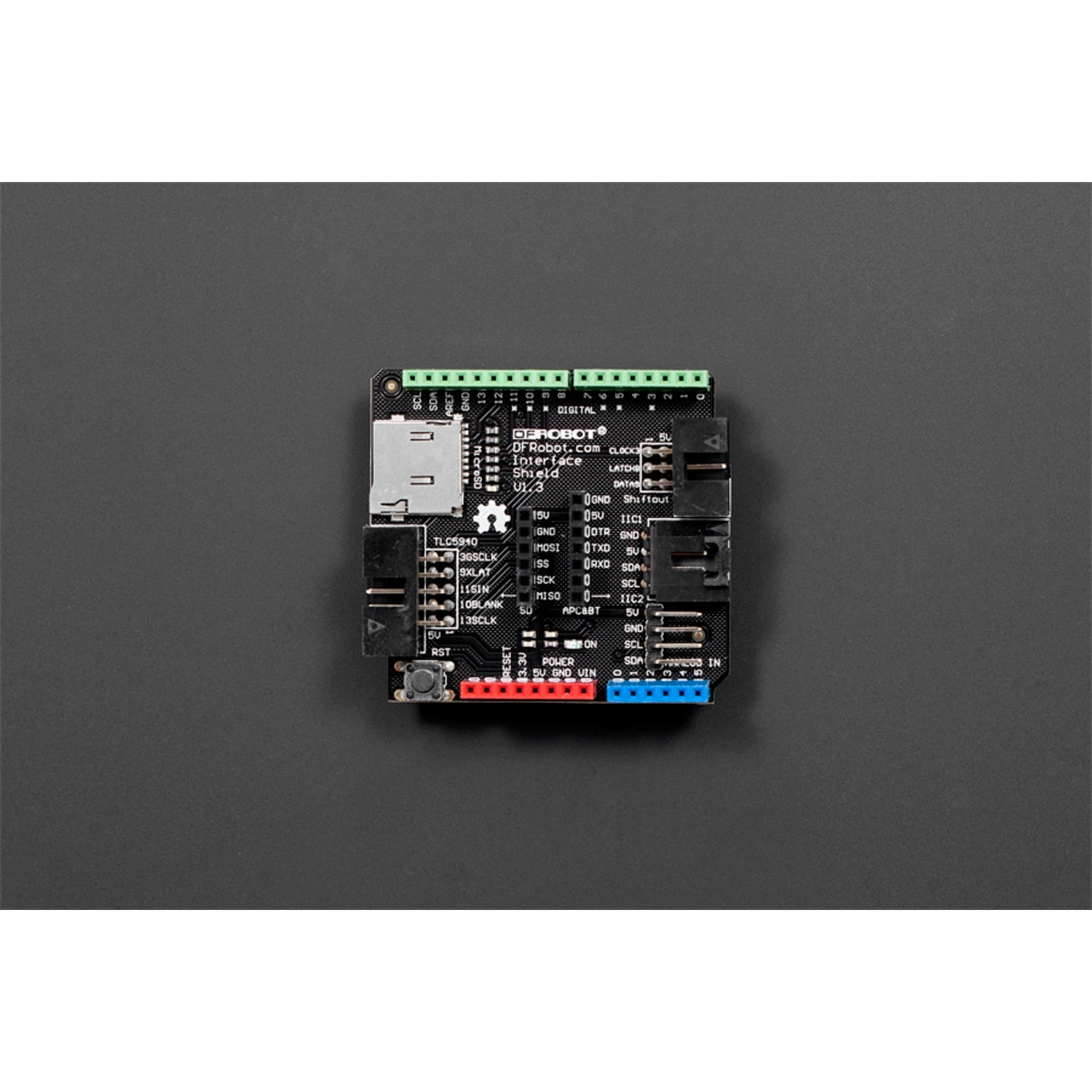

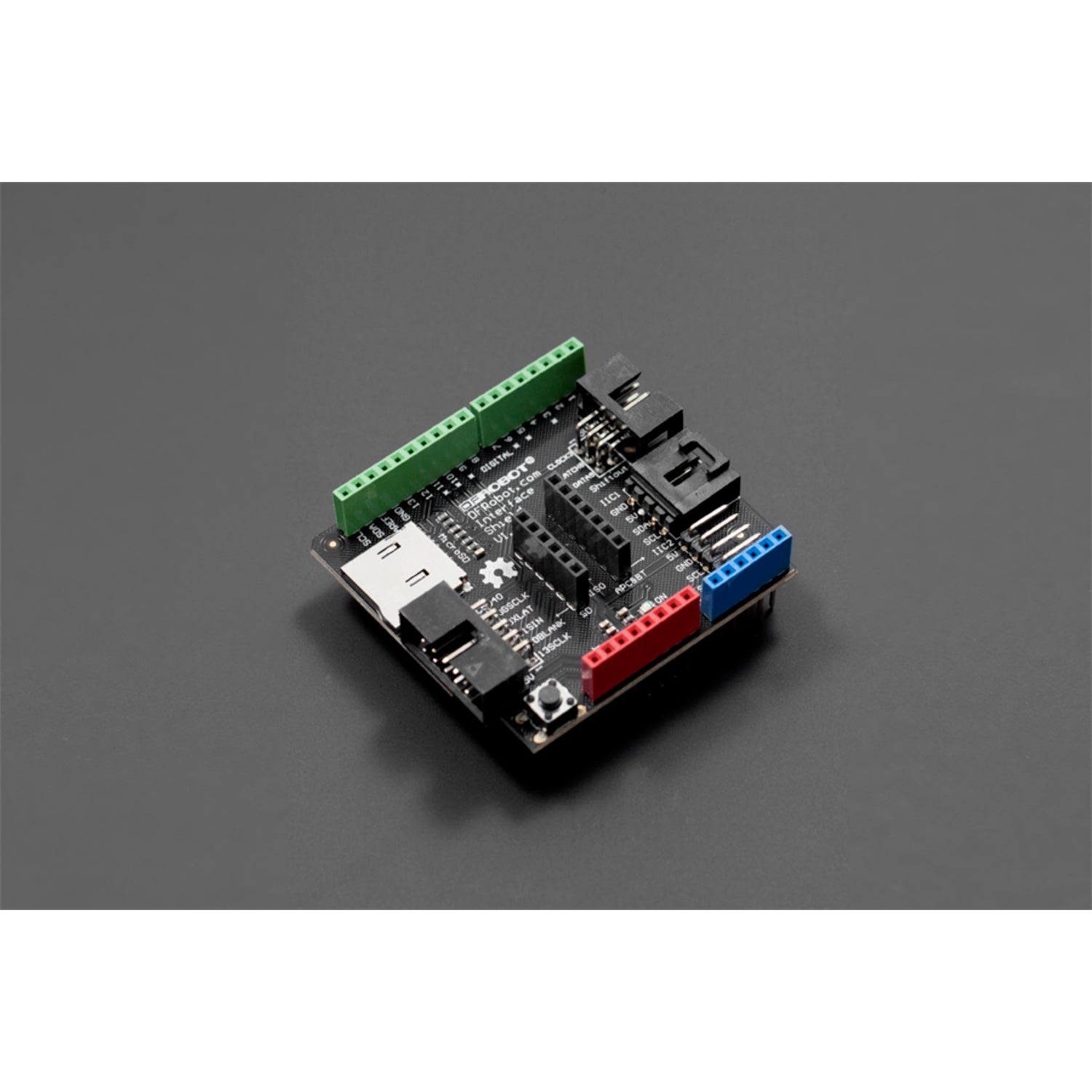

This amazing interface shield is a multi-functional expansion board designed for Arduino UNO and Duemilanove. It supports a wide range of interfaces, including the SPI interface (perfect for directly connecting Shiftout modules, SPI LCD display modules, and SPI LED display modules), the IIC interface (which can directly connect IIC LCD display modules and IIC transfer IO modules), a Micro SD card interface (you can insert a Micro SD card directly), an SD card storage module interface, and a TLC full-color LED controller module. Its key features are multi-function expansion, Arduino compatibility, and support for SPI, IIC interfaces, SD cards, and TLC5940. There are also useful documents like the Wiki, Fat Library, TLC Library, and Schematics. The shipping list includes one Interface Shield for Arduino.
Using this interface shield is easy. First, make sure your Arduino is either an UNO or Duemilanove. Then, connect the shield to your Arduino. For the different interfaces, just plug in the corresponding modules. For example, if you want to use an SPI LCD display module, connect it to the SPI interface. When inserting a Micro SD card, do it gently into the Micro SD card interface. As for maintenance, keep the shield clean and dry. Avoid exposing it to extreme temperatures or humidity. If you face any issues, refer to the provided documents like the Wiki for solutions. That's all you need to know to get the most out of your interface shield.
