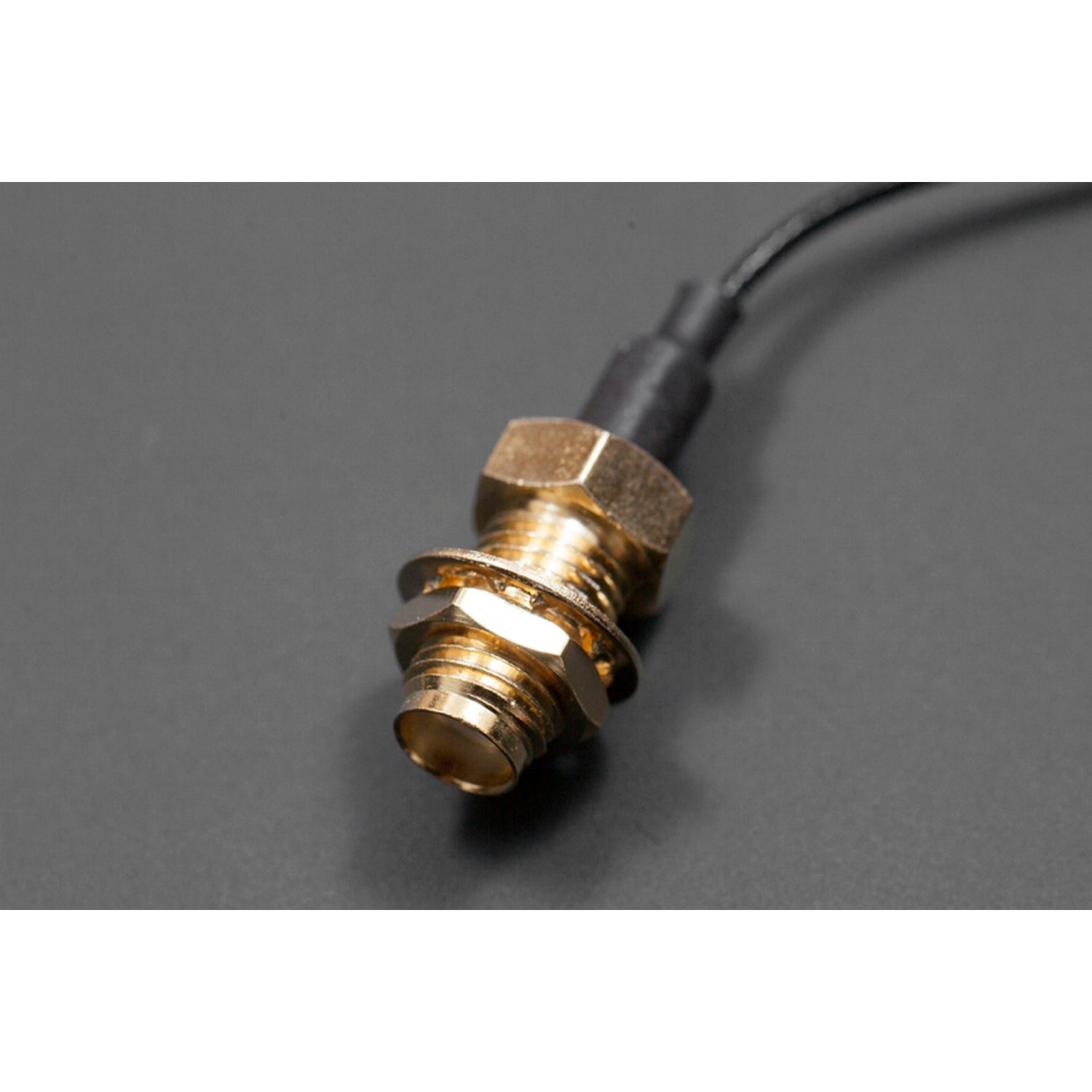

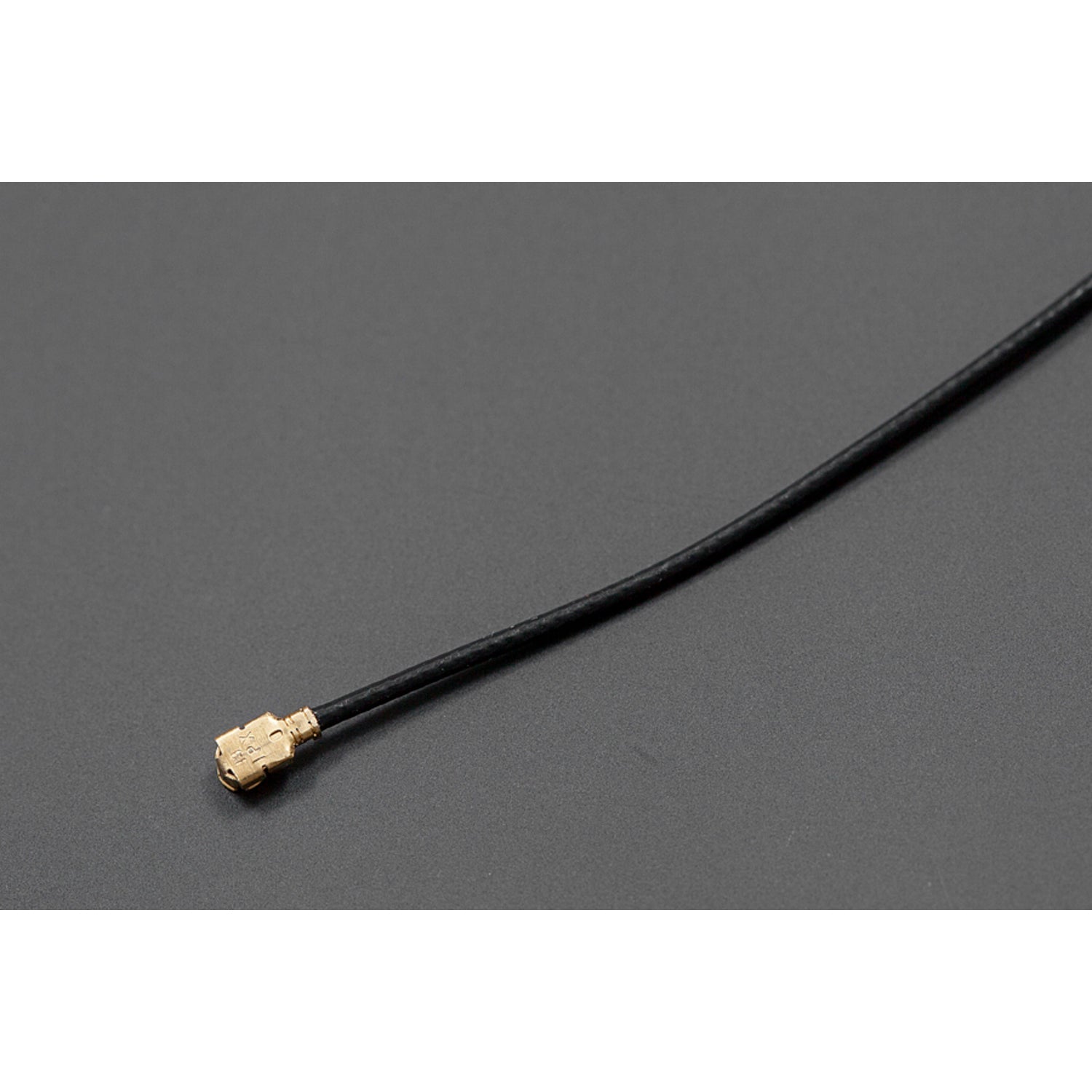

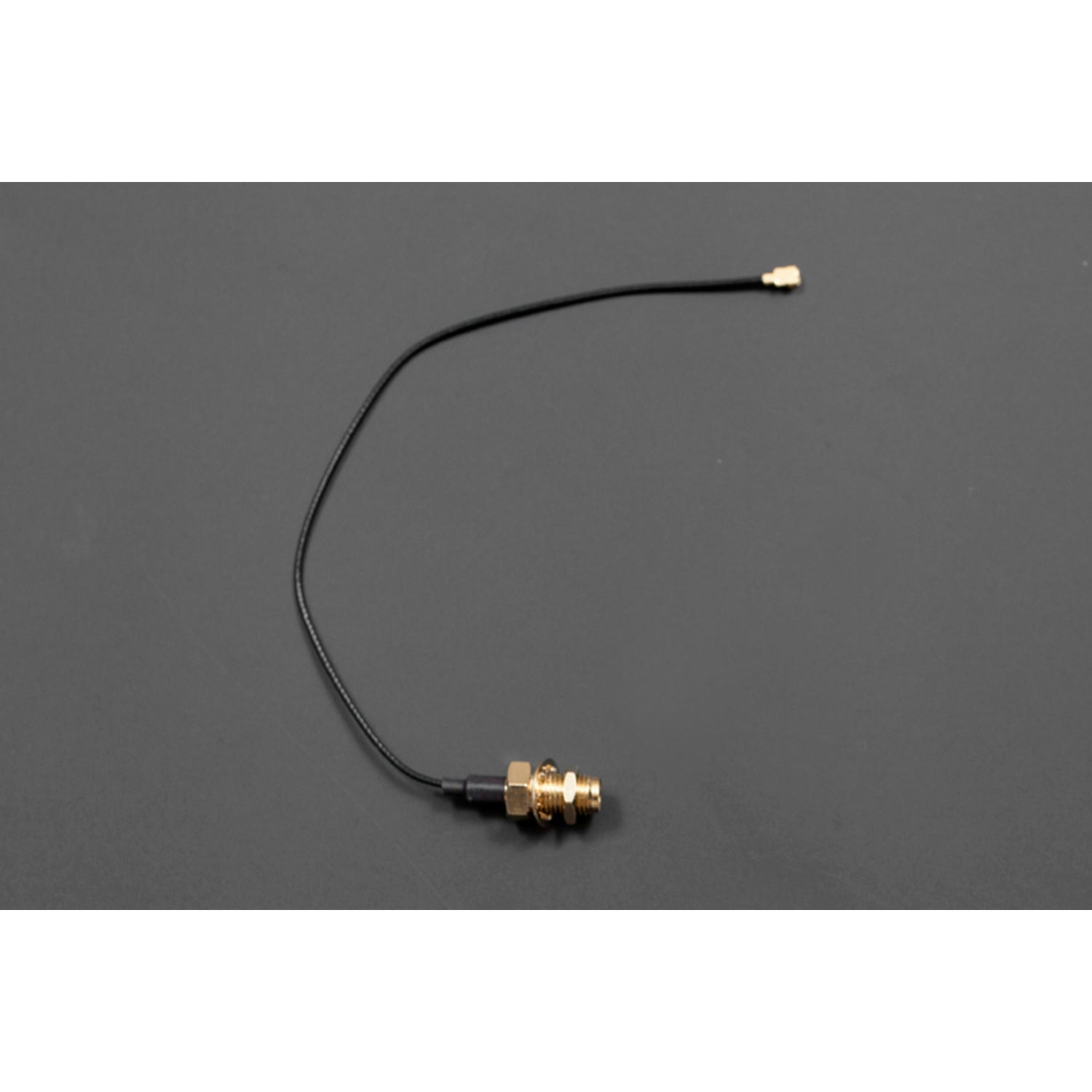

The SMA to U.FL Interface Cable is a great solution for interfacing U.FL RF connectors with regular SMA connections. It's perfect for connecting the Standard SMA Connector on the SIM 908 GPS/GPRS/GSM Shield for Arduino. With a frequency range from DC to 12.4GHz, a VSWR of ≤1.10+0.02f, and an impedance of 50 Ω, this cable offers reliable performance. It features an SMA Female connector and an IPEX/U.FL connector, and the cable size is 1.13x1.13x150mm(0.04'x0.04'x5.91'). The shipping list includes one SMA to U.FL Interface Cable.
Using this SMA to U.FL Interface Cable is easy. First, connect the SMA Female end to the appropriate device with a regular SMA connection. Then, attach the IPEX/U.FL end to the U.FL RF connector. Make sure the connections are secure to avoid signal loss. When handling the cable, be gentle to prevent damage to the connectors. To keep it in good condition, store it in a dry and cool place. Avoid bending the cable sharply or exposing it to extreme temperatures. If you notice any issues with the cable, check the connections first and then look for signs of physical damage.
