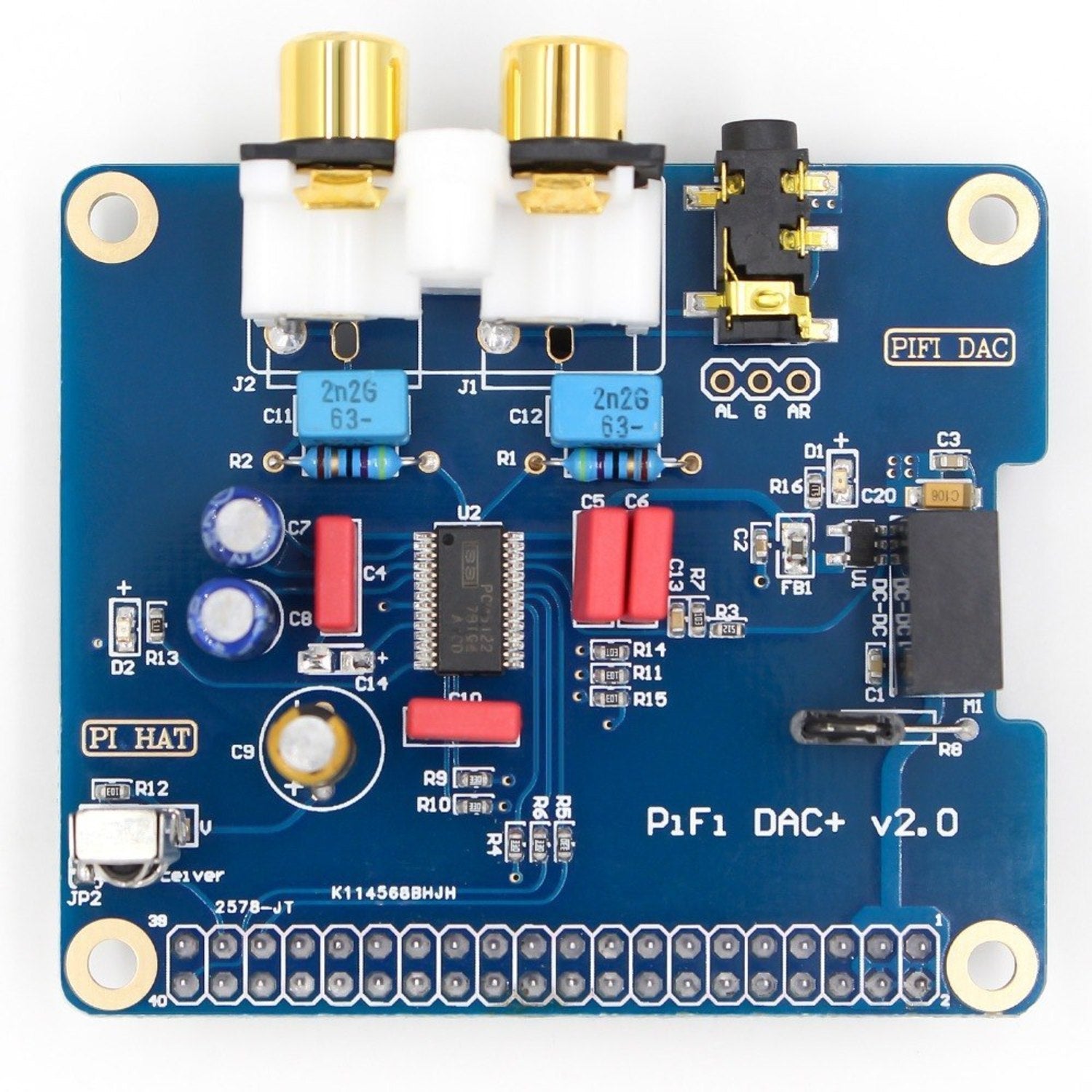

HIFI DAC Audio Sound Card Module I2S interface for Raspberry Pi

This HIFI DAC expansion board is specifically crafted for the Raspberry Pi (Pi 2/3/B +). It allows you to team up with audio playback systems and create your very own network HIFI player. With two output interfaces, it makes it super easy to connect to external amplifiers and other devices. And there's an LED to show you the working status. Specifications: - Texas Instrument's high - end DAC chip (PCM5122) - Sampling Frequency: 384KHz - Resolution (Bits): 16 - 32 - Digital Audio Interface: I2S - SNR: 120dB - THD: - 93dB - Dynamic range: 112dB - Compatible with Raspberry Pi B+, Raspberry Pi 2 Model B - Main Color: Black - Size: 70*65*23mm Package includes: - 1 x High - quality HIFI DAC Audio Sound Card Module with I2S Interface for Raspberry Pi Setup Guide: - https://www.itead.cc/blog/how-to-configure-volumio-to-support-hifi-dac

Using this HIFI DAC audio sound card module is a breeze. First, connect it to your Raspberry Pi (Pi 2/3/B +). Then, you can link it to your audio playback system. You'll be able to build your own network HIFI player easily. When connecting external amplifiers or other equipment, choose the appropriate output interface. The LED on the board will show you if it's working properly. Here are some things to note. Make sure your Raspberry Pi is in good working condition before installation. When handling the module, avoid static electricity as it may damage the components. Also, follow the setup guide link provided for a smooth configuration. For maintenance, keep the module in a dry and clean place. Don't expose it to extreme temperatures. If you notice any issues, check the connections first. If the problem persists, refer to the manufacturer's support.
