Grove to Grove

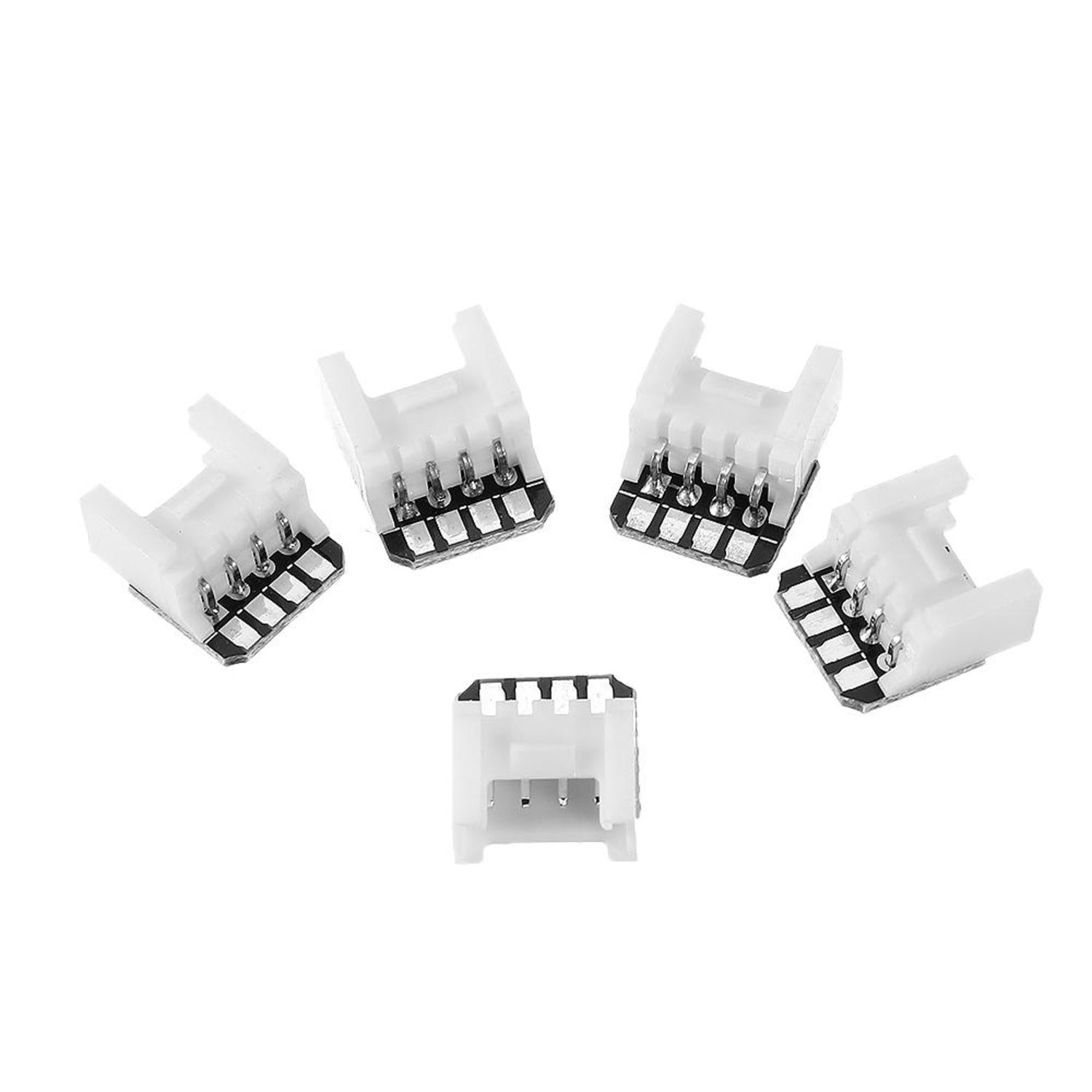

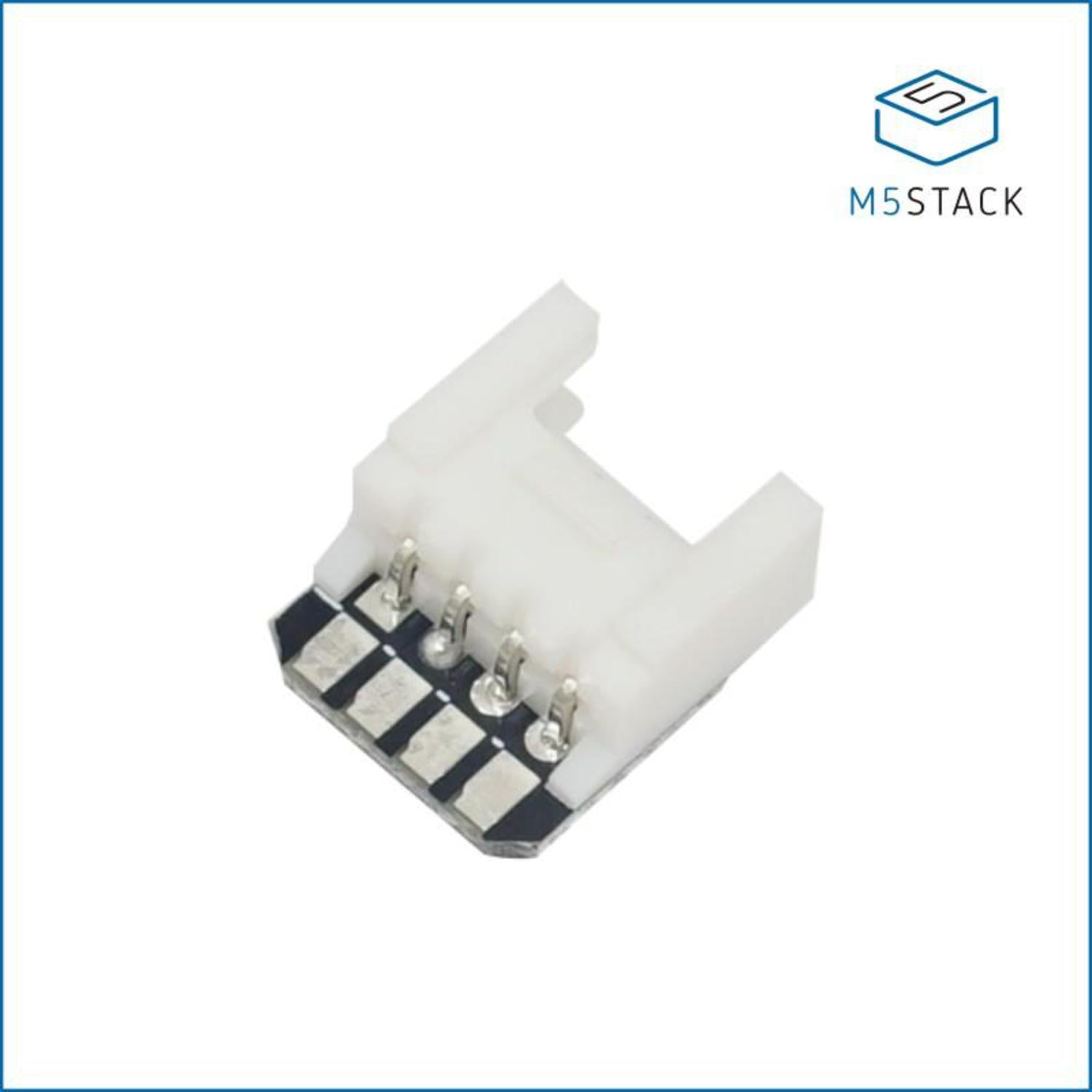

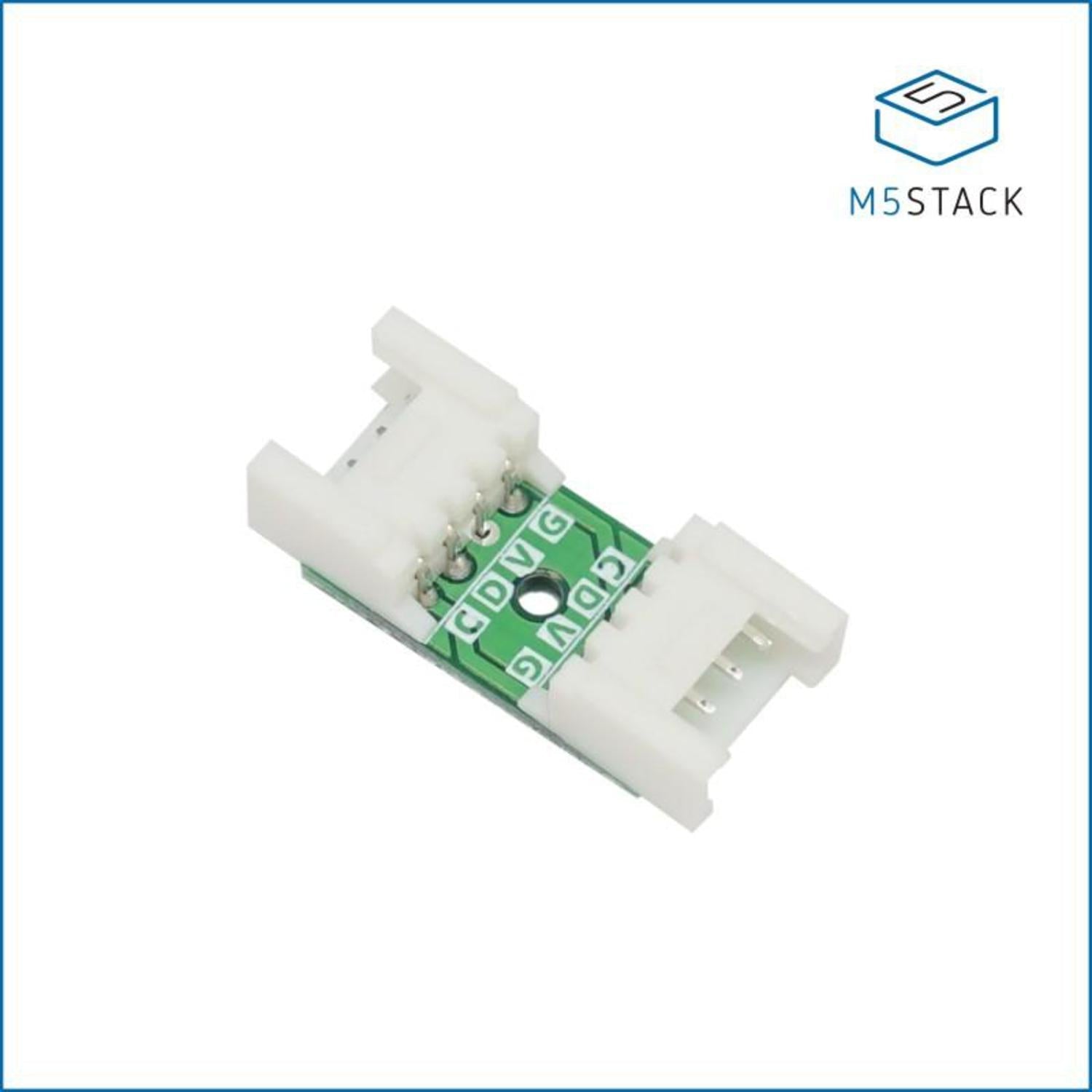

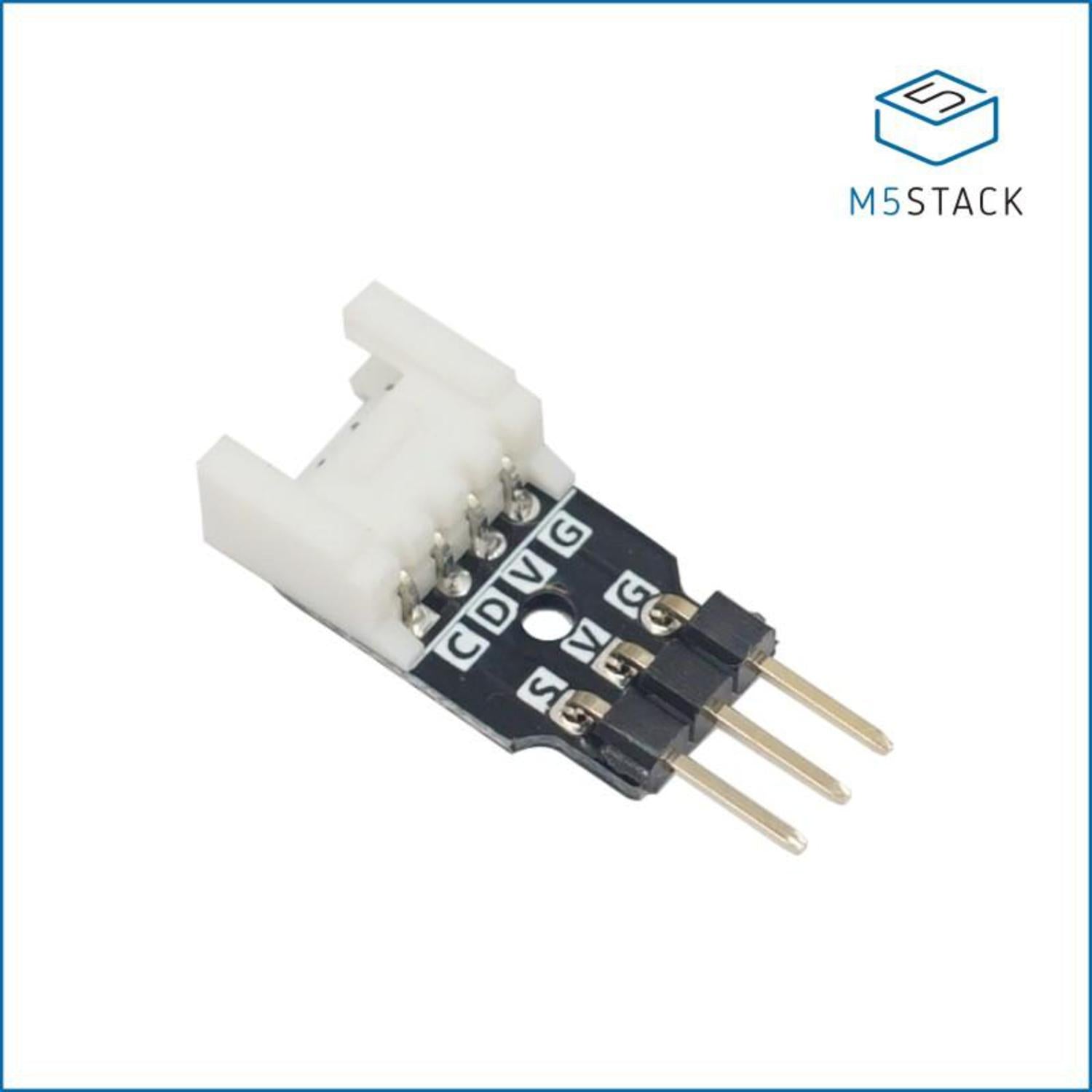

1. Grove to Grove: This is a great Grove extension connector. Two female Grove ports are placed back - to - back. It's commonly used for RGB LED strip extensions. Features include Grove - to - Grove connection and RGB LED strip extension. The package comes with 5 connectors. 2. Grove to Pin: A Grove port converter that enables the interconversion between single pins and Grove ports. No need to worry if a device in your project lacks a Grove standard port. This connector extends two signal pins for customized use. 3. Grove to SERVO: A Grove port converter designed for the interconversion between Servo ports and Grove ports. Instead of using a servo port or stacking a SERVO module under M5Core, you can use a Grove port on the M5Core to drive a servo motor.

Using the Grove to Grove connector is easy. Simply connect the two female Grove ports to the appropriate devices for RGB LED strip extensions. When using the Grove to Pin converter, connect the single pins to your device that doesn't have a Grove port. For the Grove to SERVO converter, connect it between the M5Core and the servo motor to use the Grove port on the M5Core. Make sure all connections are secure to avoid signal loss. When not in use, store the connectors in a dry and clean place to prevent damage. Avoid bending or pulling the connectors too hard as it may break the pins.
