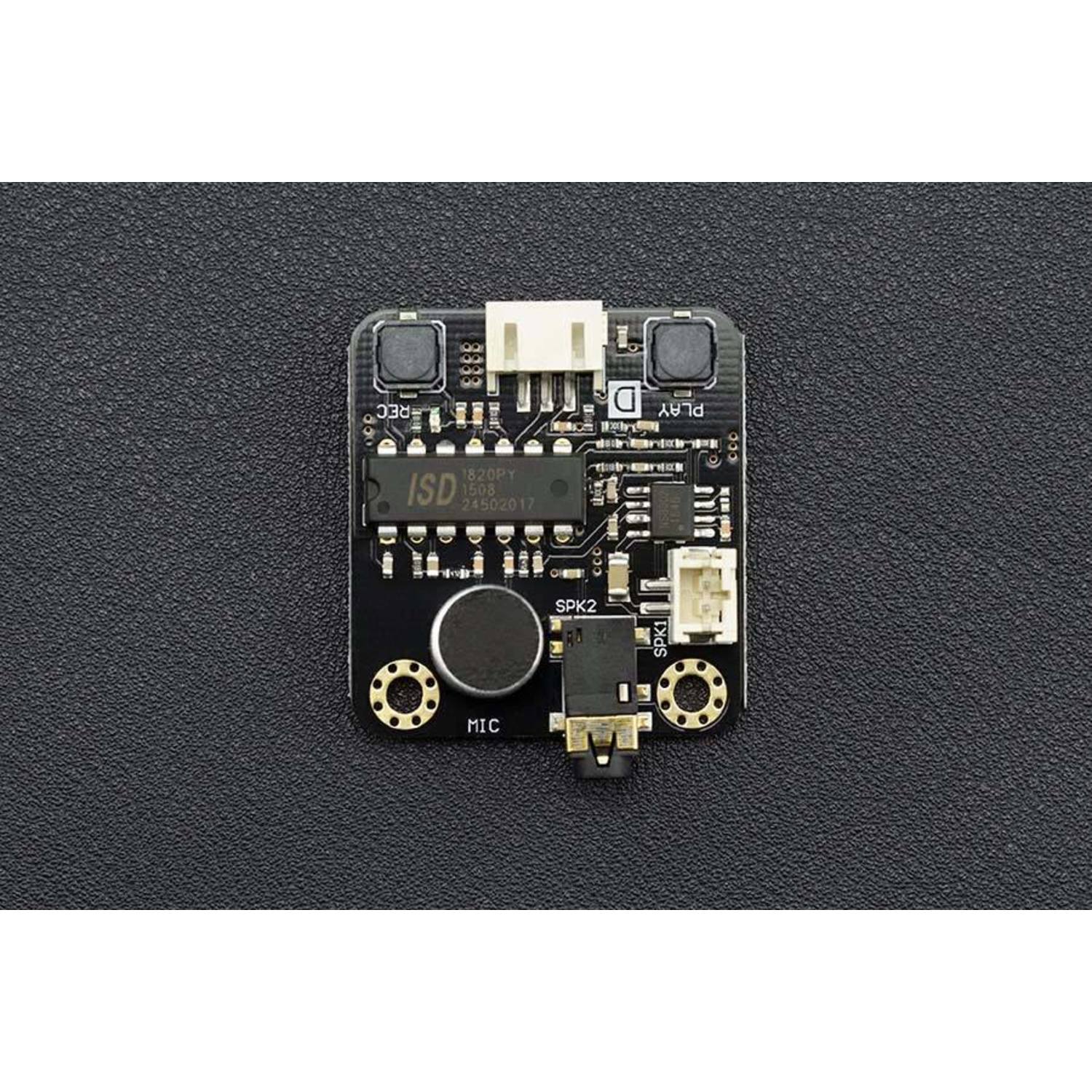

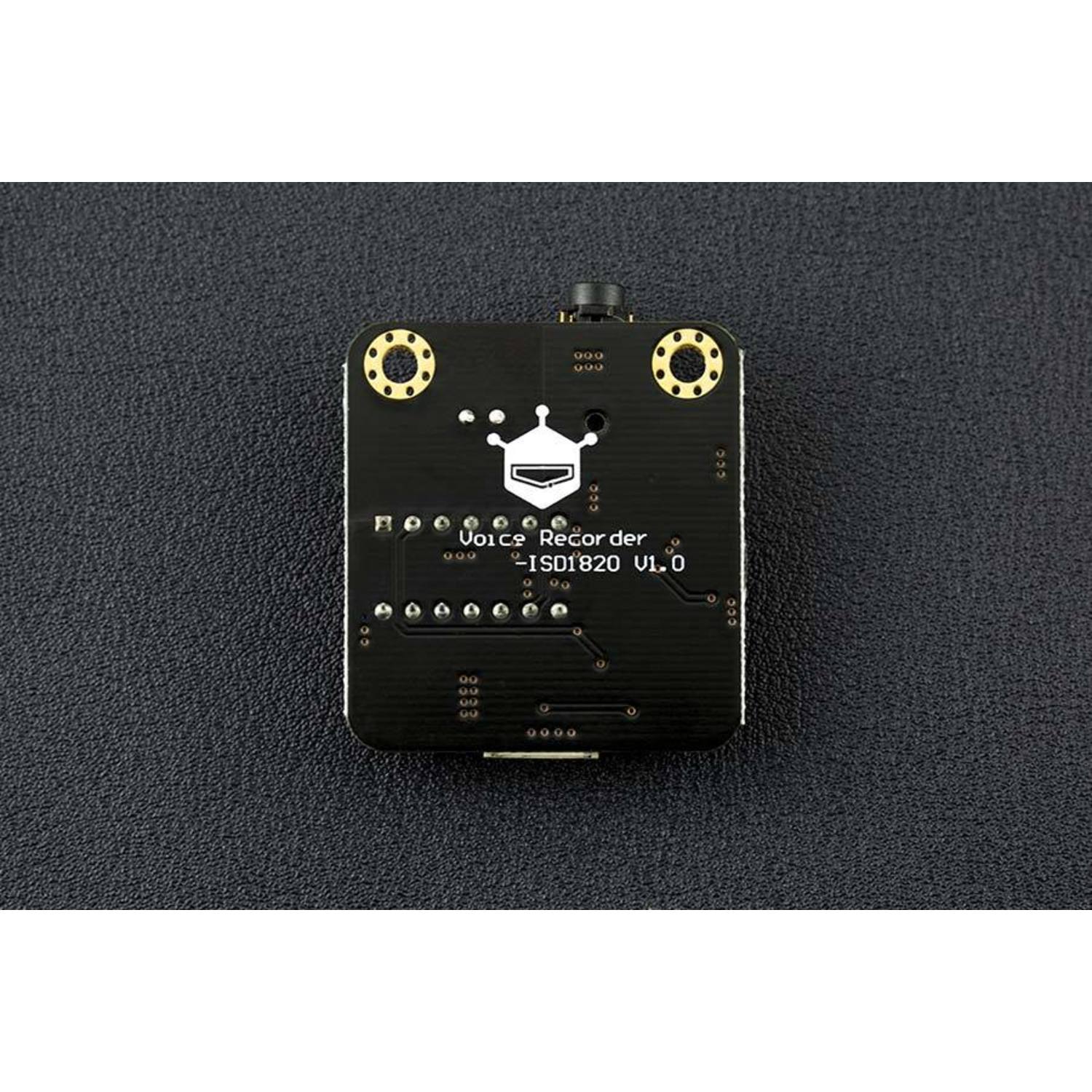

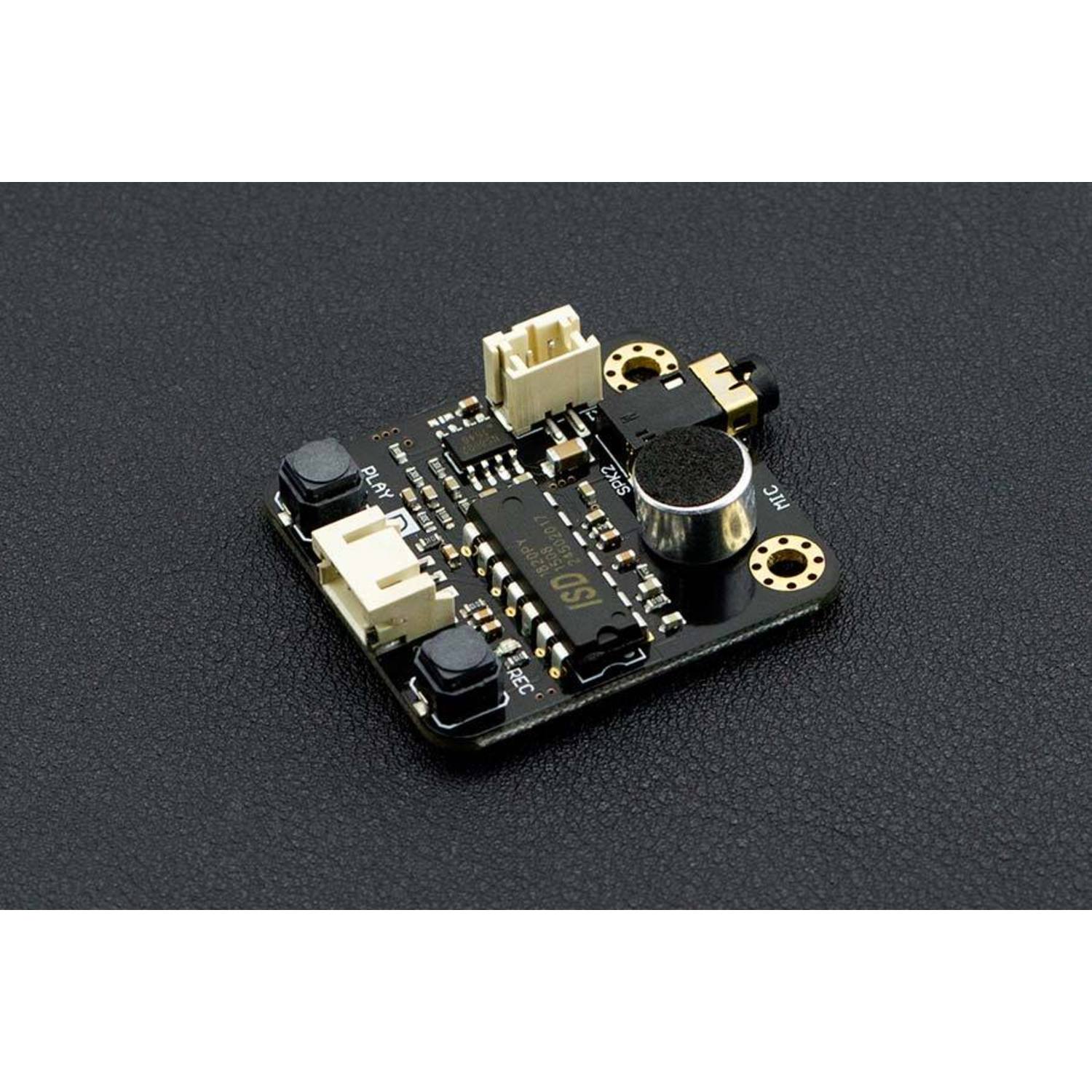

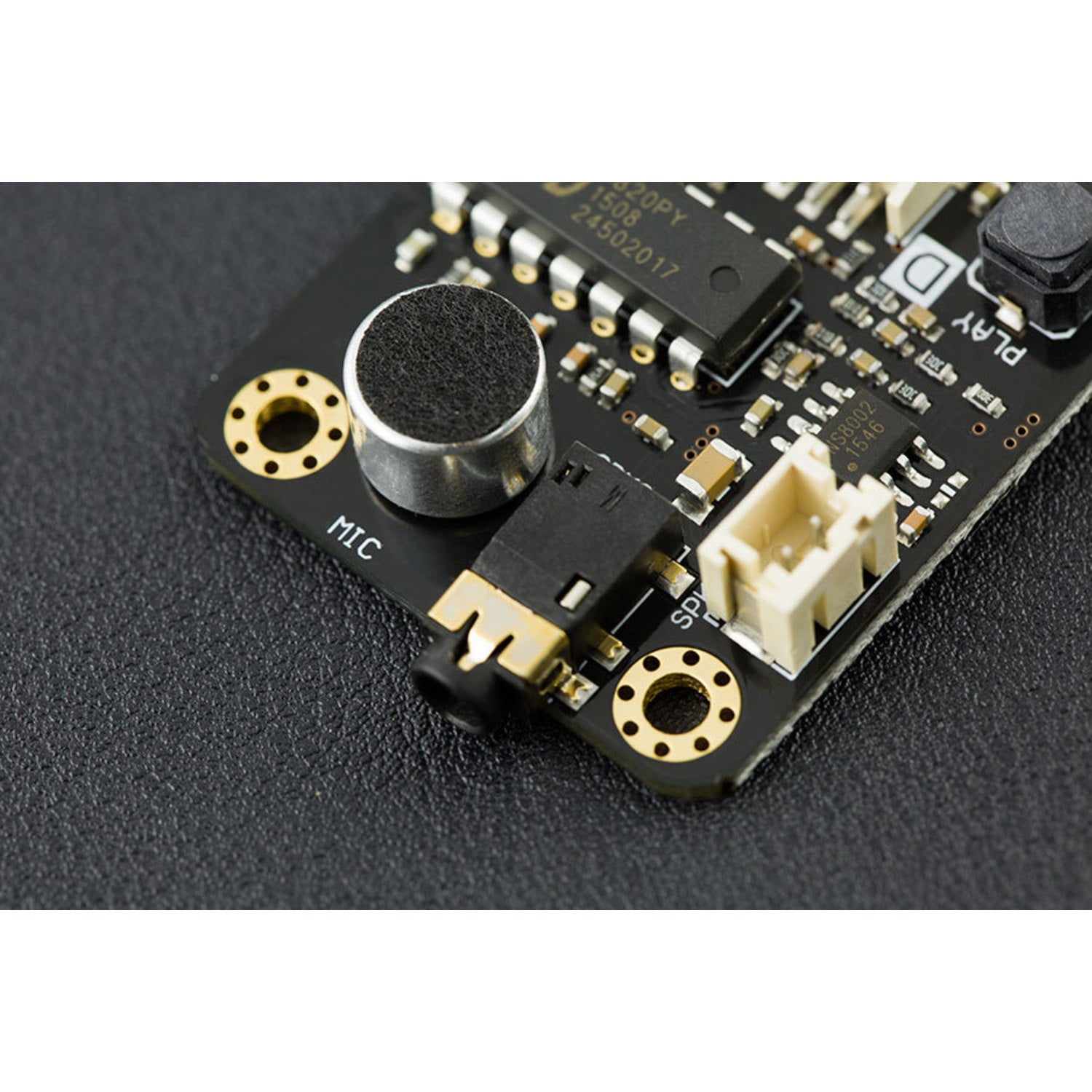

Gravity: Voice Recorder Module

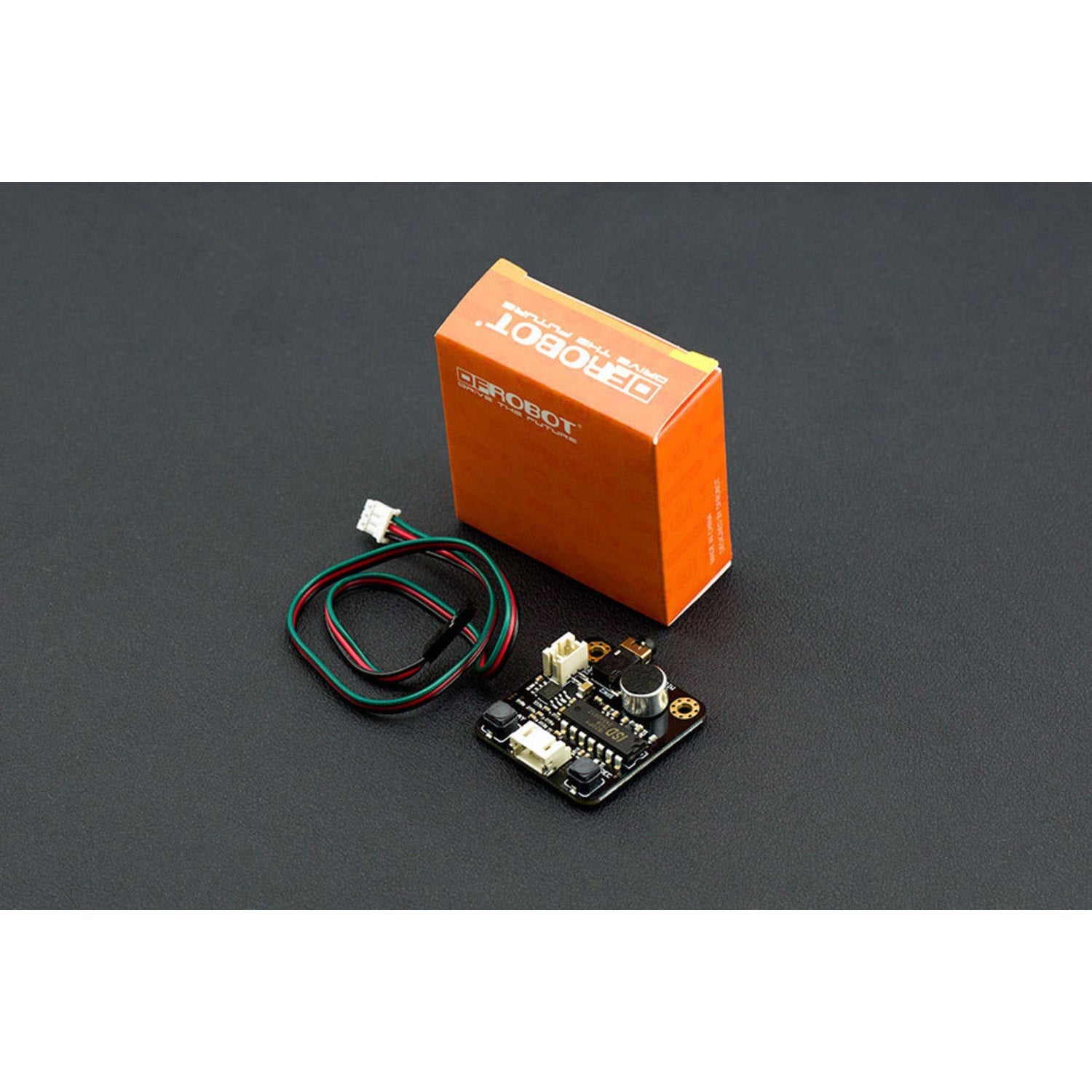

This is the newest voice recorder module that combines recording and playback functions. To record your voice, simply press the record button, speak, and release it when you're done. The module can play back up to 10 seconds of audio. You can connect an 8Ω 3W speaker or an external active speaker for clear voice output. It also features a 3 - pin digital interface, allowing you to connect it to an Arduino - compatible microcontroller as a playback trigger. We recommend using a JST - 2P 3W 8Ω Speaker. Specifications include an operating voltage of 5V, a recording time of 10 seconds, a sampling frequency of 6.4KHz, 100,000 repeatable recording times, and dimensions of 37*35 mm (1.46*1.38 inches). You'll also find product WIKI and more documents available. The shipping list includes one voice recorder module and one Gravity digital cable.

Using this voice recorder module is a breeze. First, connect it to an 8Ω 3W speaker or an external active speaker for audio output. If you want to use it with an Arduino - compatible microcontroller, connect it via the 3 - pin digital interface. To record, just press the record button, say what you want, and let go of the button when finished. The module can play back up to 10 seconds of your recording. Remember to use a 5V power supply as that's its operating voltage. It can handle up to 100,000 recording cycles, but don't over - stress it. For maintenance, keep it in a dry and clean place. Avoid exposing it to extreme temperatures or moisture. If you have any questions, refer to the product WIKI or other available documents.
