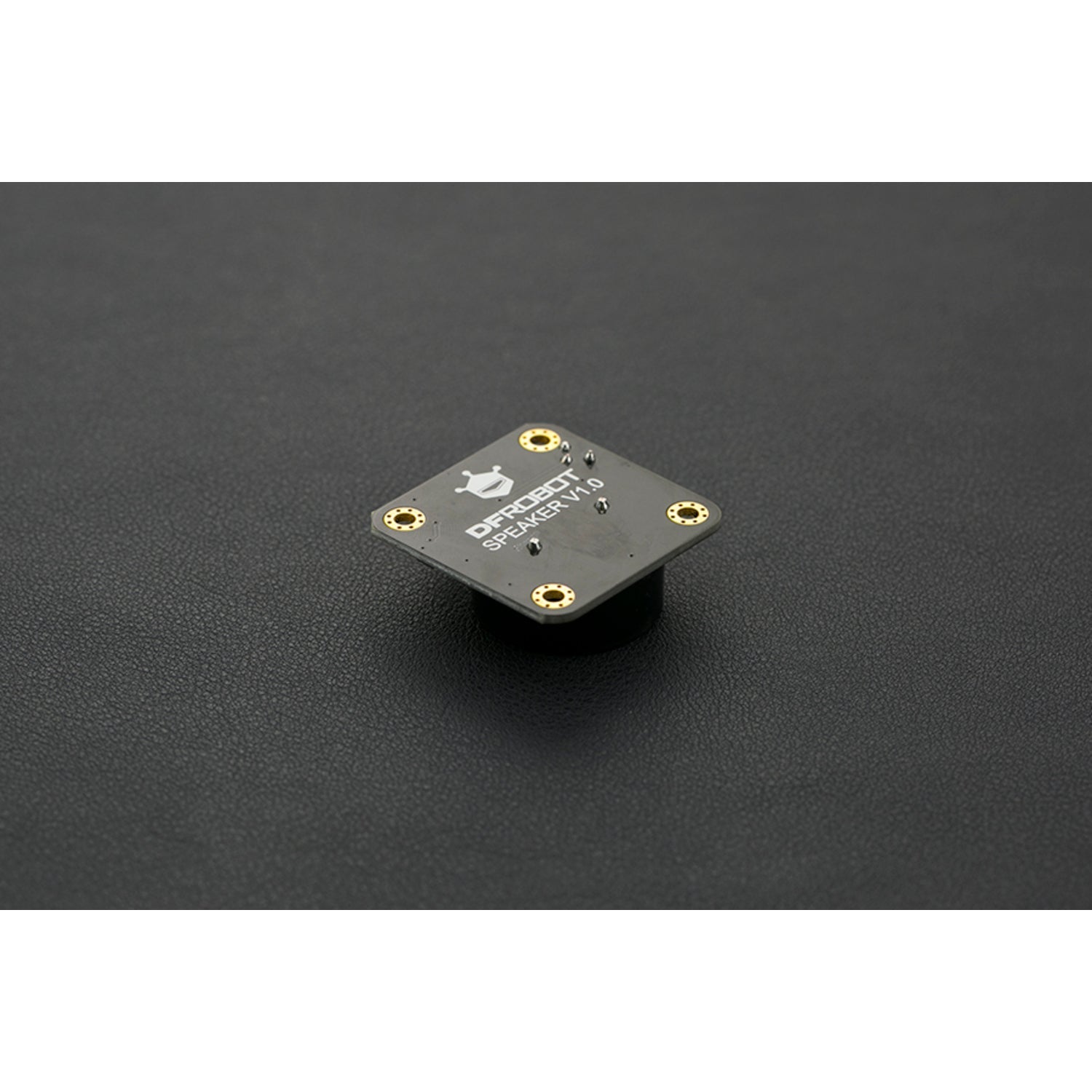

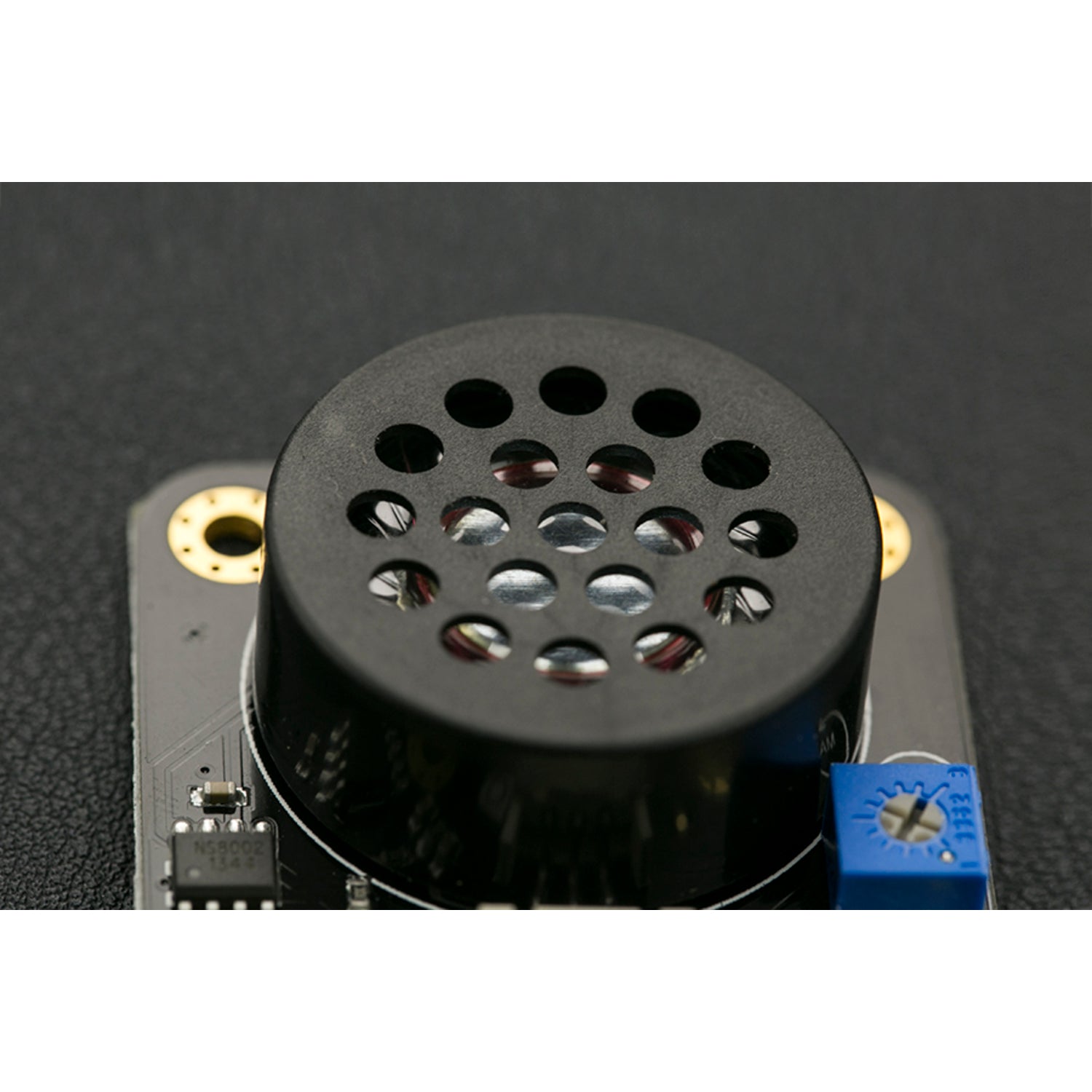

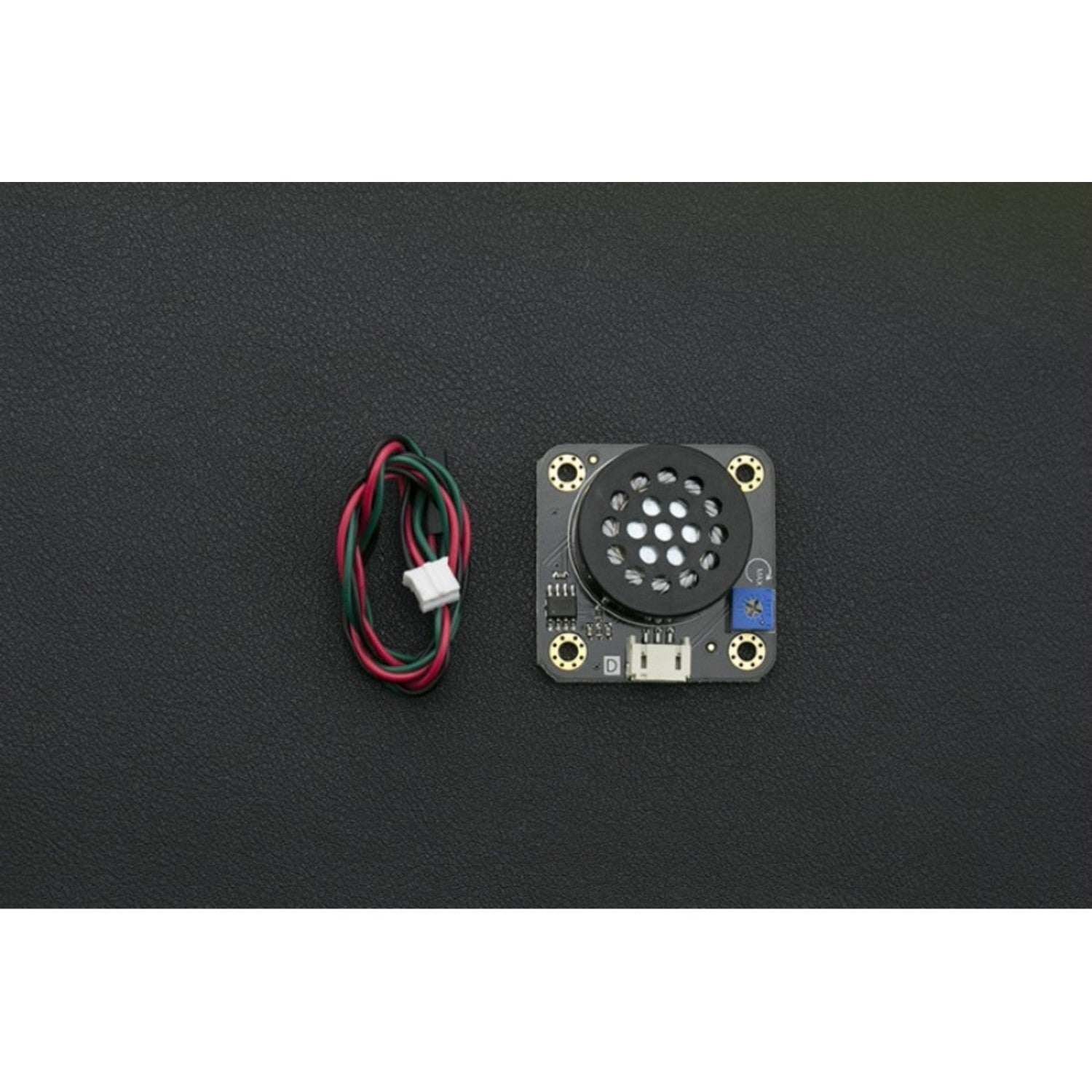

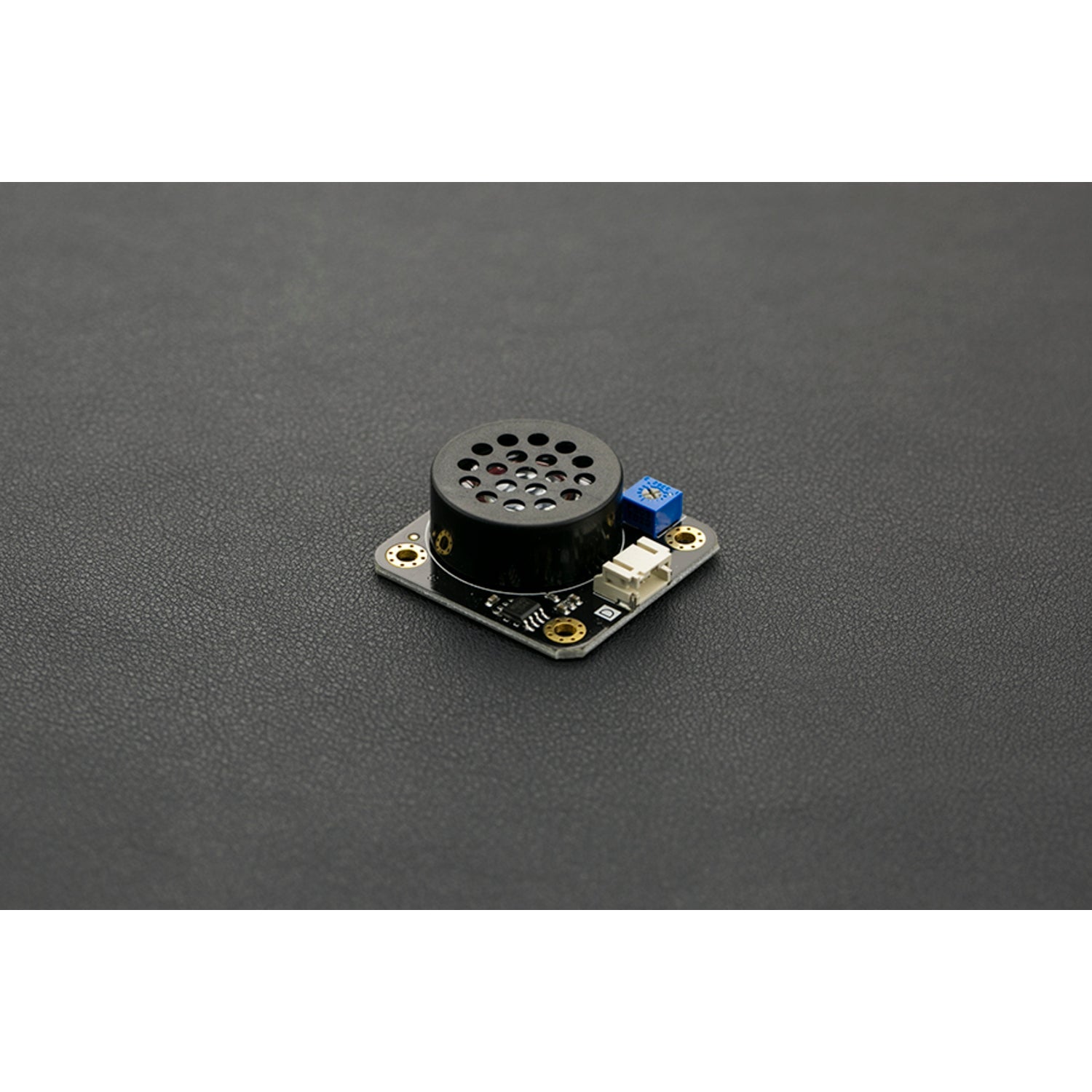

This amazing speaker module is built around the 8002 speaker amplifier IC. It can serve as a buzzer and deliver high - quality audio. You can easily control the volume output using the potentiometer. The module comes with a bunch of advantages like a small size, a simple interface, a wide operating voltage range from 2.0 to 5.5V, and a long service life. It's perfect for interactive, sound - related projects when used with an Arduino I/O expansion shield. Specification details include a digital interface, a 40mm x 40mm (1.57 inches x 1.57 inches) size, support for the Gravity interface, a 0.5W power rating for the speaker component, and an 8 - ohm impedance. Available documents are the product wiki, general documents, and an Arduino play melody guide. The shipping list includes one Gravity Speaker module.

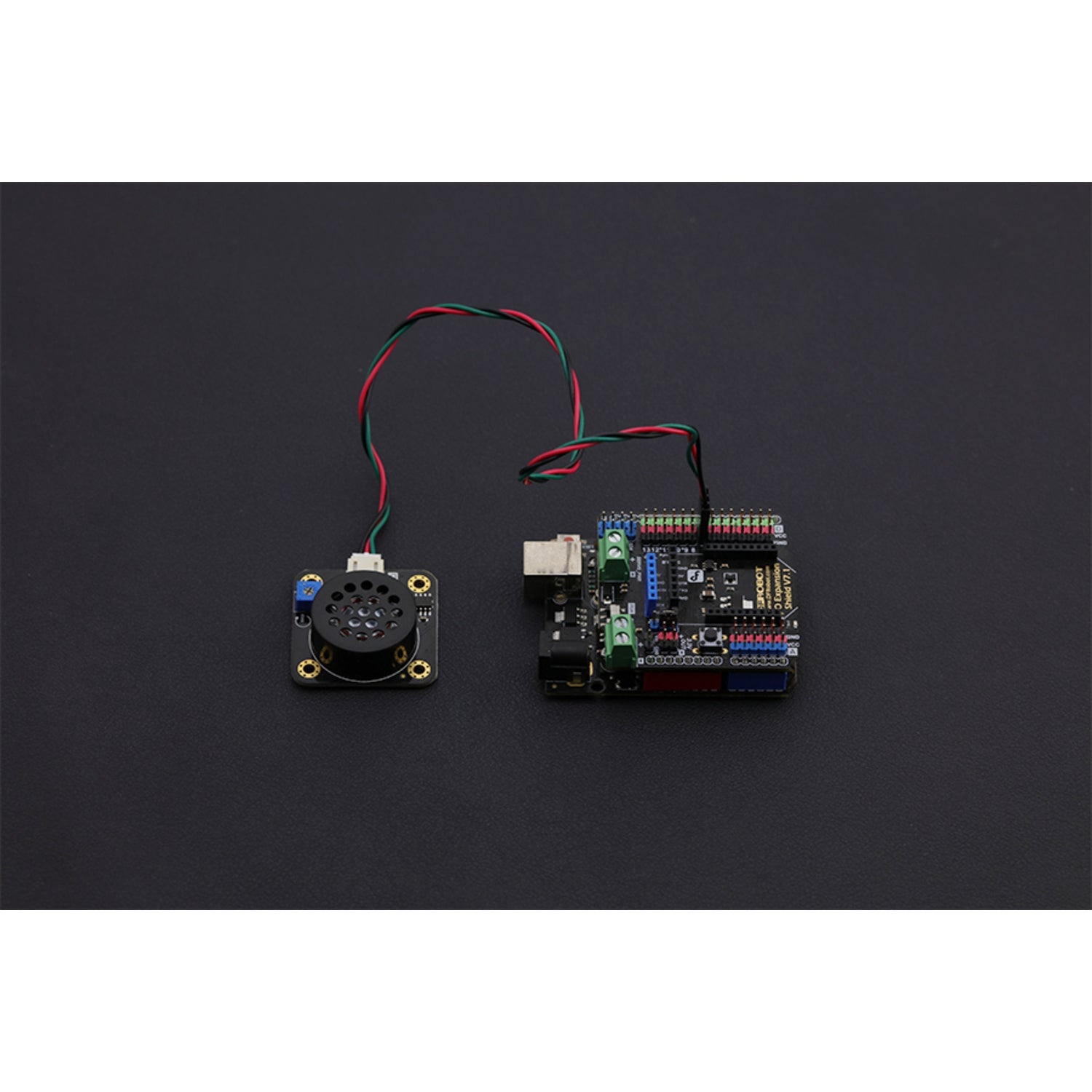

Using this Gravity Digital Speaker Module is easy. First, connect it to an Arduino I/O expansion shield if you're planning interactive projects. The module can work with a voltage between 2.0 and 5.5V, so make sure your power source is within this range. To adjust the volume, simply turn the potentiometer. You can use it as a buzzer or play high - quality audio. When it comes to maintenance, keep it in a dry and clean place. Avoid exposing it to extreme temperatures or moisture. Also, be gentle when handling the module to prevent any physical damage. If you need more information, refer to the product wiki and other available documents.
