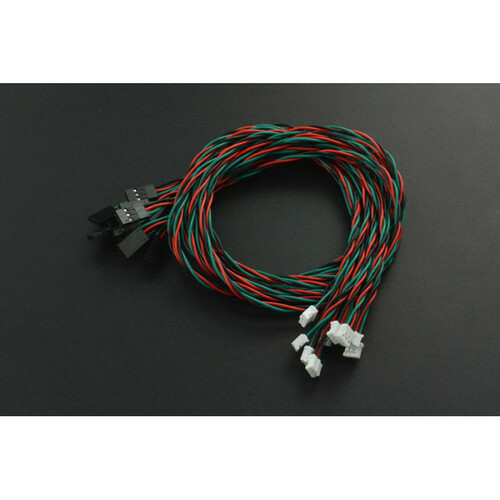

Gravity: Digital Sensor Cable for Arduino - 50cm (10 Pack)

This top - notch 50cm digital sensor cable features a 3 - pin PH2.0 plug connector on one end and a 3 - pin DuPont connector on the other. It's tailor - made for our well - loved IO Expansion shield and various digital sensors like vibration sensors, tilt sensors, and magnetic induction sensors. Connect most of our digital sensors to the IO board effortlessly and create fascinating interactive projects. Each pack includes 10 cables. Specification: Maximum Voltage < 50V, Maximum Current < 1000mA, Length 50cm/20”, Pinout Wiring: Red -- VCC, Black -- GND, Green -- Signal. Shipping List: 10 x Gravity Digital Sensor Cables (50cm).

Using these cables is easy. First, find the digital sensor you want to use, like a vibration or tilt sensor. Connect the 3 - pin PH2.0 plug connector of the cable to the sensor. Then, connect the 3 - pin DuPont connector to the IO Expansion shield. You can then start creating your interactive projects. Note that this pack comes with 10 cables. The maximum voltage it can handle is less than 50V and the maximum current is less than 1000mA. When wiring, remember that the red wire is for VCC, the black wire is for GND, and the green wire is for the signal. To keep these cables in good condition, store them in a dry place away from sharp objects that could cut them. Also, avoid bending the cables too sharply as it may damage the internal wiring.
