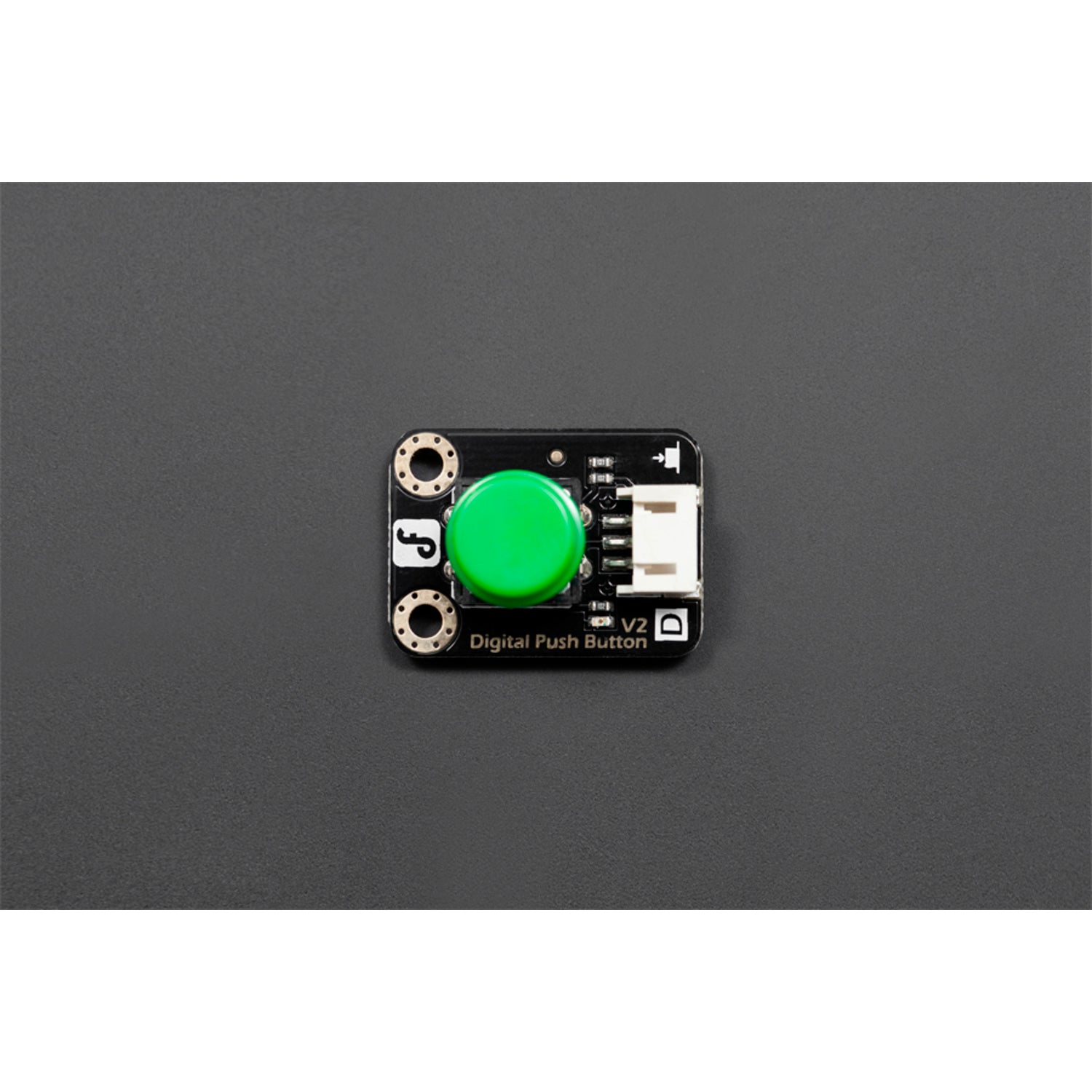

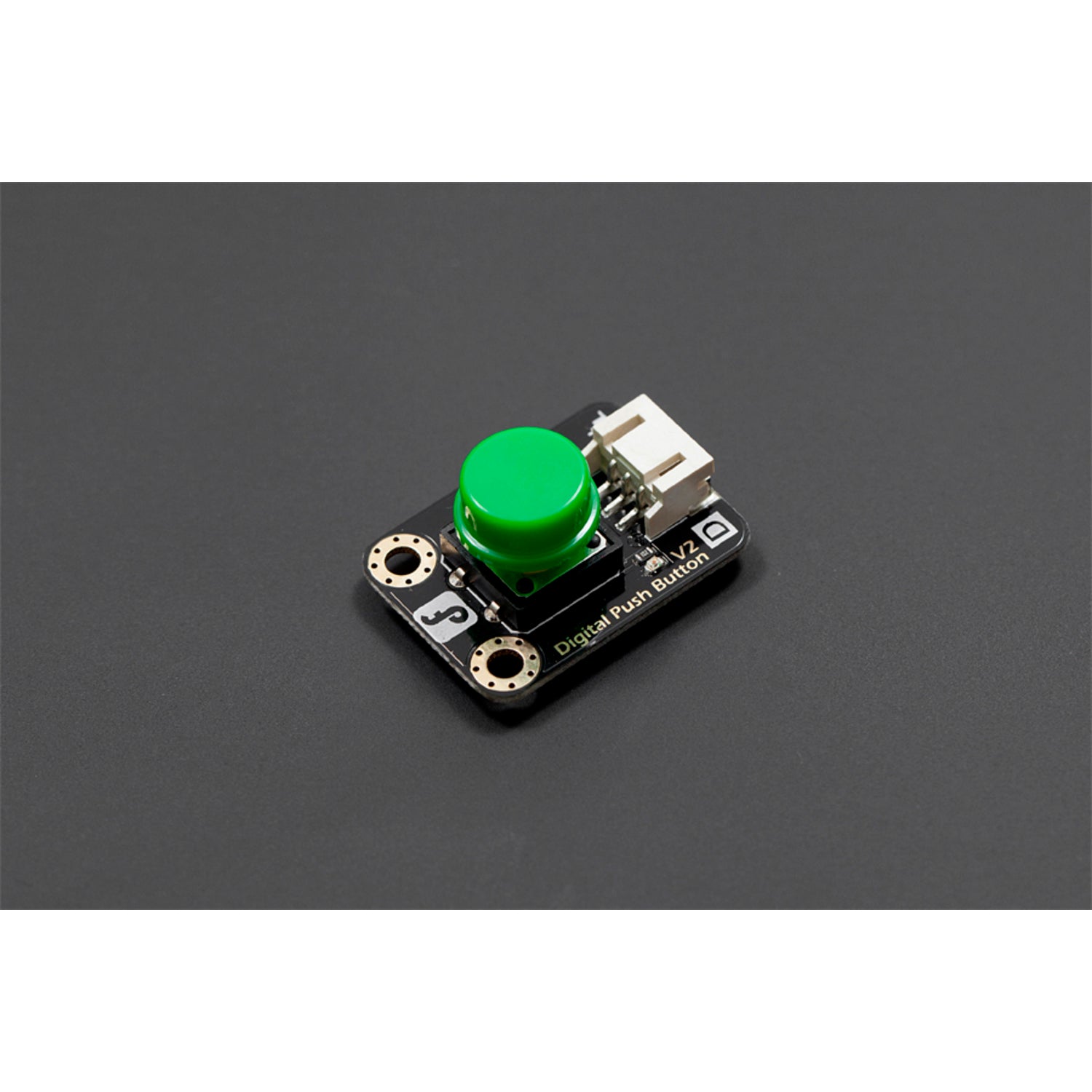

Gravity: Digital Push Button (Green)

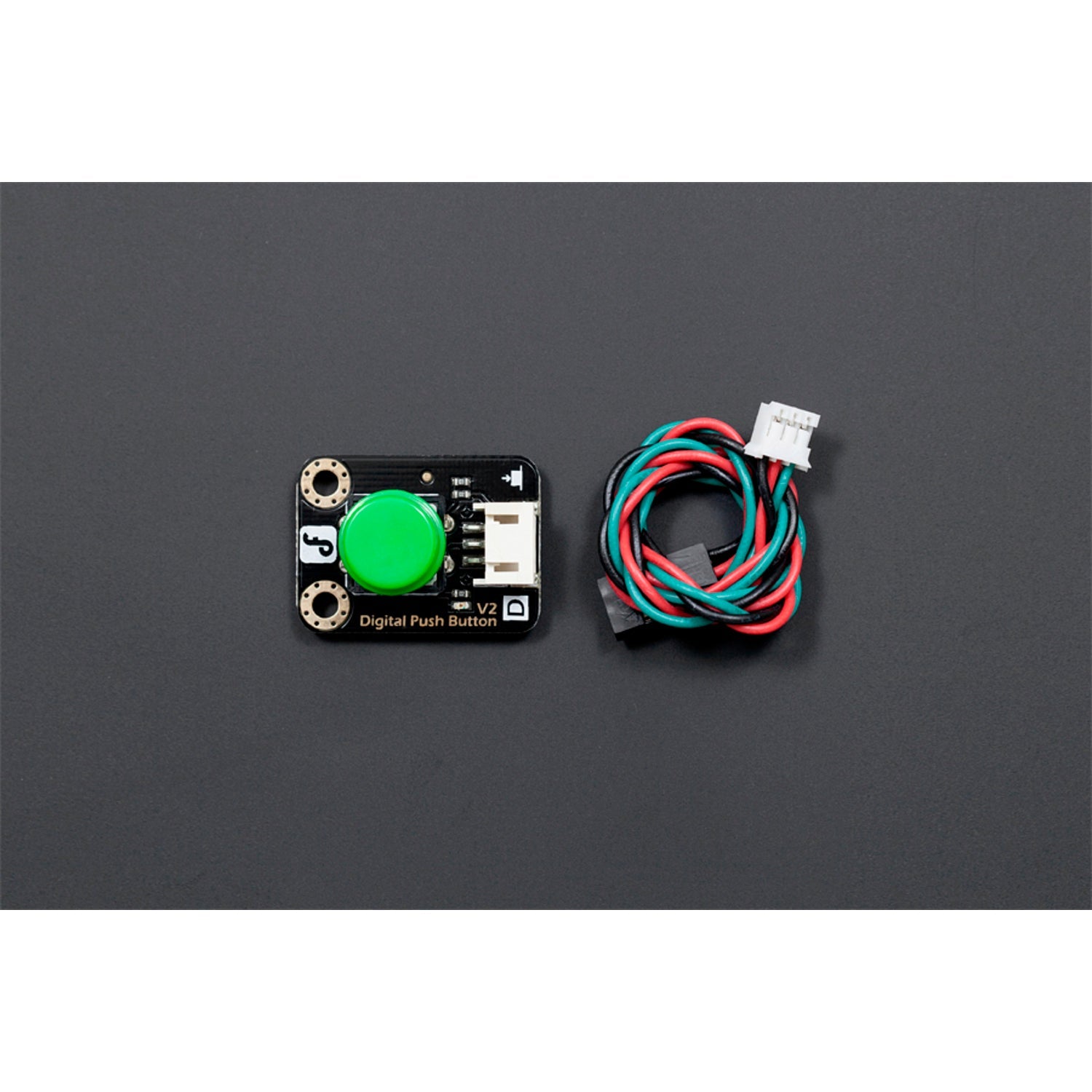

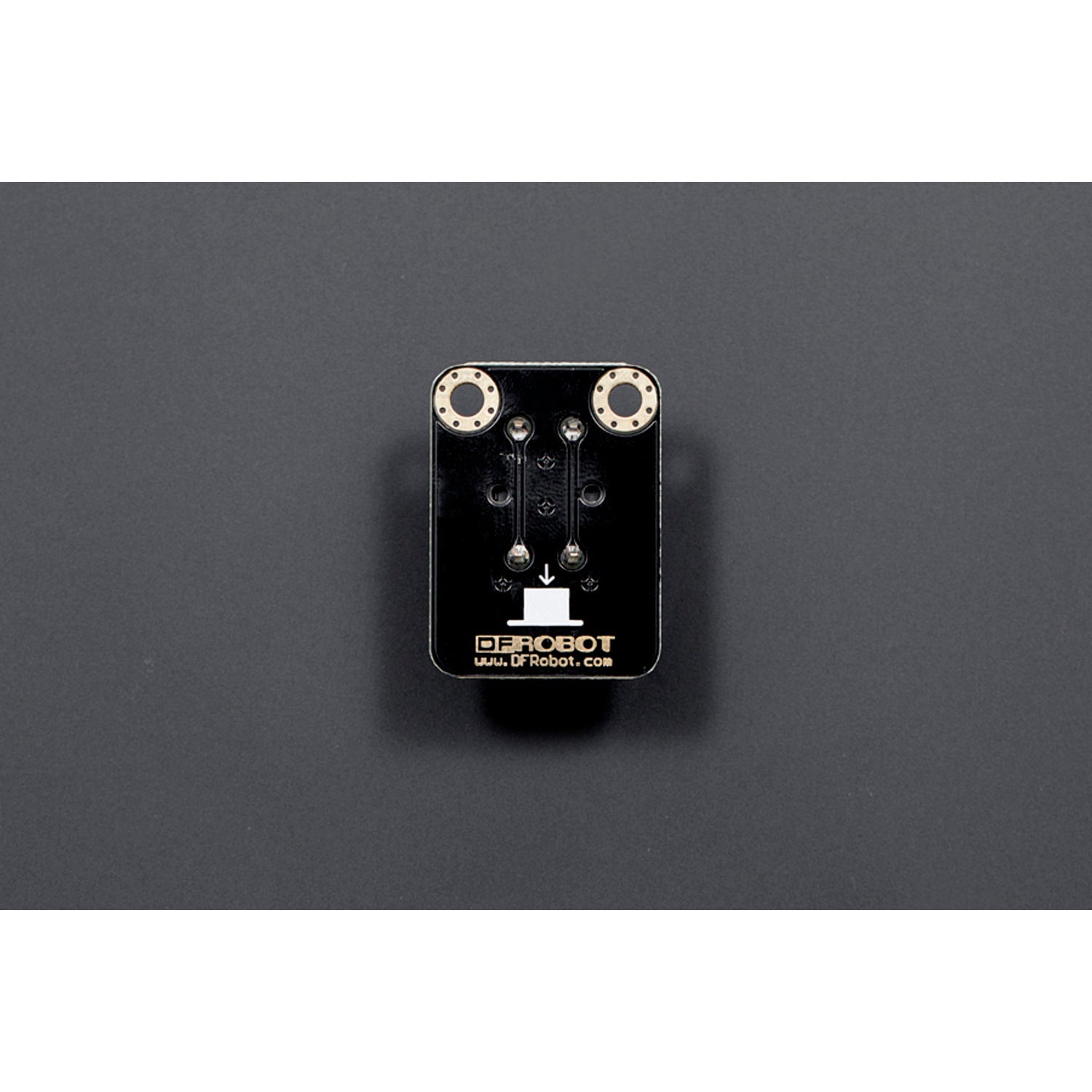

Press the button and unlock a world of pleasure! Our newly redesigned digital push buttons feature LED lights, an immersion gold surface, and brightly colored caps. A large 'D' in the left - hand corner clearly marks it as a digital sensor. There's an illustration on the back of the button to explain its function. It's incredibly fun to press, especially when you take off the plastic cap. And with its long - lasting pressable life, you can count on its durability. **Features**: - Wide voltage range from 3.3V to 5V. - Standard assembly structure with two 3mm diameter holes spaced at multiples of 5mm from the center. - Easily recognizable sensor interfaces ('A' for analog and 'D' for digital). - Icons that simply illustrate sensor functions. - High - quality connector. - Immersion gold surface. **Specification**: - Supply Voltage: 3.3V to 5V. - Indicator LED on the board. - Plug - and - play simplicity. - Large button keypad and top - quality hat. - Create interesting and interactive works with ease. - Interface: Digital. - Size: 22x30mm (0.87'x1.18'). **Documents**: - Wiki Doc - Schematic **Shipping List**: - One Digital Push Button - One Digital cable

Using this digital push button is a breeze. First, check that the power supply voltage is within the 3.3V - 5V range. Then, simply plug in the cable following the 'plug and play' method. You can easily tell if it's a digital sensor by looking for the 'D' in the corner. The illustrations on the back will help you understand what the button does. For added fun, you can take off the plastic cap. When it comes to maintenance, keep it in a dry place and avoid exposing it to excessive dust or moisture. The long - lasting pressable life means you can use it often, but be gentle while pressing the button to ensure its durability.
