Gravity: Digital Piranha LED Module-White

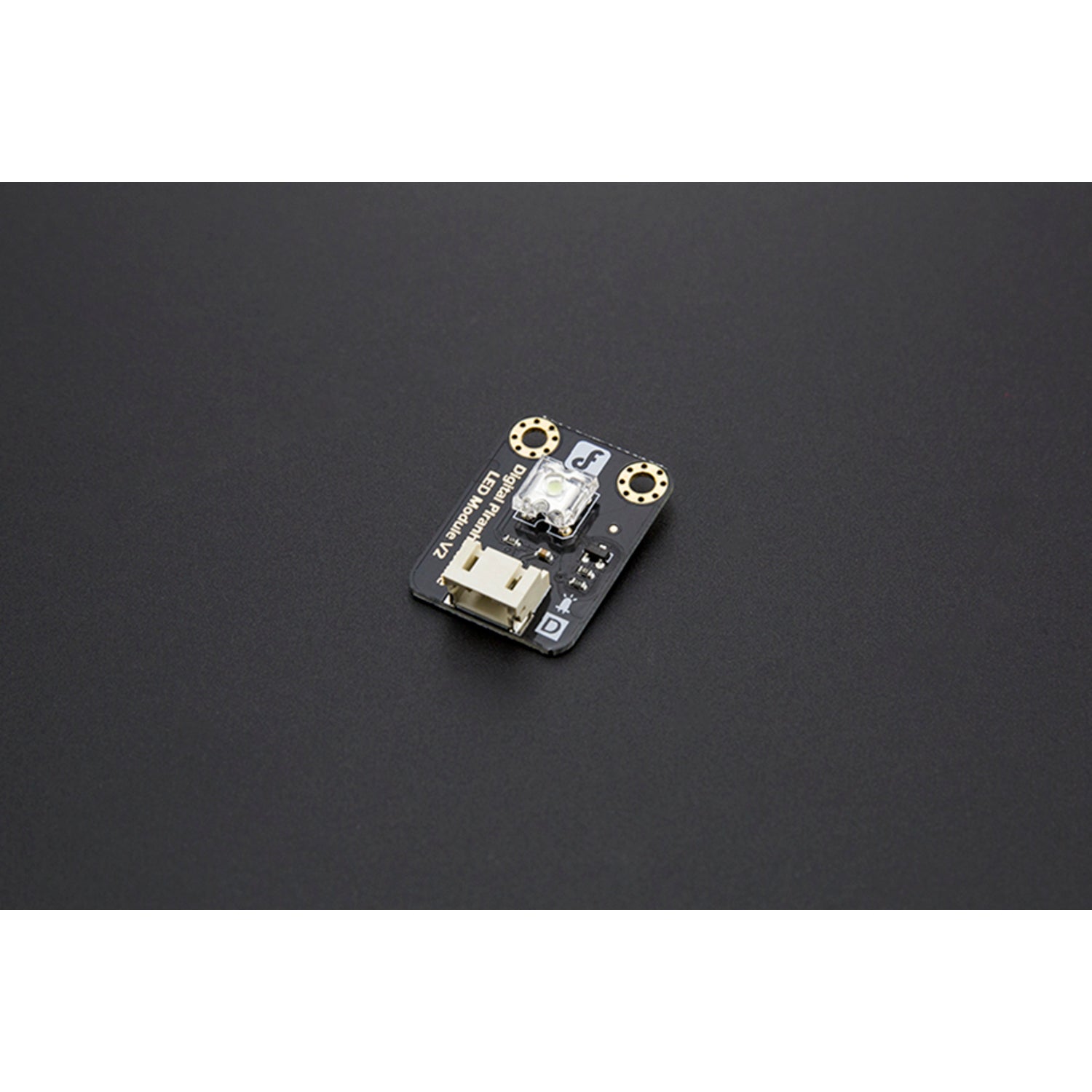

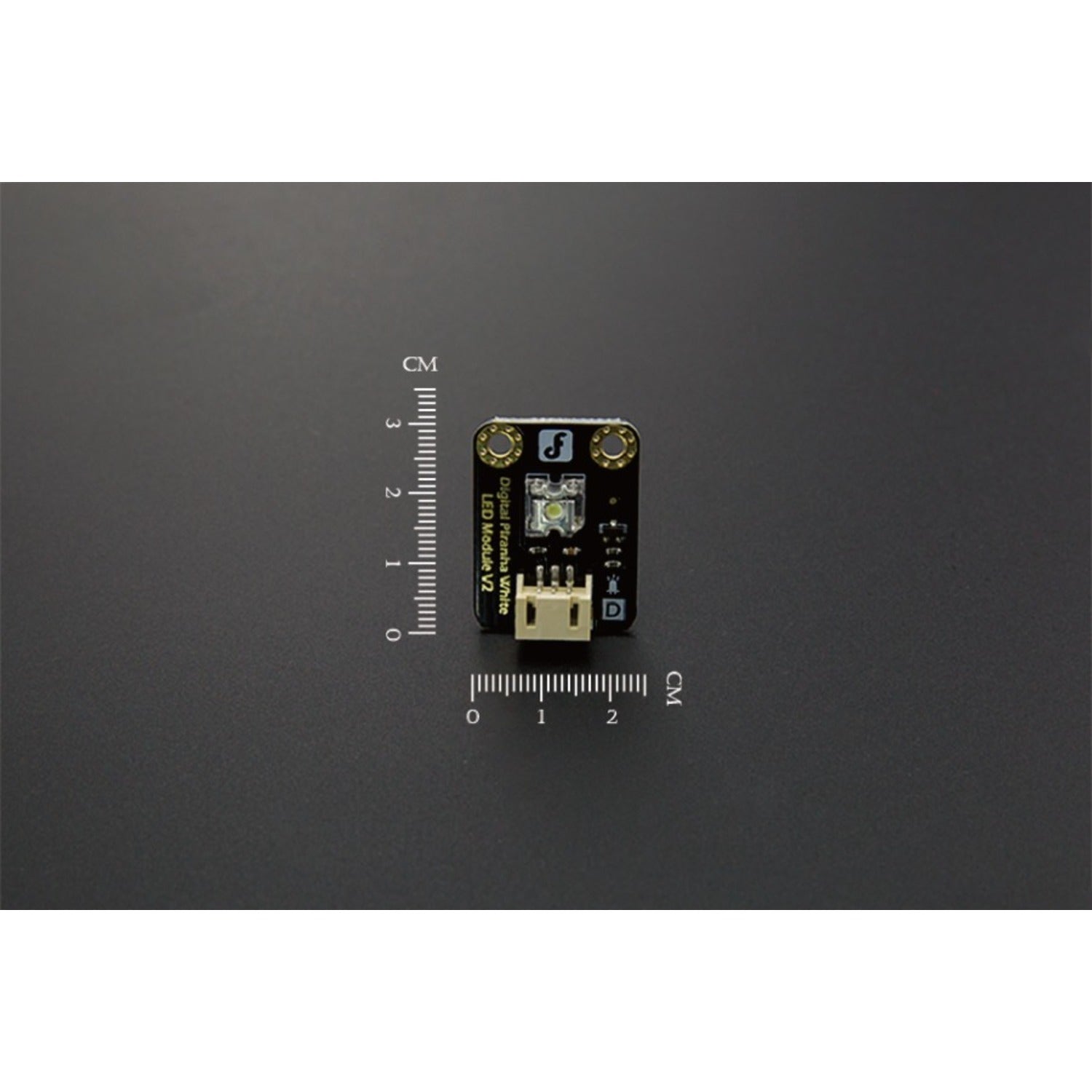

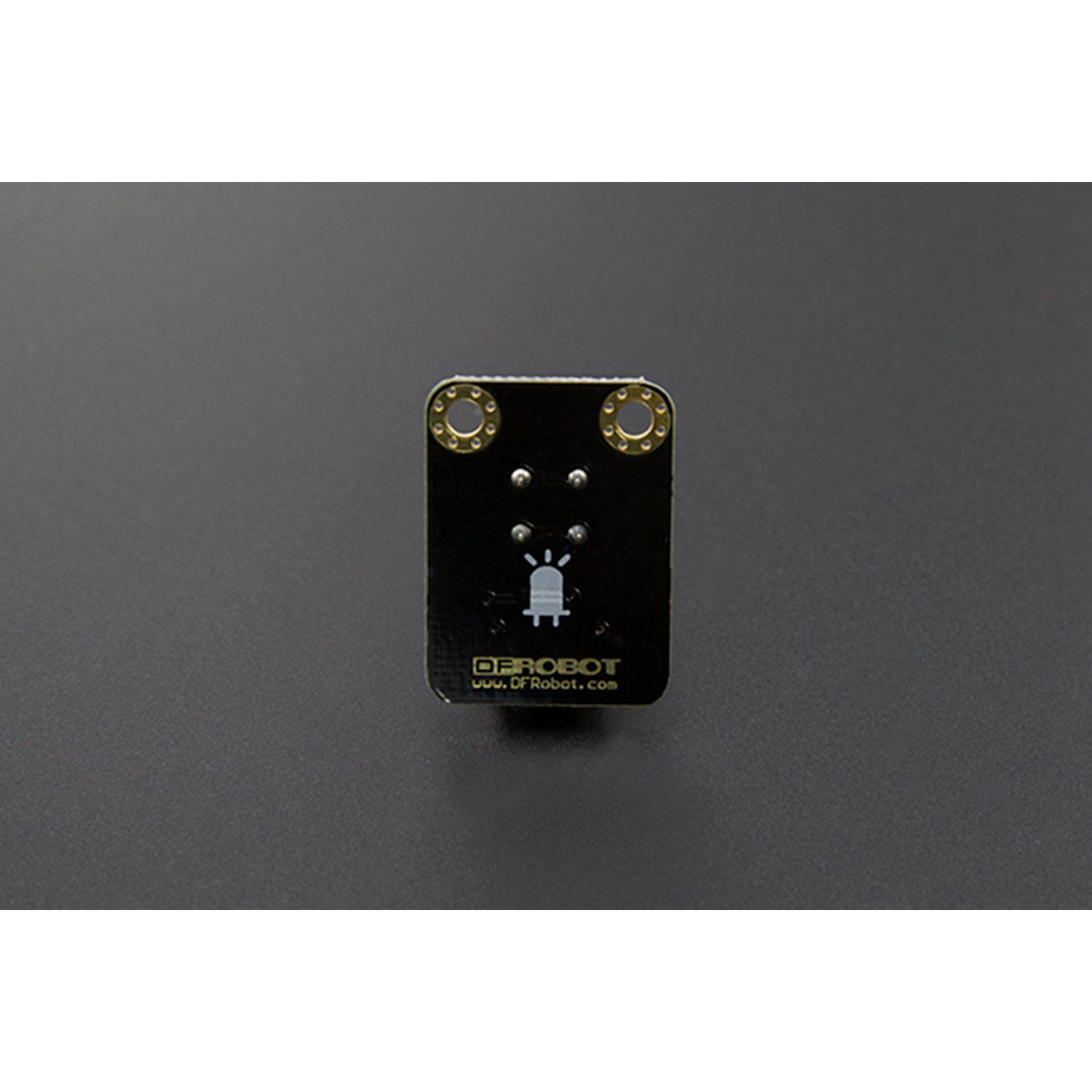

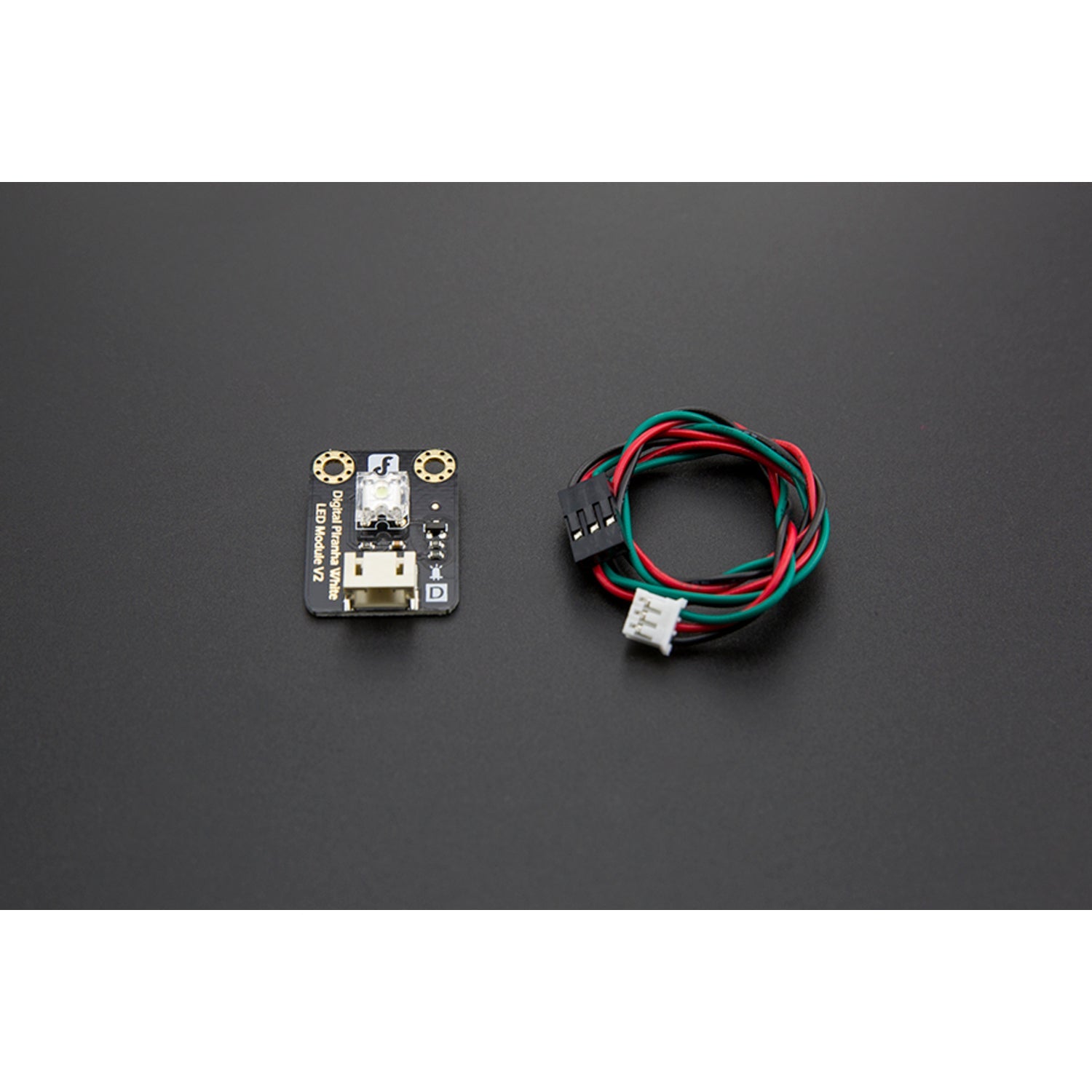

This Piranha LED light module combines with a special sensors Arduino board and an ambient light sensor extension. It's perfect for light - interactive art projects. When connected to an Arduino, you can control the module using a digital pin (LOW to turn on, HIGH to turn off). You can also adjust the LED brightness through PWM output. Specifications: Voltage ranges from +3.3 - 5V. Pin definitions are 1 for control, 2 for GND, and 3 for power. It weighs only 5g. Shipping list includes 1 LED light module and 1 Digital Cable (SKU:FIT0011).

Using this LED module is easy. First, connect it to your Arduino board following the pin definitions (1 for control, 2 for GND, and 3 for power). To turn it on, set the digital pin to LOW, and to turn it off, set it to HIGH. You can adjust the brightness by using PWM output. When handling the module, make sure the voltage is within the +3.3 - 5V range to avoid damage. Keep it in a dry and clean place. If you're not using it for a long time, disconnect it from the power source. Regularly check the connections to ensure stable performance.
