Product Details

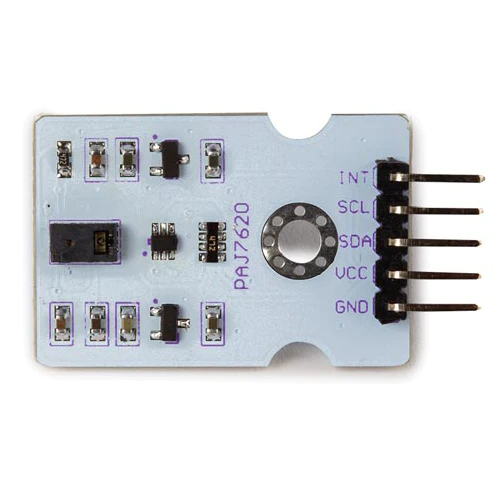

This amazing gesture recognition sensor module can detect 9 different gestures, including up, down, left, right, forward, backward, rotating clockwise, rotating anti - clockwise, and waving. It's a great input solution for your projects. The module has two modes: normal and game mode, which can read gestures at different speeds. With a detection distance of up to 10 cm and ambient light immunity of less than 100k lux, it works well in various environments. It features an I2C interface that makes it easy to connect with microcontroller boards. Specifications include a 5V DC supply voltage, 50 mA working current, and a maximum power of 0.5W. The gesture speed ranges from 60 °/s - 600 °/s in normal mode and 60 °/s - 1200 °/s in game mode. The module has a maximum I²C communication speed of 400 kbit/s, operates in a temperature range of - 25 to +65 °C, and comes with a standard 5 - pin pin header. Its dimensions are 35.5 x 20.1 x 7 mm. Documentation includes a manual and a CE document.
Using this gesture recognition sensor module is easy. First, connect it to your microcontroller board through the I2C interface. Make sure to supply it with 5V DC power. You can choose between the normal and game modes according to your needs. In normal mode, the module can detect gestures with a speed between 60 °/s and 600 °/s, while in game mode, it can handle speeds from 60 °/s to 1200 °/s. Keep in mind that the detection distance is up to 10 cm, so try to keep your gestures within this range. Also, the module has good ambient light immunity, but it's best to keep the light below 100k lux for optimal performance. When it comes to maintenance, store the module in a dry place within the temperature range of - 25 to +65 °C. If you have any questions, refer to the manual provided with the module.
