99:1 Metal Gearmotor 25Dx54L mm LP 6V

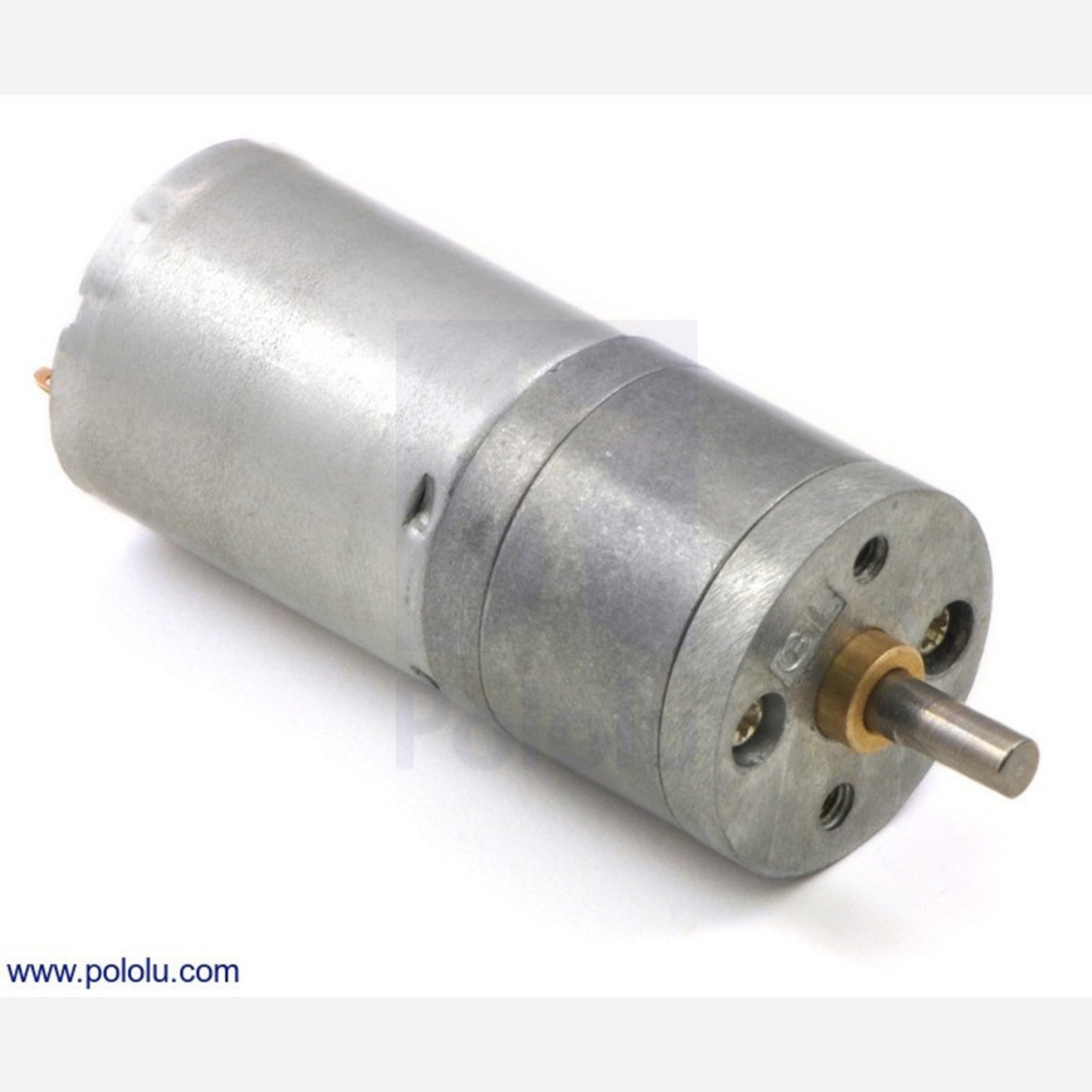

This gearmotor combines a low-power, 6V brushed DC motor with a 98.78:1 metal spur gearbox. It has a cylindrical shape with a diameter just under 25mm. The D-shaped output shaft, 4mm in diameter, extends 12.5mm from the gearbox face plate. An integrated encoder option is also available. Key specs: At 6V, it has a no-load performance of 61 RPM and 100 mA, and a stall extrapolation of 9.1 kg⋅cm (130 oz⋅in) and 2.0 A.

Using this gearmotor is easy. First, connect it to a 6V power source. The motor will start running at 61 RPM with a current of 100 mA when there's no load. If you need more torque, it can reach up to 9.1 kg⋅cm (130 oz⋅in) at a current of 2.0 A. When installing, make sure the output shaft is properly aligned with your equipment. For the version with an integrated encoder, follow the additional wiring instructions. As for maintenance, keep it clean and free from dust. Check the connections regularly to ensure they are secure. Avoid overloading the motor as it may cause damage. If you have any problems, consult the technical support.
