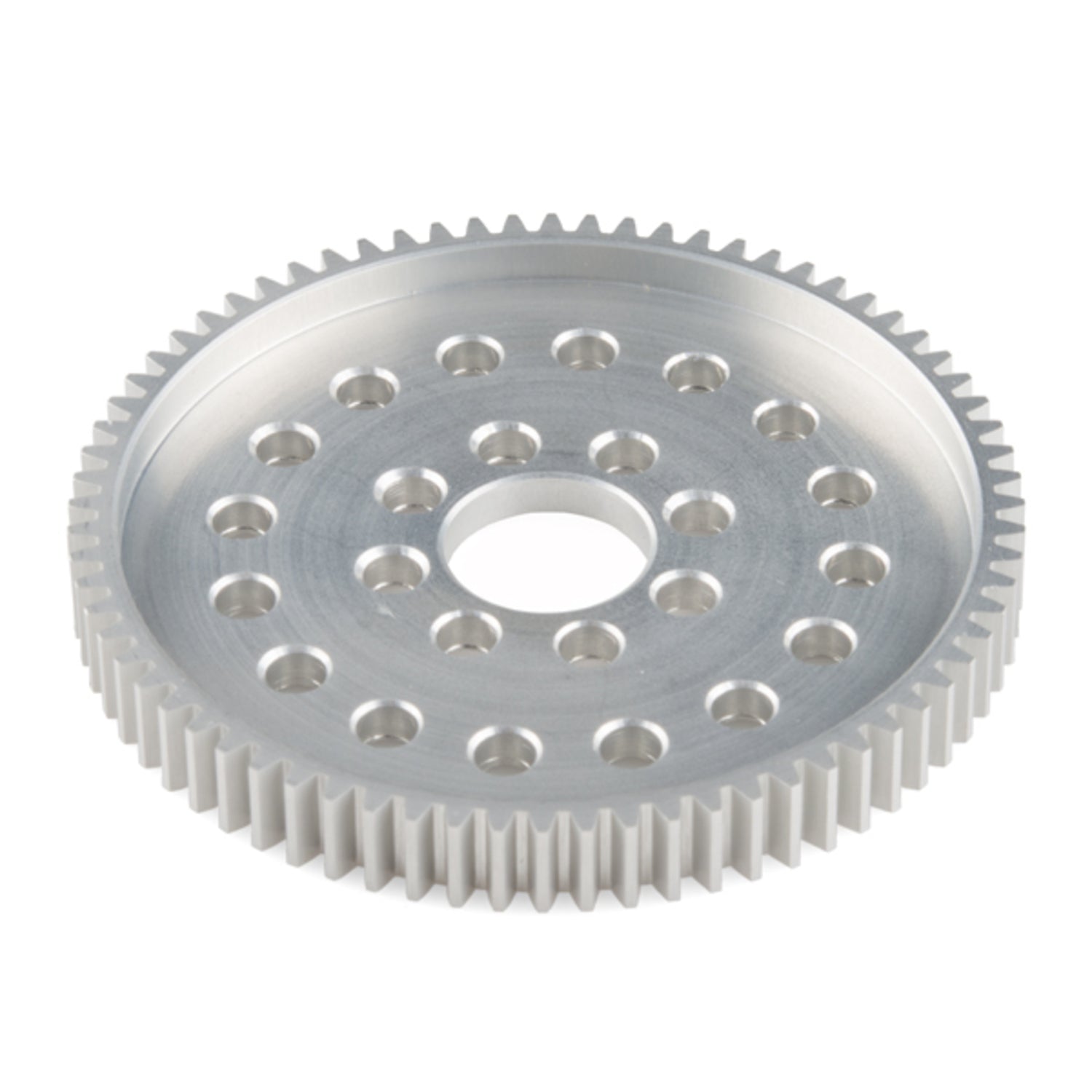

These hub - mountable aluminum gears are perfect for transferring motion from a motor or servo to a wheel or shaft. They have 72 teeth at a 32P gear pitch, an outer diameter of 2.312”, a 0.50” bore, and use the 0.77” and 1.5' hub pattern. Actobotics is a robotics building system featuring extruded aluminum channels, gears, precision shafts, and ball bearings. With two standardized hole patterns, most Actobotics components can be easily connected. This wide - ranging component set makes building complex electromechanical prototypes or final projects achievable.
**Dimensions:**
- Teeth: 72T at 32P
- OD: 2.312”
- Bore: 0.50”

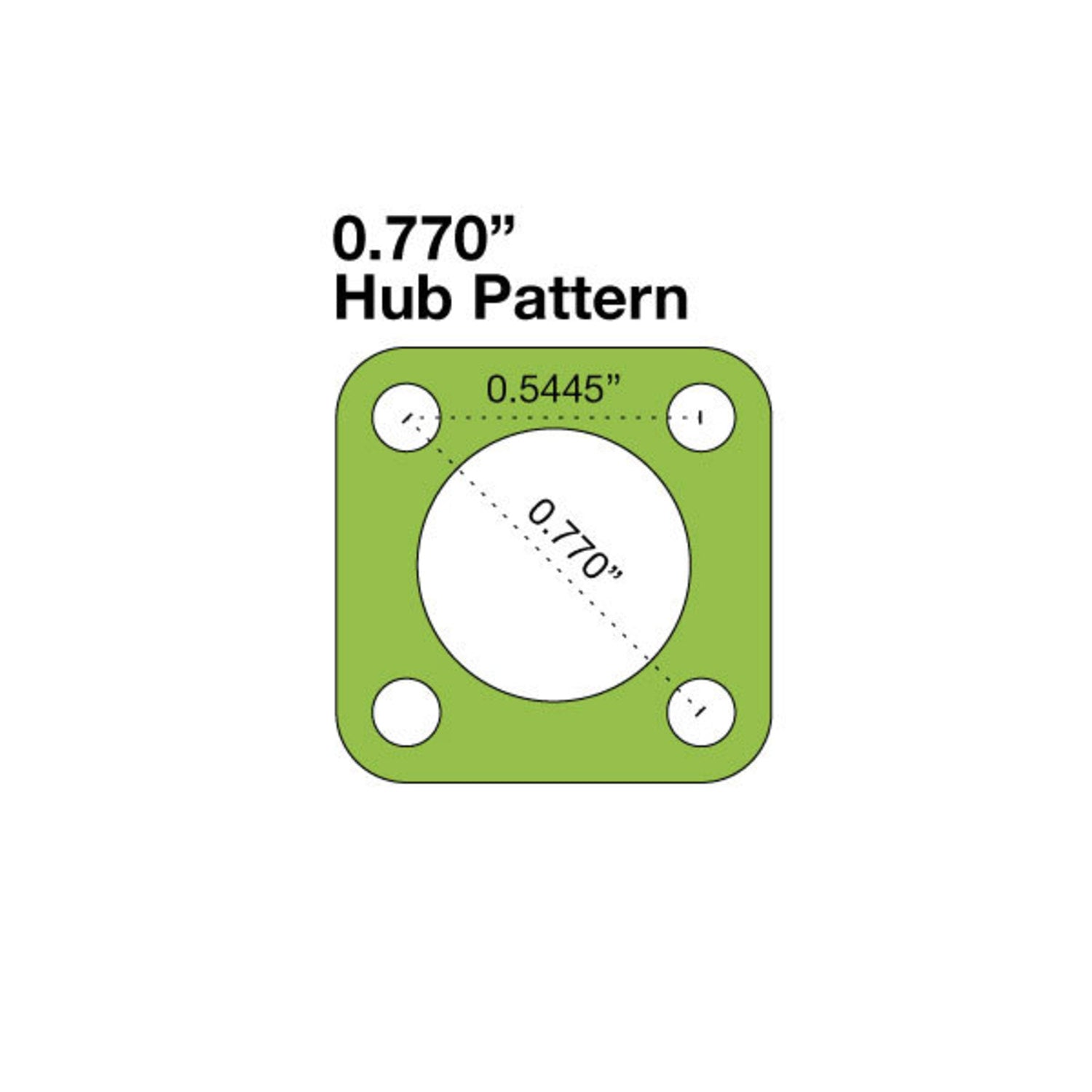

- Hub Pattern: 0.77”, 1.5'
**Documents:**
- SketchUp Part
- Product Page (615198)
Using these hub - mountable gears is easy. First, make sure your motor or servo and the wheel or shaft you want to connect are clean and free of debris. Then, align the gear's bore with the shaft. Use appropriate tools to securely mount the gear. When it comes to maintenance, regularly check for any signs of wear on the teeth. If you notice excessive wear, it's time to replace the gear. Also, keep the gear clean to ensure smooth operation. Be careful not to apply too much force when mounting or using the gear, as it could damage the teeth or the hub pattern. And always refer to the provided SketchUp Part and Product Page for more detailed information.
