Flexible LED Matrix - WS2812B (8x32 Pixel)

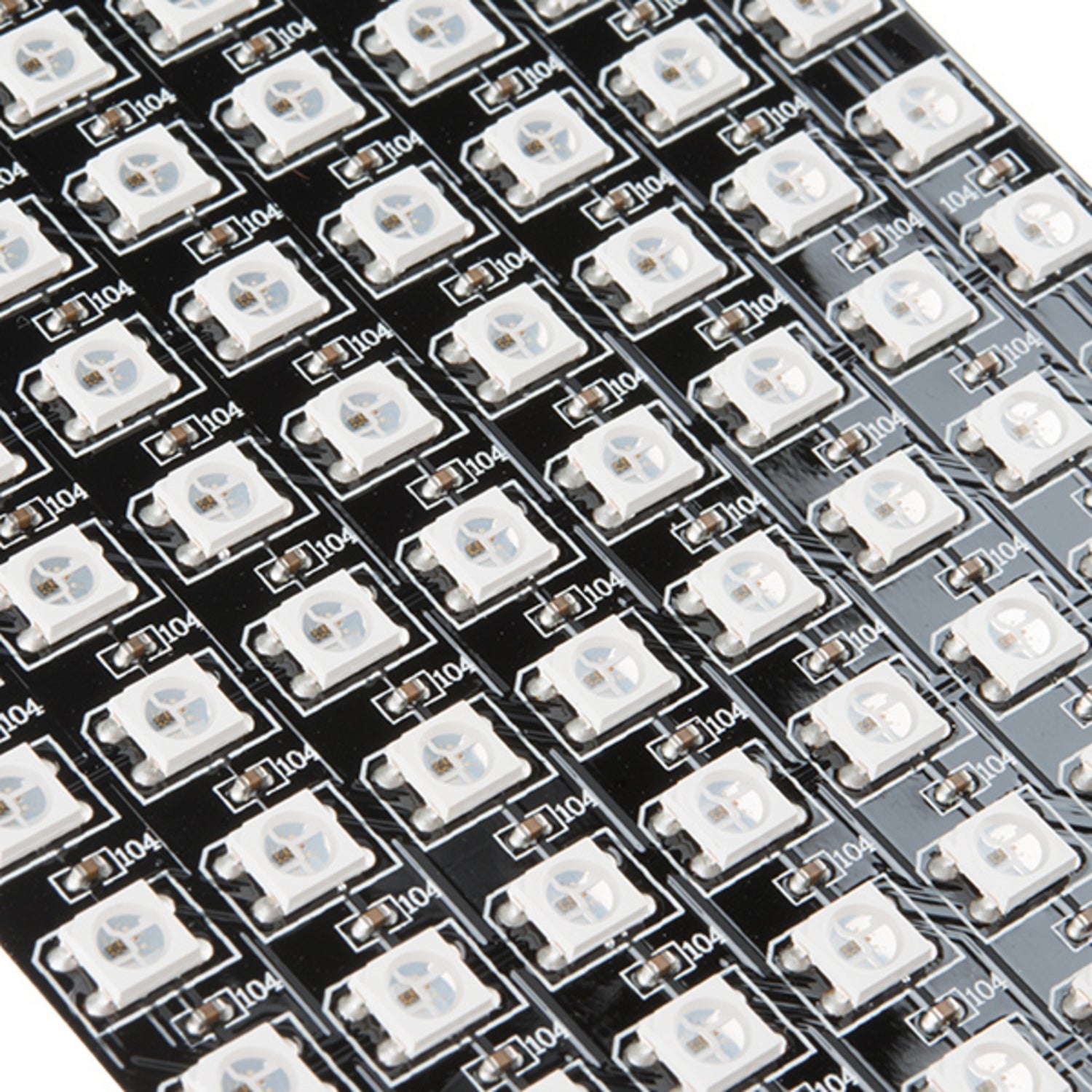

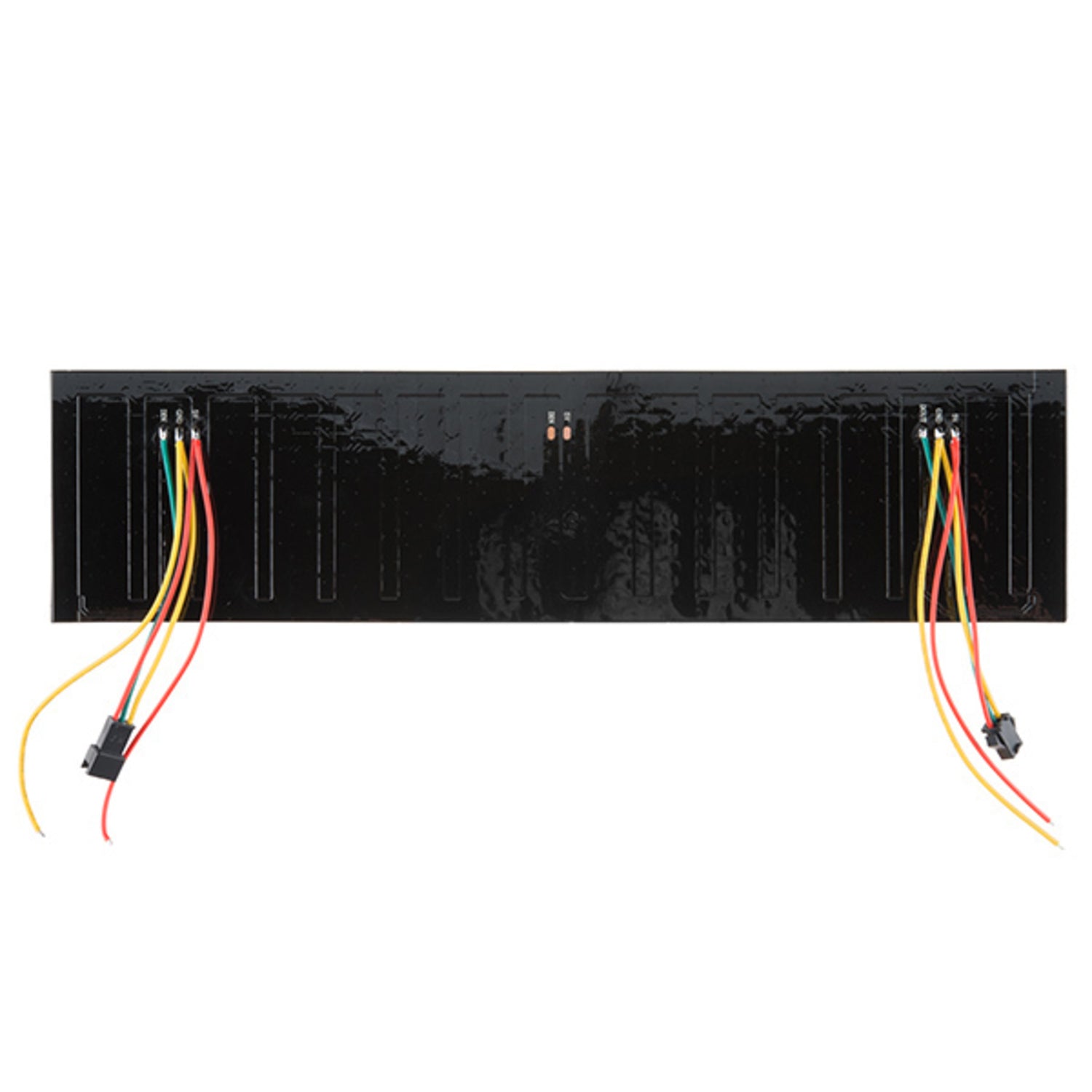

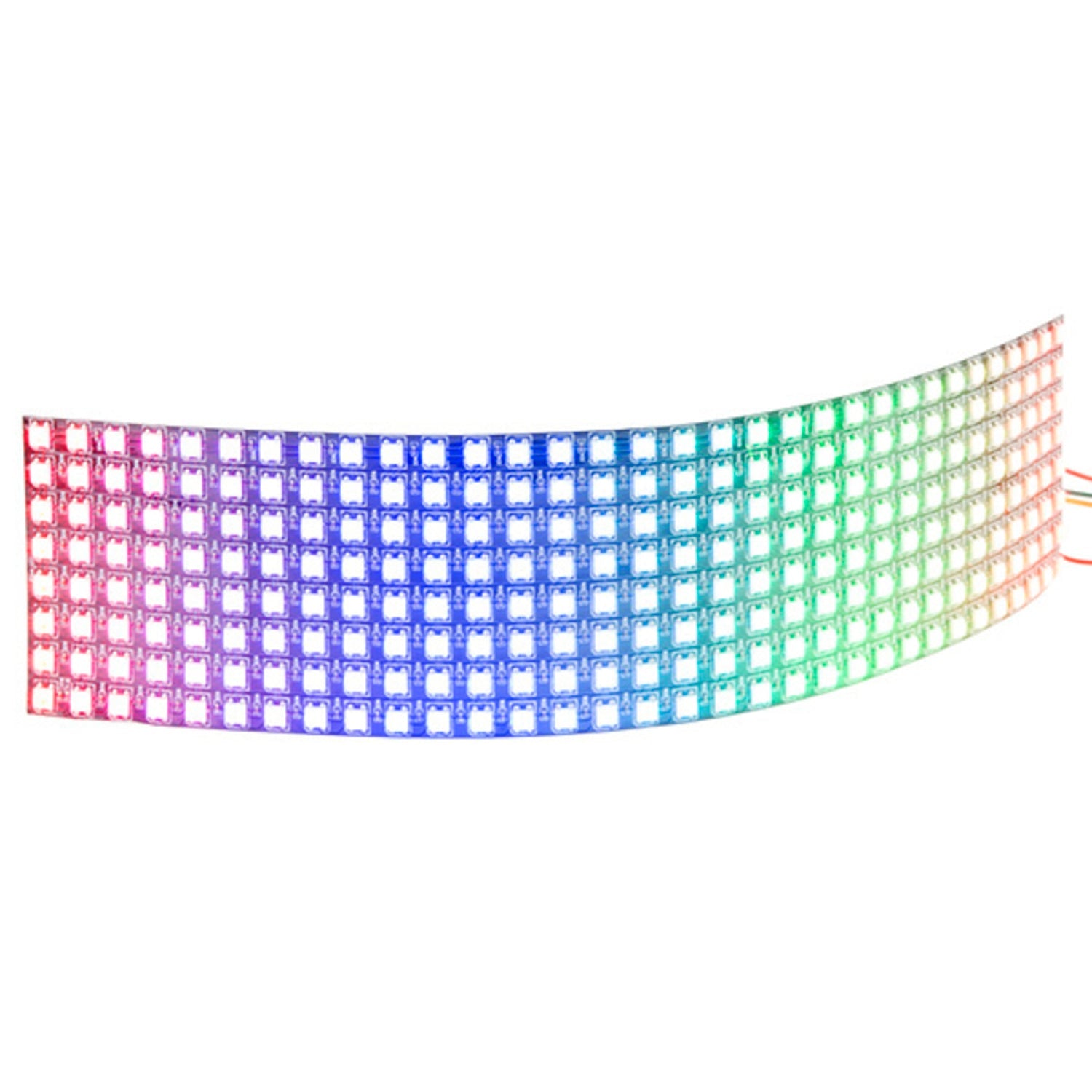

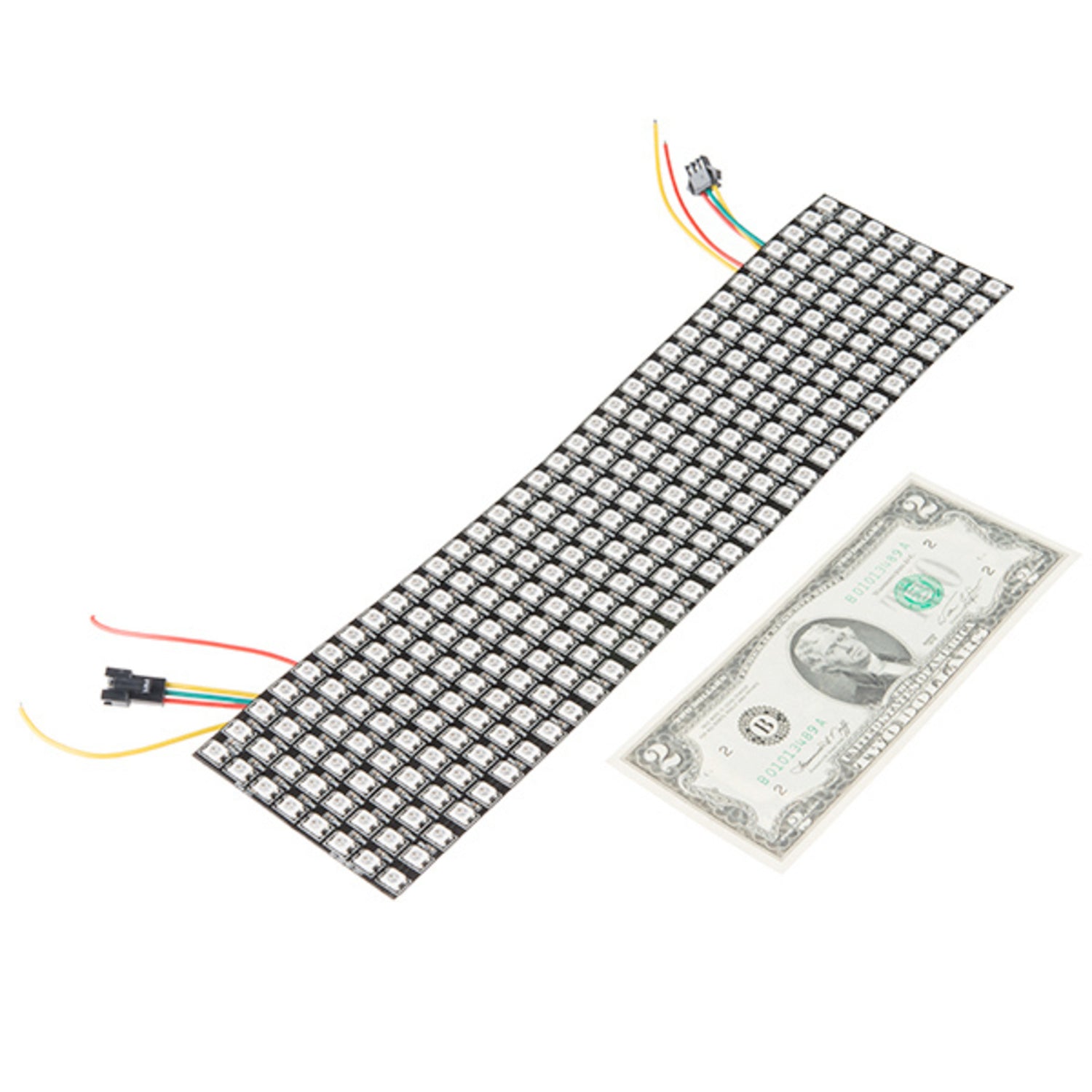

This large 8x32 pixel WS2812B flexible LED matrix is a fantastic choice for adding a stunning array of colors. With 256 individually addressable LEDs on a 320mm x 90mm flexible panel, you have full control over each light. Create amazing animations, fun games, or integrate it into cool e - textiles projects. Thanks to its flexible backing, it can be bent to fit almost any curved surface. These panels need a 5V low - voltage input and can draw up to 5A in most cases (though 15A when all LEDs are bright white is not recommended). Each matrix comes with two 3 - pin JST SM connectors and two sets of bare power cables for easy connections. However, be careful when bending. Repeated or over - bending can damage the panel. Don't fold it in half! Key features include 256 WS2812B LEDs, a 5V supply voltage, a 140 - degree beam angle, and a max watt consumption of 51W per 60 LEDs. You can also access the datasheet and matrix library for more information.

Using this LED matrix is easy. First, connect it to a 5V power source with enough current, usually up to 5A. You can use the two 3 - pin JST SM connectors and the bare power cables for connection. Once it's powered, you can start creating animations, games, or adding it to your e - textiles projects. When bending it to fit a curved surface, be gentle. Rough handling can damage the LED traces or the panel itself. Avoid folding it in half or over - bending it repeatedly. For maintenance, keep it clean and dry. If there are any issues, refer to the datasheet or matrix library for help.
