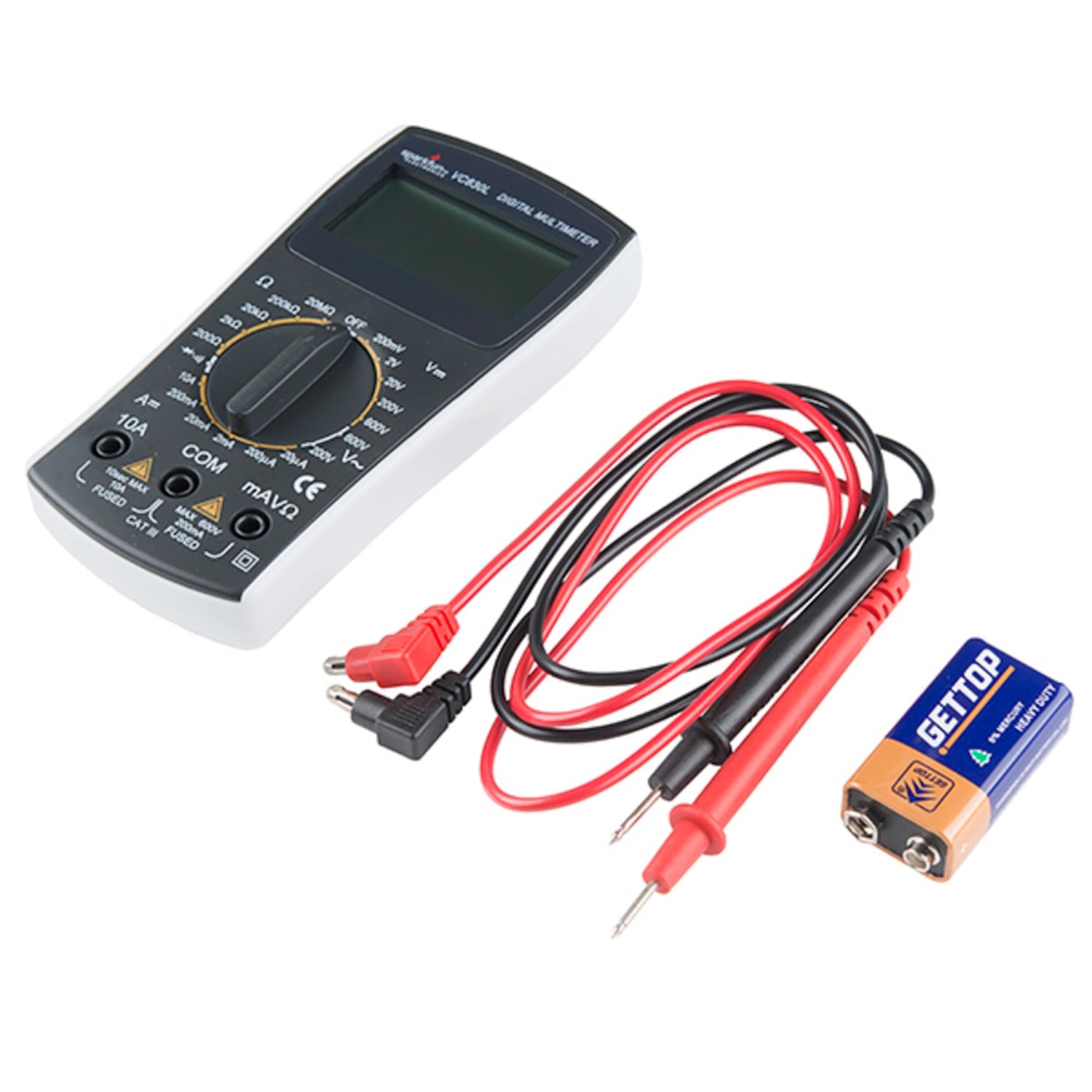

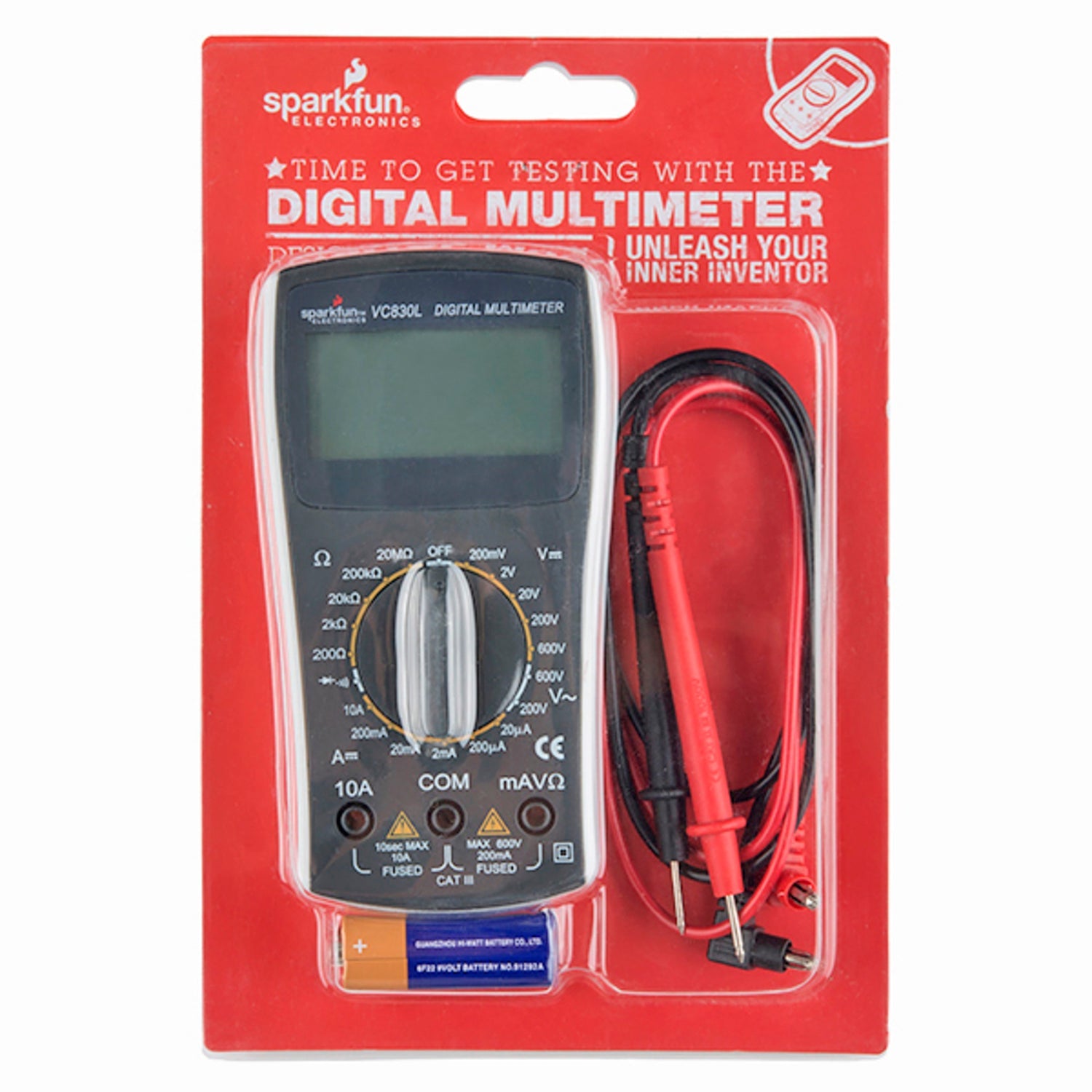

The SparkFun Digital Multimeter is a must - have for every electronics enthusiast. Unlike ordinary multimeters, it comes with a loud continuity sound, current/voltage sensing capabilities, and high - quality probes. You can measure DC and AC voltage, DC current, resistance, check continuity, and test diodes. We've chosen a neutral gray color, getting rid of bright, flashy colors. This multimeter is perfect for students on a budget who need a reliable, low - cost option. It doesn't auto - power off, auto - range, or measure frequency. But it can measure DC Voltage from 200mV to 600V, AC Voltage from 200V to 600V, DC Current from 200uA to 10A, and Resistance from 0 to 20M Ohm. We tested the battery life, and it lasted over 170 hours (7 days) with the included 9V battery. What's in the box? 1 Digital Multimeter, 1 9V Battery, and 2 Testing Probes. Key features include various voltage and current ranges, resistance measurement, continuity buzzer, diode test, a max display of 1999, and it's not yellow! Also, there are a multimeter tutorial and a product video available.
Using the SparkFun Digital Multimeter is easy. First, make sure the 9V battery is properly installed. To measure voltage, select the appropriate DC or AC voltage range on the dial and connect the probes to the circuit. For current measurement, break the circuit and connect the probes in series. When checking resistance, simply touch the probes to the two ends of the component. The continuity buzzer will beep when there's a good connection. For diode testing, connect the probes to the diode according to the correct polarity. As for precautions, don't try to measure frequencies as this multimeter can't do that. Also, since it doesn't auto - power off, remember to turn it off after use to save battery. When it comes to maintenance, keep the probes clean and dry. If the display becomes dim, it's time to replace the 9V battery. You can refer to the multimeter tutorial and product video for more detailed guidance.
