Description

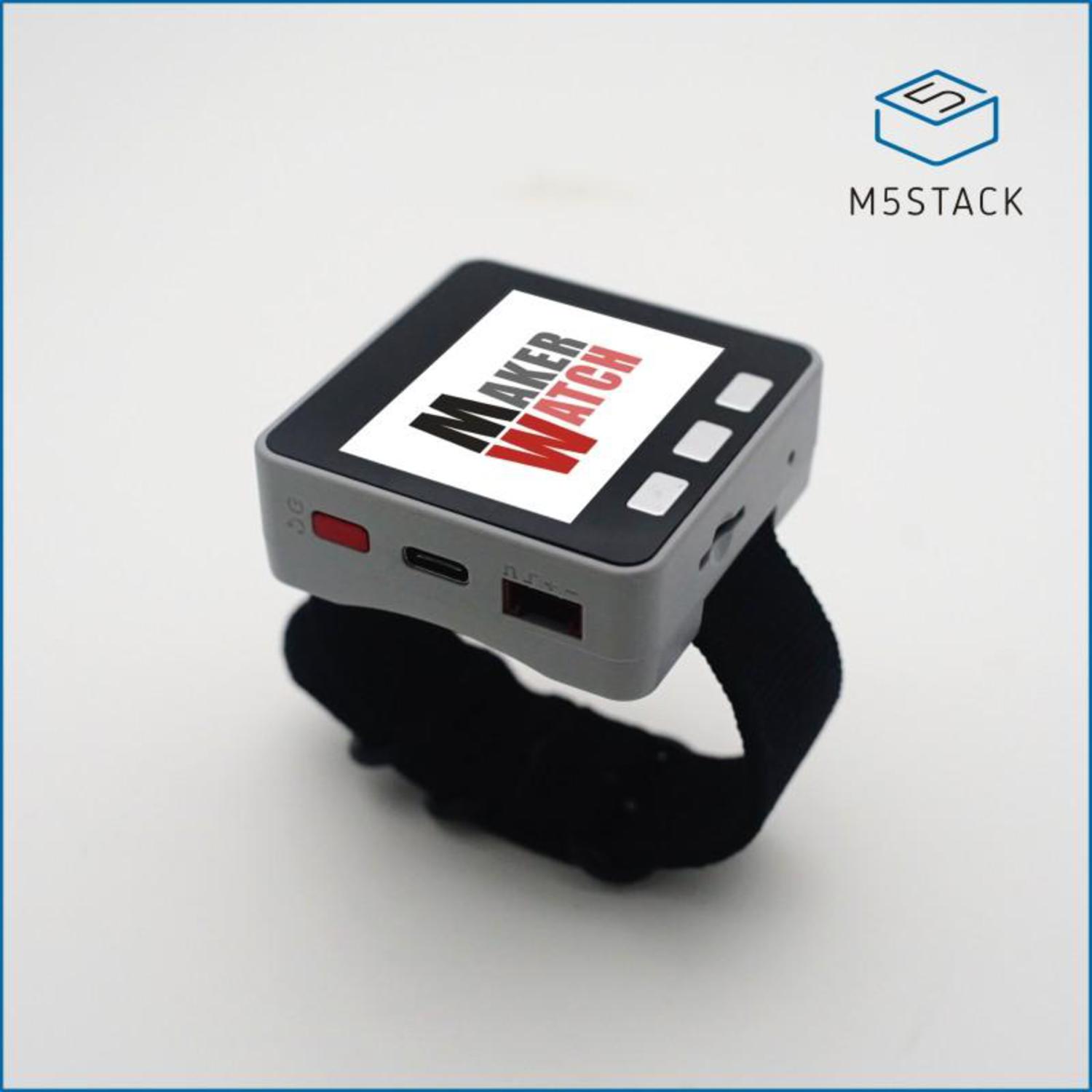

The M5Core watch set is not only a powerful development hardware but also looks very stylish, making it possible to wear it as a smart watch. This kit, designed for the M5Core series, comes with a cool strap and a 700mAh lithium battery. The battery ensures sufficient and reliable endurance during use. Note: This kit does not include the core.
Product Features
Weight and Size
- Item size: Base: 54.3mm x 54.3mm x 7mm; Strap: 260mm x 22mm (total length after assembly)
- Item weight: Base: 25g; Strap: 18g
- Product size: 127mm x 69mm x 23mm
- Product weight: 87g
Package Includes

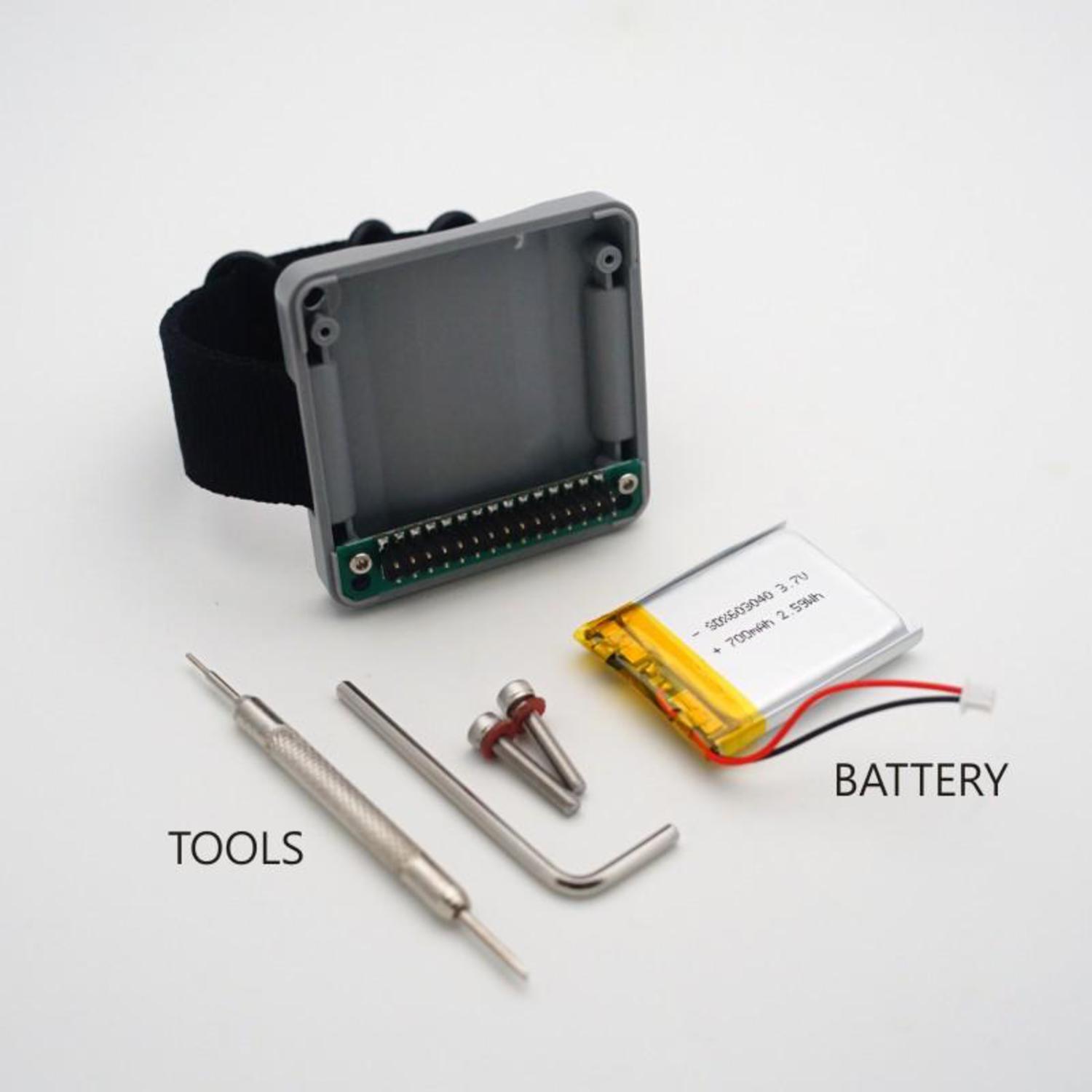

- 1x strap base
- 1x 700mAh battery
- 2x telescopic card pin
- 2x M3x15 screws
- 1x hex wrench
- 1x disassemble screwdriver
Application
Assembly step
Assembling the strap: Insert the matching telescopic card into the strap fixing hole. There are two small holes on both sides of the watch base. Put one side of the telescopic card pin into the hole and press the other side with your finger. Do the same for the other strap.
Install the battery: Plug the battery lead wire into the corresponding interface on the host circuit board. After plugging in, adjust the battery position to make it easier to install the watch base.
Installation base: According to the position of the BUS bus on the main unit, vertically insert the watch base into the main unit and lock it with the matching screws to finish the assembly.
Using this M5Core watch kit is easy. First, assemble the strap by inserting the telescopic card pins into the holes on the watch base. Then, install the 700mAh battery by plugging its lead wire into the right interface on the host circuit board and adjusting its position. Finally, insert the watch base into the main unit and lock it with the screws. Remember, this kit doesn't come with the core. When handling the battery, be careful not to damage it. For maintenance, keep the kit in a dry and clean place. If there are any loose parts, use the included tools to tighten them.
