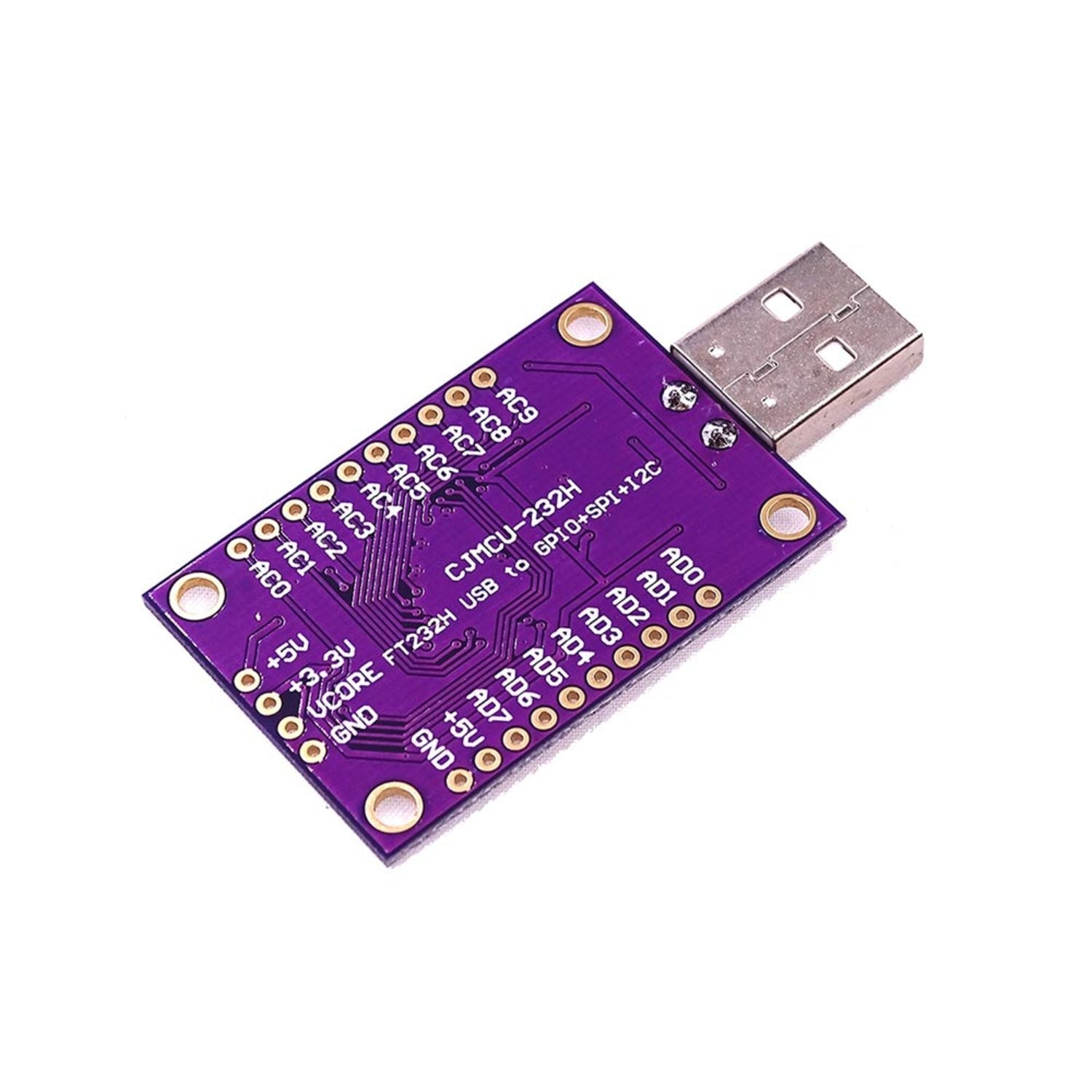

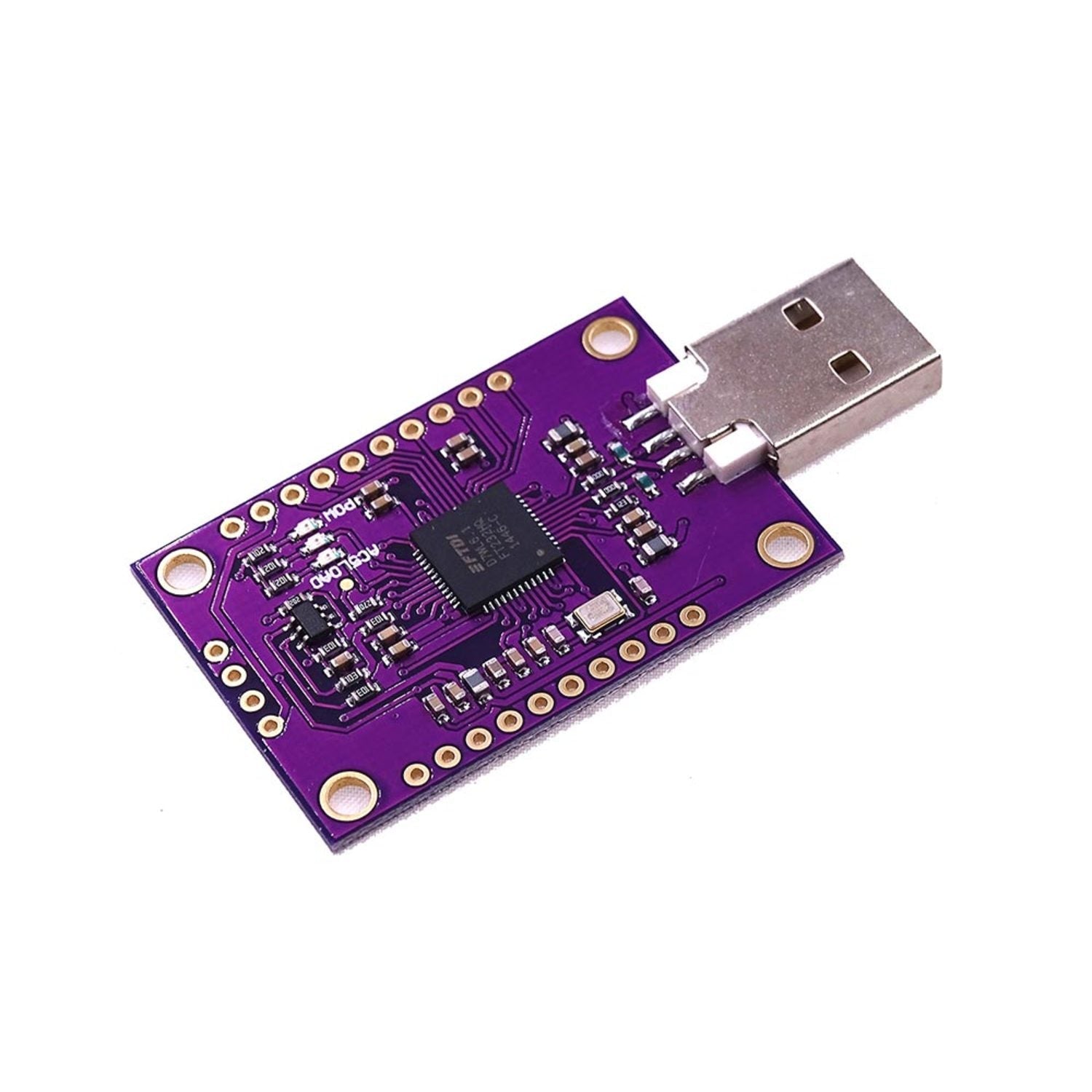

CJMCU FT232H High Speed Multifunctional USB to JTAG UART/FIFO SPI/I2C Module For Arduino

This amazing module is a high-speed and multifunctional external USB device. It can convert USB to UART (RS232, RS422 or RS485), FIFO, FT1248, JTAG, SPI, I2C and more. The FT232H chip on it is a single-channel USB to serial/parallel ports with various configurations. It handles the entire USB protocol on the chip, so there's no need for USB-specific firmware programming. With this chip, you can enjoy both USB 2.0 Hi-Speed and Full-Speed. It serves as an external memory and a converter for Arduino, offering high speed and multiple functions. Features include converting USB to various fast serial interfaces, simplifying CPU interface design with its CPU-style FIFO interface mode, adjustable receive buffer timeout, and compatibility with both Hi-speed and full-speed. Specifications: Hi-speed to UART/FIFO IC is 480Mb/s, full speed is 12Mbits/Second, UART transfer data rate is 12Mbaud, USB to asynchronous 245 FIFO mode transfer data rate is 8 Mbyte/Sec, and USB to synchronous 245 parallel FIFO mode transfer rate is 40 Mbytes/Sec.

Using this module is quite easy. First, connect it to your Arduino board. Once connected, you can use it to convert USB to different serial interfaces as needed. When using, make sure your device supports the speeds mentioned in the specifications. Avoid exposing the module to extreme temperatures or humidity. To maintain it, keep it clean and free from dust. If you're not using it for a long time, store it in a dry place. That's all you need to know to make the most of this great module.
